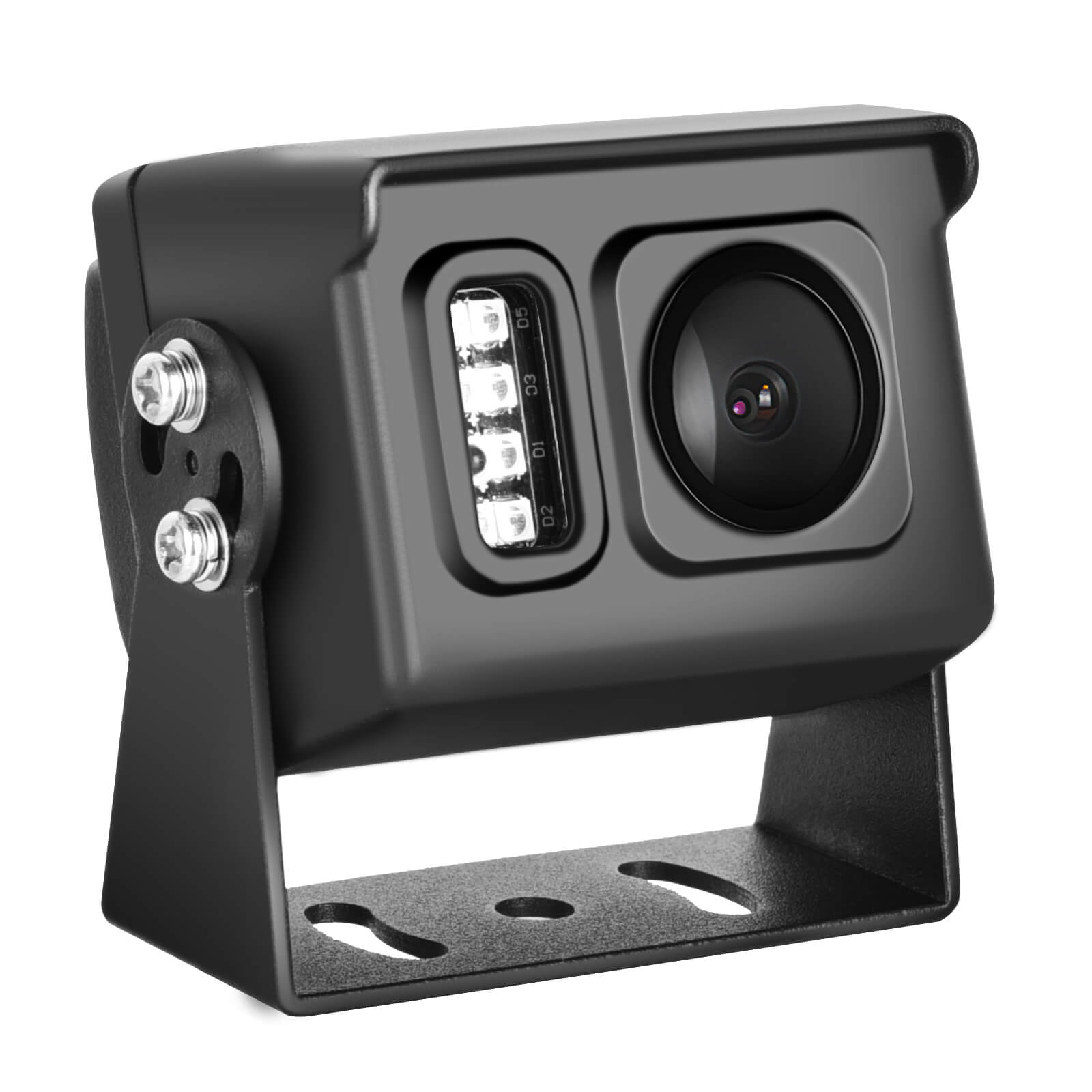

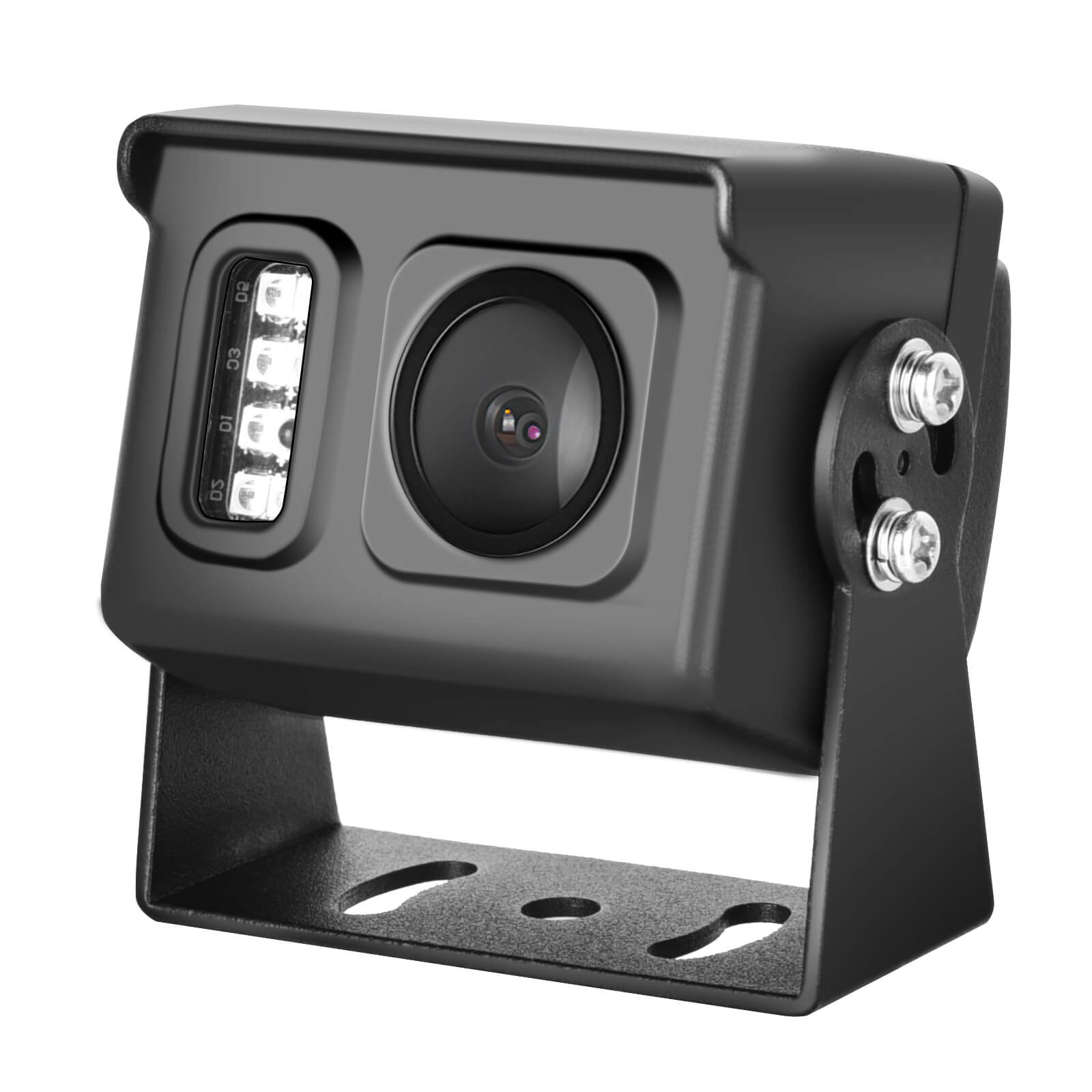

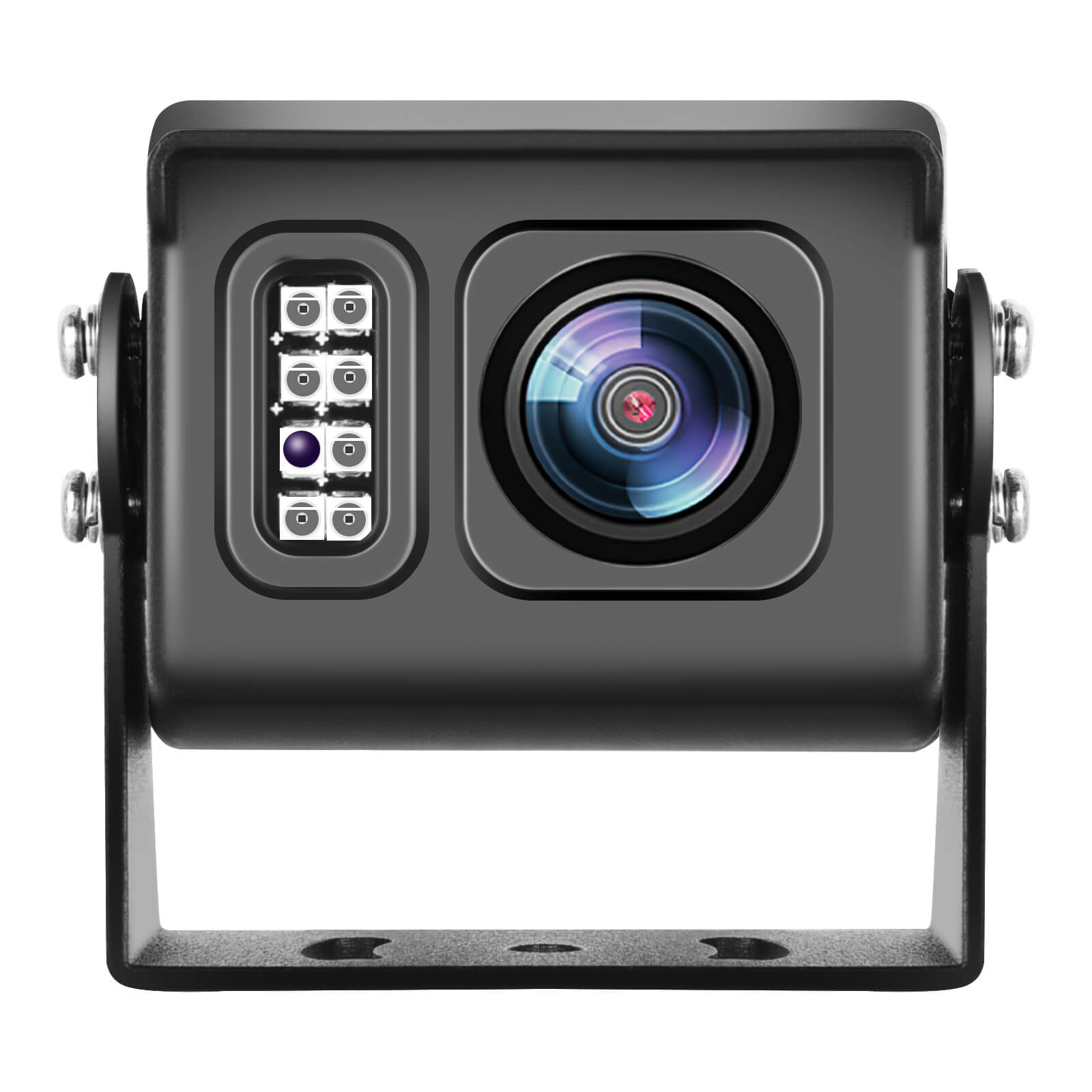

1080P AHD Rear View Camera with Infrared Night Vision and IP69 Waterproof Housing – CVBS Backup Camera for Truck RV Bus Lorry

This high-definition rear view camera provides superior reversing assistance for large vehicles, delivering enhanced safety, clear visuals, and reliable performance in all conditions. Designed for trucks, RVs, buses, lorries, and vans, it features a 1920×1080 AHD resolution, IP69 waterproof rating, infrared night vision, and a horizontal viewing angle of 110°.

Equipped with a 1/3″ CMOS sensor and 18 built-in IR LEDs, the camera automatically switches to infrared mode at night to ensure sharp black-and-white images in low light. The rugged housing protects against rain, snow, and dust, while the 4-core aviation connector and double-shielded copper AV cable (not included) ensure strong signal transmission.

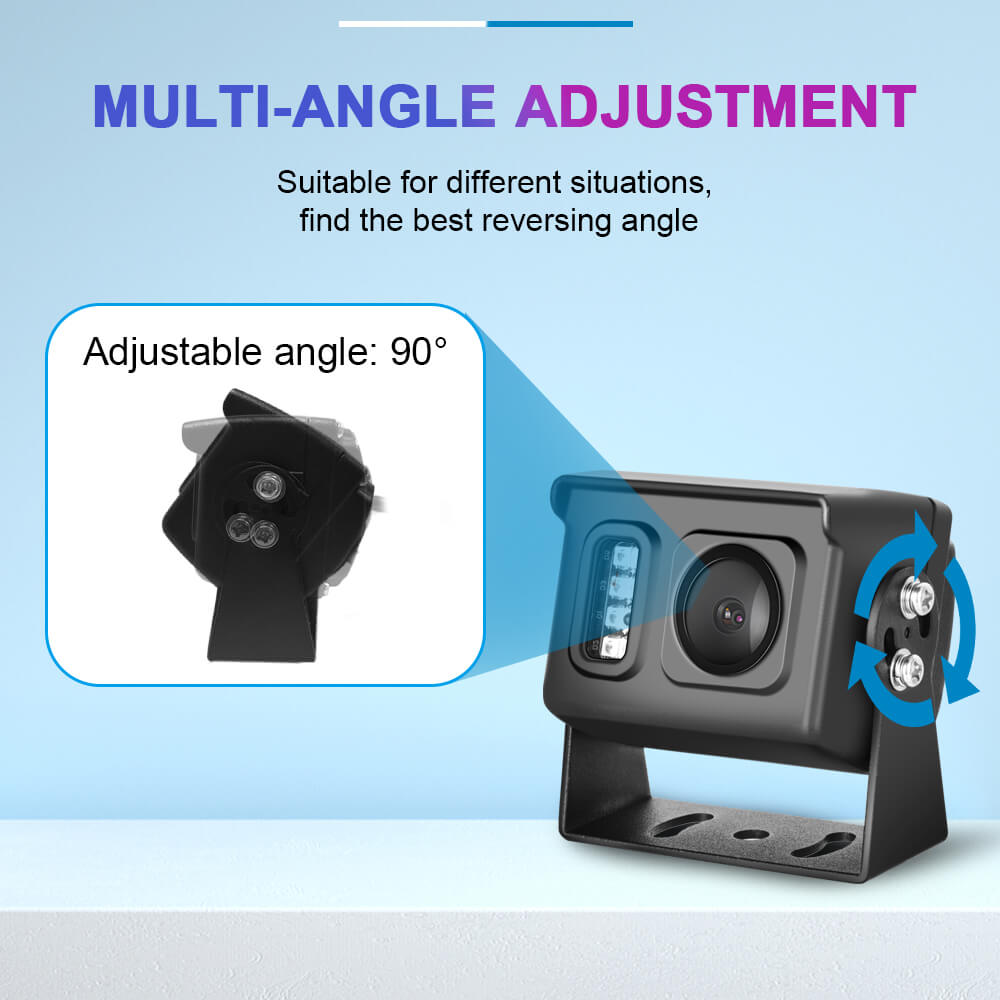

The camera supports a multi-angle adjustment installation method, allowing it to be mounted and positioned according to your vehicle’s setup for optimal viewing coverage.

Note: 10-meter and 15-meter ultra-long cables are not included in the product package but are available as optional accessories.

Key Features

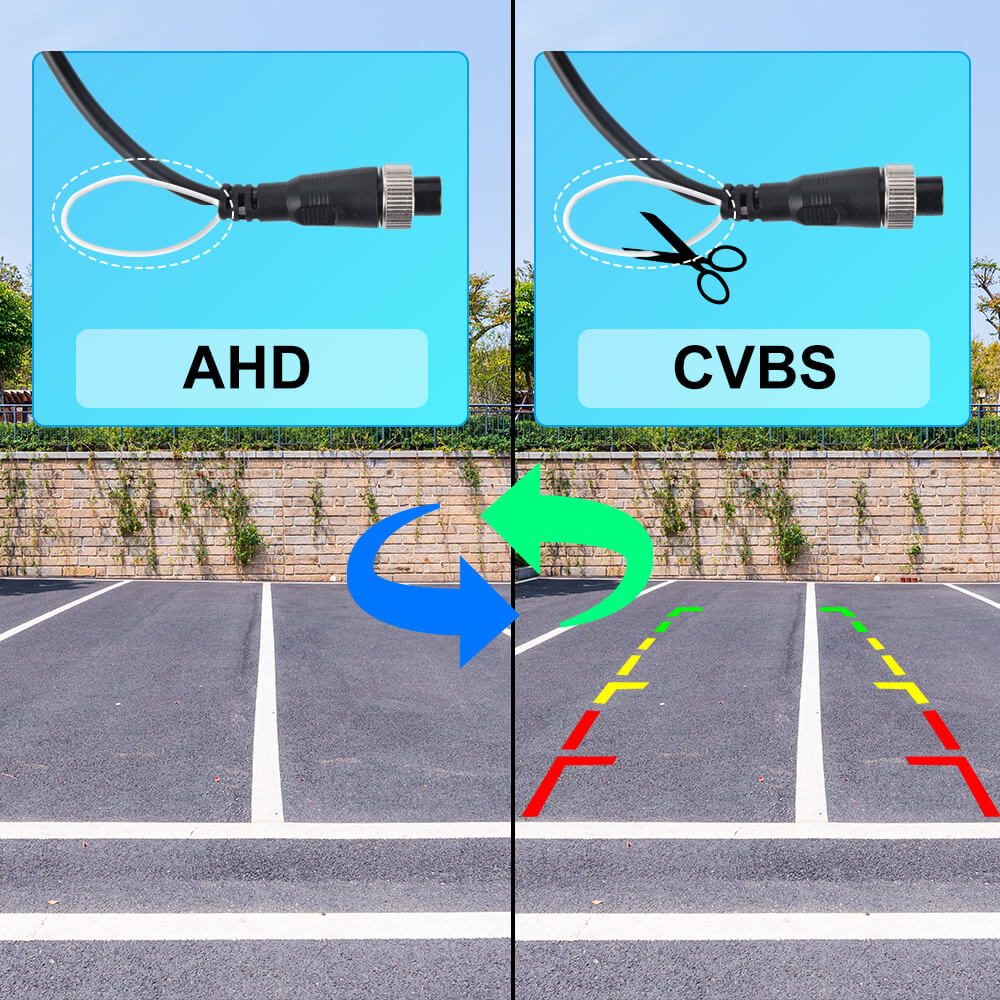

• AHD + CVBS Dual Resolution Output: Switchable formats for compatibility with a variety of monitors.

• Infrared Night Vision: 18 IR LEDs automatically activate in darkness for sharp night-time clarity.

• Wide-Angle View: 110° horizontal angle with bird’s eye perspective helps eliminate blind spots.

• Multi-Angle Adjustable Mounting: Flexible installation to fit different vehicle types and needs.

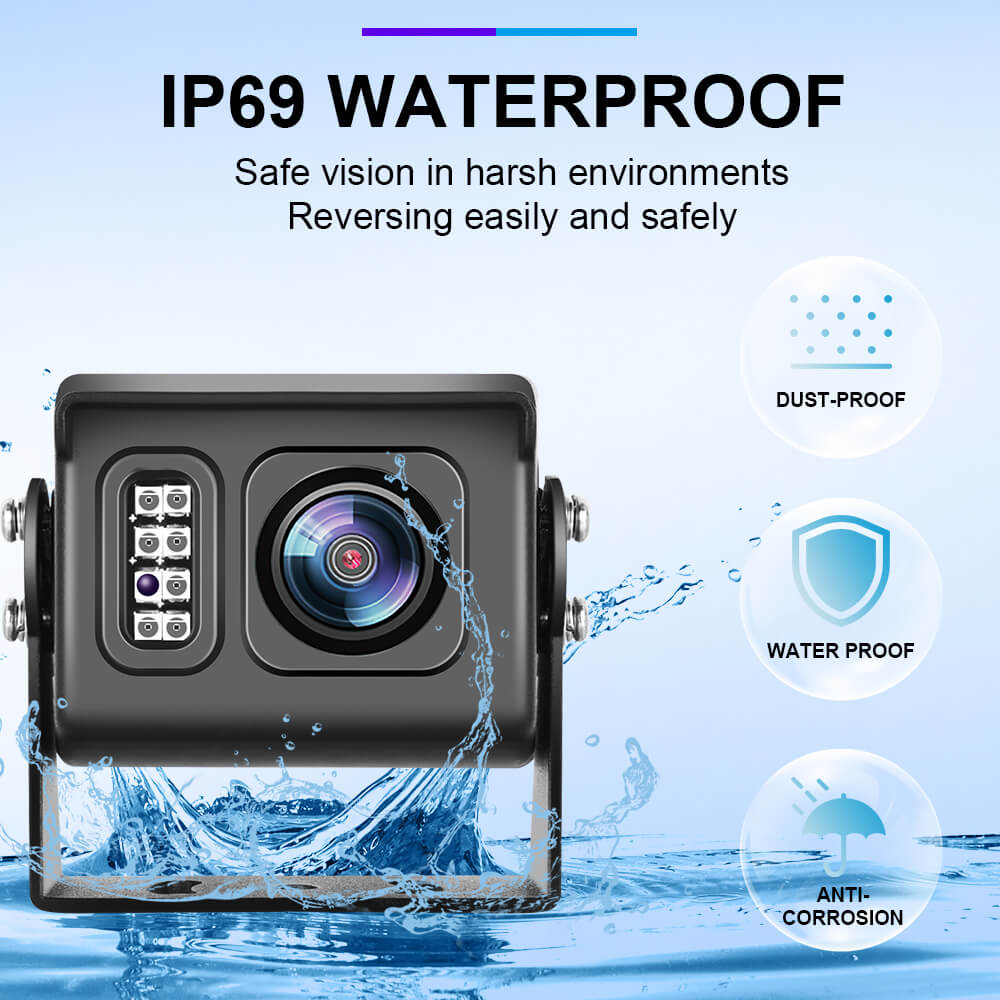

• IP69 Waterproof Rating: Fully protected against rain, snow, and dust for long-term outdoor use.

• Shielded AV Cabling Support: Compatible with pure copper double-shielded aviation cables for stronger signal and minimal delay.

• Universal Fit: Ideal for RVs, lorries, buses, trucks, vans, and more using 12V DC systems.

• HD Image Quality: Delivers crisp visuals with a 1/3″ CMOS sensor, 480 TV lines, and bright color contrast.
• Strong Signal Transmission: Supports 4-core aviation interface and uses pure copper double-shielded AV wiring for clear and stable video feed.

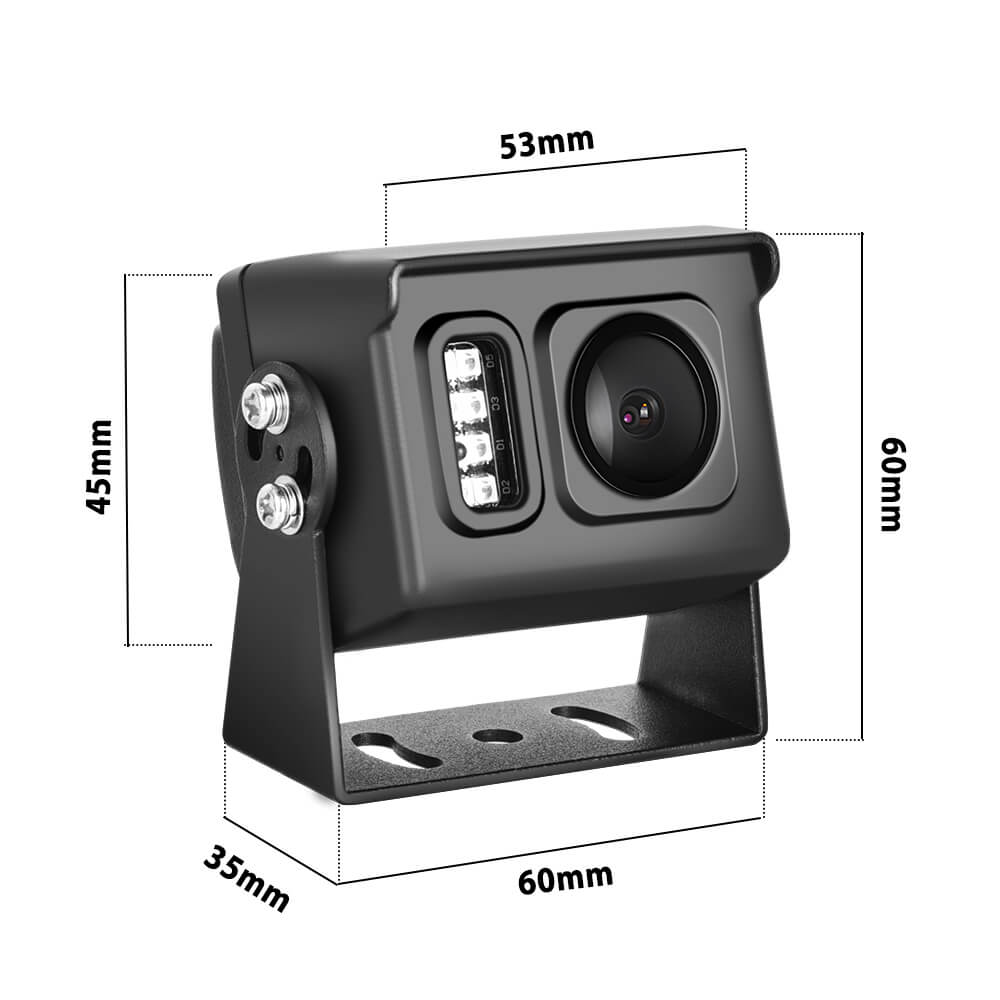

Technical Specifications

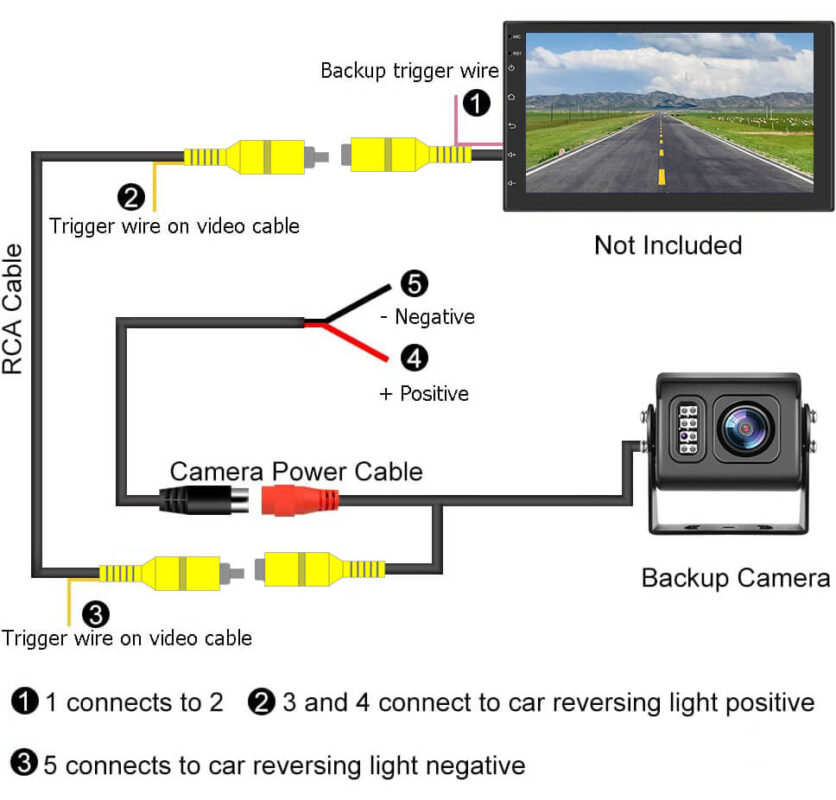

Easy Installation Overview

Installing this backup camera system is straightforward and user-friendly, designed to suit a wide range of large vehicles such as trucks, RVs, buses, and vans.

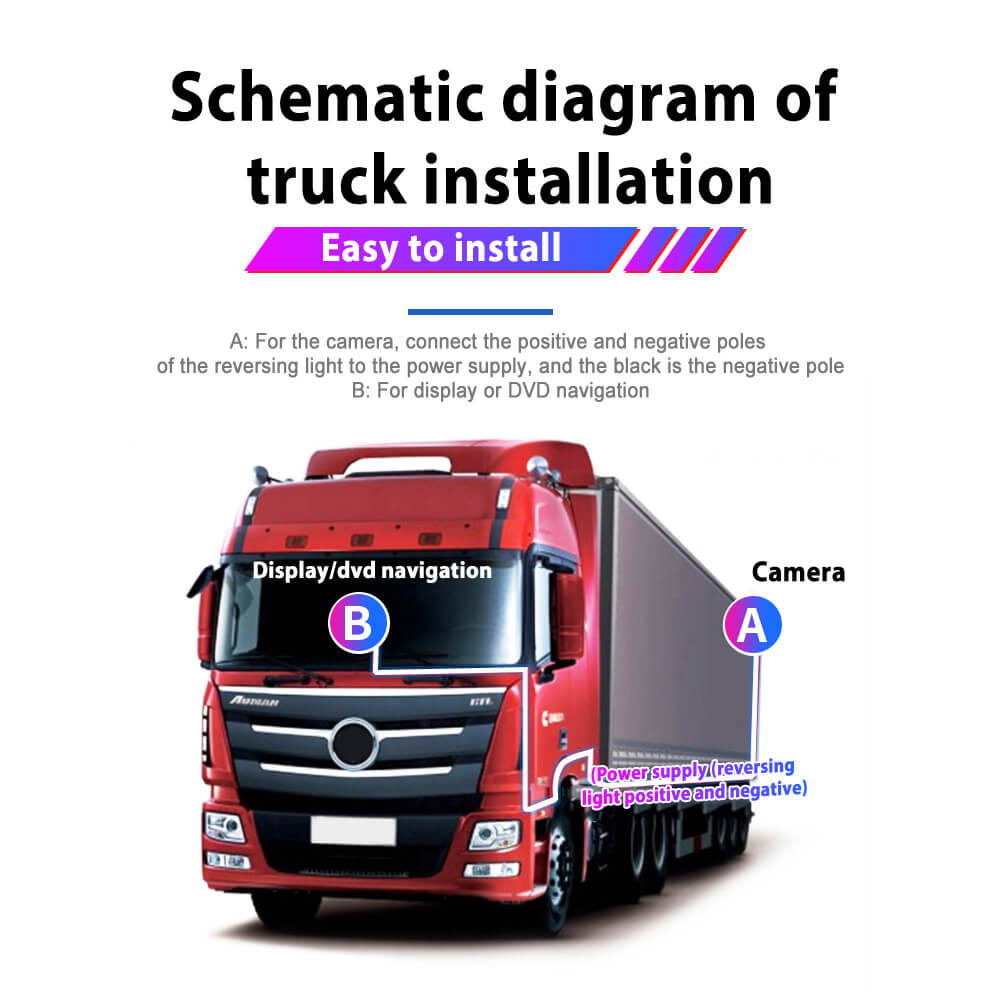

Camera Placement & Power Setup:

• Mount the camera at the rear of the vehicle near the reversing light (Position A).

• Connect the red wire to the positive terminal of the reversing light.

• Connect the black wire to the negative terminal (ground) of the reversing light.

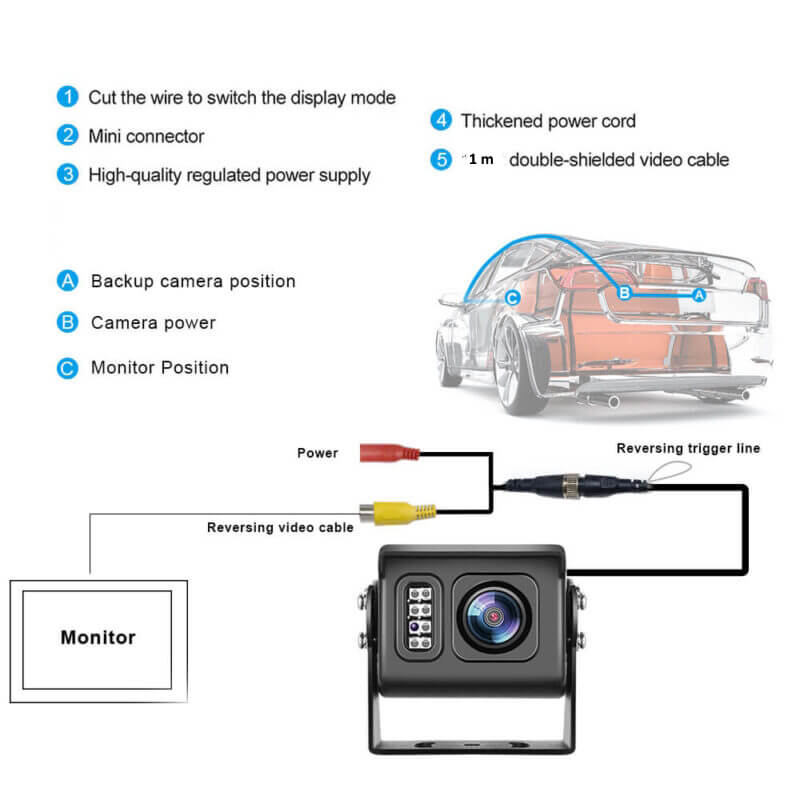

Video & Power Cable Routing:

• Use the included 1m double-shielded AV cable to run video and power from the camera to the monitor at the front of the vehicle.

• The double-shielded copper cable ensures stable signal transmission with no interference or signal loss over long distances.

Monitor Connection:

• At the front (Position B), connect the video cable to your display or DVD navigation system.

• Power the monitor using a 12V DC source. If your monitor supports it, use the backup trigger wire to enable automatic switching when reversing.

Trigger Line Setup (Optional):

• For automatic display when reversing, connect the trigger wire on the video cable to the reverse signal wire of the car (matching positive and negative).

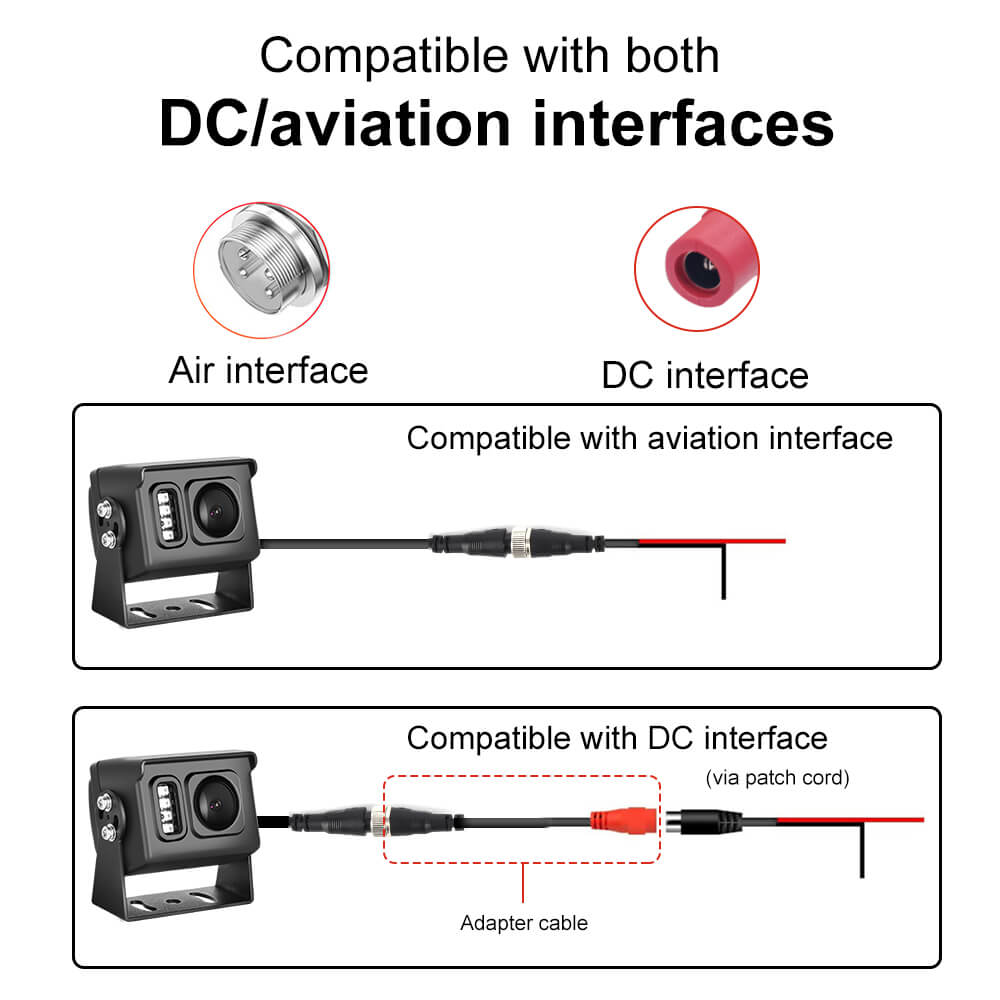

Flexible Compatibility:

• The camera supports both aviation and DC power interfaces, making it compatible with a wide range of systems.

• Comes with an adapter cable for seamless integration with your chosen monitor type.

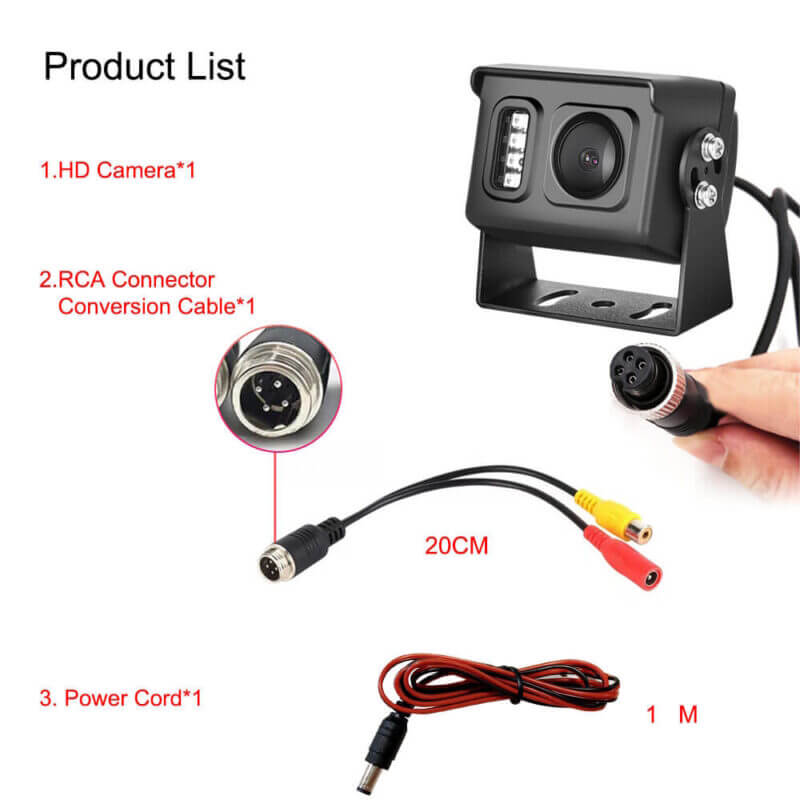

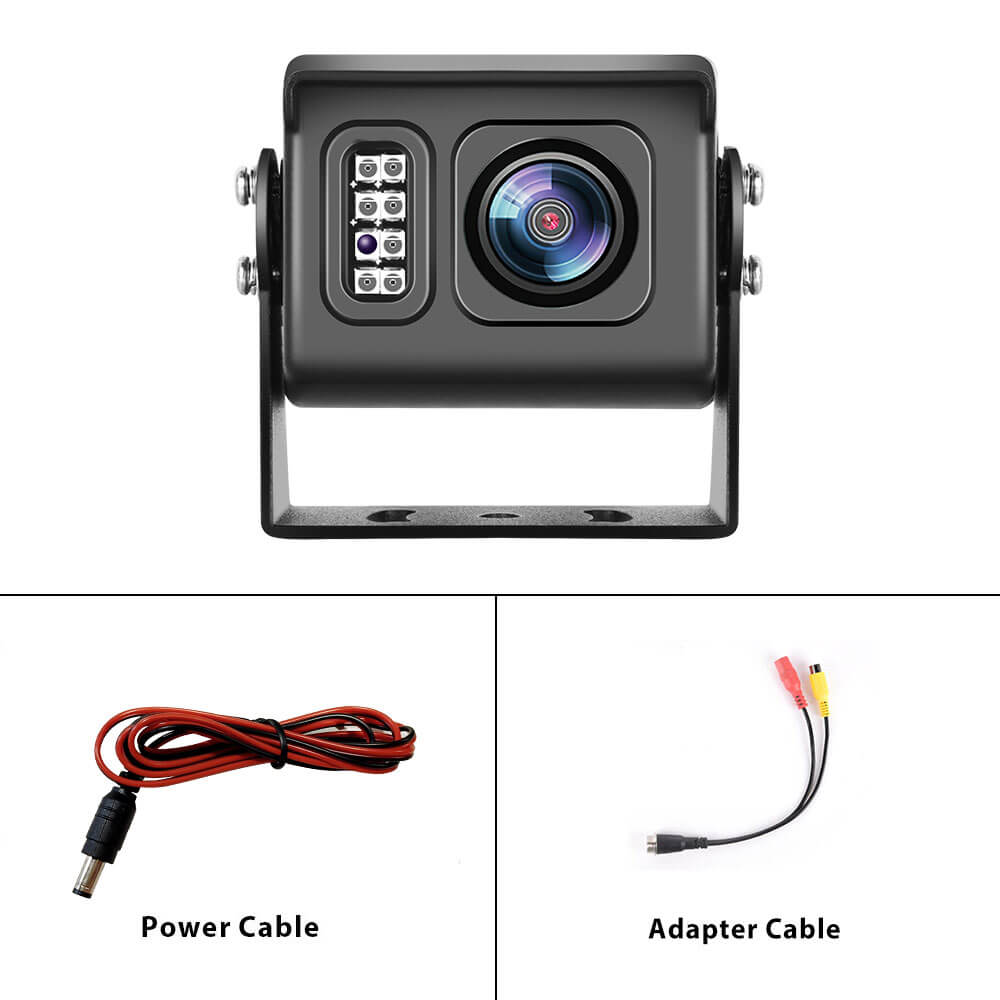

Package Contents

• 1 × Reversing Camera

• 1 × Power Cable

• 1 × Adapter Cable

Note: 10-meter and 15-meter ultra-long cables are not included in the product package.

This backup camera system is the ideal solution for large vehicles needing dependable rear visibility, even in the toughest weather or lighting conditions. With adjustable installation angles and upgrade options for ultra-long AV cables, it offers both flexibility and reliability for everyday use.
