7″ HD Wireless Backup Kit | IPS AHD Monitor DVR | 4 Cameras | Split-Screen | 100m

The 7″ IPS AHD wireless reversing kit with 4 cameras delivers complete visibility for larger vehicles. The bright HD 1080P monitor supports split-screen viewing of up to four angles at once, with built-in DVR recording. With ~100m (≈320ft) wireless range, IP68 durability, and infrared night vision, it’s the ultimate multi-camera reversing solution for trucks, buses, RVs, and fleets.

Key Features

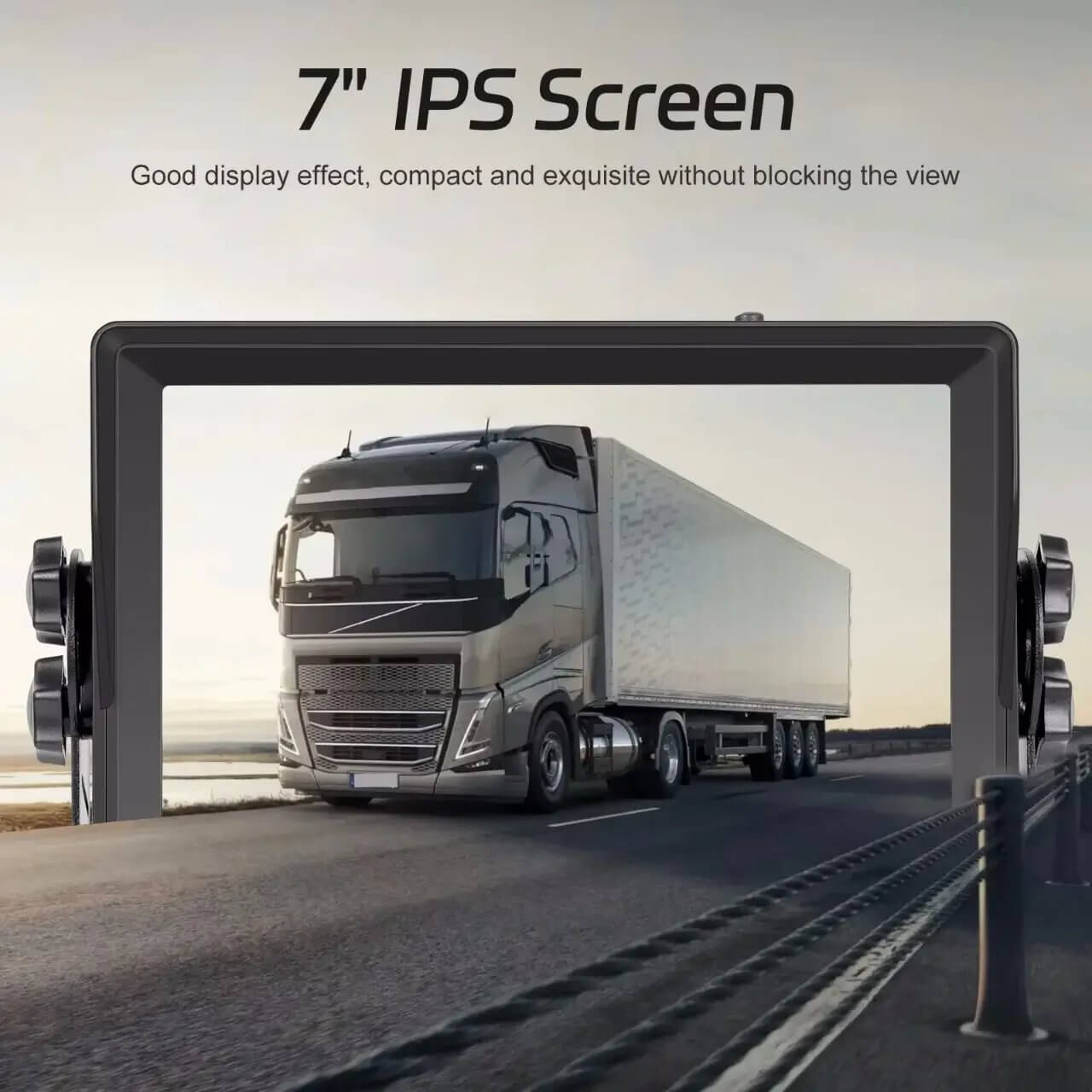

• 7″ IPS AHD 1080P Monitor – Wide viewing angles with crisp detail

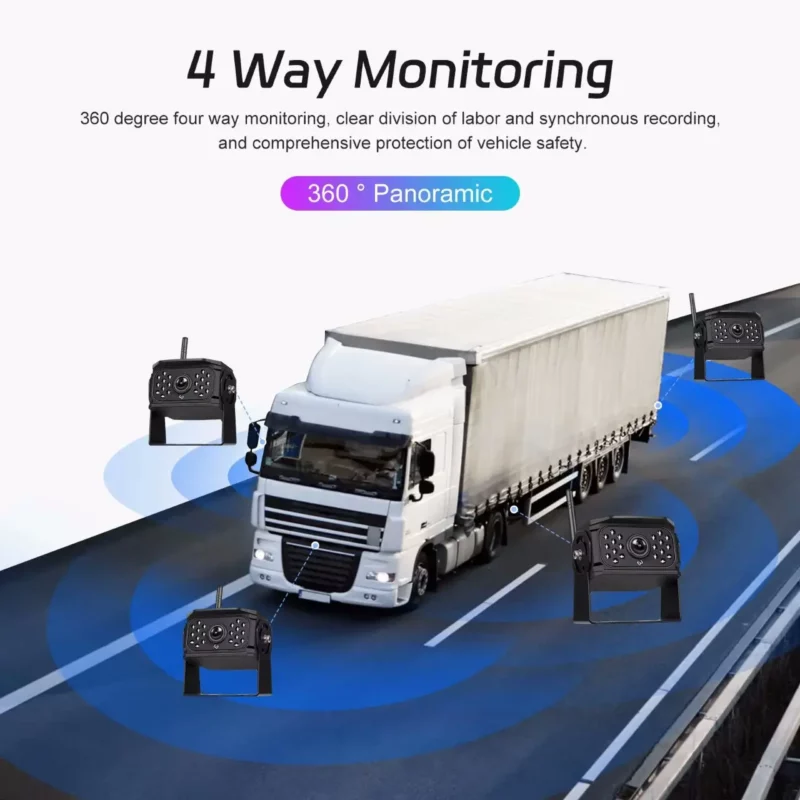

• Includes 4 Wireless Cameras – Cover front, rear, and sides

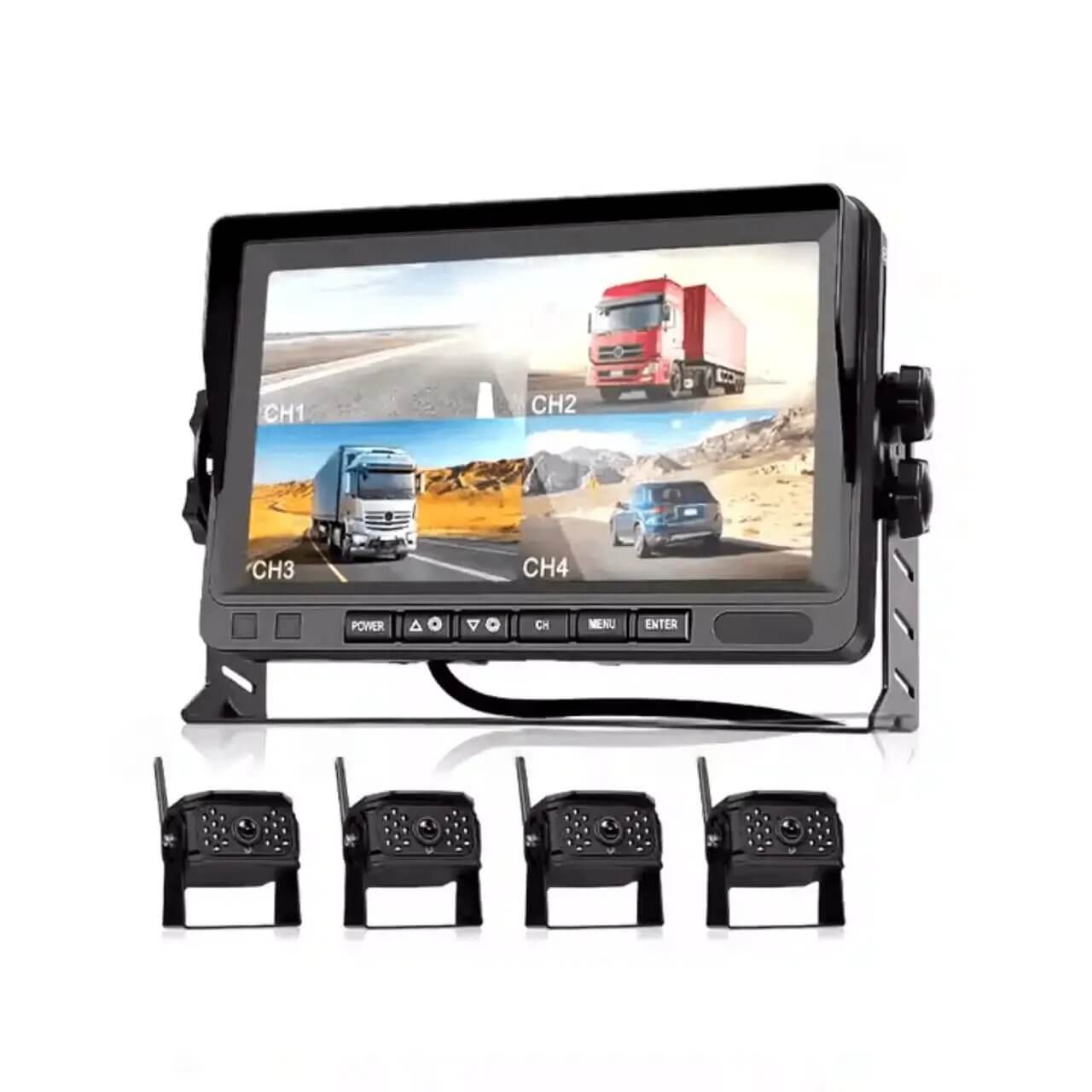

• Split-Screen Display – Choose single, dual, triple, or quad view

• Long-Range Wireless Signal – Stable video up to ~100m (≈320ft)

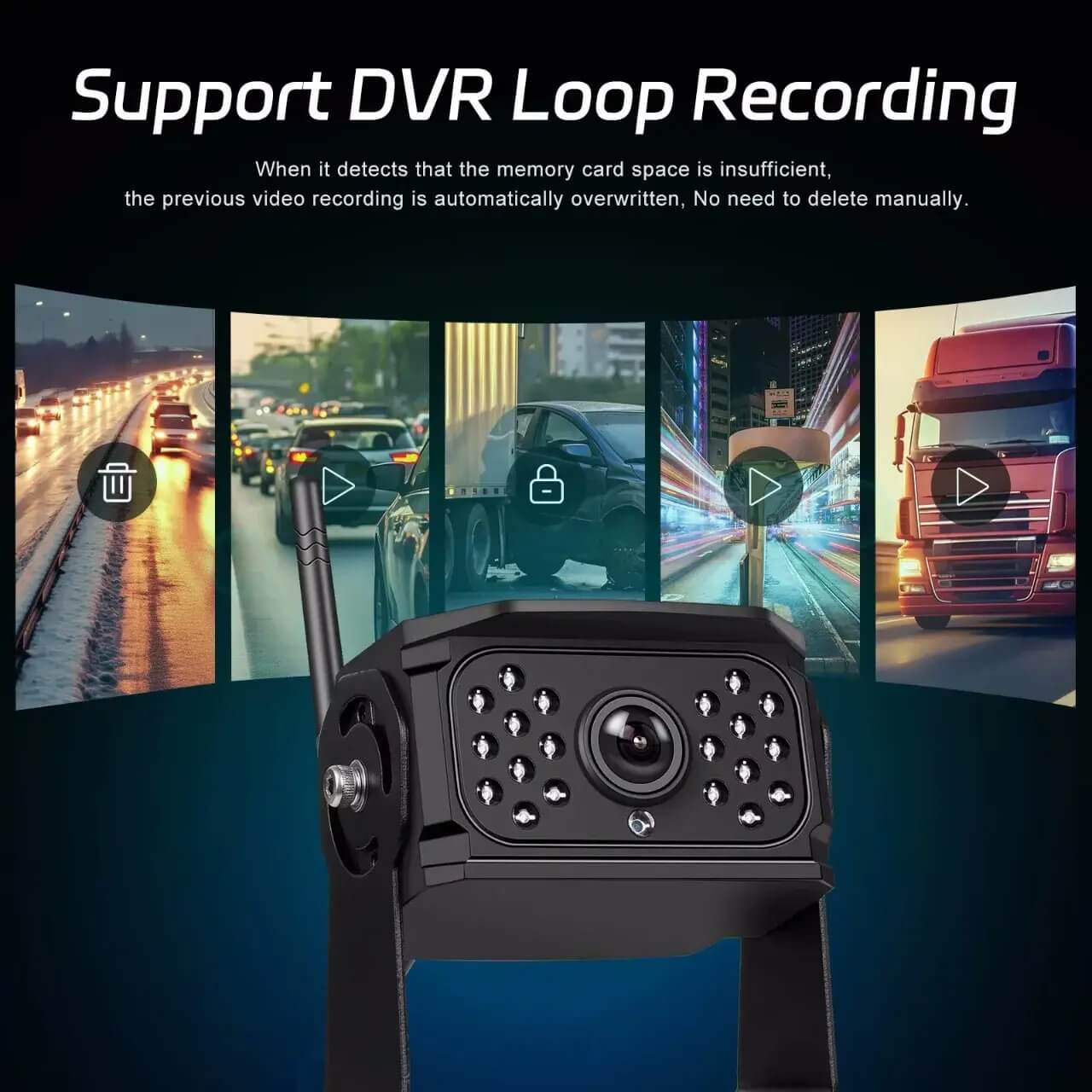

• Built-in DVR Recorder – Loop recording with microSD (up to 128GB)

• Infrared Night Vision – Clear images in low-light conditions

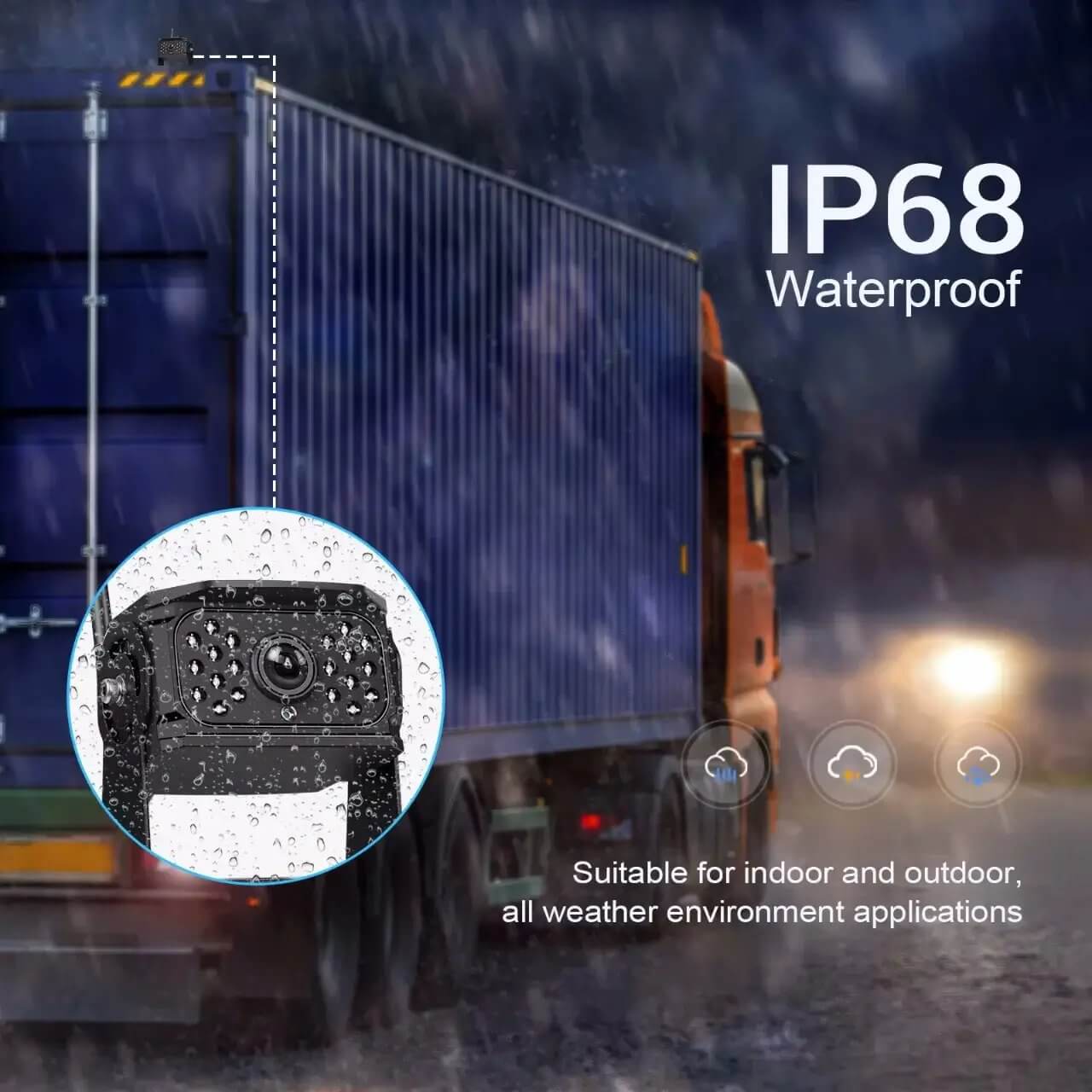

• IP68 Waterproof Cameras – Rugged housings built for harsh weather

• Wide Voltage Range – Works with 12V–36V systems for cars, trucks, and buses

Installation & Compatibility

• Cameras: Each of the 4 cameras must be wired to vehicle power (reverse light, ignition, or auxiliary feed).

• Monitor Power: Runs from 12V cigarette lighter socket or can be hardwired.

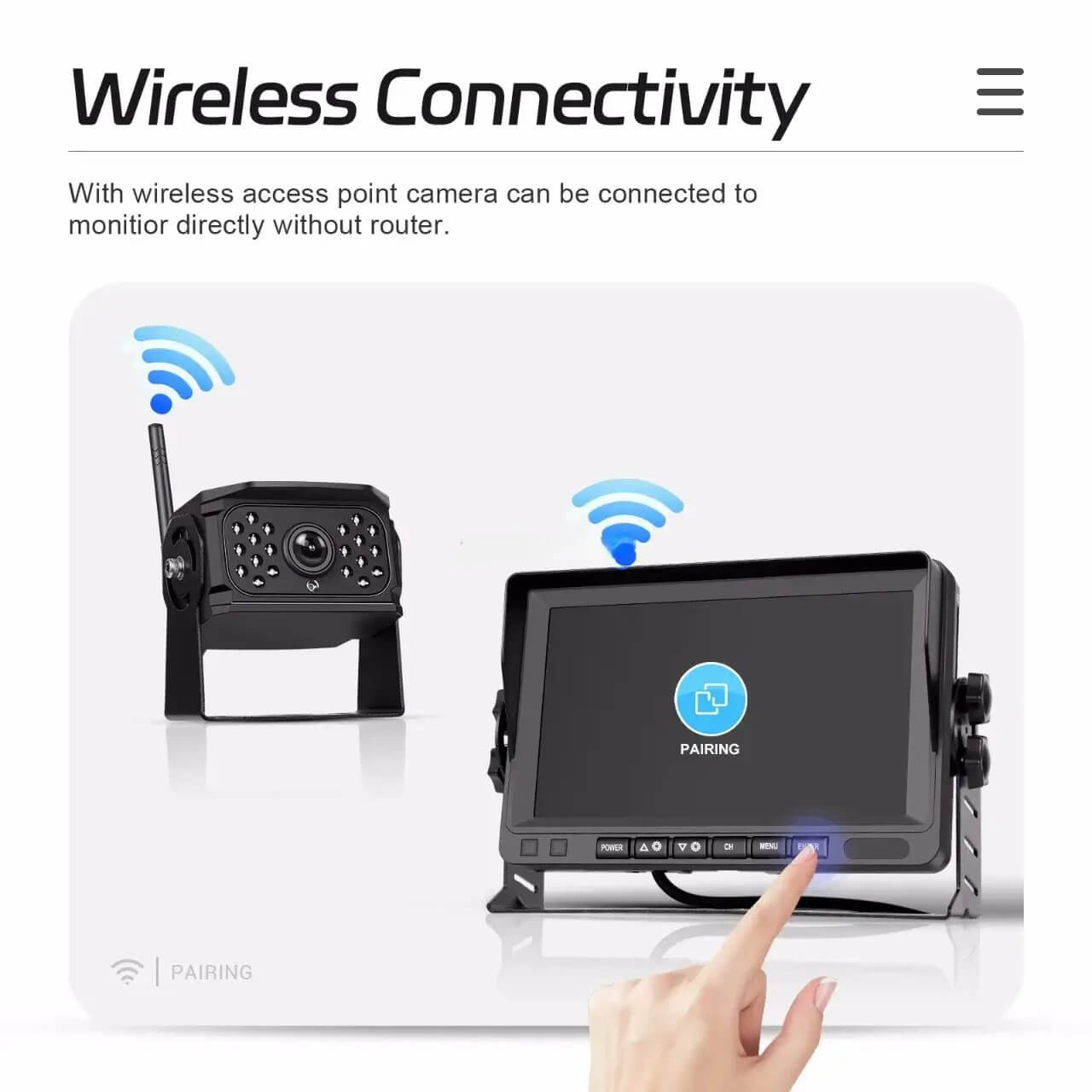

• Wireless Video Link: Cameras transmit video wirelessly to the monitor, no long video cable runs required.

• Fitment: Perfect for large vehicles, trucks, buses, RVs, trailers, and commercial fleets.

Technical Specifications

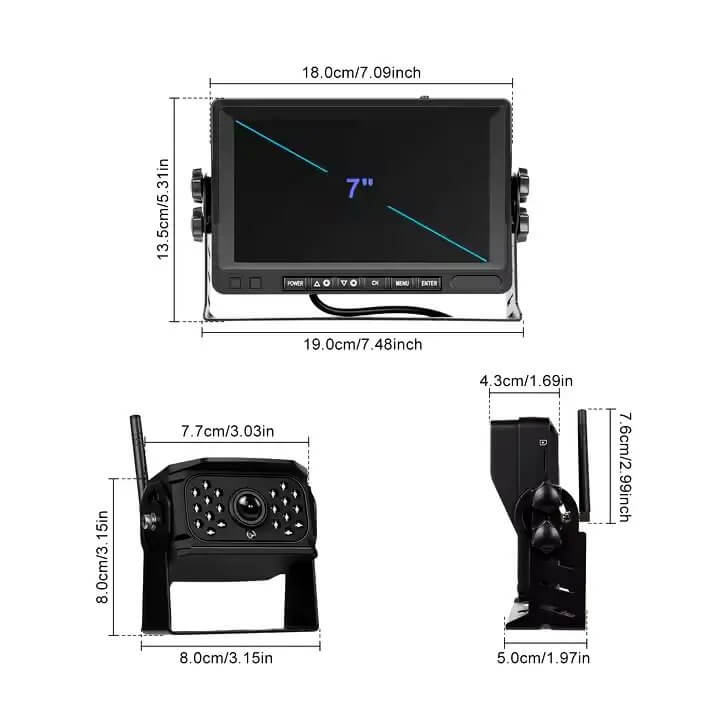

• Monitor: 7″ IPS AHD digital display, 1024×600 resolution

• Brightness / Contrast: 500cd/m² brightness; 700:1 contrast ratio

• Image Adjustments: Brightness, contrast, chroma; image flip (L/R, U/D)

• Inputs: Supports 4 wireless cameras simultaneously

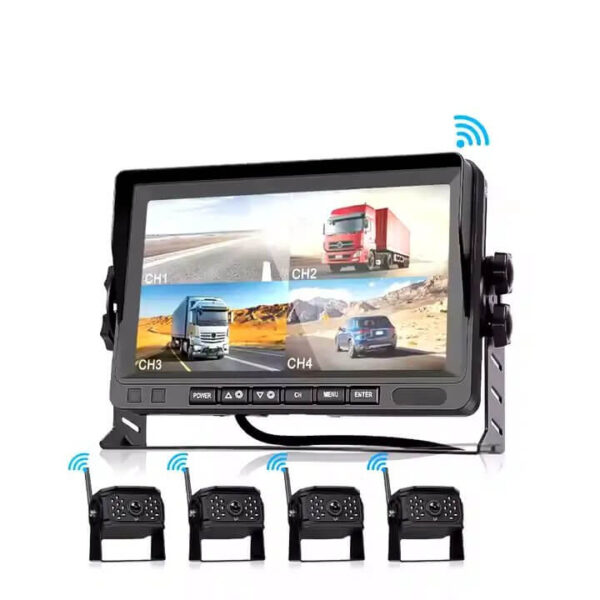

• Split-Screen Modes: Single, dual, triple, or quad view layouts

• Recording: Loop recording & playback, microSD up to 128GB (not included)

• Cameras: 4× IP68 waterproof night vision cameras included

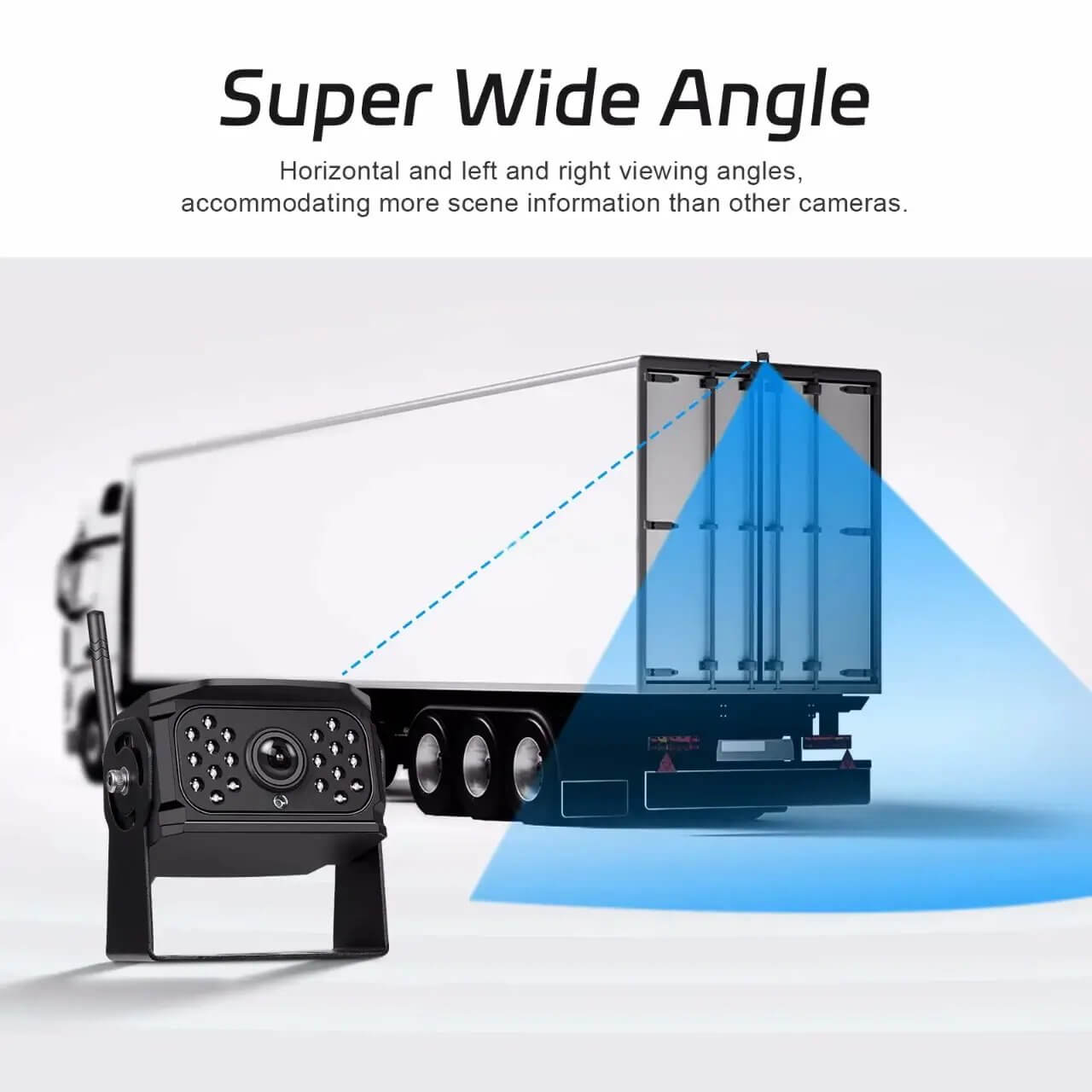

• Viewing Angle (each camera): 90° horizontal / 139° diagonal

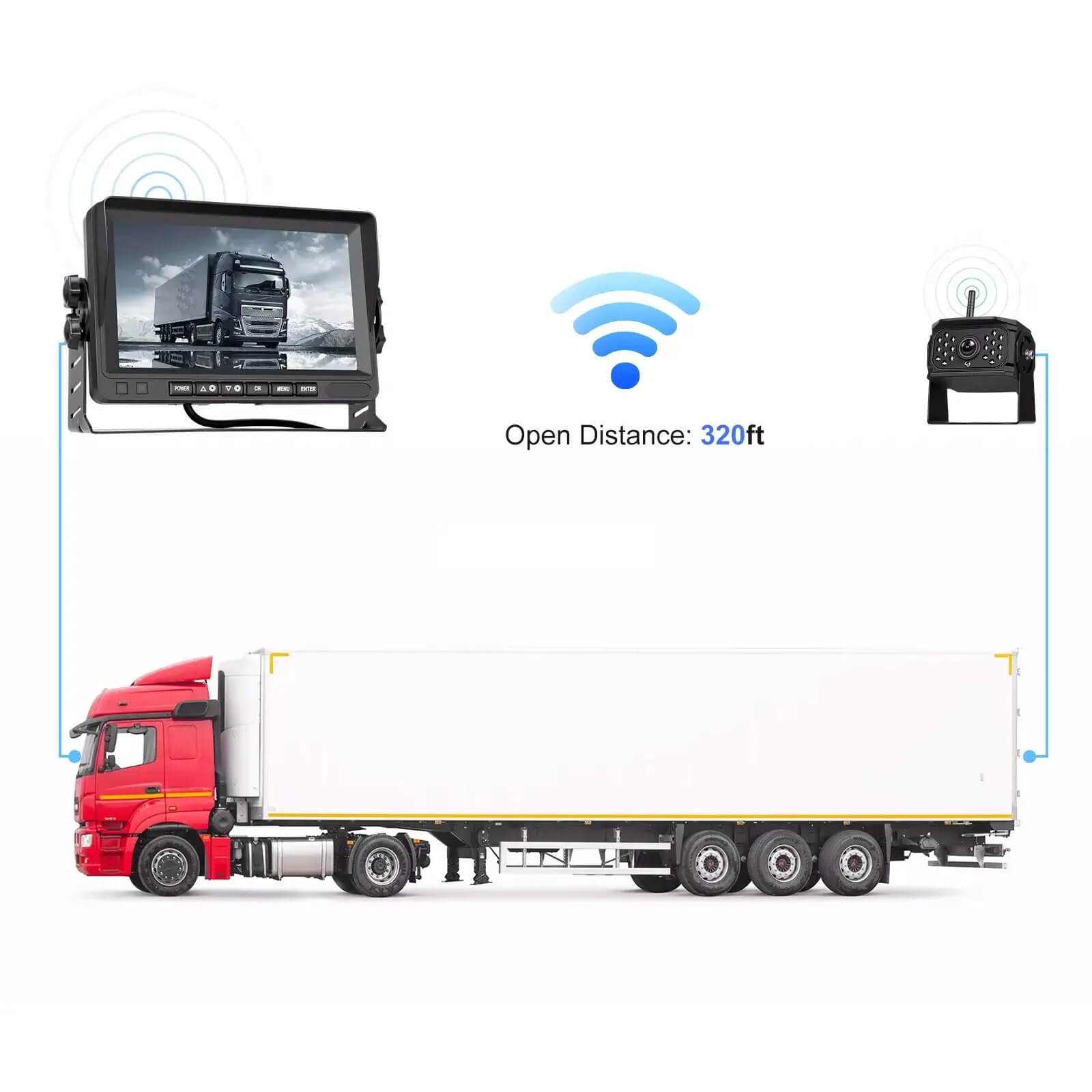

• Wireless Range: ~100m (≈320ft) stable transmission

• Video Formats: PAL & NTSC supported

• Signal Frequency: 2.4GHz digital wireless

• Operating Voltage: 12V–36V DC

• Operating Temp: -30°C to +80°C / -22°F to +176°F

• Certifications: CE, FCC, RoHS

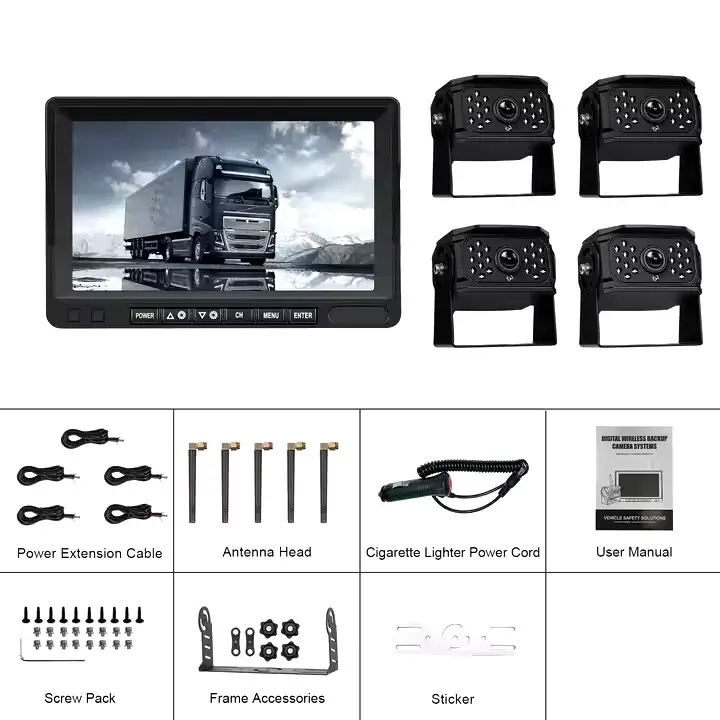

What’s in the Box

• 1× 7″ IPS HD wireless monitor with DVR

• 4× Wireless reversing night vision cameras (IP68)

• Cigarette lighter adapter & power cables

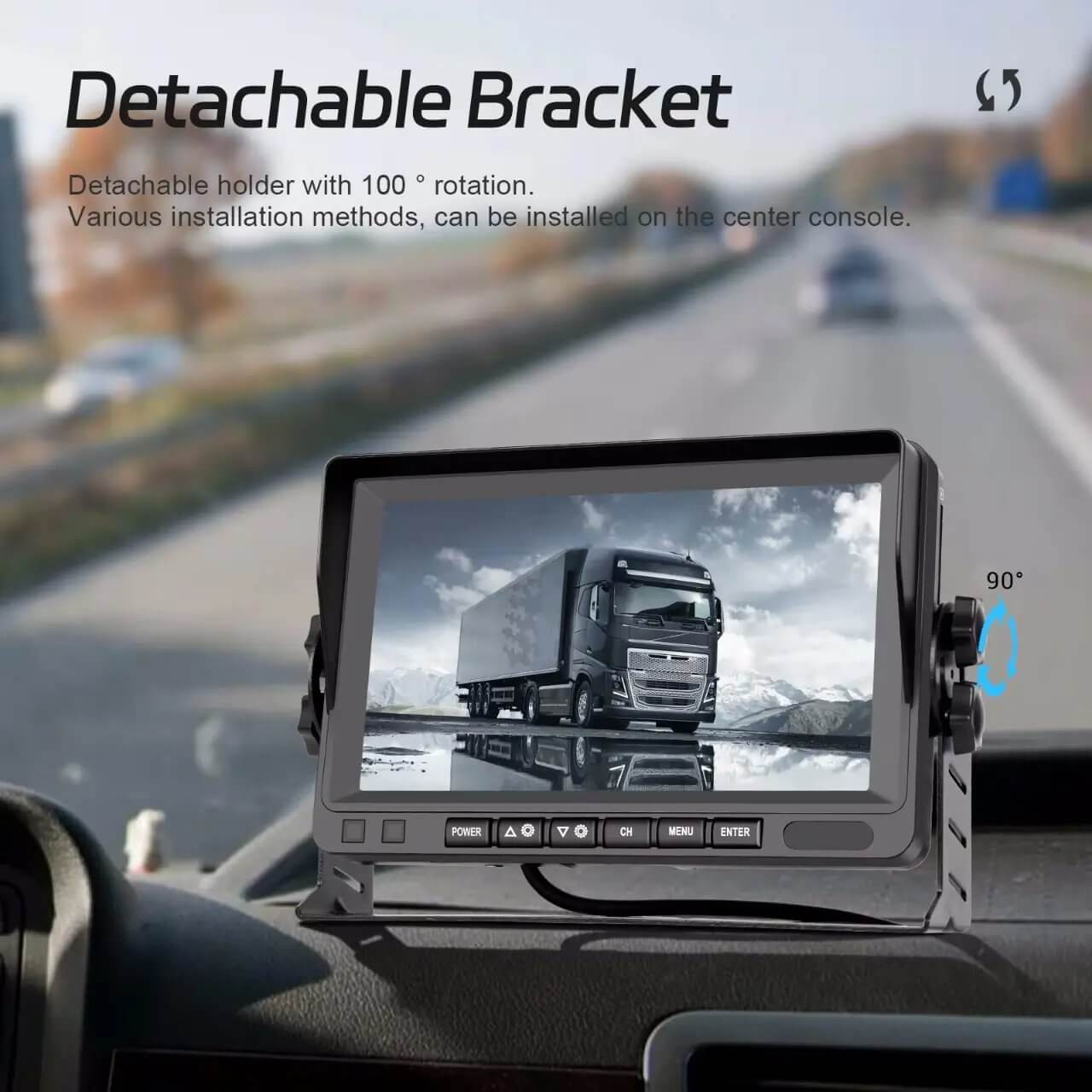

• Mounting brackets and hardware

• User manual
