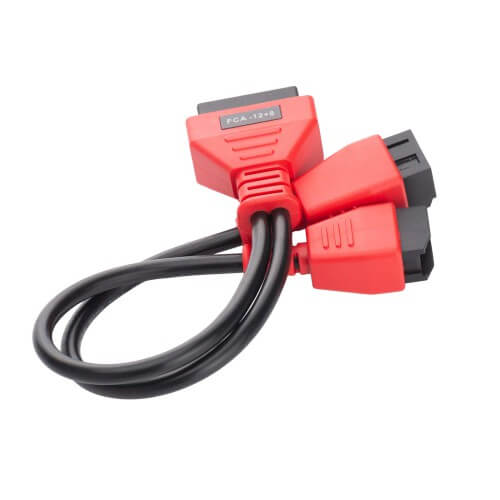

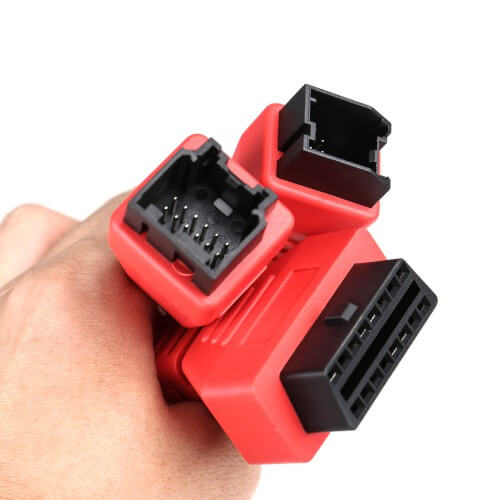

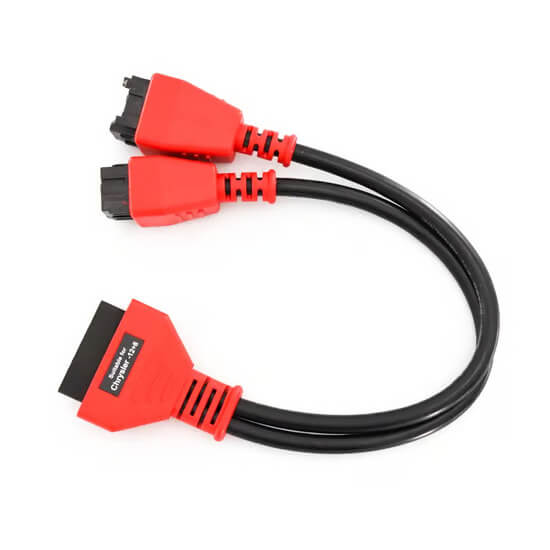

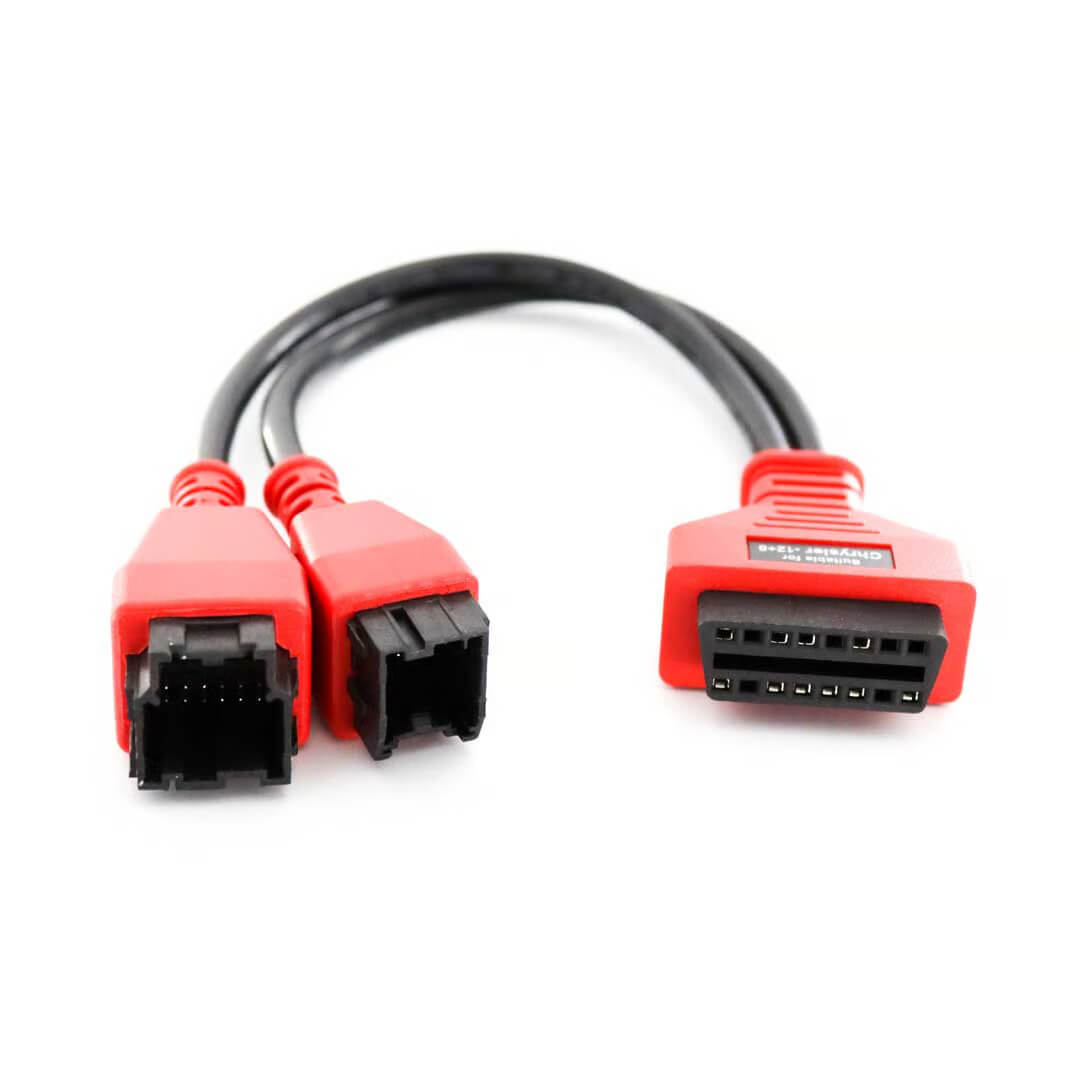

Autel Chrysler 12+8 Diagnostic Cable Adapter for Maxisys

The Autel Chrysler 12+8 diagnostic cable allows Autel MaxiSys diagnostic scanners to communicate with newer Chrysler, Dodge, Jeep, and Fiat vehicles that use the secure 12+8 gateway connector.

Key Features

• Chrysler 12+8 Gateway Access – Allows compatible Autel scanners to access Chrysler secure gateway modules.
• Designed For Autel MaxiSys – Works with Autel professional diagnostic tablets such as MS908, MS908P and Elite.
• OEM Level Diagnostics – Supports full system diagnostics, ECU access, coding and programming functions.
• Plug And Play Connection – Simple connection between vehicle gateway port and Autel diagnostic tool.
• Durable Workshop Cable – Built with high quality connectors and shielding for reliable workshop use.

Purpose / Use Case

Many newer Chrysler vehicles use a secure gateway module (SGW) which blocks diagnostic access through the standard OBD port.

The Autel Chrysler 12+8 adapter bypasses this restriction by connecting directly to the vehicle’s 12 pin and 8 pin gateway connectors, allowing your Autel diagnostic scanner to perform full diagnostics and service functions.

This makes it essential for workshops servicing:

• Chrysler vehicles
• Dodge vehicles
• Jeep vehicles
• Fiat vehicles with Chrysler SGW systems

Technical Specifications

• Product Type: Chrysler 12+8 Gateway Diagnostic Cable

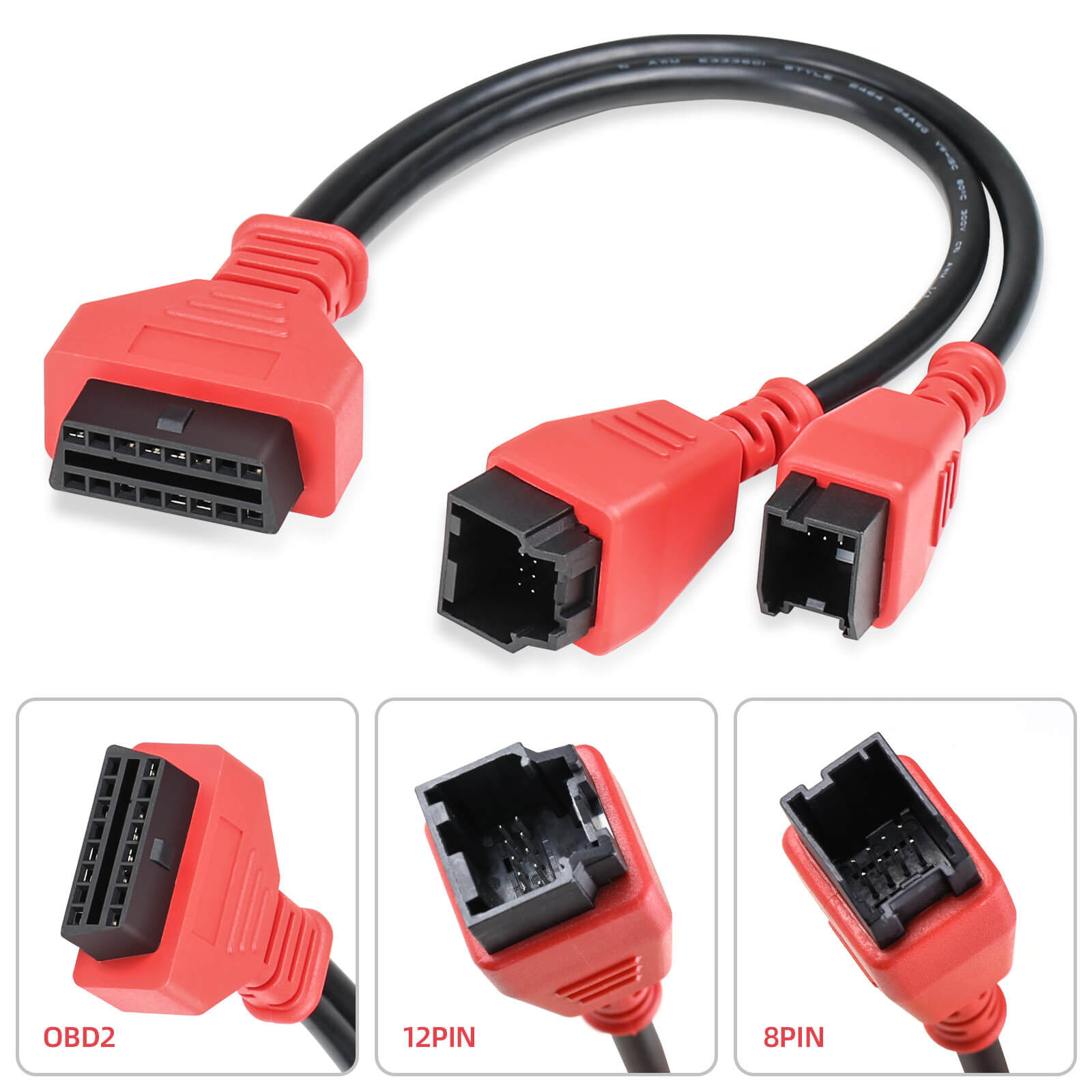

• Connector Type: OBD to 12 Pin and 8 Pin adapters
• Cable Length: Approximately 30 cm
• Material: Automotive grade wiring and connectors
• Communication Interface: OBDII to SGW bypass
• Usage: Diagnostic communication and ECU access
• Build Quality: Shielded workshop cable

Compatibility

Compatible Autel Diagnostic Tools

• Autel MaxiSys Elite
• Autel MaxiSys MS908
• Autel MaxiSys MS908P
• Autel MaxiSys MS908S Pro
• Autel MaxiSys Ultra (with adapter support)

Vehicle Compatibility

• Chrysler vehicles with SGW system
• Dodge vehicles with SGW system
• Jeep vehicles with SGW system
• Fiat vehicles using Chrysler security gateway

Typical supported models include:

• Jeep Wrangler
• Jeep Cherokee
• Dodge Ram
• Chrysler Pacifica
• Dodge Challenger
• Dodge Charger

Functional Support

• Full system diagnostics
• ECU communication
• Fault code reading and clearing
• Service reset functions
• ECU coding and programming
• Live data monitoring
• Bi directional tests

Installation / Setup

1. Locate the 12 pin and 8 pin SGW connectors under the dashboard.
2. Disconnect the factory gateway connectors.
3. Connect the Autel Chrysler 12+8 adapter to the vehicle connectors.
4. Connect the OBD end to the Autel diagnostic scanner.
5. Begin diagnostics using the Autel MaxiSys tablet.

What’s in the Box

• 1x Autel Chrysler 12+8 Diagnostic Cable Adapter
