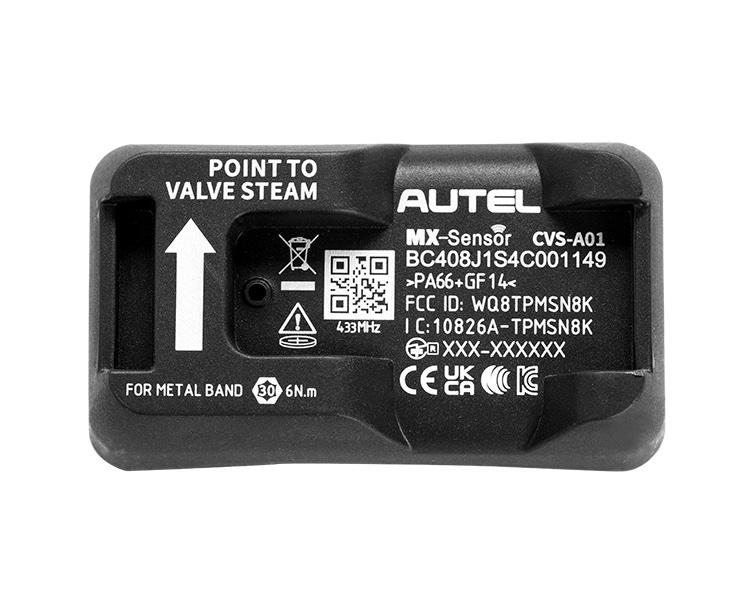

Autel CVS-A01 Metal Strap Programmable CV TPMS Sensor for Trucks and Buses

Autel CVS-A01 Metal Strap Programmable CV TPMS Sensor is a heavy duty tire pressure monitoring sensor designed specifically for commercial vehicles such as trucks, buses and trailers. Built with a durable metal strap mounting system, it provides accurate tire pressure and temperature monitoring while supporting Autel TPMS programming tools for fast setup and reliable fleet maintenance.

__
Key Features

• Heavy Duty Commercial Vehicle Sensor, Designed for trucks, buses and trailers with high load requirements.
• Metal Strap Mounting System, Secure internal mounting ensures durability and stability inside commercial wheels.

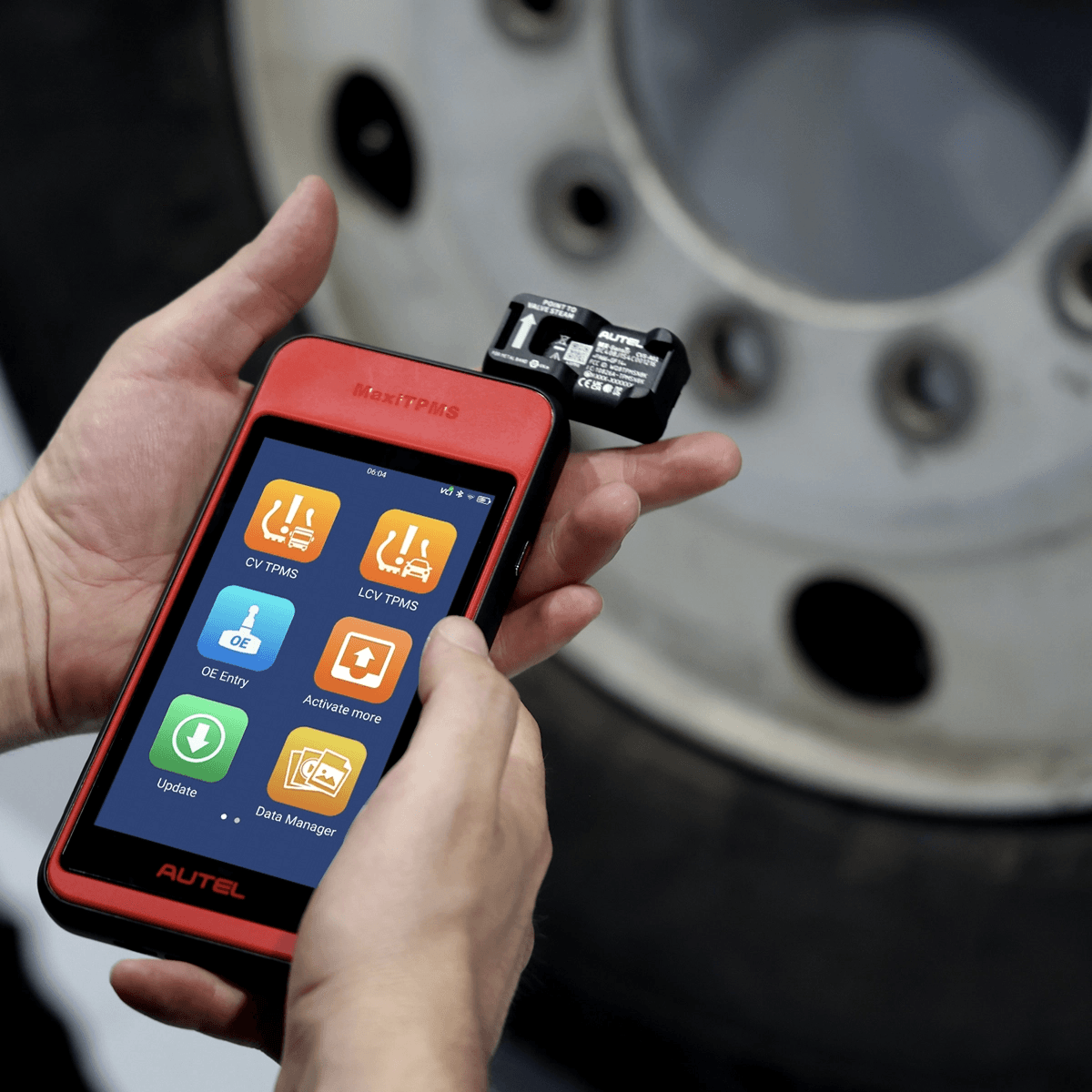

• Programmable with Autel TPMS Tools, Compatible with Autel MaxiTPMS ITS600 CV for quick programming and sensor cloning.
• Accurate Pressure and Temperature Monitoring, Provides real time tire data to improve safety and reduce tire wear.
• Long Battery Life, Built in battery designed for long service life in commercial vehicle environments.
• Durable Construction, Engineered to withstand vibration, temperature changes and demanding road conditions.

__
Purpose / Use Case

The Autel CVS-A01 TPMS sensor helps fleet operators, truck service centers and transport companies monitor tire pressure and temperature in real time. Maintaining correct tire pressure improves fuel efficiency, prevents tire blowouts and reduces vehicle downtime.

• Ideal for fleet maintenance teams monitoring truck tire health
• Useful for transport companies to improve fuel efficiency through correct tire pressure
• Suitable for workshops performing TPMS diagnostics on commercial vehicles

__
Technical Specifications

• Sensor Type: Programmable TPMS sensor for commercial vehicles
• Mounting Type: Internal metal strap mounting
• Frequency: 433 MHz
• Pressure Monitoring Range: Up to 12 bar (174 psi)
• Temperature Monitoring: Integrated temperature sensor
• Battery Type: Sealed lithium battery
• Battery Life: Up to 5 years typical use
• Operating Temperature: -40°C to 125°C
• Housing Material: Industrial grade composite
• Durability: Designed for high vibration and harsh environments

__
Functional Support

• Tire pressure monitoring
• Tire temperature monitoring
• Sensor ID programming
• Sensor cloning
• Real-time tire data transmission
• Fleet tire safety monitoring

__
Installation / Setup

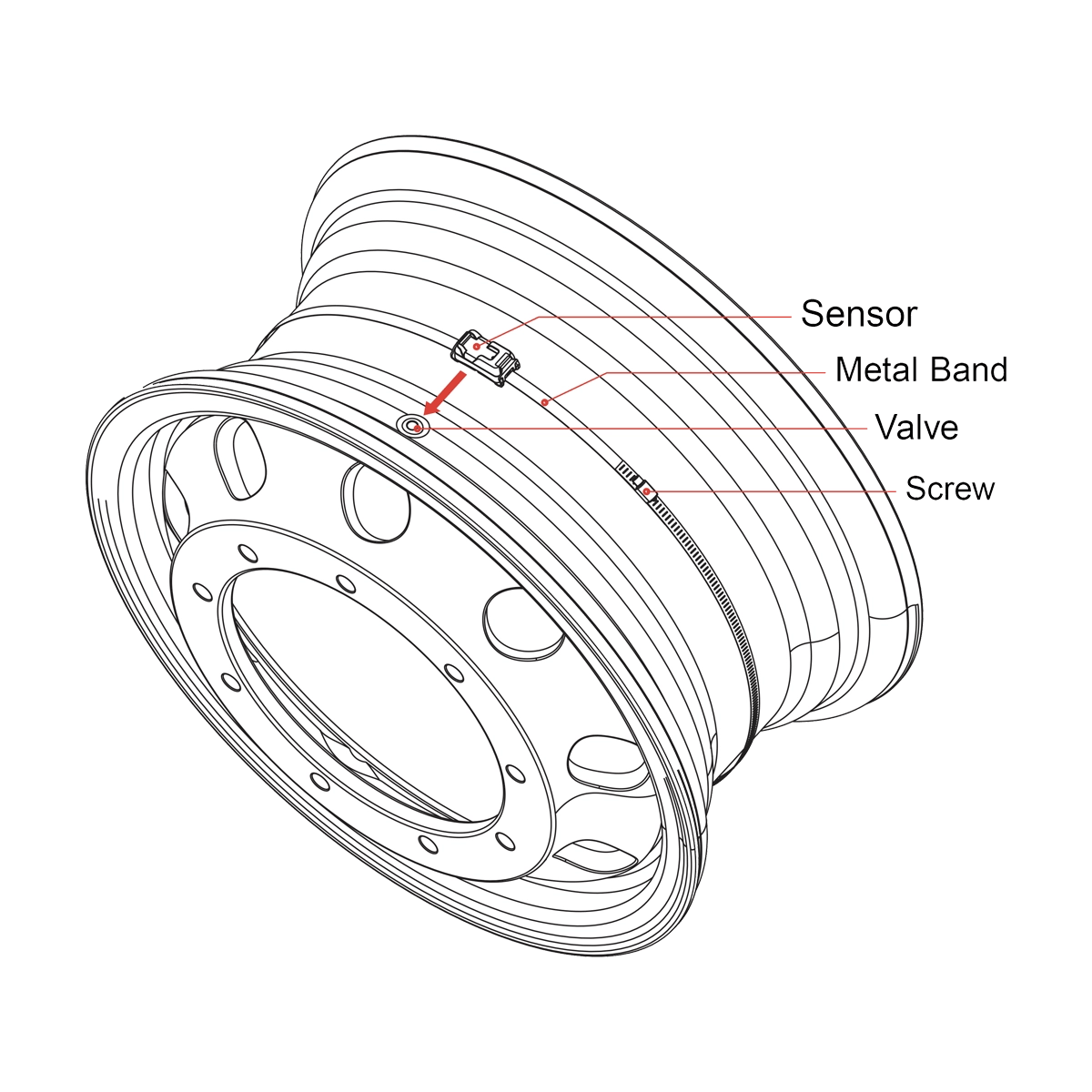

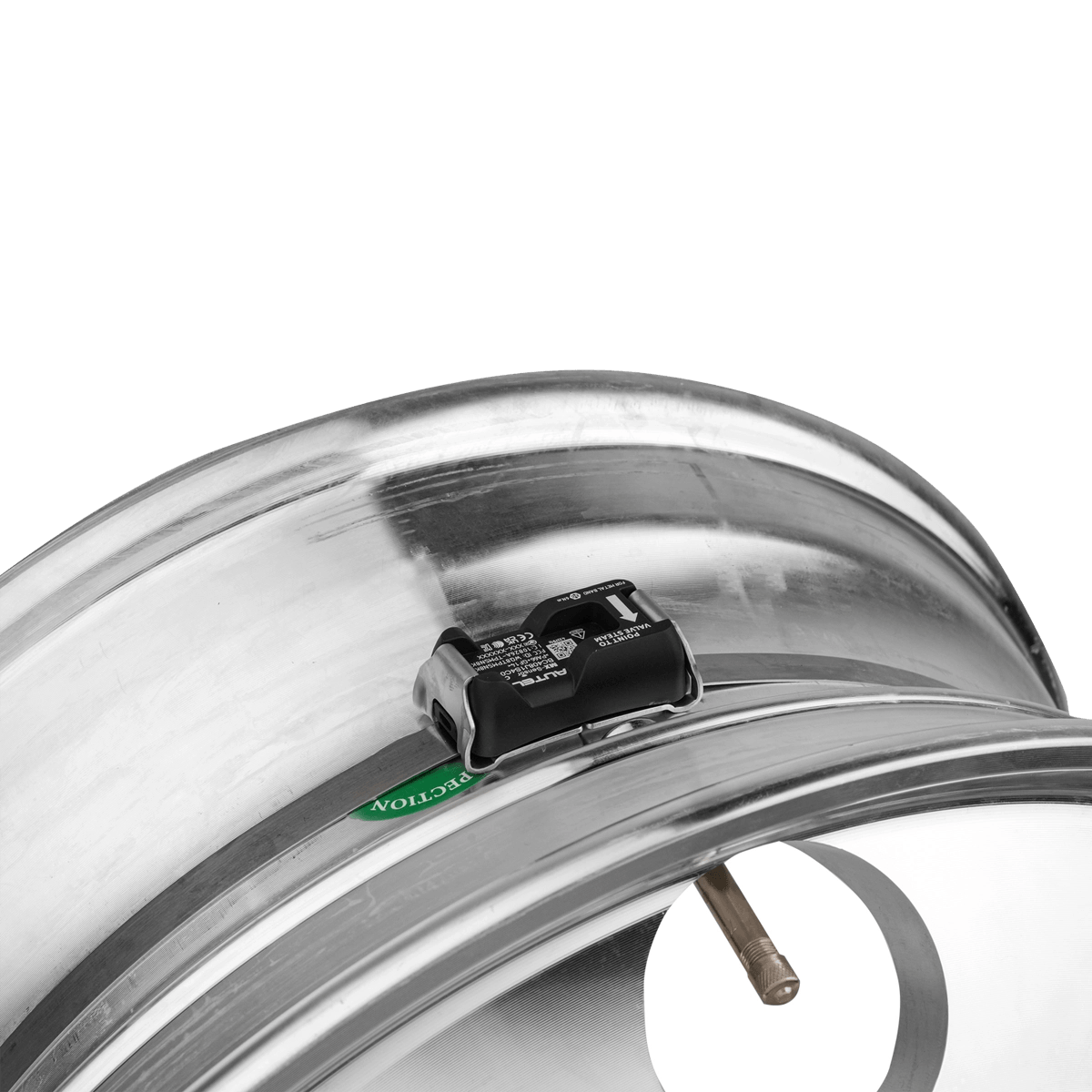

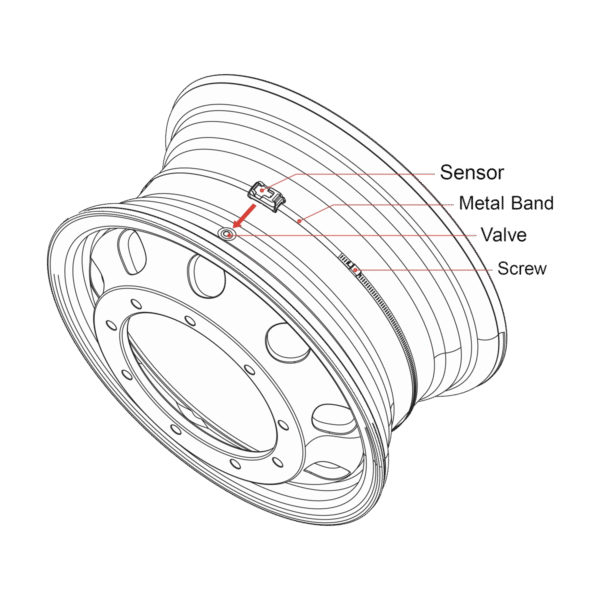

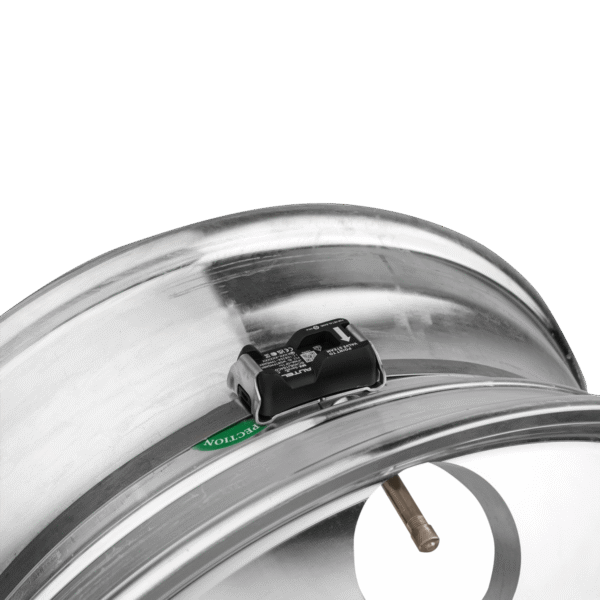

The CVS-A01 sensor installs internally inside the wheel using the supplied metal strap. The strap secures the sensor to the rim to ensure reliable positioning. After installation, the sensor can be programmed using compatible Autel TPMS tools and paired with the vehicle TPMS system.

__
What’s in the Box

• 1x Autel CVS-A01 TPMS Sensor
• 1x Metal Strap Mount
• 1x Mounting Hardware Kit
• 1x User Guide
