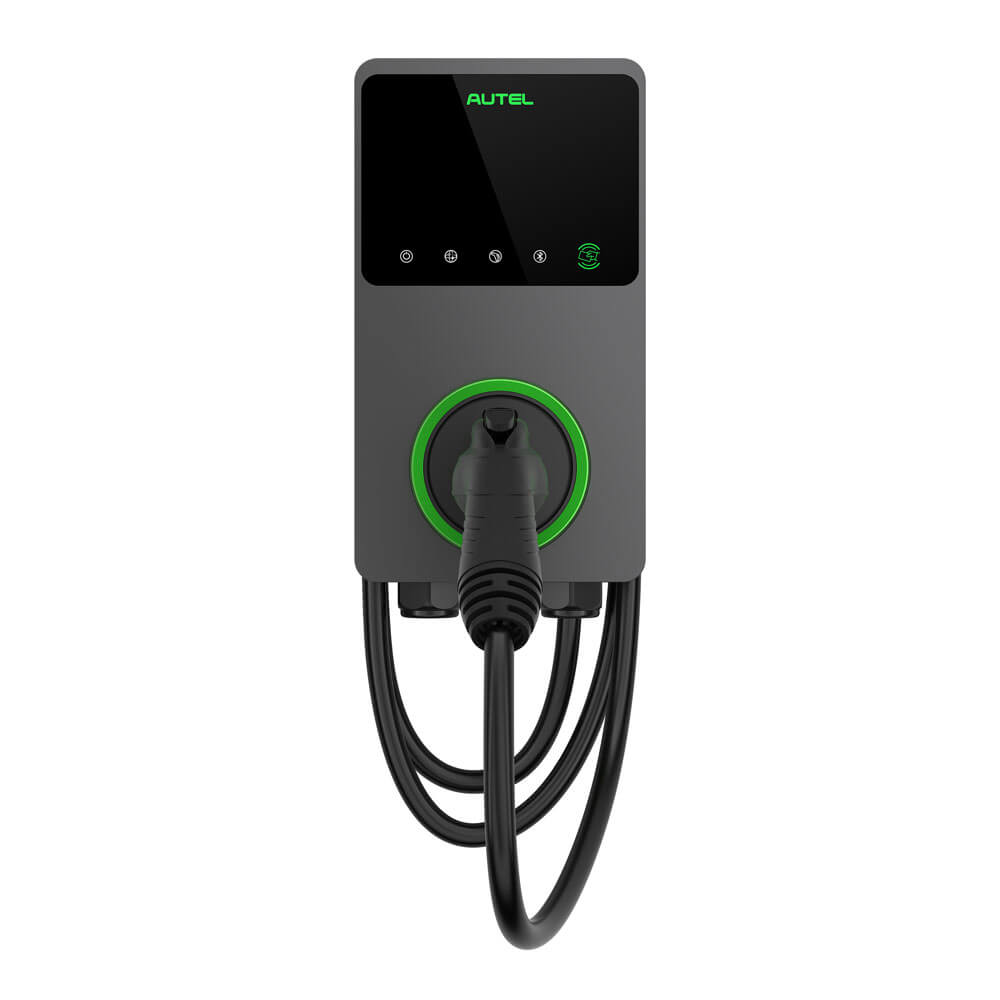

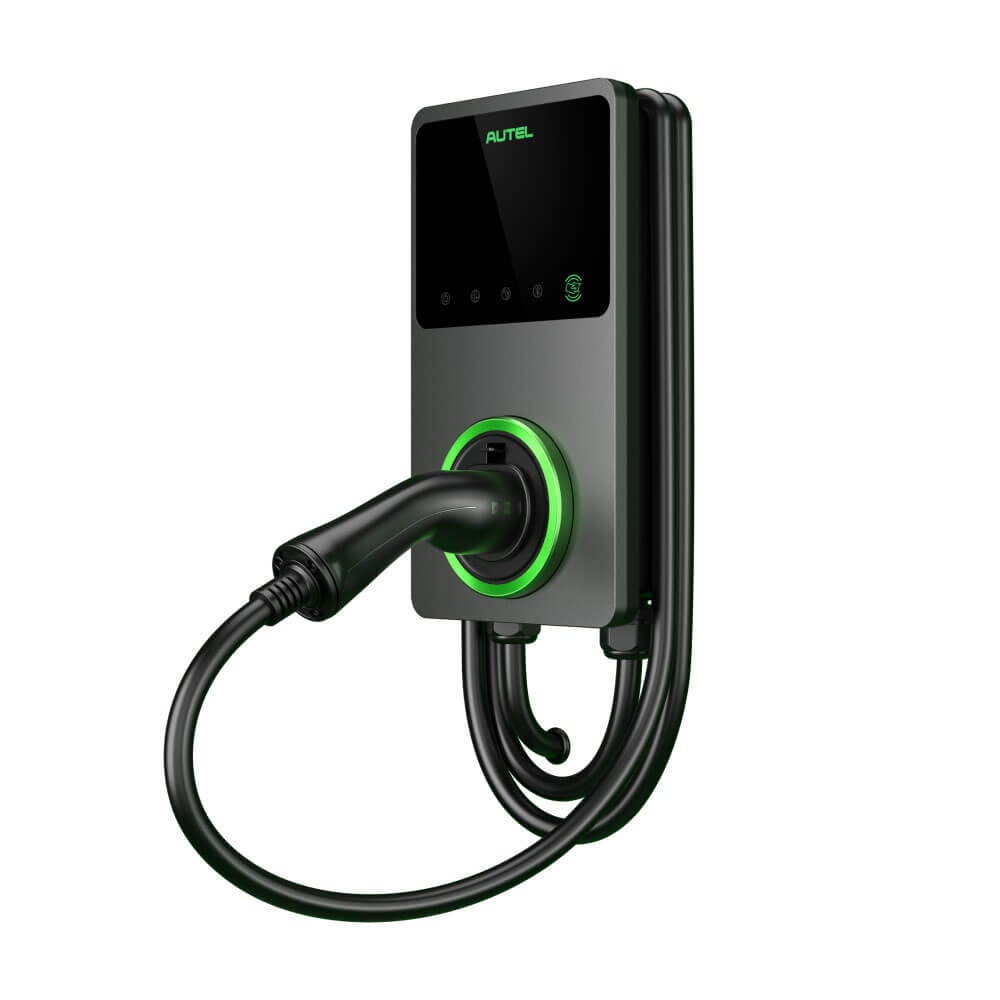

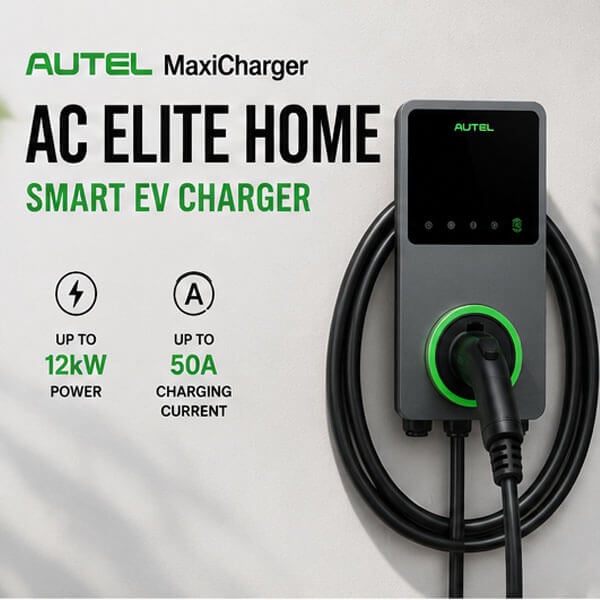

Autel MaxiCharger AC Elite Home 12kW 50A Smart EV Charger

The Autel MaxiCharger AC Elite is a powerful 12kW smart AC EV charger designed for fast, convenient and intelligent electric vehicle charging at home, workplaces, residential developments and other charging locations.

Delivering up to 50A and 12kW charging power, the AC Elite combines fast EV charging with intelligent energy management, app control, RFID access, multiple connectivity options and a durable weather-resistant enclosure. Adaptive Load Management helps manage available electrical capacity while the Autel Charge App gives users control over charging schedules, current settings and real-time charging information.

__

Key Features

• Up to 12kW AC Charging: Delivers up to 50A charging current for faster electric vehicle charging.
• Adjustable Charging Current: Maximum amperage can be configured to suit the electrical installation and charging requirements.
• Autel Charge App: Start or stop charging, monitor real-time charging data, schedule charging sessions and adjust charging current from your smartphone.
• Adaptive Load Management: Helps distribute available electrical capacity between the EV charger and other electrical loads.
• Dynamic Load Balancing: Intelligent power management helps optimise available energy and reduce the risk of overloading the electrical supply.
• RFID Access Control: Supports RFID authentication to help prevent unauthorised charging.
• Multiple Connectivity Options: Supports Bluetooth, WiFi, Ethernet, CAN and RS485 connectivity.
• Cloud-Based Smart Charging: Connects with the Autel Cloud platform for remote monitoring and charger management.
• OTA Updates: Connected operation allows supported software and firmware updates to be delivered over the air.
• LED Status Indicators: Clearly displays power, internet, charging and Bluetooth status for quick charger monitoring.
• Indoor and Outdoor Installation: NEMA 4X rated enclosure is designed to withstand rain, dust, sand and demanding weather conditions.
• Wide Operating Temperature: Designed for operation from -40°C to 55°C.

__

Fast 12kW EV Charging

The MaxiCharger AC Elite can deliver up to 12kW at 50A, allowing compatible electric vehicles to charge considerably faster than conventional low-power AC charging solutions.

Actual charging speed depends on the vehicle’s onboard AC charger, electrical installation, configured charger output and available electrical supply.

__

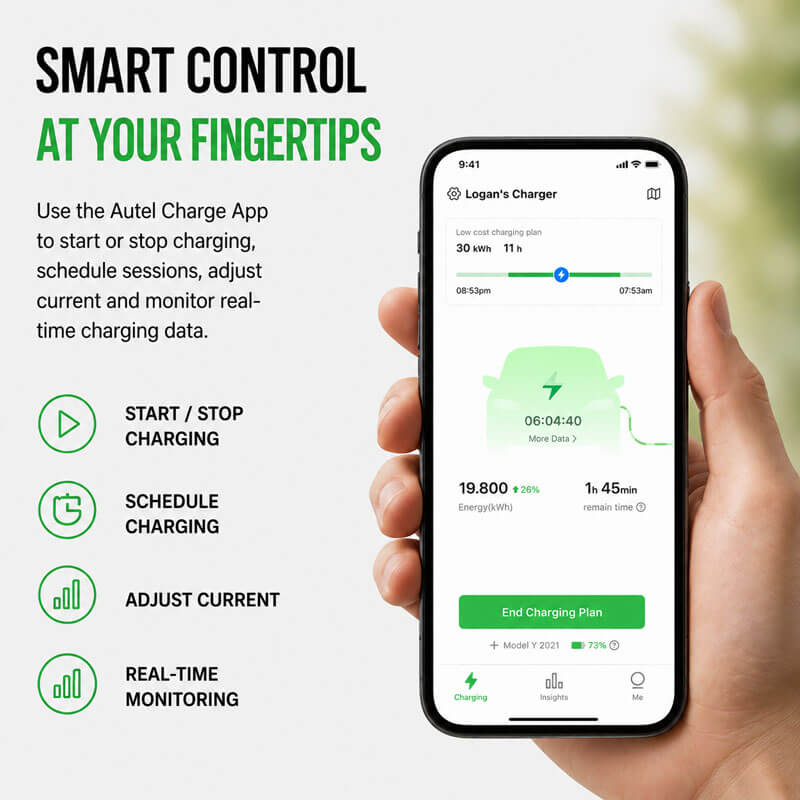

Smart Charging with the Autel Charge App

Connect the AC Elite to the Autel Charge App to manage and monitor charging directly from your smartphone.

• Start and stop charging
• View real-time charging information
• Schedule charging sessions
• Adjust maximum charging amperage
• Monitor charging activity
• Manage charger settings

Scheduled charging can also help EV owners take advantage of preferred charging periods or off-peak electricity tariffs where available.

__

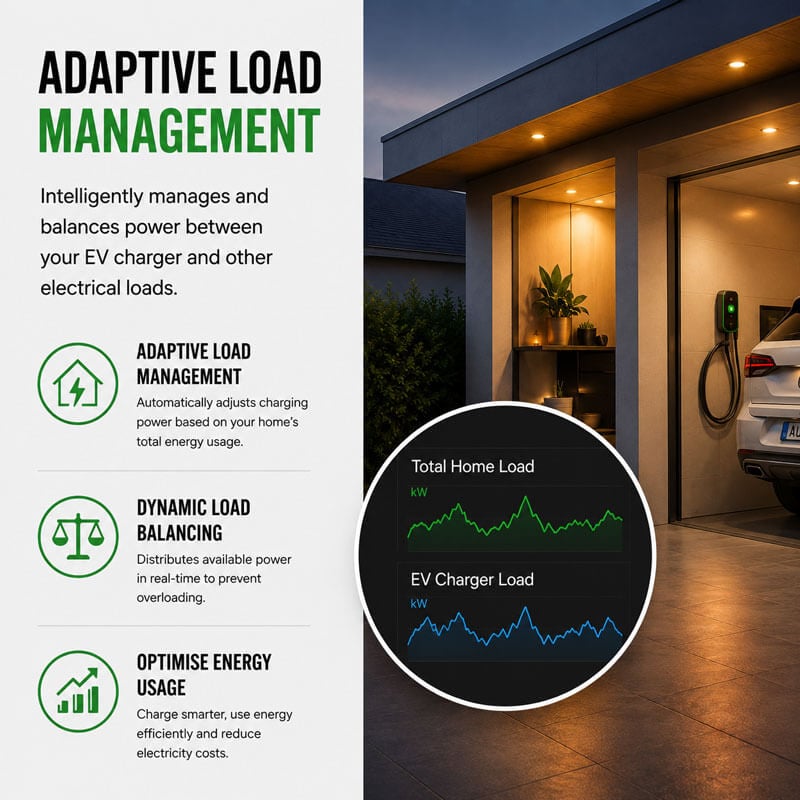

Adaptive Load Management

The AC Elite supports Adaptive Load Management (ALM) and Dynamic Load Balancing (DLB), allowing charging power to be managed according to available electrical capacity.

This is particularly useful in homes and facilities where an EV charger operates alongside other high-demand electrical equipment. Instead of allocating maximum power to the vehicle at all times, the system can intelligently manage the available load.

__

Flexible Connectivity

The MaxiCharger AC Elite provides multiple communication options for smart charging and integration:

• Bluetooth
• WiFi
• Ethernet
• CAN
• RS485

Connected operation enables app functionality, OTA updates, smart energy management and communication between compatible charging equipment.

__

RFID Charging Access

RFID authentication can be used to control who has permission to use the charger. This makes the AC Elite suitable not only for private homes, but also for workplaces, apartment complexes, shared parking facilities and other locations where controlled EV charging access is required.

Note: RFID cards may be sold separately depending on the supplied package.

__

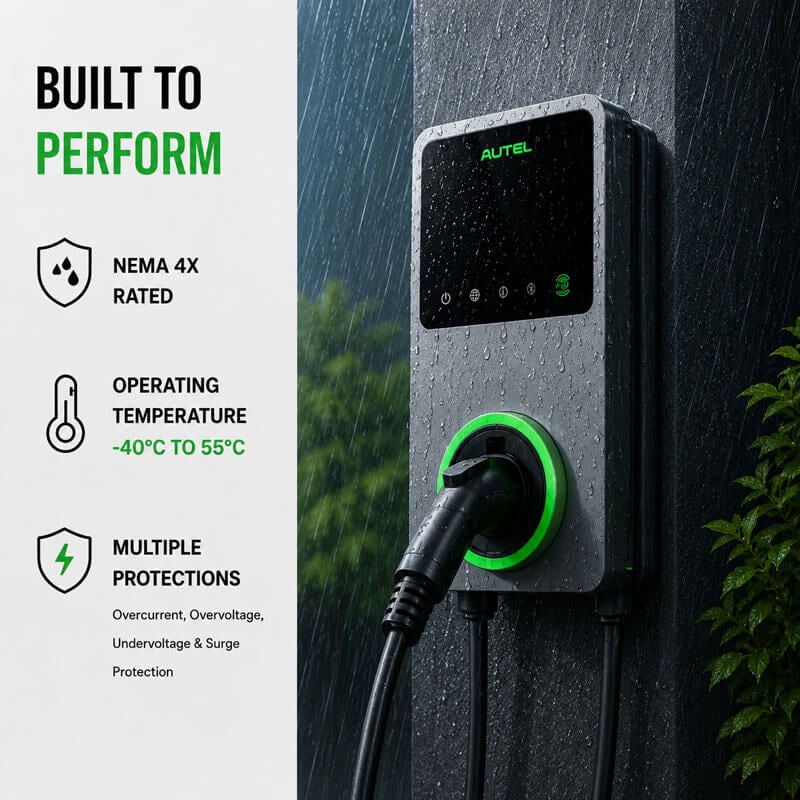

Built for Indoor and Outdoor Installation

The charger features a NEMA 4X rated enclosure designed to withstand demanding environmental conditions including rain, dust and sand.

With an operating temperature range from -40°C to 55°C, the AC Elite is suitable for a wide range of indoor and outdoor charging installations.

__

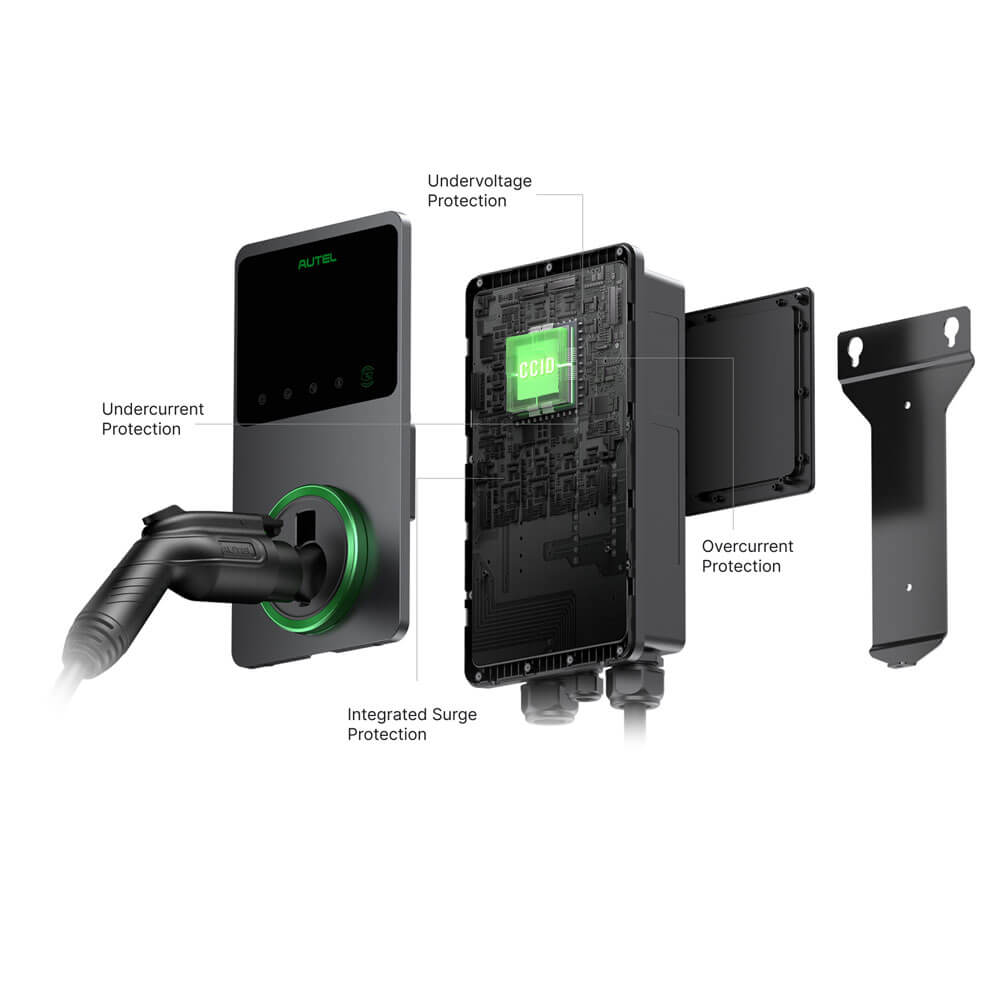

Charging Safety

The MaxiCharger AC Elite incorporates multiple electrical protection systems designed to support safe everyday EV charging.

• Overcurrent protection
• Overvoltage protection
• Undervoltage protection
• Integrated surge protection

__

Ideal For

• Residential EV charging
• Home garages and driveways
• Apartment and residential developments
• Workplace EV charging
• Office parking facilities
• Holiday parks and accommodation facilities
• Shared EV charging locations

__

Technical Specifications

• Product: Autel MaxiCharger AC Elite
• Maximum Output Power: 12kW
• Maximum Charging Current: 50A
• Input: 208/240V AC, 60Hz, single phase
• Selectable Current: 16A, 24A, 32A, 40A, 48A, 50A
• Installation: Hardwired
• Connector: SAE J1772, Type 1, regional model dependent
• Charging Cable Length: 7.5m
• Connectivity: Bluetooth, WiFi, Ethernet, CAN, RS485
• User Authentication: Autel Charge App, AutoStart, RFID card
• Smart Energy Management: Adaptive Load Management and Dynamic Load Balancing
• Protection: Overcurrent, overvoltage, undervoltage and integrated surge protection
• Environmental Rating: NEMA 4X
• Operating Temperature: -40°C to 55°C
• Dimensions: Approximately 336 x 187 x 85mm, model dependent
• Weight: Approximately 6.7kg, model dependent
• Mounting: Wall-mounted or pedestal installation

__

EV Compatibility

The MaxiCharger AC Elite is designed for compatible battery electric vehicles and plug-in hybrid electric vehicles using the charger’s fitted AC connector.

Important: Connector type and electrical specifications can vary by regional model. Confirm that the supplied AC Elite model and connector are compatible with your vehicle and electrical installation before purchase.

__

Installation

The 50A AC Elite is a hardwired EV charging station and should be installed by a suitably qualified electrician in accordance with applicable South African electrical regulations and the Autel installation requirements.

The available charging output will depend on the electrical supply, circuit capacity, installation configuration and the maximum AC charging rate supported by the vehicle.

__

What’s in the Box

• 1x Autel MaxiCharger AC Elite Charging Station
• 1x Charging Cable and Connector Assembly
• 1x Wall Dock / Mounting Assembly
• 1x User Manual
• 1x Set of Amperage Labels
• 1x Installation Accessory Set
