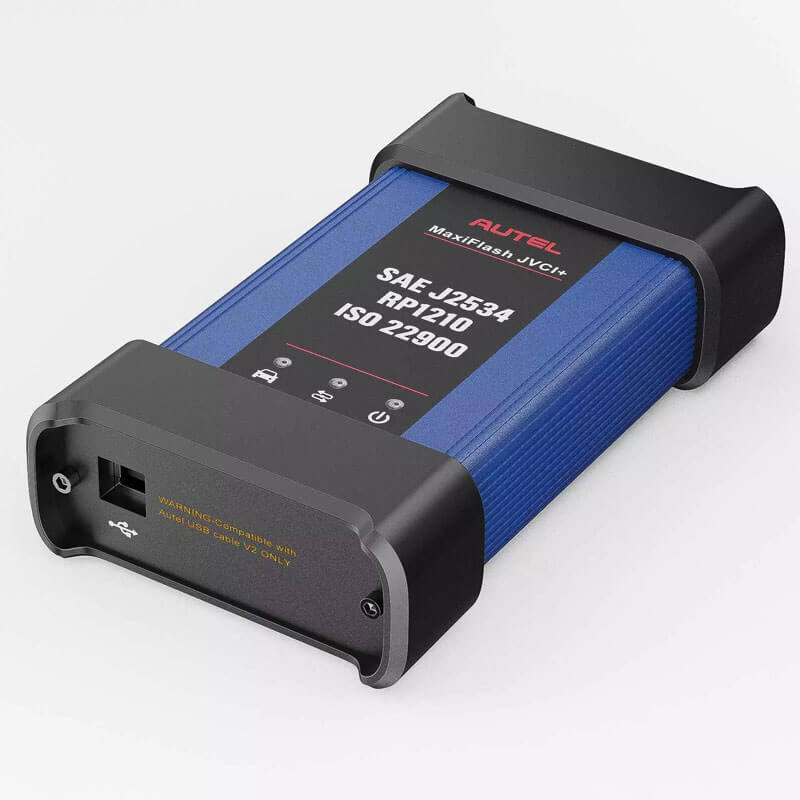

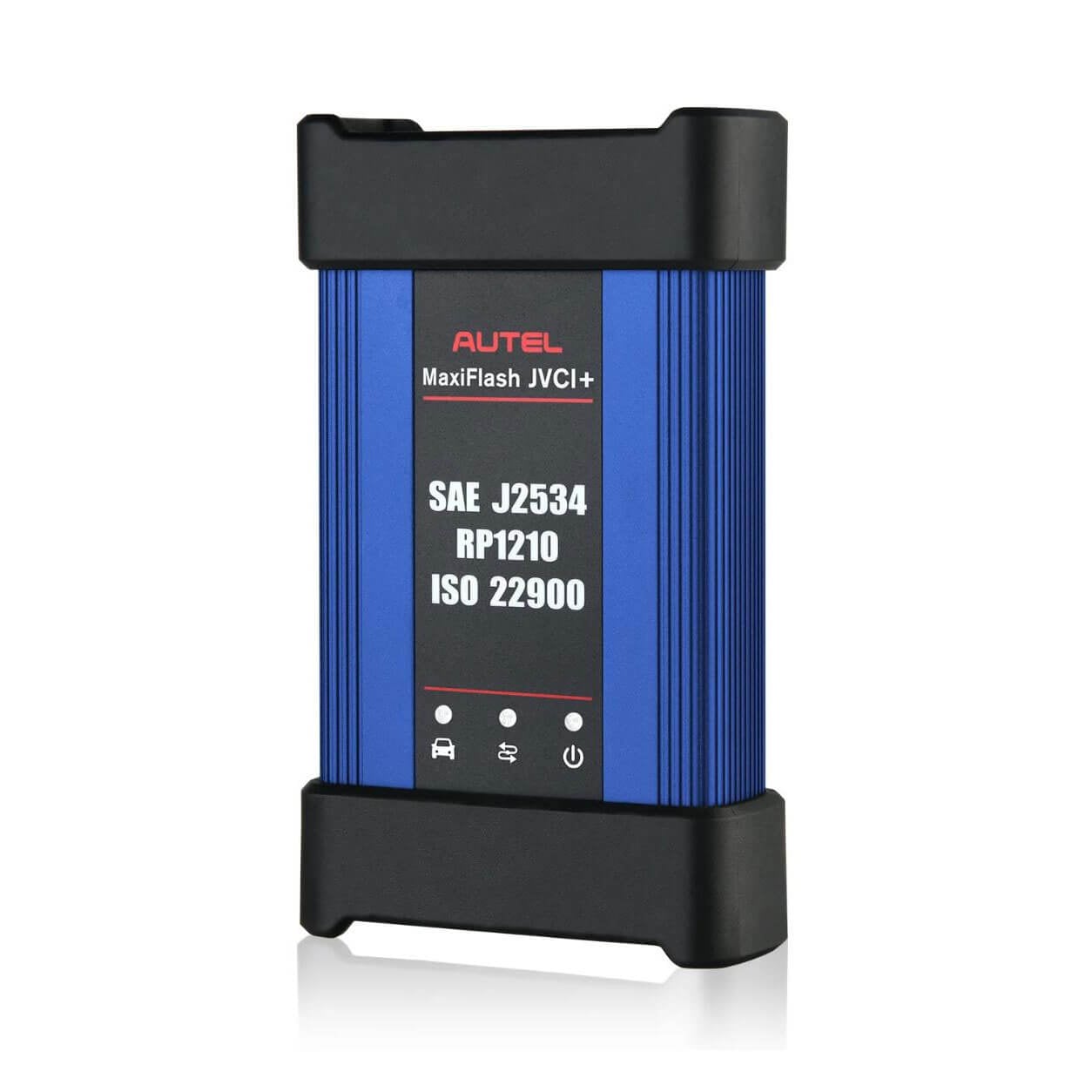

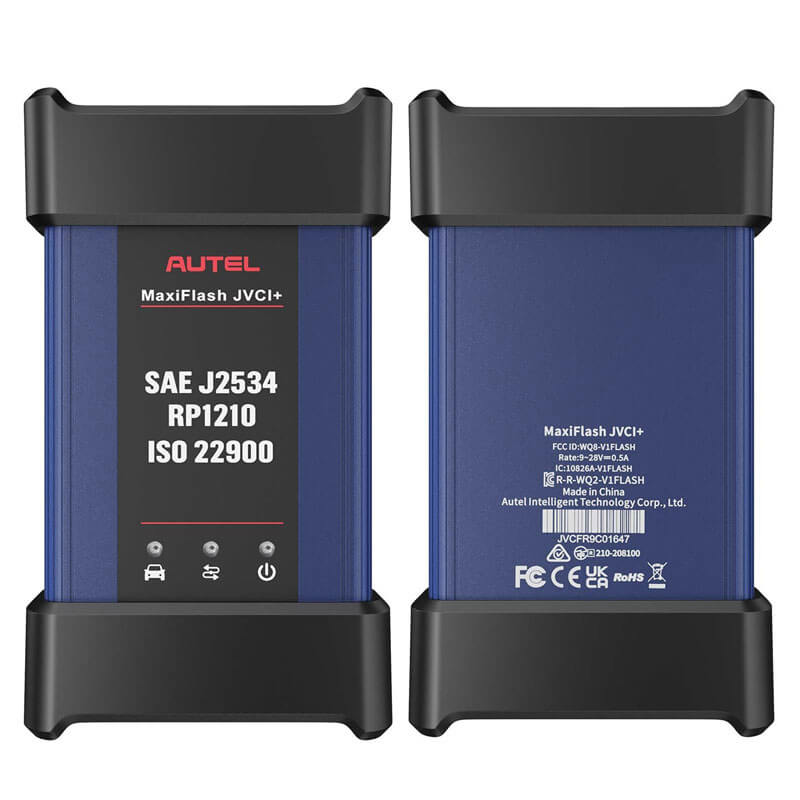

Autel MaxiFlash JVCI+ J2534 Replacement VCI for MaxiIM IM608 Series

Replacement Autel MaxiFlash JVCI+ vehicle communication and J2534 programming interface for compatible MaxiIM IM608-series diagnostic and key programming systems. Ideal when the original VCI has been lost, damaged or become faulty, allowing you to restore communication without replacing the complete diagnostic tablet.

Unlike a basic OBD2 Bluetooth dongle, the MaxiFlash JVCI+ is an advanced vehicle communication interface designed for professional diagnostics and ECU programming. It supports SAE J2534, RP1210 and ISO 22900 communication standards and provides multiple connection options for professional workshop use.

Important: This listing is for the MaxiFlash JVCI+ interface only. It is not a complete MaxiIM diagnostic or key programming system.

Key Features

• Replacement VCI: Replace a lost, damaged or faulty compatible Autel MaxiFlash JVCI+ without replacing your complete diagnostic system.
• J2534 Pass-Thru Support: Supports SAE J2534 communication for compatible ECU programming and reprogramming applications.
• Multi-Protocol Interface: Supports SAE J2534, RP1210 and ISO 22900 standards for professional vehicle communication.
• Advanced Vehicle Communication: Provides the communication bridge between a compatible Autel diagnostic tablet and the vehicle.
• Bluetooth Connectivity: Supports wireless communication with compatible Autel diagnostic systems.
• USB Connectivity: Provides a wired communication option for supported applications.
• Ethernet Connection: Integrated Ethernet interface expands communication options for supported diagnostic and programming applications.
• Status Indicators: Integrated LEDs provide visual indication of vehicle communication, connection and power status.
• Professional Construction: Robust interface designed for regular workshop diagnostic and programming use.

J2534 Pass-Thru Programming

The MaxiFlash JVCI+ can operate as a J2534 pass-thru interface for supported ECU programming and reprogramming applications.

When used as a J2534 device with compatible OEM software, programming capability, vehicle coverage, software subscriptions and access requirements are determined by the applicable vehicle manufacturer and OEM software platform.

The VCI itself does not include OEM programming subscriptions or manufacturer software licences.

Technical Specifications

• Product Type: Vehicle Communication Interface and J2534 Pass-Thru Device
• Model: Autel MaxiFlash JVCI+
• Supported Standards: SAE J2534, RP1210, ISO 22900
• Wireless Communication: Bluetooth
• Wired Communication: USB
• Network Connection: Ethernet
• Vehicle Connection: Autel Main Cable V2.0
• Power Input: 9V to 28V DC
• Dimensions: Approximately 168 x 98 x 30 mm
• Net Weight: Approximately 520 g
• Storage Temperature: -20°C to +85°C

Compatibility

The MaxiFlash JVCI+ is used with compatible Autel professional diagnostic and key programming systems, including supported MaxiIM IM608-series configurations.

Compatibility must be confirmed before purchase. Autel produces several MaxiFlash and MaxiVCI interfaces that may look similar but are not automatically interchangeable between diagnostic tablets.

If you are purchasing this VCI as a replacement for a lost or damaged unit, we recommend confirming that your existing system originally uses the MaxiFlash JVCI+ before ordering.

Replacement VCI Use

This product is ideal when your existing MaxiFlash JVCI+ has:

• Been lost or misplaced
• Been physically damaged
• Developed a vehicle communication fault
• Developed a Bluetooth or connectivity issue
• Otherwise become unusable and requires replacement

A replacement VCI may require pairing, binding, firmware updates or configuration with the compatible Autel tablet before use.

Important Cable Information

The MaxiFlash JVCI+ uses the Autel Main Cable V2.0 for vehicle connection. Autel specifically states that other Autel main cables should not be used in place of the required Main Cable V2.0.

What’s in the Box

• 1x Autel MaxiFlash JVCI+ Vehicle Communication Interface

Please Note: This listing is for the replacement VCI only. Diagnostic tablet, XP400/XP400 Pro, vehicle main cable, USB cables, power adapters, key programming accessories and other diagnostic accessories are not included unless specifically stated.
