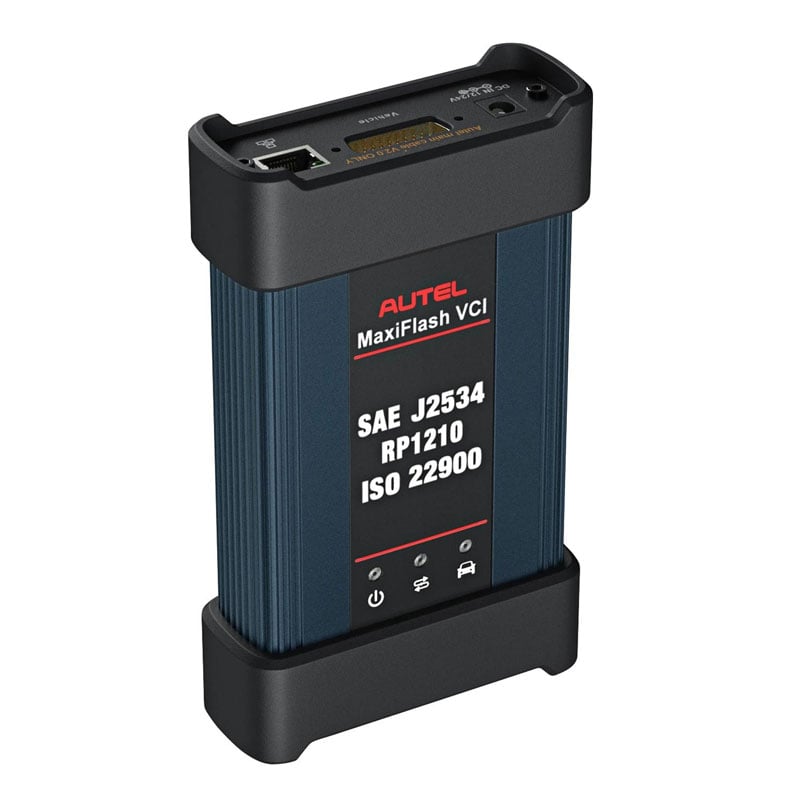

Autel MaxiFlash VCI J2534 Replacement VCI for MaxiSYS MS909

Replacement Autel MaxiFlash VCI for the MaxiSYS MS909 diagnostic scanner. Designed for MS909 owners who need to replace a lost, damaged or faulty VCI without purchasing another complete diagnostic tablet.

The MaxiFlash VCI is more than a basic wireless diagnostic connector. It provides the communication link between the MS909 and the vehicle while also functioning as a professional J2534 Pass-Thru programming interface. It supports Bluetooth, 5 GHz WiFi, USB and Ethernet communication for flexible workshop use.

Important: This listing is for the MaxiFlash VCI only. The MaxiSYS MS909 diagnostic tablet and vehicle connection cables are not included.

Key Features

• Replacement VCI for MS909: Replace a lost, damaged or faulty MaxiFlash VCI without replacing your complete MaxiSYS MS909 diagnostic system.
• J2534 Pass-Thru Programming: Supports SAE J2534 for compatible OEM ECU programming and reprogramming applications.
• Multi-Protocol Support: Supports SAE J2534, RP1210 and ISO 22900 standards for professional vehicle communication and programming.
• Multiple Connection Options: Communicates using Bluetooth, 5 GHz WiFi, USB 2.0 or Ethernet depending on the application and setup.
• Wireless Vehicle Communication: Transfers diagnostic data between the vehicle and compatible Autel diagnostic tablet without requiring the tablet to remain physically connected to the vehicle.
• Professional ECU Programming: Designed to support compatible ECU software updates, module replacement and programming through supported OEM software.
• Status Indicators: Integrated LEDs provide visual indication of vehicle communication, connection and VCI power status.

J2534 Pass-Thru Programming

The MaxiFlash VCI is a professional Pass-Thru programming interface compliant with SAE J2534 and other supported vehicle communication standards.

When used with compatible OEM software, it can provide the communication interface required for ECU programming and reprogramming procedures.

Please Note: OEM programming software, manufacturer subscriptions, security access and other paid services are not included with the VCI. Programming availability depends on the vehicle manufacturer, OEM software and applicable subscription or access requirements.

Communication Options

• Bluetooth: Wireless communication between the VCI and compatible diagnostic tablet.
• 5 GHz WiFi: High-speed wireless communication for supported applications.
• USB 2.0: Wired communication option for stable direct connectivity.
• Ethernet: Wired network communication for supported diagnostic and programming applications.

Technical Specifications

• Product: Autel MaxiFlash VCI
• Product Type: Vehicle Communication Interface and Pass-Thru Programming Device
• Primary Compatibility: Autel MaxiSYS MS909
• Communications: Bluetooth V2.1 + EDR, USB 2.0, 5 GHz WiFi, Ethernet
• Wireless Frequency: 5 GHz
• Input Voltage: 12V DC to 24V DC
• Supply Current: 170 mA at 12V DC, 100 mA at 24V DC
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 60°C
• Dimensions: 149 x 86 x 35 mm
• Weight: Approximately 0.29 kg

Compatibility

This replacement VCI is compatible with the Autel MaxiSYS MS909. Autel also lists the MaxiFlash VCI as compatible with selected other professional Autel diagnostic systems.

If purchasing this product for a diagnostic tool other than the MS909, compatibility should be confirmed before ordering.

This is not the MaxiFlash VCMI supplied with the MaxiSYS Ultra and MS919. The VCMI is a different interface with additional measurement functions.

This is also not the newer MaxiFlash VCI2 supplied with the MS909S2. If you own an MS909S2 rather than the original MS909, confirm the required replacement interface before ordering.

Replacement VCI Use

This product is ideal when the original MaxiFlash VCI supplied with your MS909 has:

• Been lost or misplaced
• Been physically damaged
• Developed a communication fault
• Developed a wireless connectivity problem
• Otherwise become unusable and requires replacement

A replacement VCI may require pairing, registration, firmware updating or configuration with your existing Autel diagnostic tablet before use.

Vehicle Connection

The MaxiFlash VCI connects to compatible vehicles using the Autel Main Cable V2.0. When connected to an OBDII/EOBD compliant vehicle, the VCI can receive power through the vehicle’s Data Link Connector and transmit vehicle data to the diagnostic tablet.

What’s in the Box

• 1x Autel MaxiFlash VCI

Please Note: This listing includes the MaxiFlash VCI only. MaxiSYS MS909 tablet, Main Cable V2.0, USB cables, AC/DC adapter, power cables, carrying case and other accessories are not included unless specifically stated.
