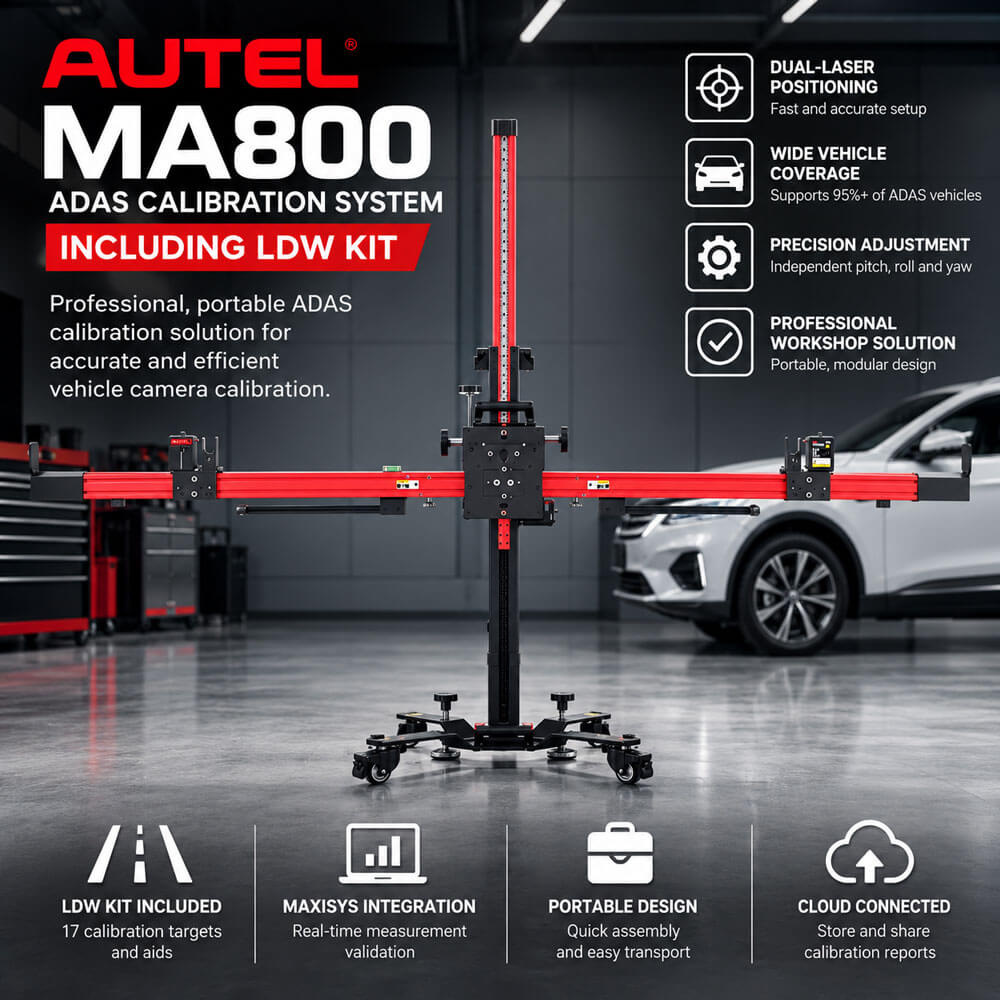

The Autel MaxiSYS MA800 Advanced Mobile ADAS Calibration System with LDW Kit is a professional, portable calibration solution designed for automotive workshops, windscreen replacement centres, collision repair facilities and mobile ADAS specialists.

Building on the MA600 platform, the MA800 combines dual-laser positioning, independent pitch, roll and yaw adjustment, real-time measurement validation and a modular four-piece frame to simplify accurate calibration setup.

This package includes the MA800 frame, laser positioning equipment, a Laser Measurement Unit and 17 manufacturer-specific Lane Departure Warning (LDW) calibration targets and aids.



Quick Navigation:
Key Features | ADAS Functions | Vehicle Coverage | Included Targets | Tablet & Software | Specifications | Box Contents


Watch the MA800 in Action

See the MA800 calibration system and its positioning features in action.

Key Features

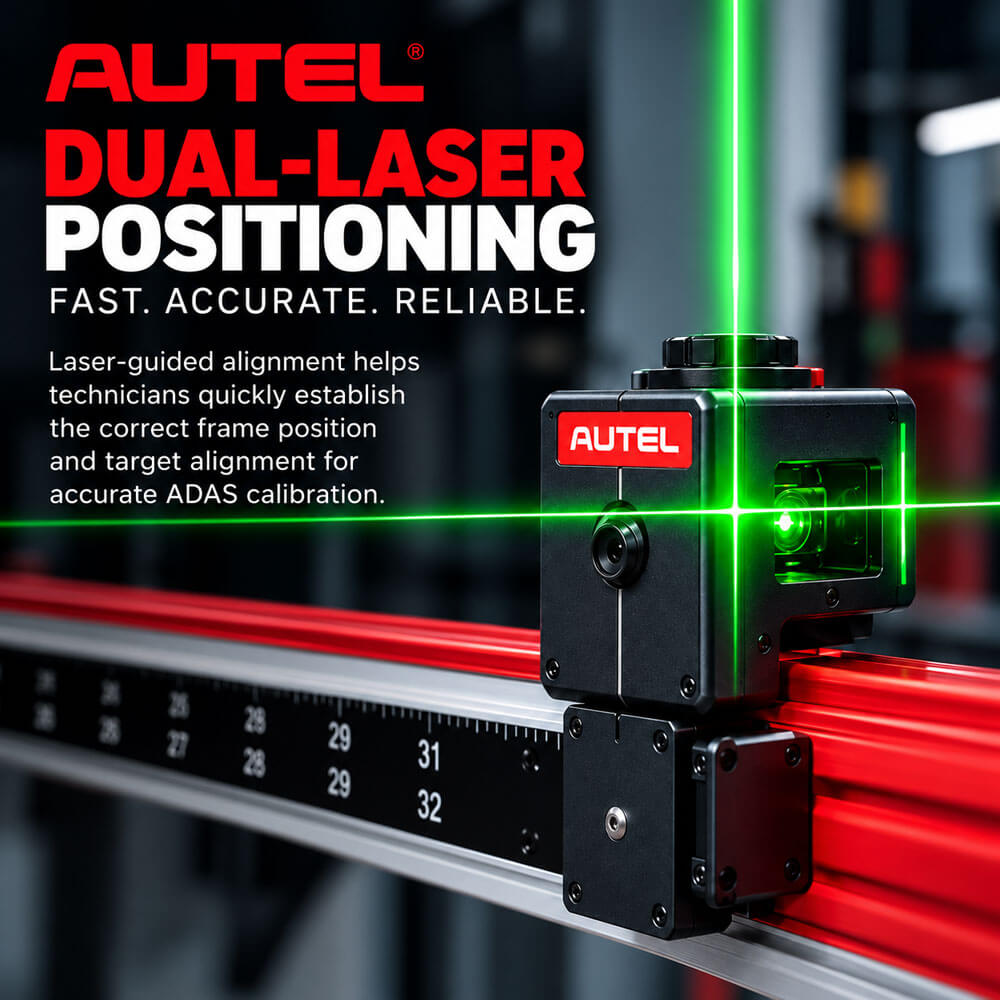

• Dual-Laser Positioning: Helps technicians accurately position the calibration frame and targets relative to the vehicle, reducing manual setup complexity.

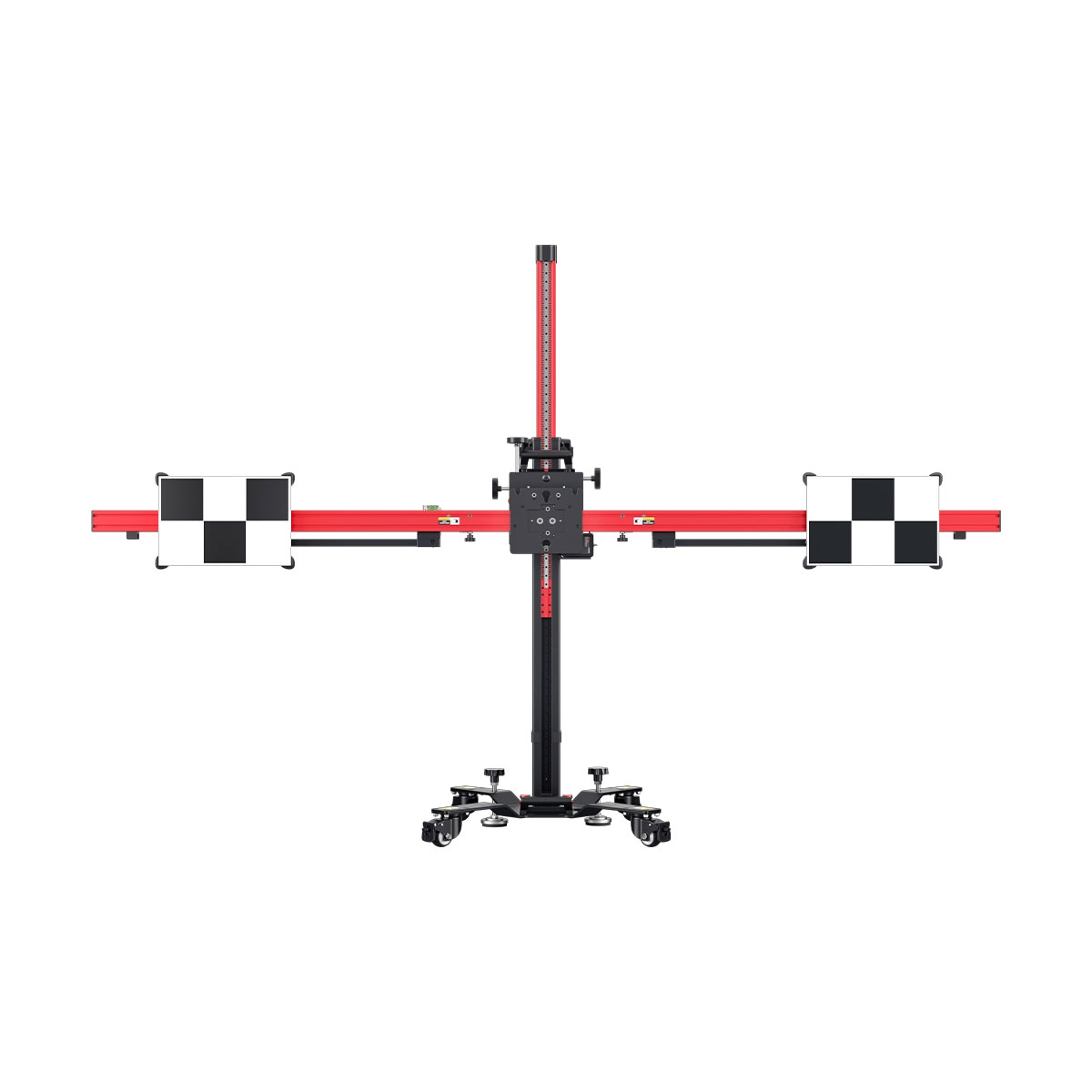

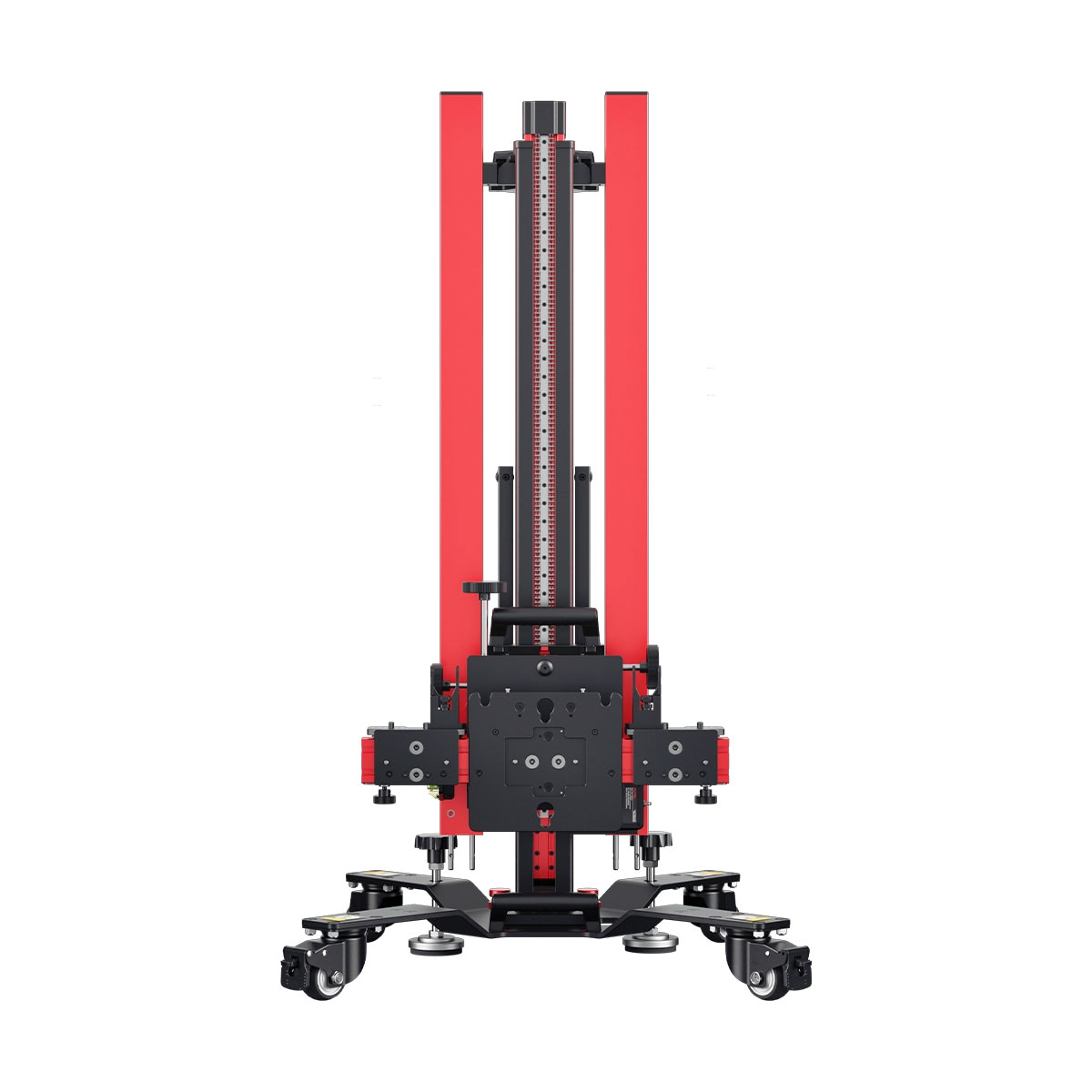

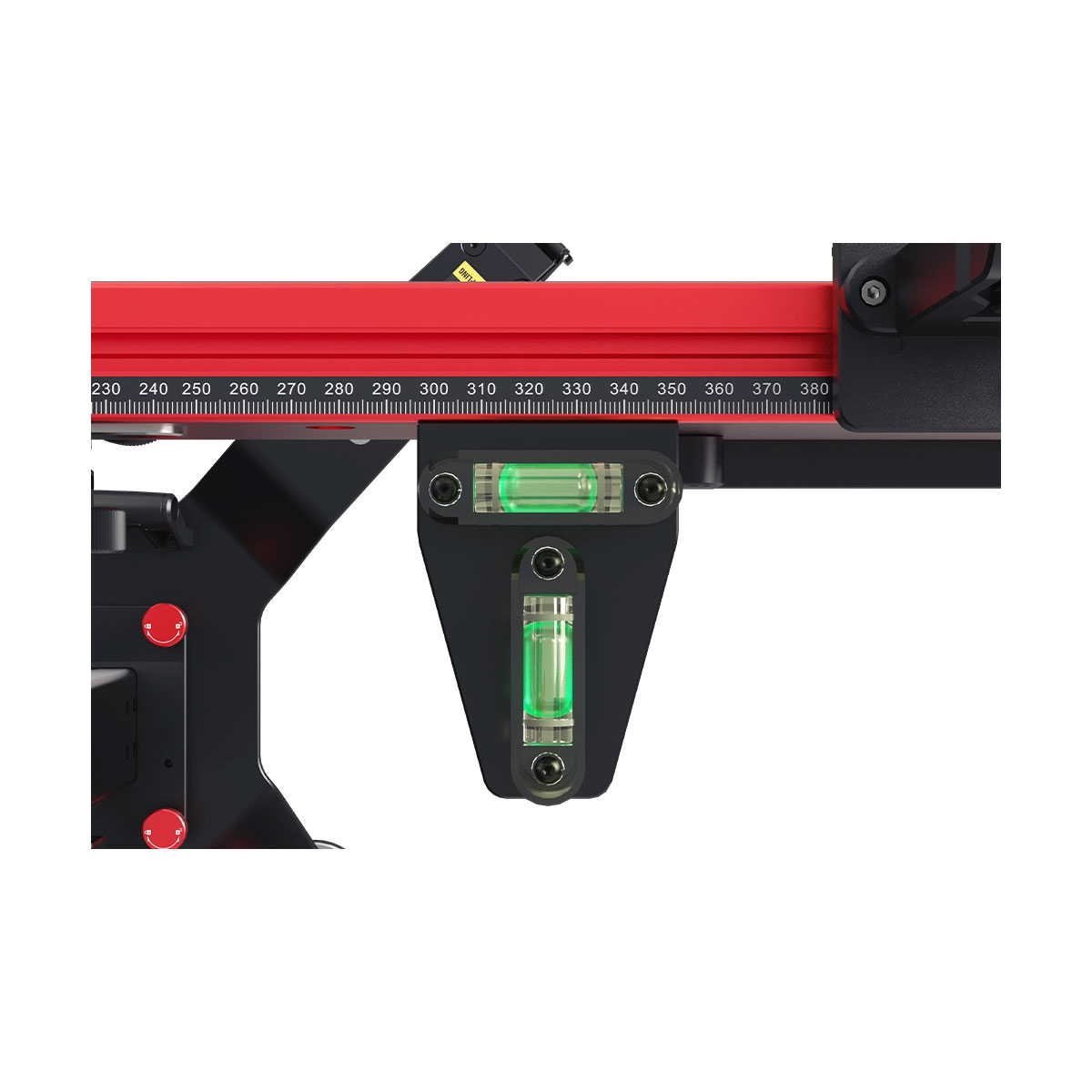

• Independent Pitch, Roll and Yaw Adjustment: Allows precise three-axis frame positioning to accommodate workshop floor conditions and manufacturer calibration requirements.

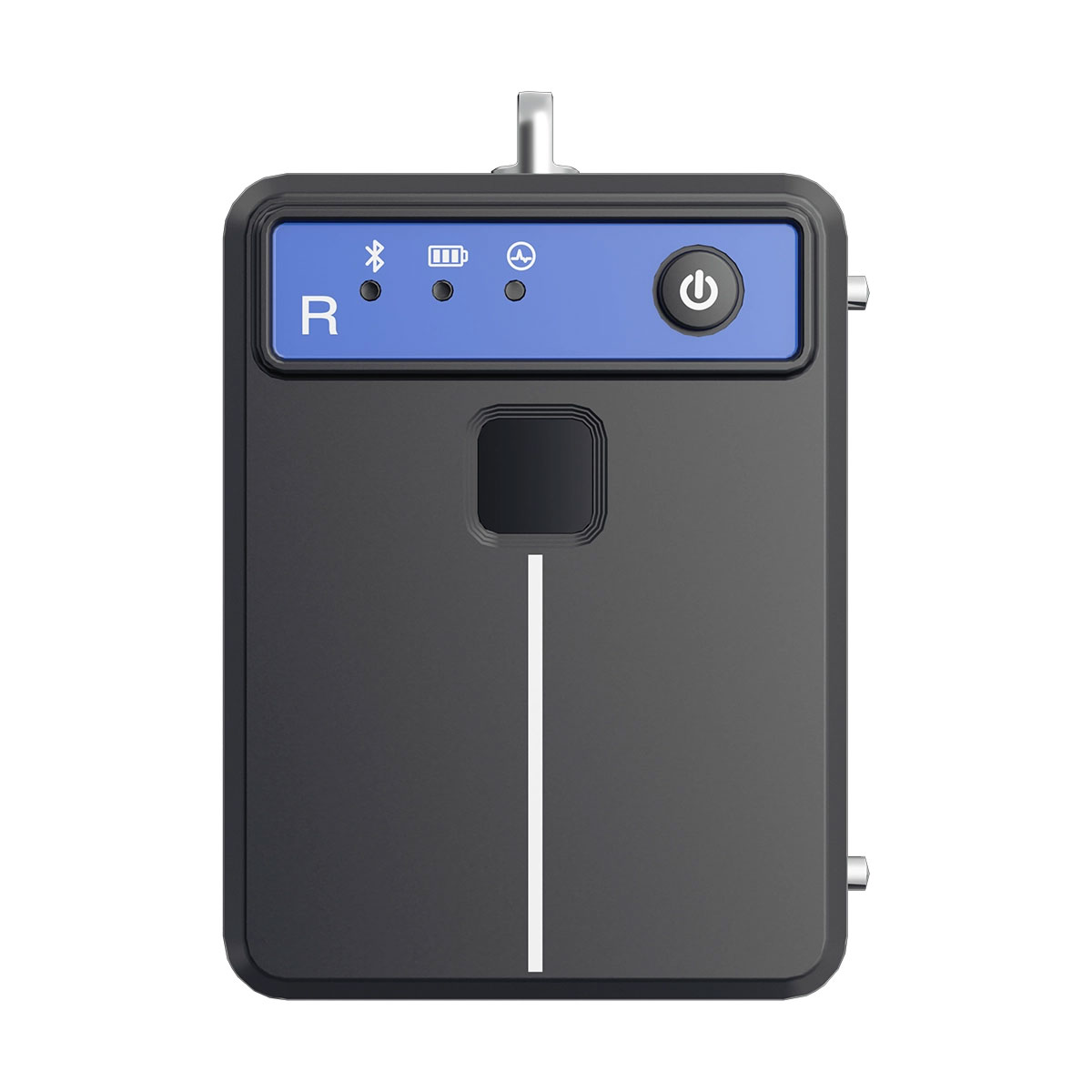

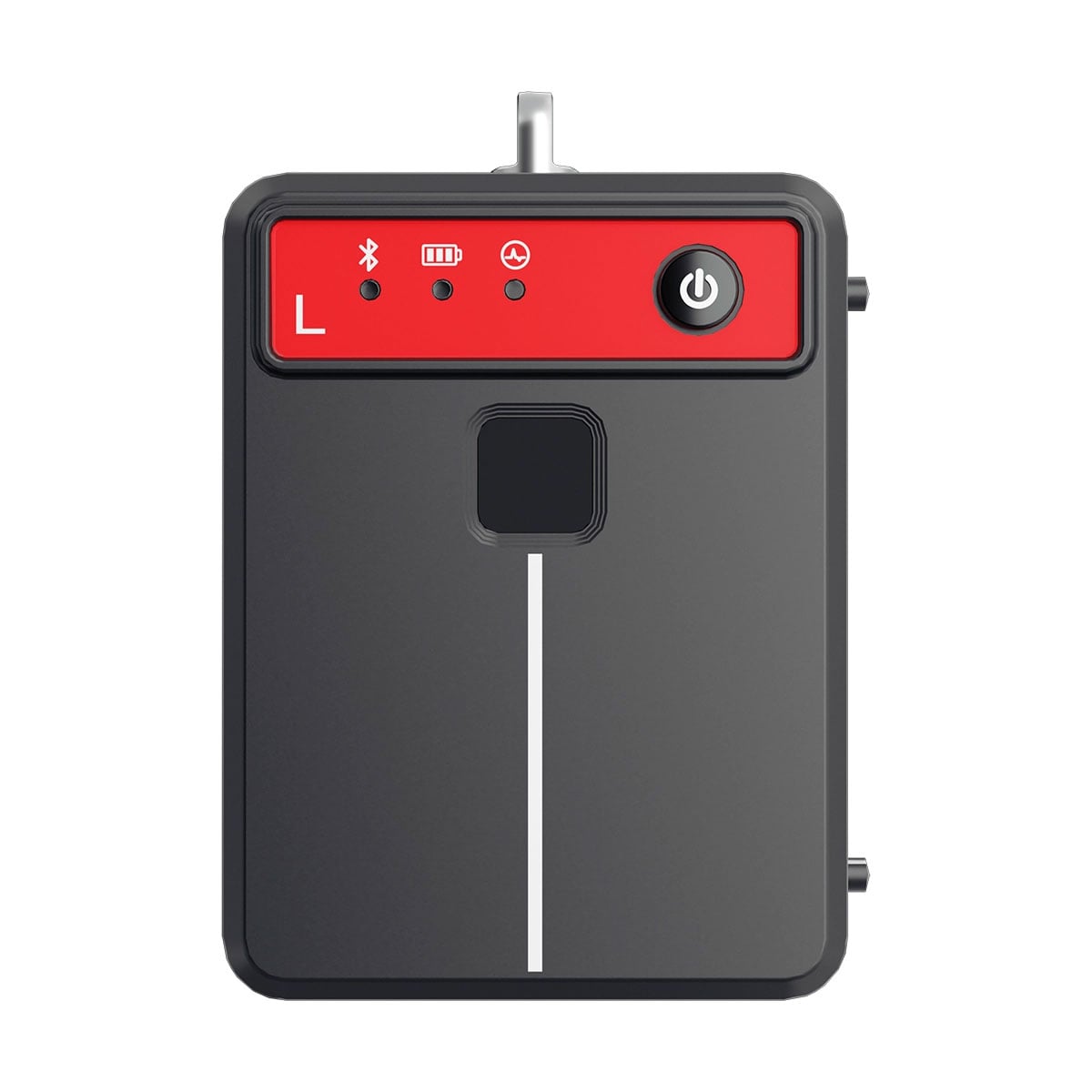

• Real-Time MaxiSYS Measurement Validation: The included Laser Measurement Unit supports measurement verification through a compatible MaxiSYS tablet and supported software.
• 17 LDW Calibration Targets and Aids: Manufacturer-specific patterns support applicable forward-facing camera calibration procedures across multiple Asian and European vehicle brands.

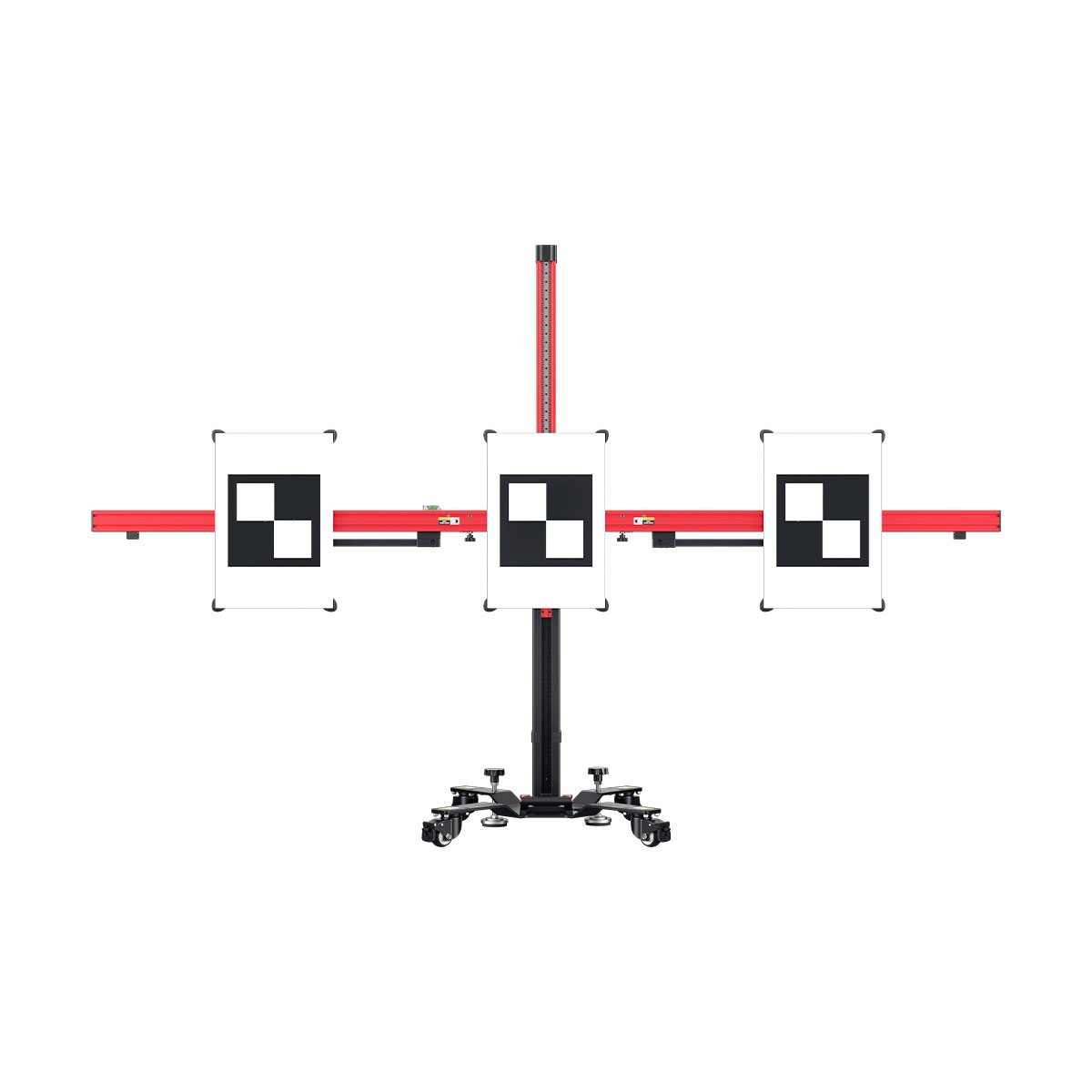

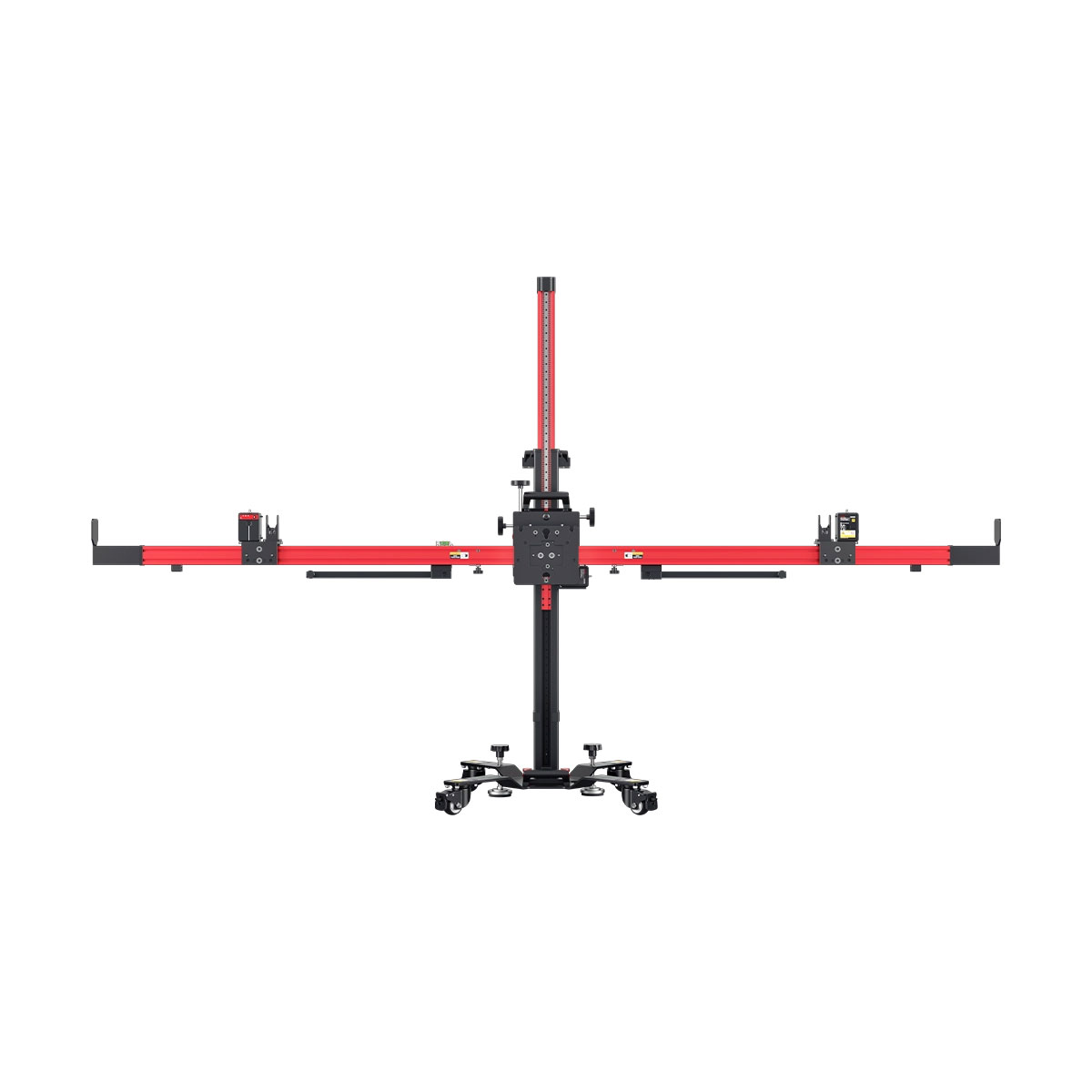

• Portable Four-Piece Frame: Lightweight modular construction supports workshop use, mobile calibration applications and compact storage.
• Fast Tool-Free Assembly: Designed for efficient setup, disassembly and transportation.
• Expandable ADAS Platform: Additional compatible Autel targets, accessories and software extend the range of supported calibration applications.
• Guided Calibration and Reporting: Compatible MaxiSYS tablets provide vehicle-specific procedures, diagnostic scanning and calibration reporting.

Precision Alignment and Measurement

Accurate positioning is essential for successful ADAS calibration. The MA800 combines laser-assisted alignment, reflective positioning accessories and adjustable frame components to help technicians establish the correct relationship between the vehicle and calibration target.

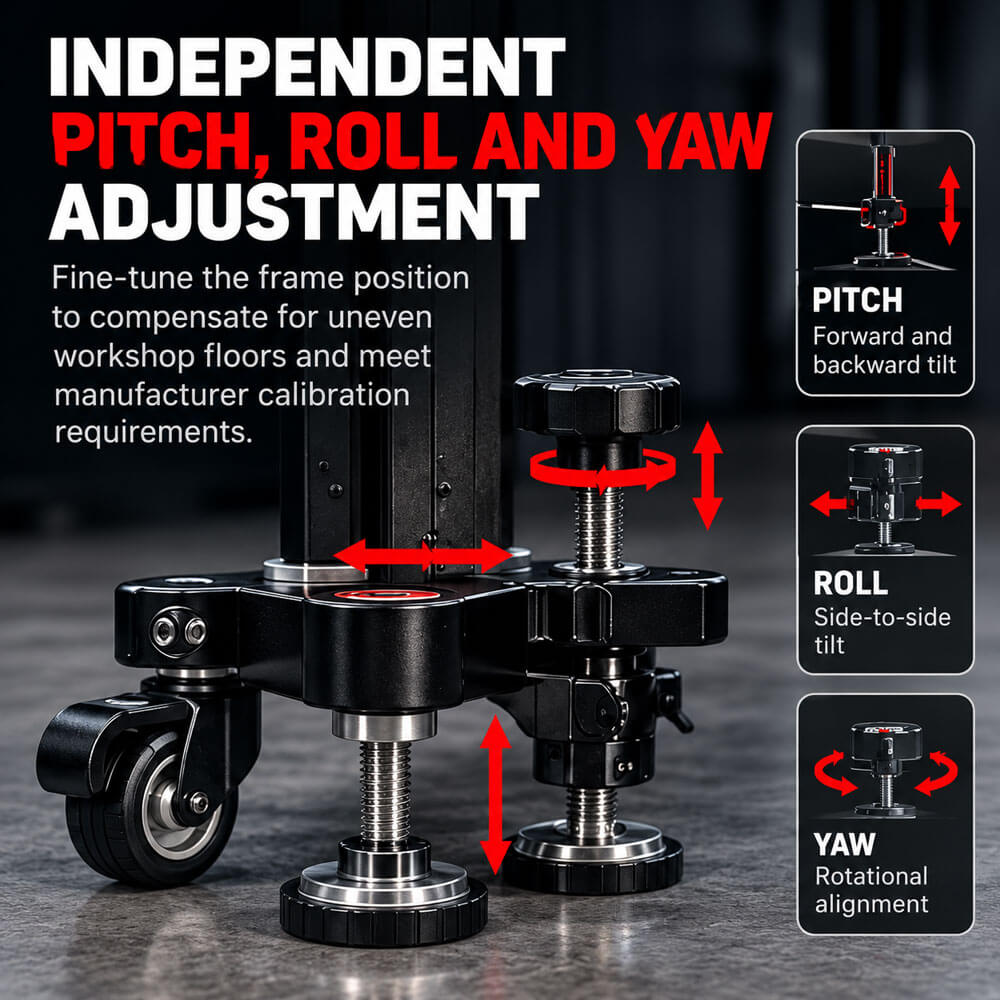

Three-Axis Frame Adjustment

These independent adjustments help technicians fine-tune the frame orientation when working on surfaces that are not perfectly level, while following the vehicle manufacturer’s specified positioning tolerances.

Laser-Assisted Setup and Validation

• Laser-Guided Alignment: Assists with positioning the frame relative to the vehicle.
• Reflective Alignment Accessories: Support the positioning and alignment process.
• Target Height: Helps verify that the calibration target is installed at the specified height.
• Target Distance: Supports verification of the required distance between the vehicle and calibration target.
• Vehicle-to-Frame Distance: Helps confirm the correct calibration frame position.
• OEM Tolerance Verification: Compatible MaxiSYS software assists with checking supported measurements against manufacturer requirements.

Note: The Laser Measurement Unit is included. Tablet-integrated measurement validation requires a compatible MaxiSYS diagnostic tablet and supported ADAS software.

ADAS Calibration Functions

The MA800 is an expandable ADAS calibration platform. The functions available depend on the vehicle, diagnostic tablet, software, calibration targets and accessories installed.

Important: This is the MA800 LDW Kit configuration. ACC, BSD, AVM and other calibration functions may require additional targets, radar equipment, accessories and software not supplied in this package.

Static vs Dynamic ADAS Calibration

• Static Calibration: Performed while the vehicle is stationary using precisely positioned calibration targets. The MA800 provides the physical frame and positioning equipment for applicable static procedures.
• Dynamic Calibration: Performed while driving under manufacturer-specified conditions, which may include particular speeds, road markings, weather and road environments.

Depending on the vehicle and ADAS system, calibration may require a static procedure, a dynamic procedure or both. A compatible MaxiSYS diagnostic tablet with the required ADAS software provides guided instructions for supported applications.

When is ADAS Calibration Required?

ADAS calibration may be necessary after repairs or adjustments that affect camera, radar or sensor positioning.

Note: Calibration requirements vary by vehicle. Always follow the vehicle manufacturer’s service and calibration procedures, even when no ADAS warning light is displayed.

LDW Calibration Vehicle Coverage

The supplied LDW Kit includes calibration targets and aids for applicable vehicles from the following manufacturers:

Compatibility Note: Target compatibility depends on the vehicle model, year, camera system and manufacturer calibration requirements. Having a manufacturer’s target included does not guarantee compatibility with every vehicle from that manufacturer.

Always verify vehicle-specific calibration requirements and target compatibility before performing a calibration.

Included LDW Calibration Targets and Aids

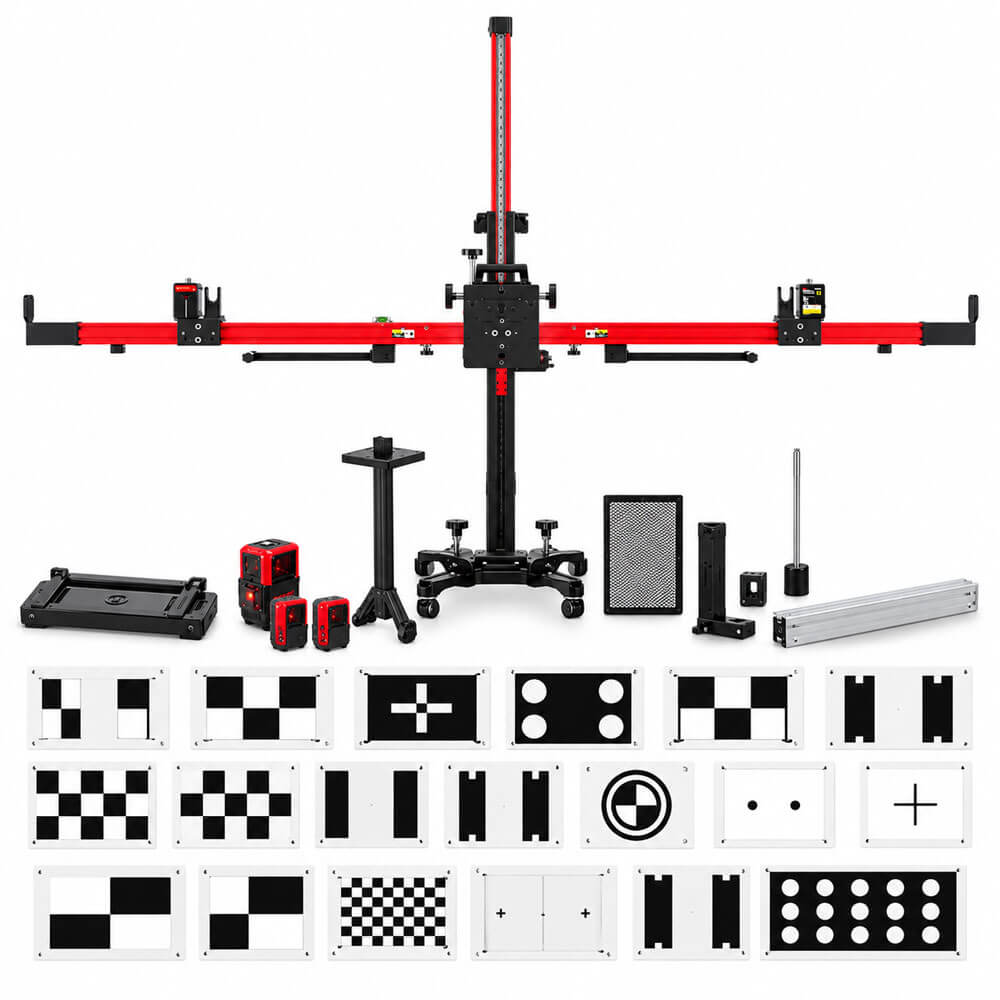

The MA800 LDW Kit includes 17 manufacturer-specific calibration targets and aids, with one of each item listed below.

Compatible MaxiSYS Tablet and Software Requirements

The MA800 provides the physical calibration frame, positioning equipment and LDW targets. Vehicle-specific calibration procedures require a compatible Autel MaxiSYS diagnostic tablet with the appropriate ADAS software.

• Diagnostic Tablet: A compatible ADAS-enabled Autel MaxiSYS diagnostic tablet is required.
• ADAS Software: Appropriate vehicle-specific calibration software and activation are required.
• Guided Procedures: Supported MaxiSYS tablets provide step-by-step calibration instructions.
• Measurement Validation: Compatible software supports measurement verification using the included Laser Measurement Unit.
• Pre and Post Scanning: Compatible tablets support diagnostic scanning before and after calibration.
• Reporting: Supported software records and displays calibration and diagnostic results.
• Cloud Integration: Compatible Autel services support storage and sharing of reports and vehicle records.
• Software Licensing: Subscription, activation and update requirements depend on the tablet and software configuration.

Please Note: A MaxiSYS diagnostic tablet and ADAS software licence are not listed as included in this MA800 LDW Kit. Confirm compatibility and software licensing requirements before purchasing.

Related Product: Autel MaxiSYS ADAS Software Upgrade. Check device eligibility and compatibility before purchasing any software activation.

Pre and Post Calibration Scanning and Reporting

When used with a compatible MaxiSYS diagnostic tablet and software, the MA800 calibration workflow can incorporate diagnostic scanning and documentation.

Technical Specifications

Installation and Setup

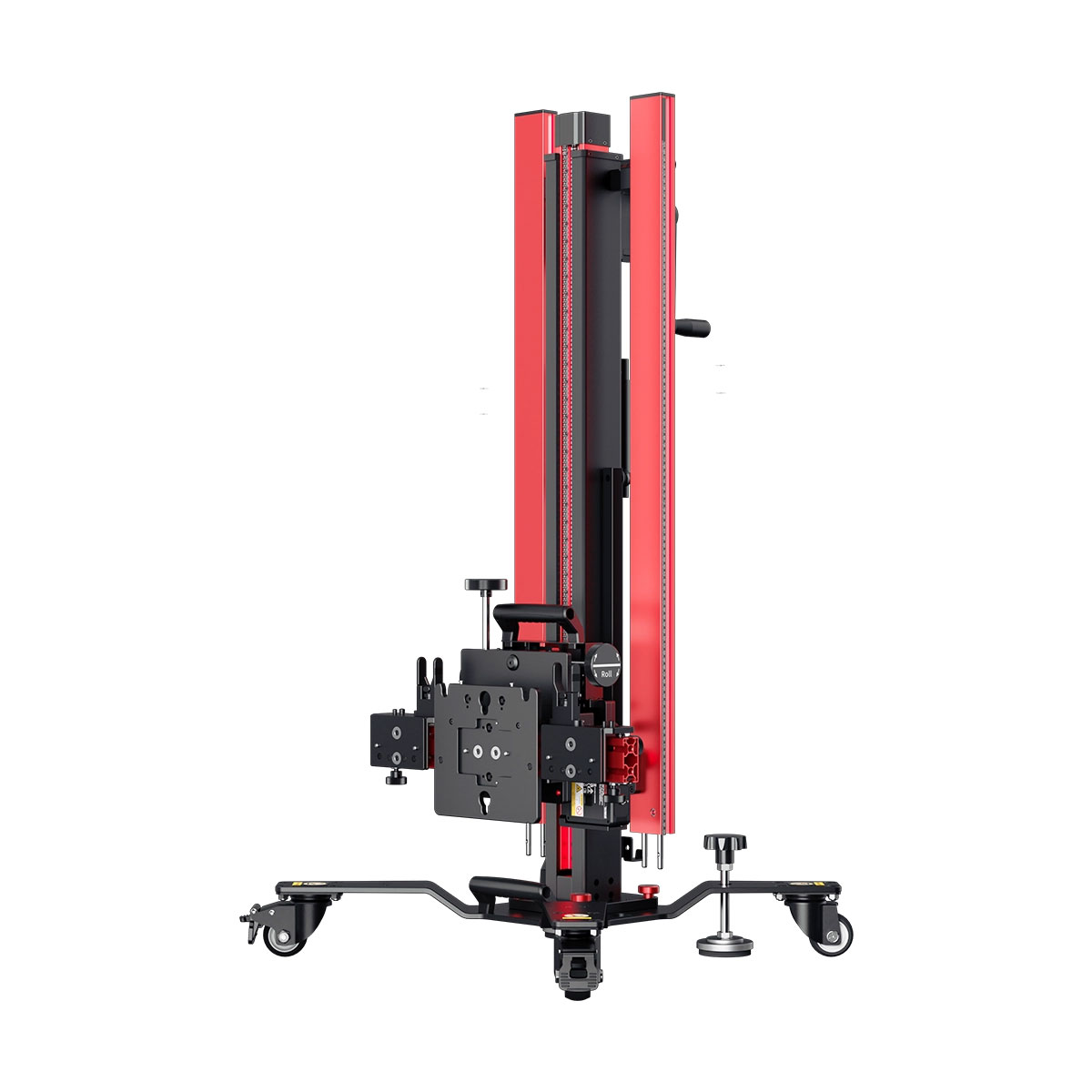

The MA800 uses a portable modular frame designed for efficient assembly and calibration target positioning.

1. Prepare: Assemble the MA800 frame, position it in the calibration area and prepare the vehicle according to the manufacturer’s requirements.

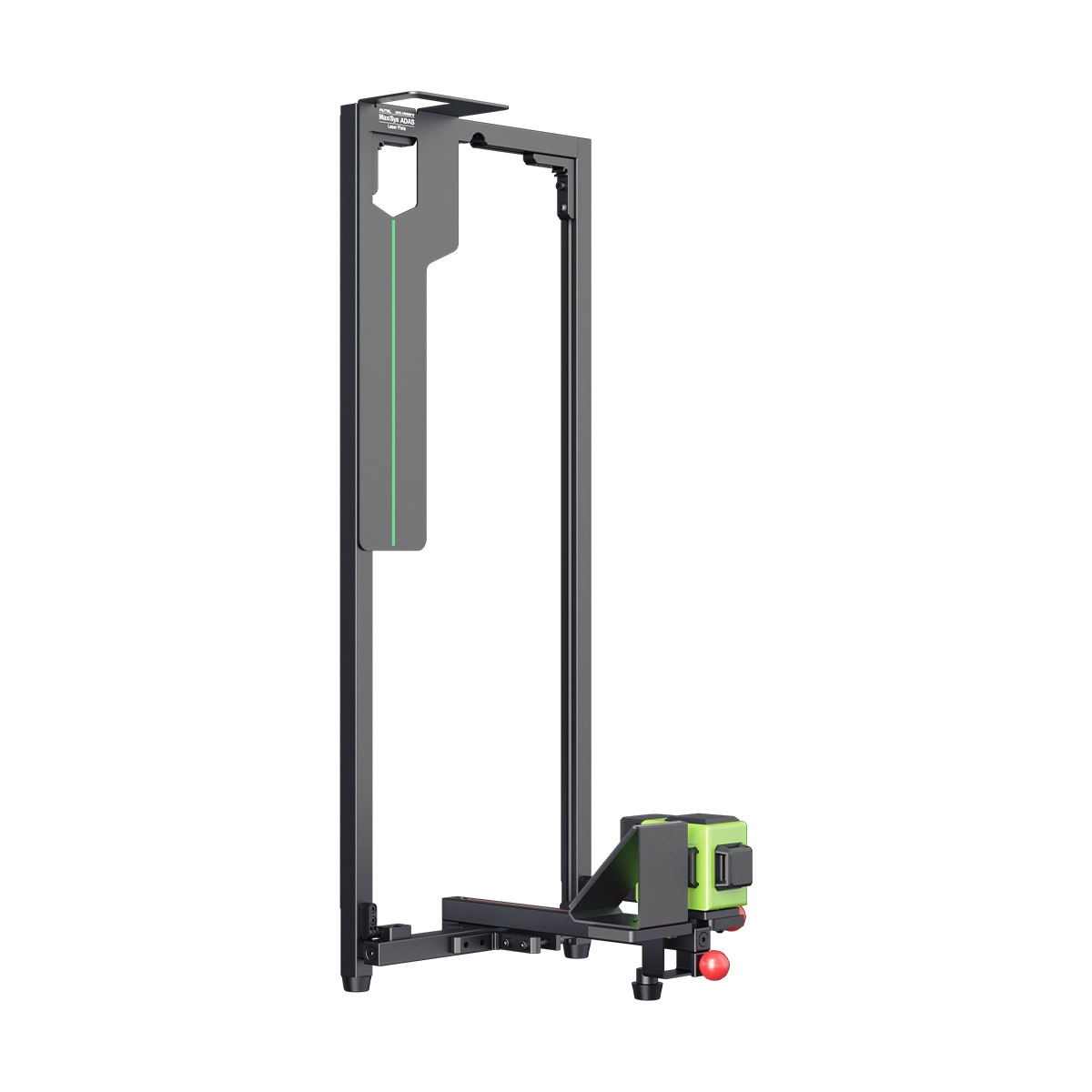

2. Align: Use the supplied laser positioning equipment and reflective accessories to establish the correct frame position.
3. Adjust: Fine-tune pitch, roll and yaw, then install the appropriate LDW target.
4. Validate: Use the Laser Measurement Unit and compatible MaxiSYS tablet to verify supported setup measurements.
5. Calibrate: Follow the vehicle-specific ADAS procedure and complete the required post-calibration diagnostic checks.

Important: Always follow the manufacturer’s requirements for workshop conditions, vehicle preparation, positioning, calibration procedures and measurement tolerances.

What’s in the Box

MA800 Calibration Frame and Positioning Equipment

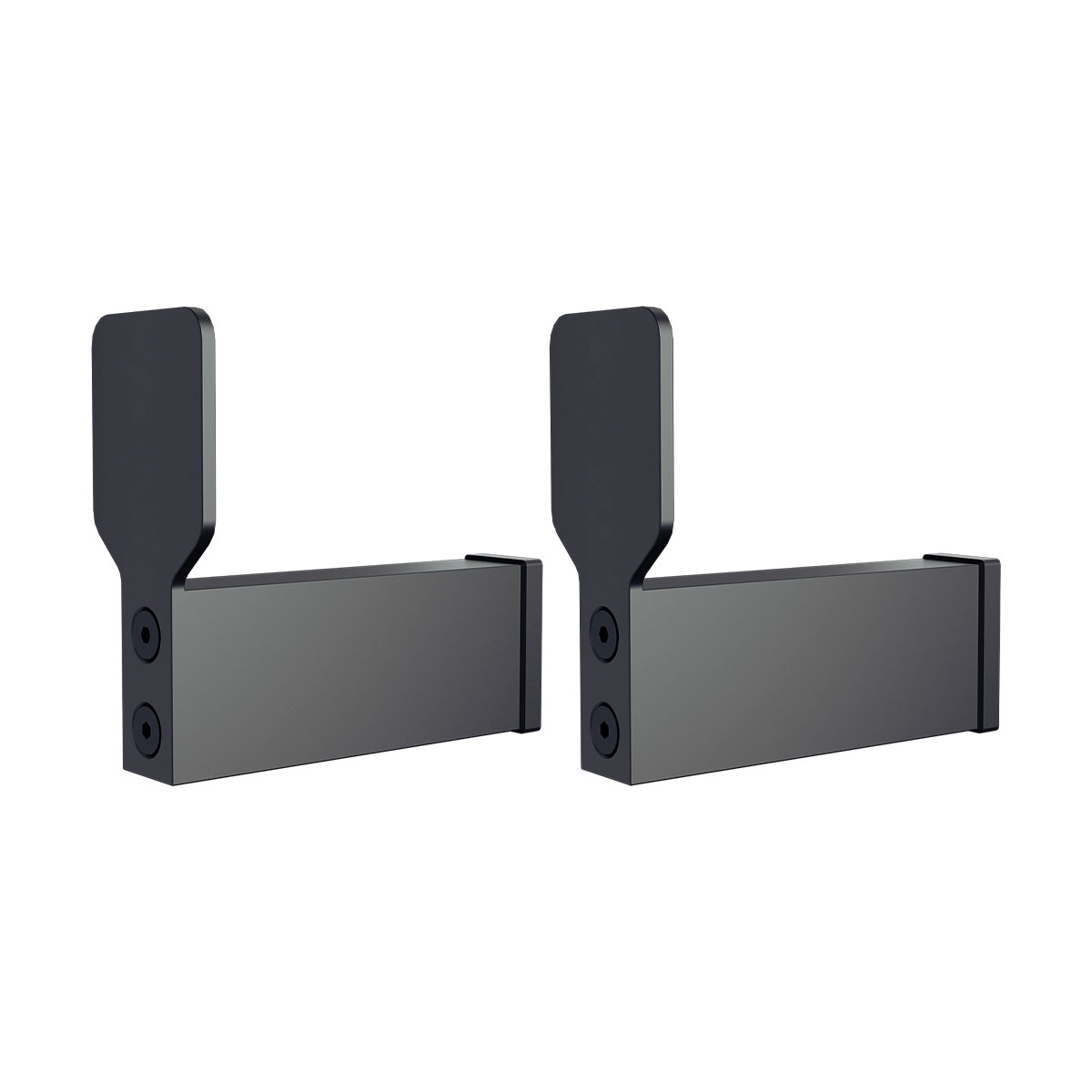

LDW Calibration Targets and Aids

17x manufacturer-specific LDW calibration targets and aids covering applicable vehicles from Toyota, Lexus, Volkswagen, Mercedes-Benz, Nissan, Infiniti, Honda, Hyundai, Kia, Mazda, Mitsubishi and Subaru.

See the Included LDW Calibration Targets and Aids section above for the complete list of part numbers and vehicle applications.

Package Note: A compatible MaxiSYS diagnostic tablet and appropriate ADAS software are required separately. Additional equipment may be necessary for specific vehicle applications and advanced ADAS functions.
