Autel MaxiVCI VCI200 Bluetooth Diagnostic Interface | Supports DoIP & CAN-FD | Compatible with MS906Pro, MS906Pro-TS, BT608, BT609, KM100, ITS600

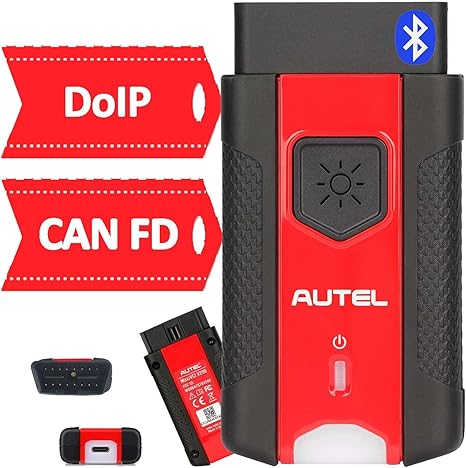

The Autel MaxiVCI VCI200 is the official wireless Vehicle Communication Interface (VCI) that links Autel MaxiSYS diagnostic tablets to vehicles via Bluetooth 4.2. It adds support for DoIP (Diagnostics over IP) and CAN-FD (Flexible Data-Rate CAN bus), making it essential for servicing modern 2019+ vehicles. Designed for both 12V passenger cars and 24V trucks, the VCI200 replaces older VCIs and is required for Autel’s newest tablets.

VCI V200 Overview & how to update

Key Features

• Supports DoIP & CAN-FD for newer vehicle platforms

• Compatible with Autel MS906Pro, MS906Pro-TS, KM100, BT508, BT608, BT609, ITS600

• Works on both 12V cars and 24V commercial vehicles

• Wireless Bluetooth 4.2 connection for stable communication

• Full OEM-level diagnostics, coding, and programming (tablet-dependent)

• Plug-and-play setup, powered directly from the OBDII port

• Compact, durable design built for professional workshops

Specifications

• Model Number: VCI200

• Protocols: DoIP, CAN-FD, ISO 9141-2, ISO 14230-2, ISO 15765-4, SAE J1850 VPW/PWM

• Connectivity: Bluetooth 4.2 (wireless), USB 2.0 (firmware updates)

• Input Voltage: 12V / 24V

• Connector: OBDII Male

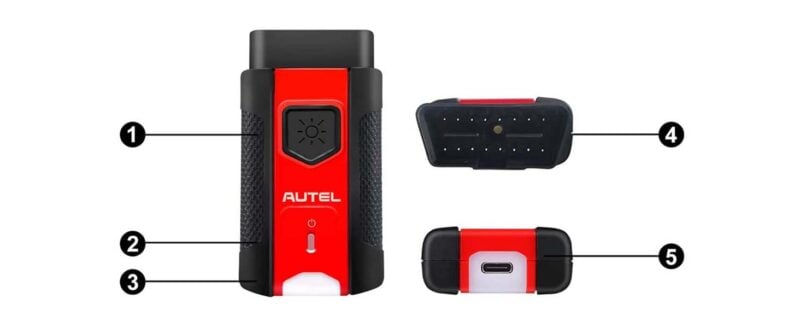

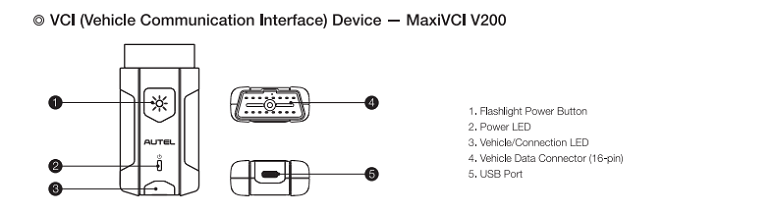

• LED Indicators: Power, Vehicle, Bluetooth, USB

• Dimensions: 48 × 27 × 19 mm

• Operating Temp: -10°C to 60°C

• Compatible Tablets: MS906Pro, MS906Pro-TS, KM100, BT508, BT608, BT609, ITS600

How It Works

1. Plug the VCI200 into the vehicle’s OBDII port

2. Power on the Autel MaxiSYS tablet

3. Pair the VCI200 with the tablet via Bluetooth 4.2

4. Launch the MaxiSYS diagnostic software

5. Perform scans, view live data, coding, or ECU programming

Ideal Applications

• Workshops requiring DoIP and CAN-FD capability

• Mechanics working on 2019+ vehicles

• Fleet maintenance across cars and trucks

• Technicians upgrading from older Autel VCIs (VCI100/VCI110)

• Owners of MS906Pro, BT608, BT609, ITS600, or KM100 tablets needing a compatible VCI

What’s in the Box

• 1 × Autel MaxiVCI VCI200 Bluetooth Adapter

• 1 × User Manual

• 1 × Quick Start Guide
