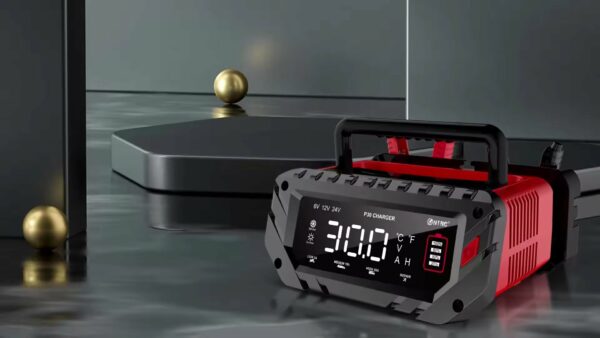

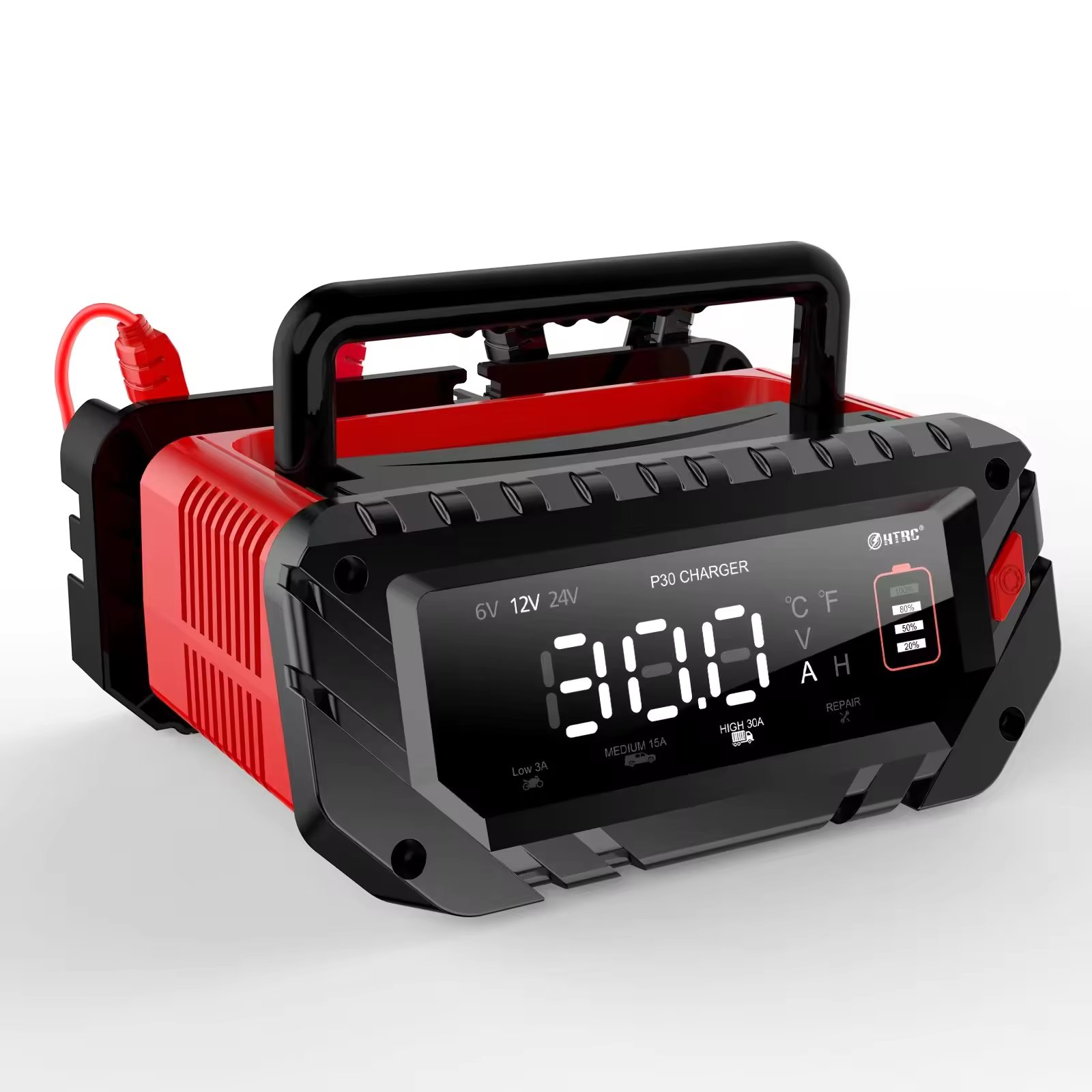

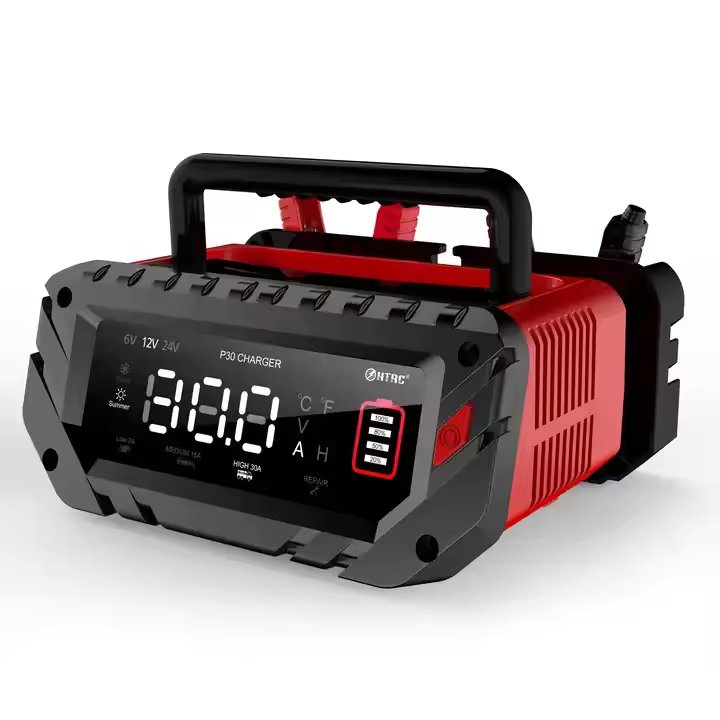

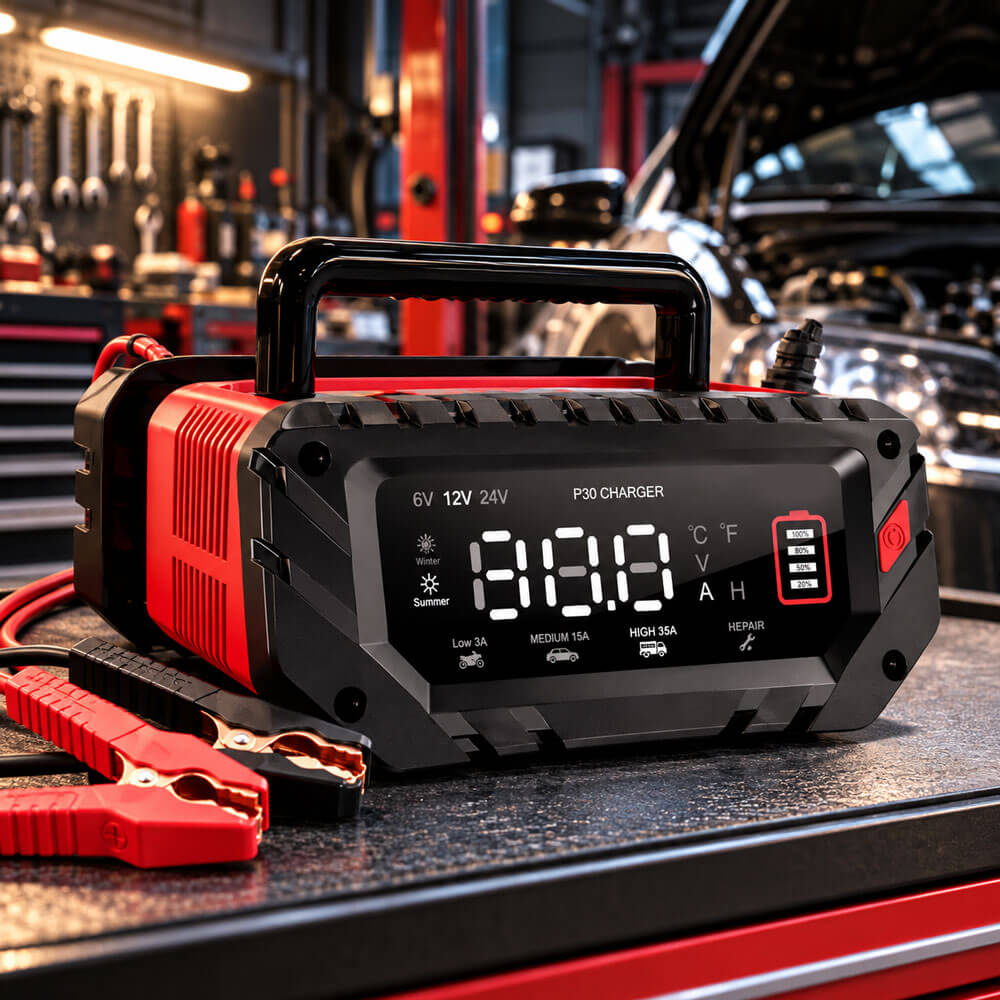

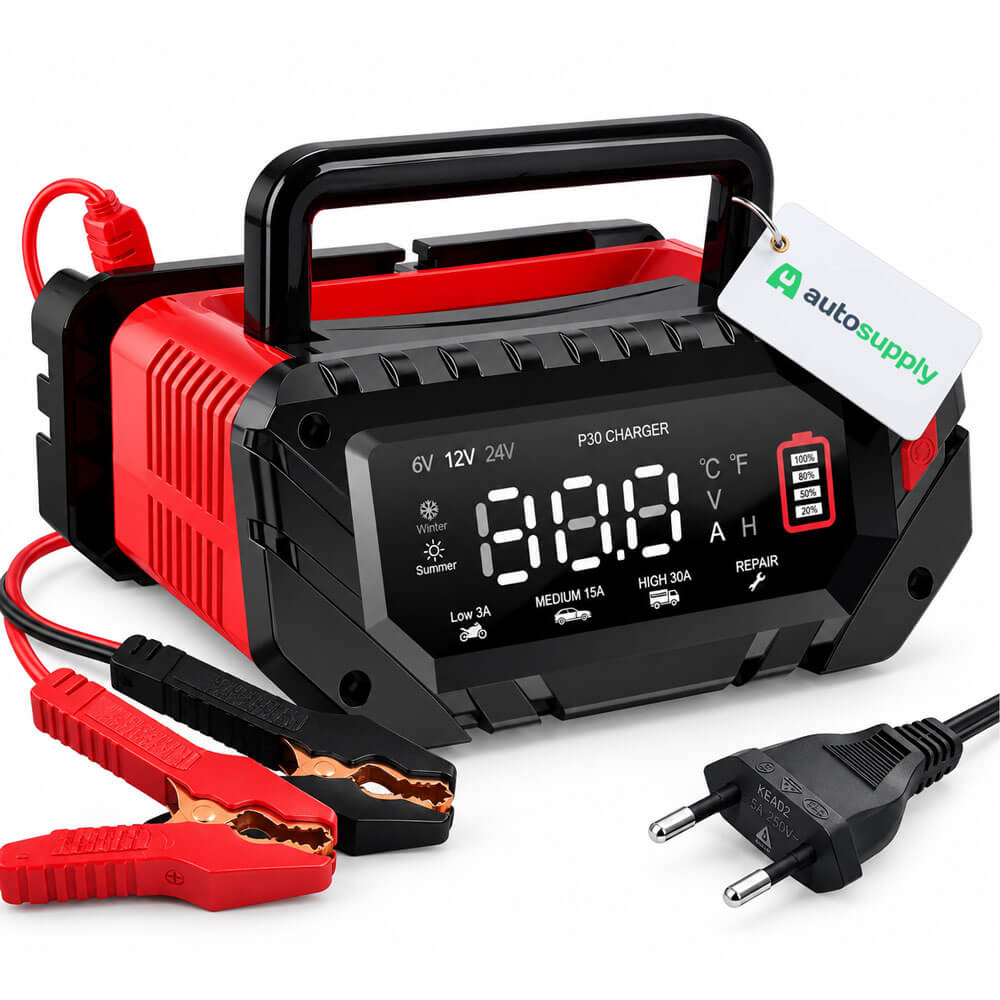

Automatic Smart Car Battery Charger for LiFePO4/Lithium/Lead-acid Batteries, 6/12/24V 30A

One smart charger for almost every battery in your garage, workshop or fleet.

This powerful 30A Smart Battery Charger supports 6V, 12V and 24V battery systems and is compatible with Lithium, LiFePO4 and a wide range of lead-acid batteries, including AGM, GEL, SLA, Flooded, VRLA, EFB, MF and WET batteries.

Use it as a battery charger, maintainer, trickle charger and pulse repair charger. With automatic voltage identification, three selectable charging currents, intelligent 9-stage charging and a large LCD display, it provides an easy and versatile way to charge and maintain batteries for everything from motorcycles and cars to trucks, boats, agricultural equipment and RVs.

Simply connect the clamps, select the appropriate charging setting and let the intelligent charging system manage the charging process.

__

Key Features

• 30A Fast Charging: Delivers up to 30A charging current at 12V for efficient charging of compatible automotive, leisure and equipment batteries.
• Automatic Voltage Identification: Automatically identifies compatible 6V, 12V and 24V battery systems.
• Wide Battery Compatibility: Supports Lithium, LiFePO4 and lead-acid batteries including AGM, GEL, SLA, Flooded, VRLA, EFB, MF and WET types.
• 3 Selectable Current Levels: Choose Low, Medium or High charging current to better suit different battery sizes and applications.
• 9-Stage Smart Charging: Intelligent multi-stage charging manages the charging process from initial battery conditioning through to float and maintenance charging.
• Large LCD Display: Monitor charge current, charge voltage, charge quantity, internal temperature, battery voltage and charging status.

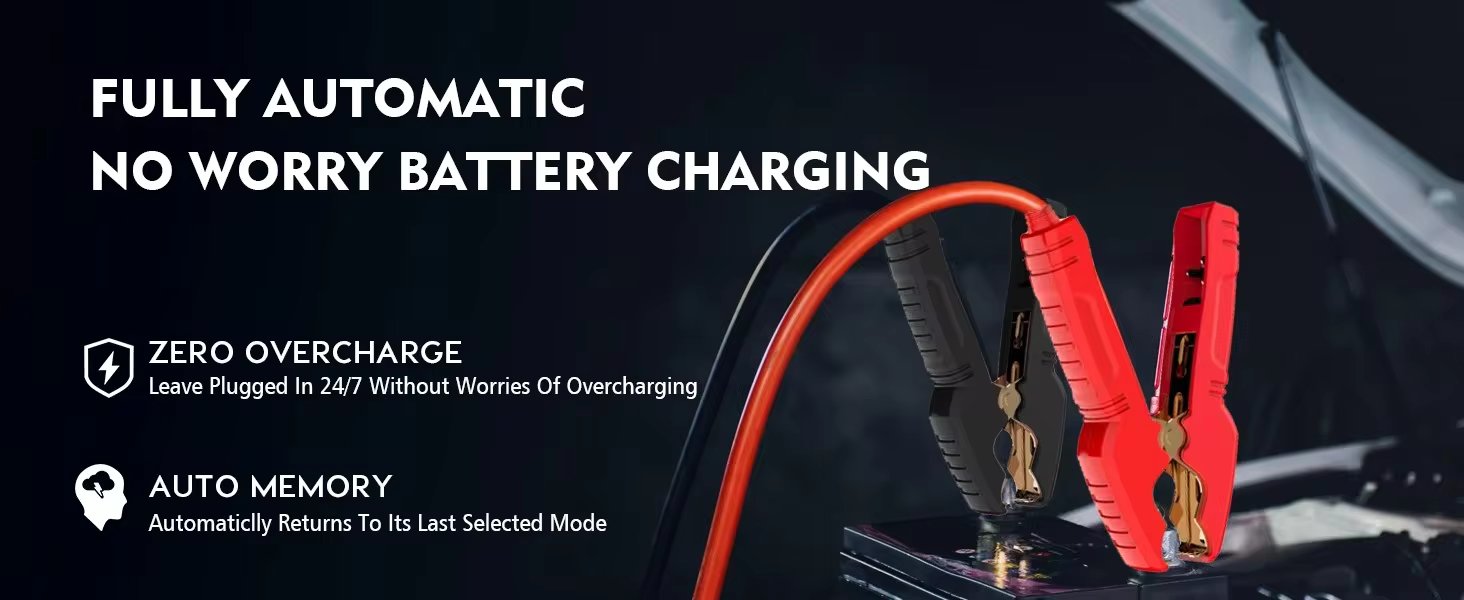

• Automatic Full-Charge Stop: Automatically stops active charging when the battery reaches full charge and enters maintenance charging to help prevent overcharging.
• Auto Memory: Automatically returns to the previously selected charging mode for convenient repeated use.
• Pulse Repair Mode: Helps activate and improve suitable older or lightly sulphated lead-acid batteries.
• Dual Cooling Fans: Two built-in cooling fans provide active heat dissipation during charging.
• Multiple Safety Protections: Includes overcharge, overcurrent, overheating, reverse polarity, short-circuit and spark-free contact protection.
• Flame-Retardant Housing: Durable ABS and PC flame-retardant construction provides additional protection for workshop and garage use.
• Portable Design: Foldable carrying handle and bottom bracket make the charger easy to carry and store.
• Cable Storage: Rear storage helps keep the power cable and charging clamps organised when not in use.

__

3 Selectable Charging Currents

Choose between three charging current levels to suit different battery sizes and applications:

• Low Current Mode: 6V 2A, 12V 3A, 24V 5A
• Medium Current Mode: 6V 5A, 12V 15A, 24V 10A
• High Current Mode: 6V 10A, 12V 30A, 24V 16A

__

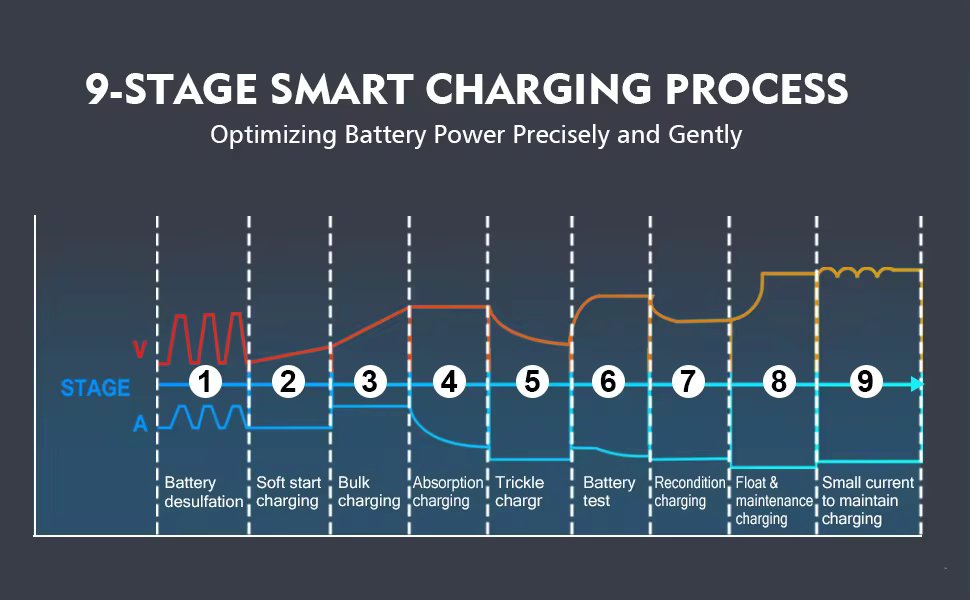

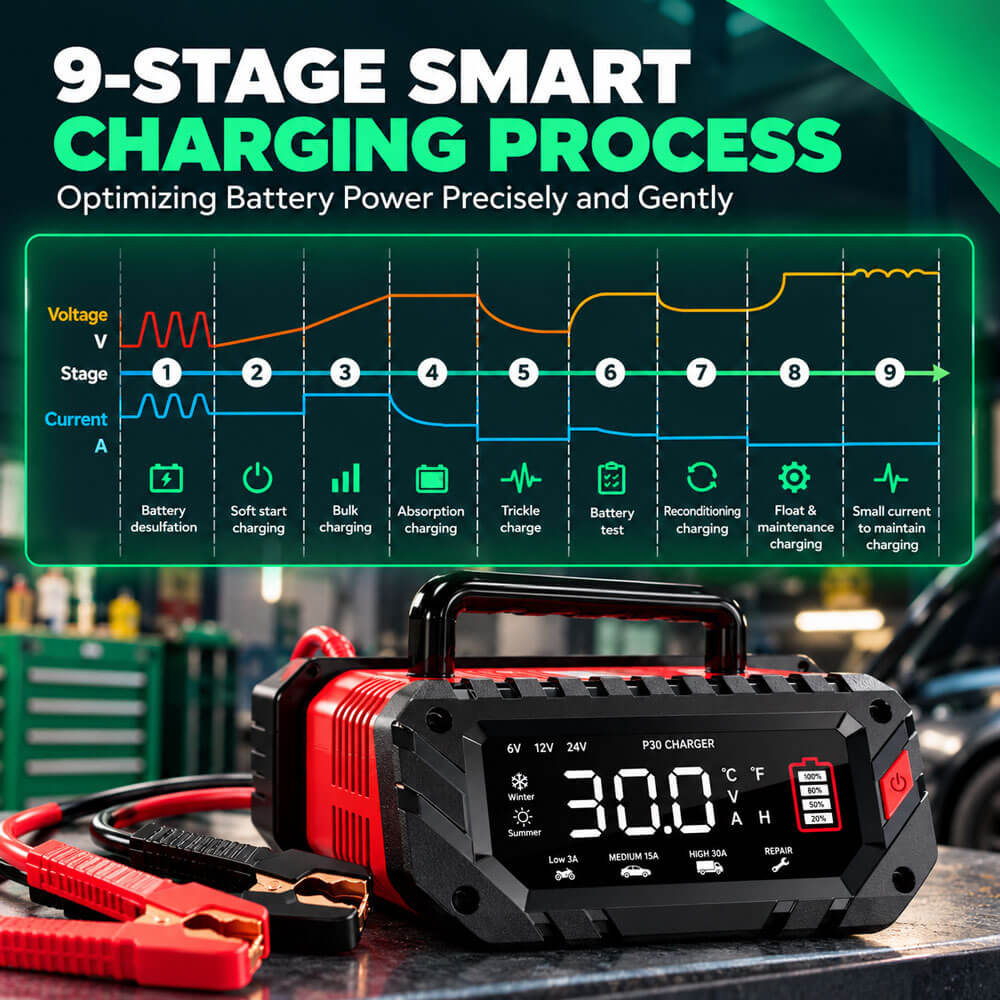

9-Stage Smart Charging Process

The intelligent charging system uses a multi-stage process to charge, condition and maintain compatible batteries:

• Stage 1, Battery Desulfation: Helps condition suitable sulphated lead-acid batteries.
• Stage 2, Soft Start Charging: Begins the charging process gradually.
• Stage 3, Bulk Charging: Delivers higher charging current to efficiently replenish the battery.
• Stage 4, Absorption Charging: Controls charging as the battery approaches a higher state of charge.
• Stage 5, Trickle Charge: Reduces charging current as required.
• Stage 6, Battery Test: Checks battery condition during the charging process.
• Stage 7, Reconditioning Charging: Provides an additional conditioning stage for suitable batteries.
• Stage 8, Float & Maintenance Charging: Maintains the battery after charging.
• Stage 9, Small Current Maintenance: Uses a low charging current to help keep the battery maintained.

__

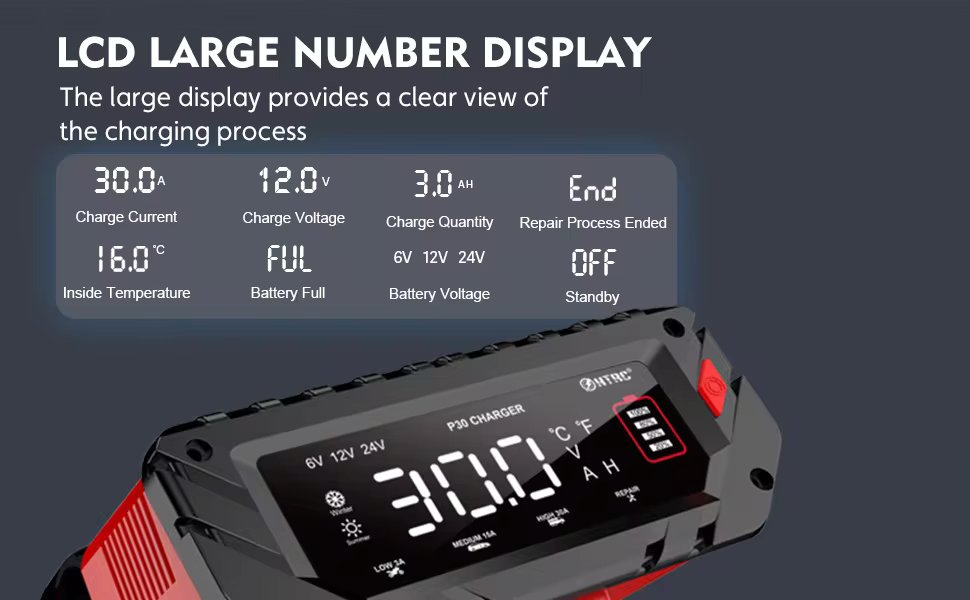

Large LCD Display

The large digital LCD makes it easy to monitor the charging process at a glance. Depending on the operating stage, the display provides information including:

• Charge Current: Displays charging amperage.
• Charge Voltage: Displays battery charging voltage.
• Charge Quantity: Displays charging quantity information.
• Internal Temperature: Displays charger temperature.
• Battery Voltage: Indicates 6V, 12V or 24V operation.
• Battery Full: Indicates when charging is complete.
• Repair Process Ended: Indicates completion of the repair process.
• Standby: Indicates standby status.

__

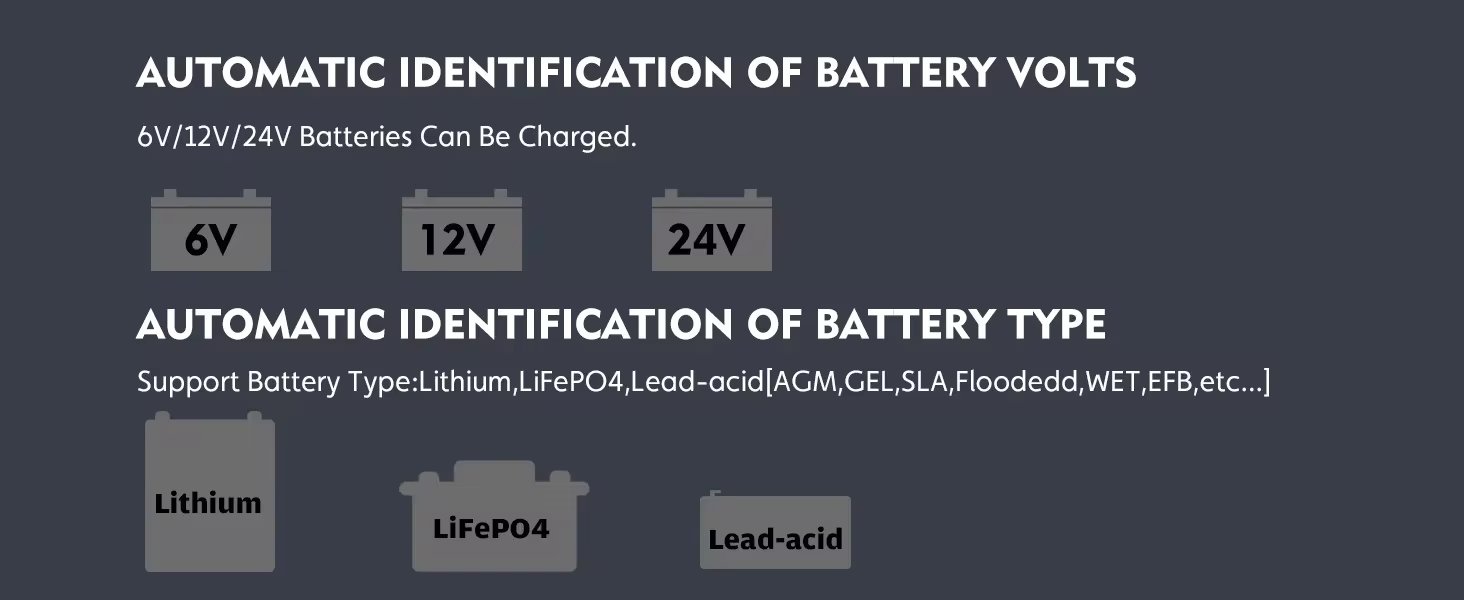

Automatic Voltage & Battery Compatibility

The charger automatically identifies compatible 6V, 12V and 24V battery systems and supports a broad range of battery chemistries.

• Lithium
• LiFePO4
• AGM
• GEL
• SLA
• Flooded
• VRLA
• EFB
• MF
• WET

__

Safety & Battery Protection

Designed for safer automatic charging, the charger incorporates multiple protection systems for the battery, charger and user.

• Overcharge Protection: Helps prevent continued active charging once the battery is full.
• Overcurrent Protection: Protects against excessive charging current.
• Overheating Protection: Helps protect the charger during excessive operating temperatures.
• Reverse Polarity Protection: Prevents charging when the battery clamps are connected incorrectly.
• Short-Circuit Protection: Provides protection against short-circuit conditions.
• Spark-Free Contact Protection: Adds additional protection during connection.
• Dual Cooling Fans: Provides active heat dissipation during demanding charging cycles.
• Automatic Full-Charge Stop: Stops active charging when fully charged and enters maintenance mode.

__

Ideal Applications

• Cars
• Motorcycles
• SUVs and 4x4s
• Trucks
• ATVs
• Boats and marine applications
• RVs and caravans
• Lawn mowers
• Golf carts
• Tricycles
• Agricultural vehicles and equipment
• Generators
• Workshop battery maintenance
• Fleet battery maintenance
• Compatible solar and off-grid battery systems

__

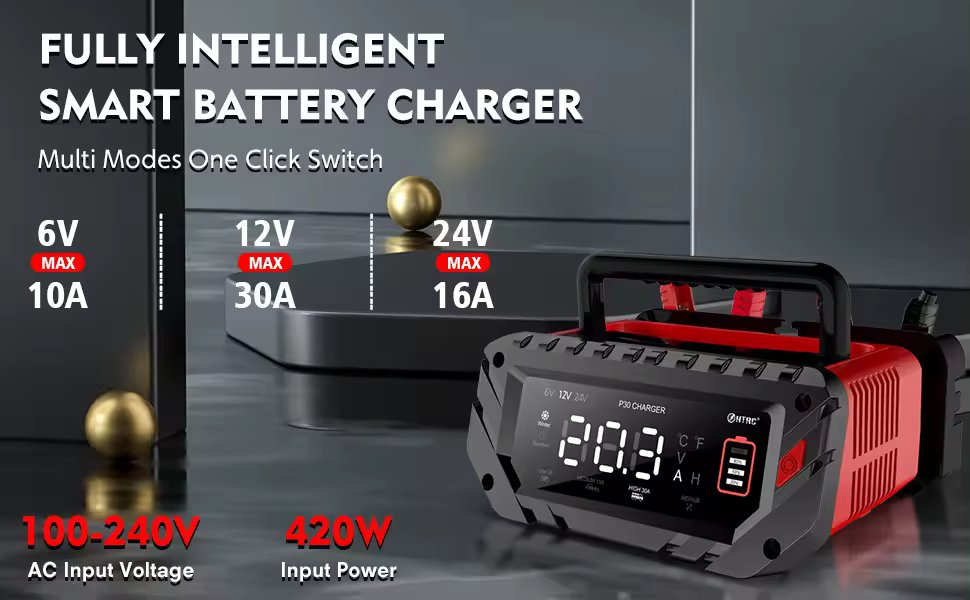

Technical Specifications

• AC Input: 100-240V, 50/60Hz
• Maximum Input Power: 420W
• Supported Battery Voltage: 6V / 12V / 24V
• Maximum 6V Output: 10A
• Maximum 12V Output: 30A
• Maximum 24V Output: 16A
• Charging Current Selection: Low / Medium / High
• Battery Compatibility: Lithium, LiFePO4, AGM, GEL, SLA, Flooded, VRLA, EFB, MF, WET and compatible lead-acid batteries
• Display: Large LCD
• Cooling: Dual cooling fans
• Housing Material: ABS and PC flame-retardant material
• Functions: Battery charger, maintainer, trickle charger and pulse repair charger
• Protection: Overcharge, overcurrent, overheating, reverse polarity, short circuit and spark-free contact protection

__

Important Information

• This product is a battery charger and maintainer, not a jump starter.
• Pulse Repair mode is intended for suitable lead-acid batteries and should not be used with Lithium or LiFePO4 batteries.
• Pulse repair may help activate or improve suitable lightly degraded or sulphated batteries, but it cannot restore a completely dead or severely damaged battery to new condition.
• Always select the appropriate battery type and charging current for the battery being charged.

__

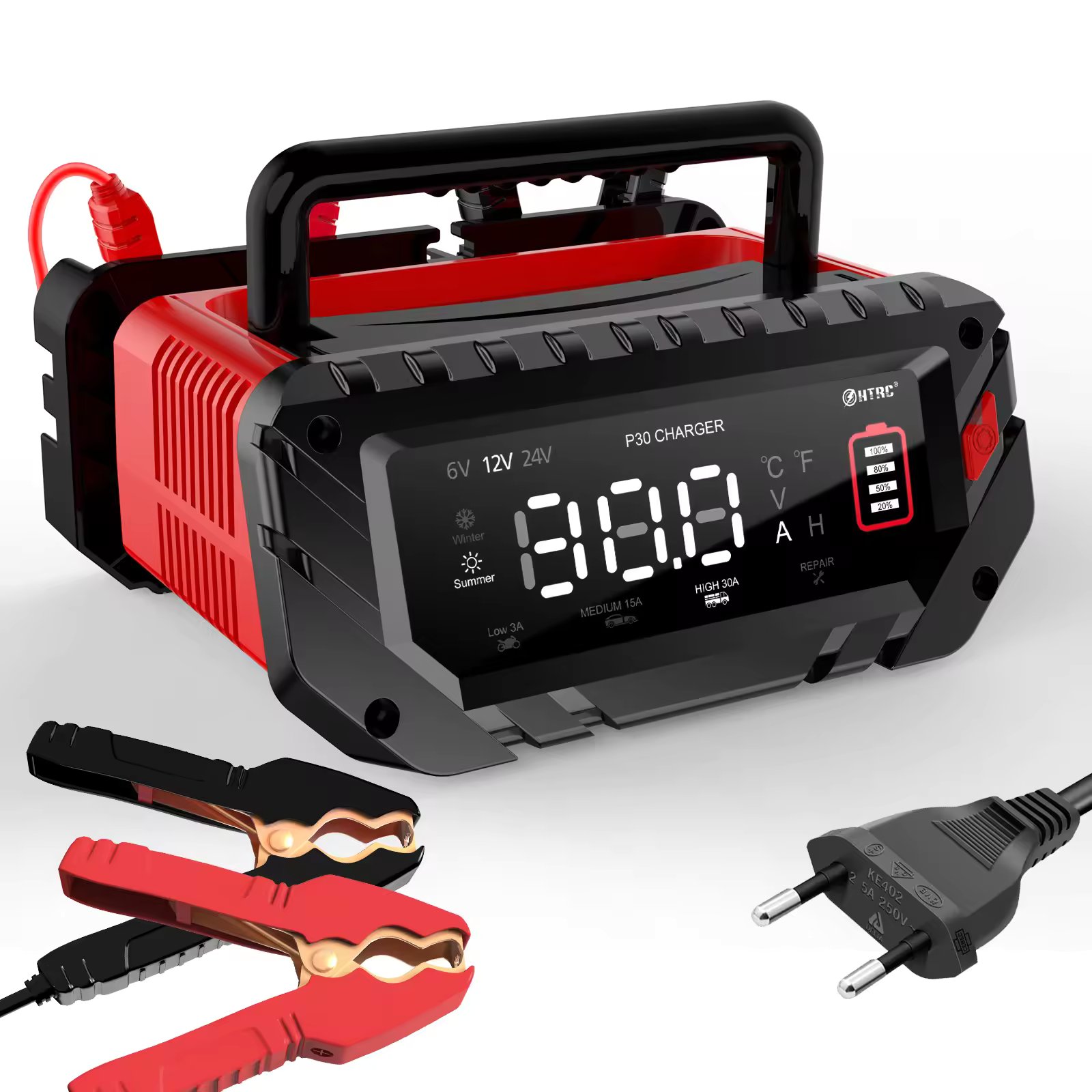

What’s in the Box

• 1x Smart Battery Charger
• 1x Heavy-Duty Charging Clamp Set
• 1x AC Power Cable with Plug
• 1x User Manual
