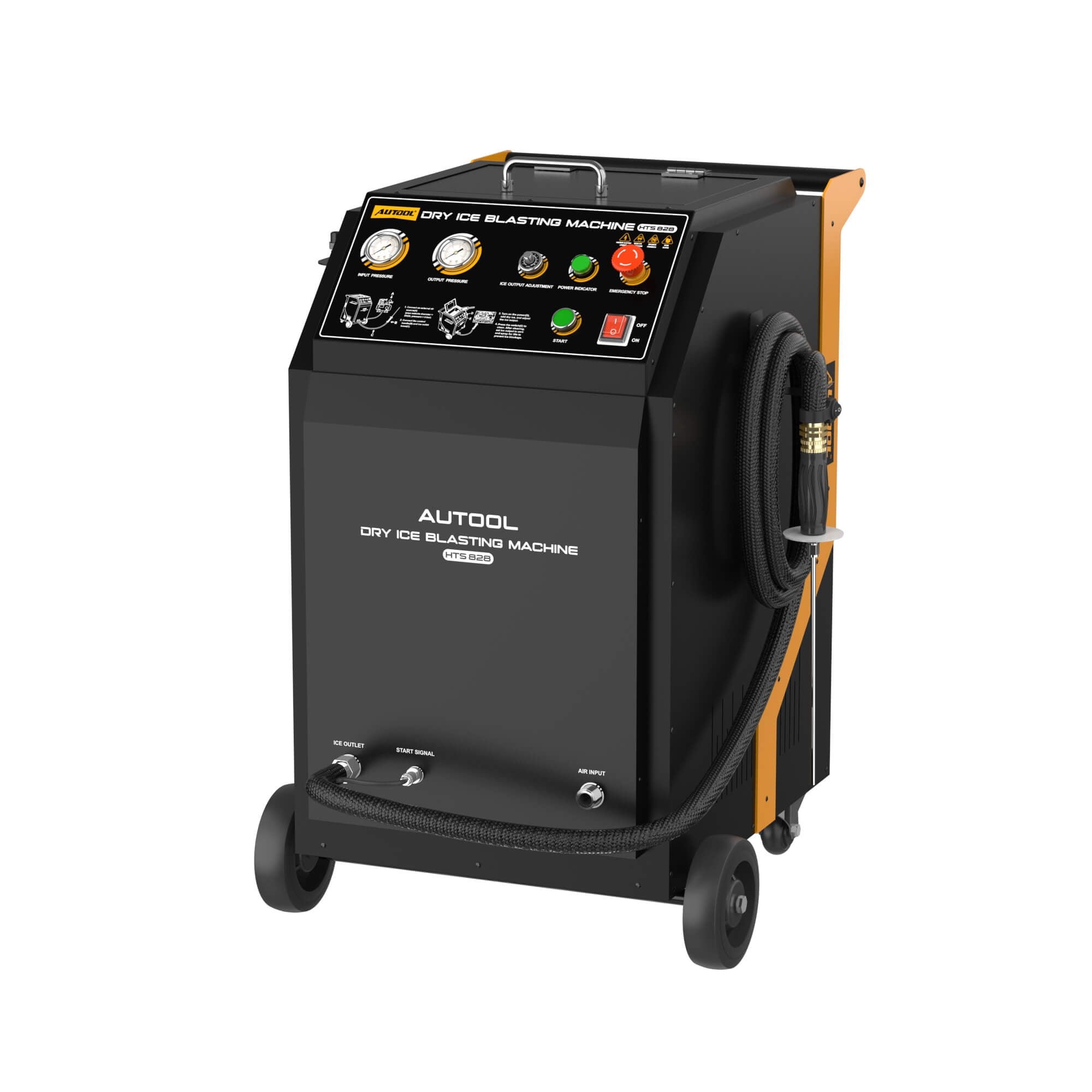

AUTOOL HTS828 Automotive Dry Ice Blasting & Cleaning Machine

The AUTOOL HTS828 Automotive Dry Ice Blasting Cleaning Machine is a professional dry ice cleaner designed for automotive workshops, engine specialists, detailers and service centres. Using high-speed compressed air and 3 mm dry ice pellets, it removes stubborn carbon deposits, grease, oil and contamination without using water, chemical cleaning agents or abrasive blasting media.

Designed as an upgraded dry ice cleaning solution for professional workshops, the HTS828 combines dual pressure monitoring, an adjustable dry ice feed rate, a large 7.5 kg hopper, an oil-water separation system and spiral anti-clumping technology. It can be used for engine carbon cleaning as well as detailed cleaning of engine bays and compatible automotive components.

__

Key Features

• • Non-Disassembly Dry Ice Cleaning: Removes carbon deposits and contamination using high-speed dry ice blasting, reducing the need for extensive engine disassembly.

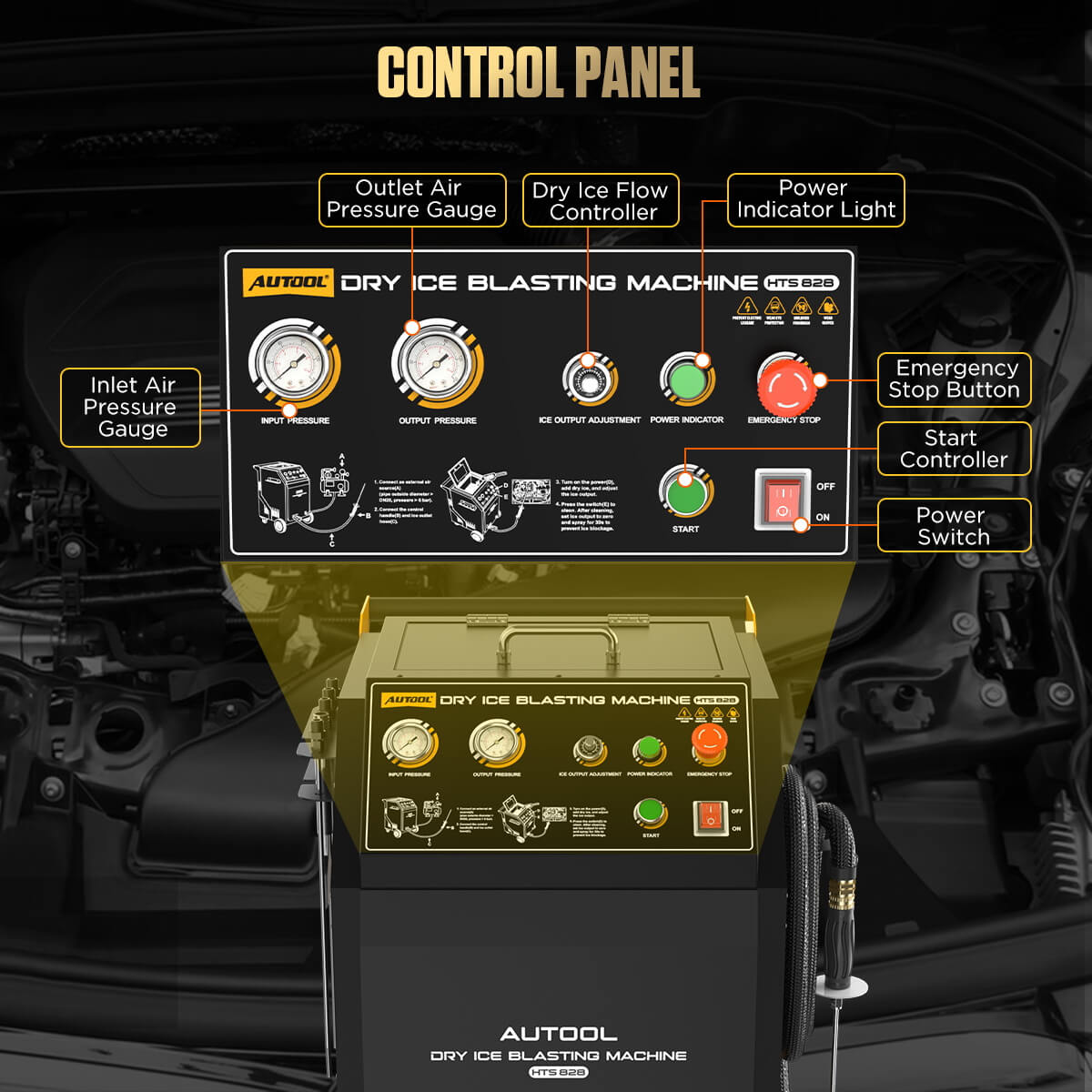

• Dual Pressure Gauges: Independently displays inlet air pressure and outlet working pressure, allowing the operator to monitor the air supply and blasting performance in real time.
• Lower Compressor Requirements: Requires more than 1 to 2 m³/min compressed air flow, making the HTS828 practical for small and medium-sized workshops with a suitable existing compressor.
• 7.5 kg Dry Ice Hopper: Large-capacity hopper reduces frequent refilling and supports extended workshop cleaning jobs.
• Adjustable Dry Ice Output: Dry ice delivery can be adjusted from 0 to 3.2 kg/min to suit different components, contamination levels and cleaning requirements.
• Spiral Anti-Clumping Feed System: Continuously agitates and feeds the dry ice to help prevent bridging, clumping and interruptions during operation.
• Large-Flow Oil-Water Separator: Helps remove moisture from the compressed air supply, reducing the risk of wet dry ice clumping and blocking the blasting system.

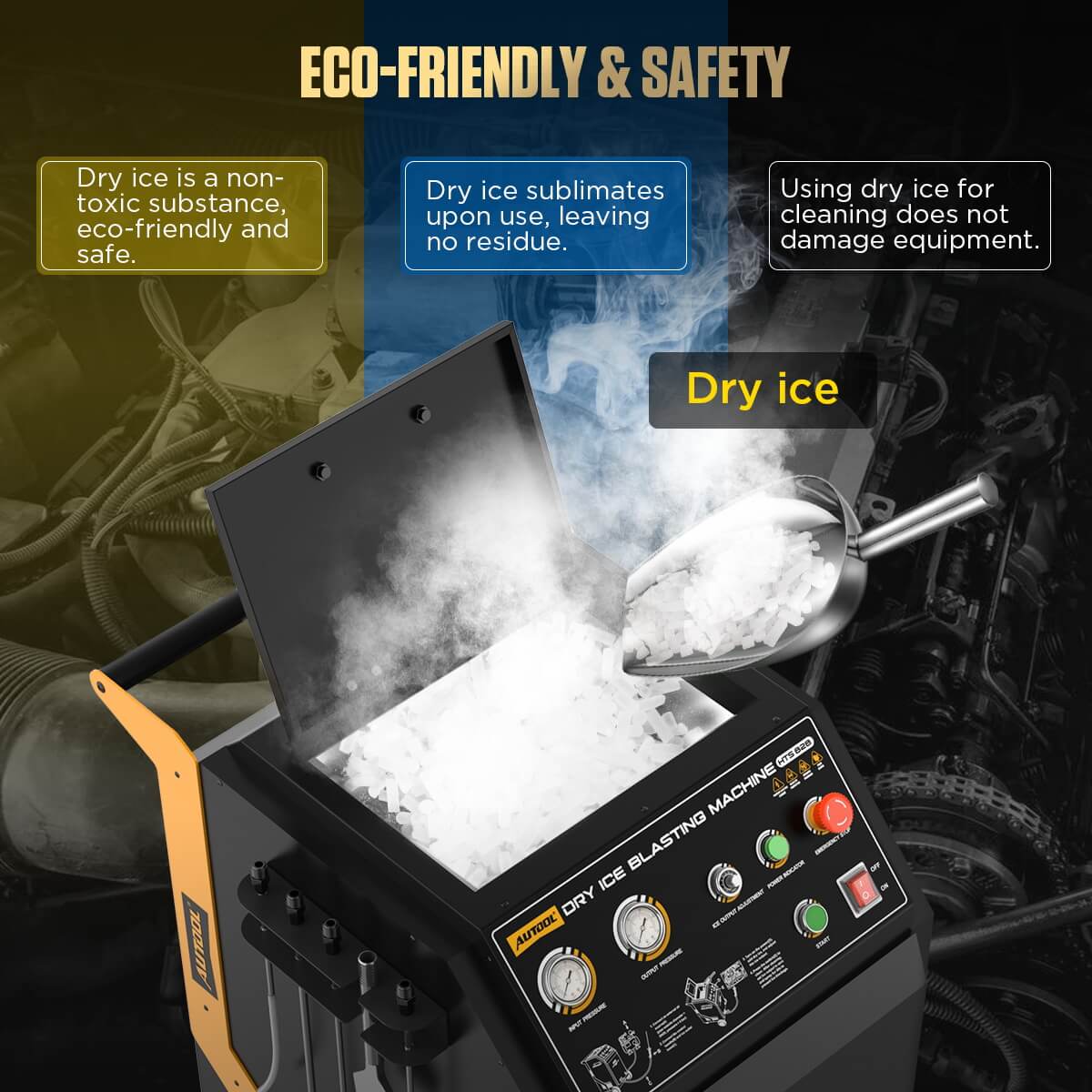

• Residue-Free Blasting Media: Dry ice sublimates into gas after impact, so there is no secondary blasting media such as sand or walnut shell material to remove after cleaning.
• Multiple Cleaning Nozzles: Supports different nozzle configurations for targeted cleaning of engine components and larger surfaces.

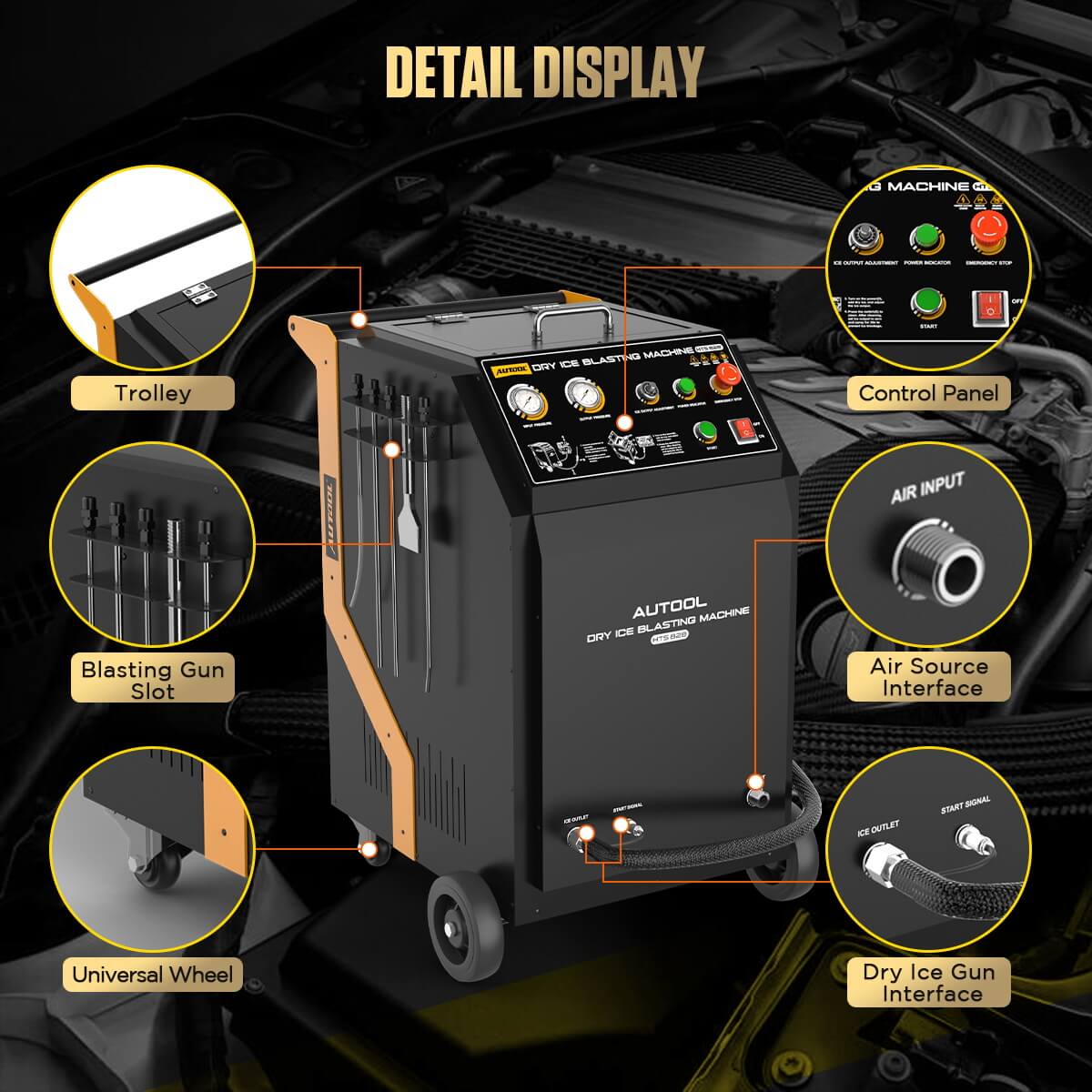

• Workshop-Ready Construction: Reinforced metal housing, emergency stop control, spray gun holder, integrated handle and mobile caster design make the machine suitable for professional workshop environments.

__

How Dry Ice Cleaning Works

The HTS828 uses compressed air to accelerate dry ice pellets onto the contaminated surface. The combination of extremely low temperature, high-speed impact and rapid sublimation helps break the bond between carbon deposits, grease and the underlying surface.

When the dry ice hits the surface, it sublimates directly into carbon dioxide gas. Unlike conventional abrasive blasting, the dry ice itself does not remain behind as secondary cleaning media. Only the carbon, grease and other contamination removed from the component needs to be cleaned up.

__

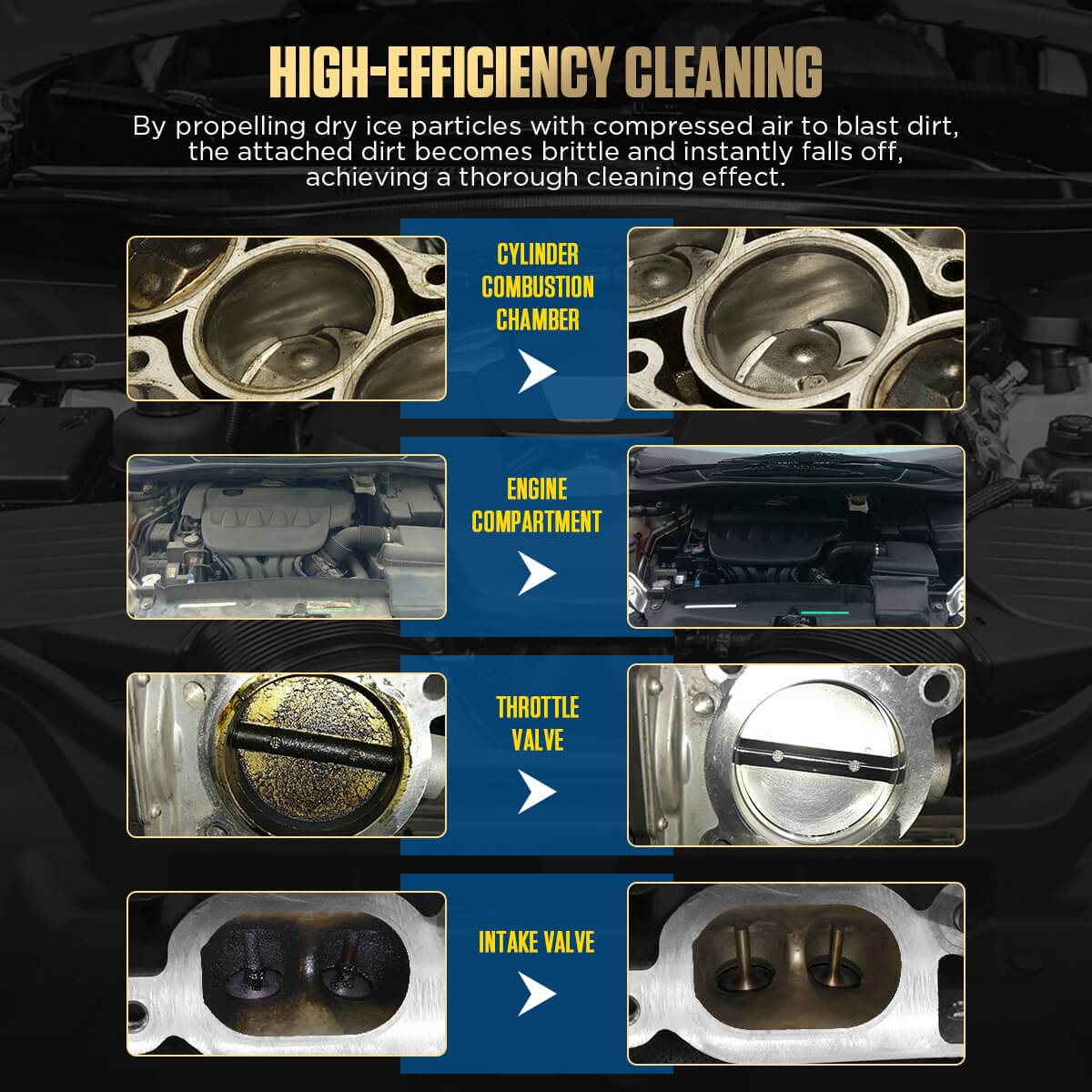

Automotive Cleaning Applications

• Combustion Chamber Cleaning: Removes stubborn carbon deposits from compatible internal engine surfaces.
• Intake Valve Cleaning: Helps remove carbon accumulation from intake valves, including applications on direct-injection engines.
• Throttle Body Cleaning: Removes deposits without introducing liquid cleaning chemicals.
• Engine Bay Cleaning: Removes oil, grease and accumulated contamination from compatible engine bay surfaces.
• Automotive Component Cleaning: Suitable for cleaning compatible mechanical components and hard-to-reach areas.

__

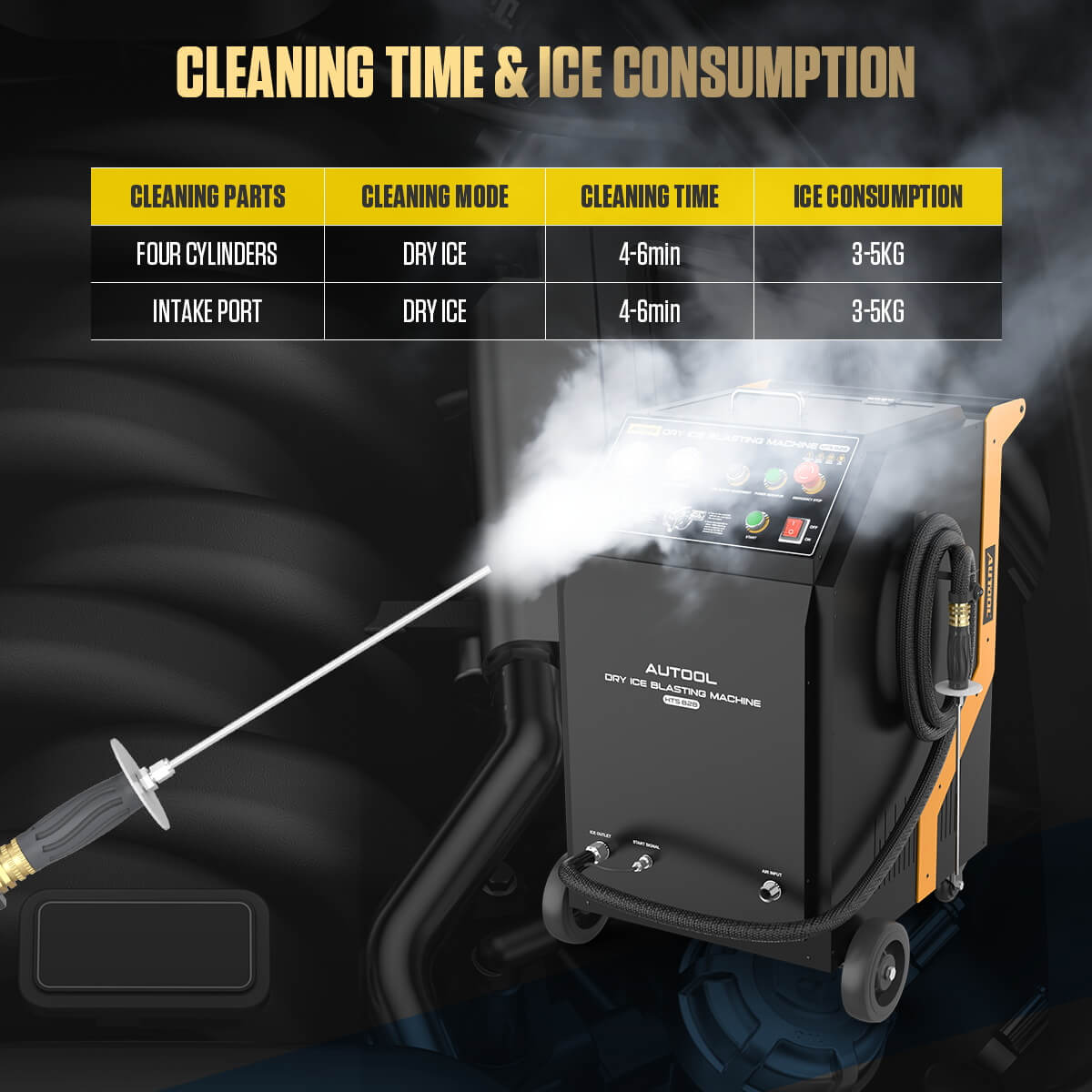

Fast Workshop Carbon Cleaning

Carbon cleaning on a four-cylinder engine can be completed in approximately 15 minutes without removing the cylinder head. This makes the HTS828 ideal for workshops looking to offer a professional carbon-cleaning service while reducing labour time and improving workshop turnaround times.

__

Adjustable Cleaning Performance

The operator can adjust both the air supply and dry ice delivery according to the cleaning task. Lower settings can be used when working around more sensitive components, while higher settings can be used for heavier carbon and contamination.

The dual pressure gauges allow the operator to monitor both the incoming air supply and actual outlet working pressure, helping identify insufficient compressor output before it causes inconsistent dry ice delivery.

__

Reduced Air Compressor Requirements

The HTS828 has been designed with an optimised air supply system requiring more than 1 to 2 m³/min of compressed air. Normal operation can begin from approximately 4 bar, with an overall specified air supply pressure range of 0.3 to 1.0 MPa.

Important: An external air compressor is required and is not integrated into the HTS828. The compressor must be capable of maintaining the required airflow and pressure during operation.

__

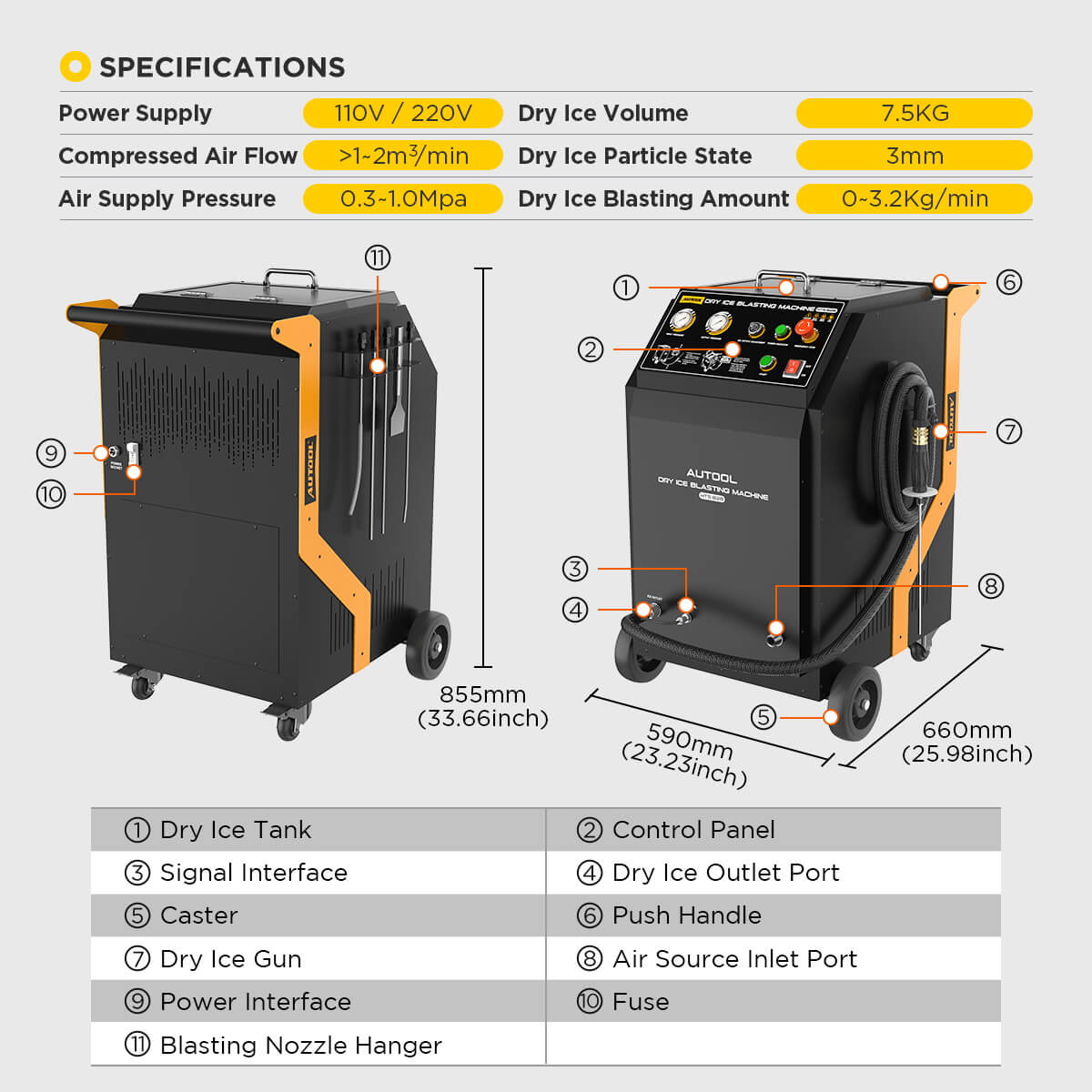

Technical Specifications

• Model: AUTOOL HTS828
• Product Type: Automotive Dry Ice Blasting Cleaning Machine
• Power Supply: AC 110V / 220V
• Dry Ice Hopper Capacity: 7.5 kg
• Dry Ice Pellet Size: 3 mm
• Dry Ice Blasting Rate: 0 to 3.2 kg/min, adjustable
• Compressed Air Flow Requirement: More than 1 to 2 m³/min
• Air Supply Pressure: 0.3 to 1.0 MPa
• Pressure Monitoring: Dual inlet and outlet pressure gauges
• Air Treatment: Large-flow oil-water separation system
• Dry Ice Feed: Spiral anti-clumping feeding system
• Mobility: Integrated handle and caster wheels
• Safety: Emergency stop control

__

Vehicle Compatibility

The AUTOOL HTS828 is suitable for professional cleaning applications across a wide range of vehicles, including:

• Petrol vehicles
• Direct-injection petrol engines
• Diesel vehicles
• Hybrid vehicles
• Compatible components on electric vehicles

Cleaning pressure, nozzle selection and dry ice flow should always be adjusted according to the component and surface being cleaned.

__

Workshop Requirements

• Suitable external compressed air supply
• Compressed air flow greater than 1 to 2 m³/min
• Air pressure within the specified 0.3 to 1.0 MPa operating range
• 3 mm dry ice pellets
• Suitable electrical supply
• Well-ventilated working environment
• Appropriate personal protective equipment

Please note: The air compressor and dry ice are consumables/support equipment required for operation and should not be assumed to be included with the machine.

__

Ideal For

• Automotive repair workshops
• Engine rebuilders and engine specialists
• Carbon cleaning service providers
• Professional automotive detailers
• Dealership workshops
• Fleet maintenance facilities
• Mechanical component cleaning

__

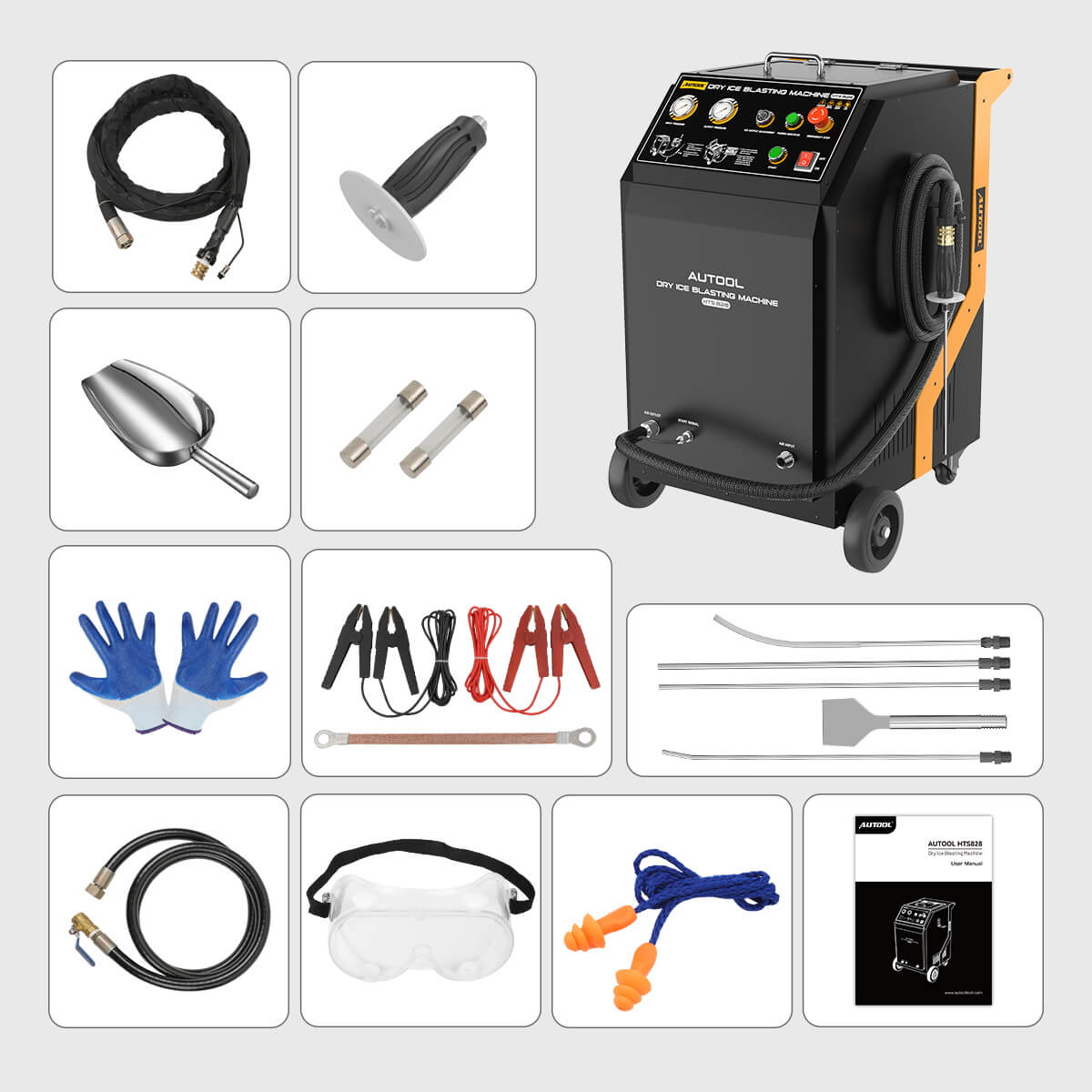

What’s in the Box

• 1x AUTOOL HTS828 Dry Ice Blasting Cleaning Machine
• 1x Dry Ice Blasting Gun Assembly
• 1x Dry Ice Blasting Hose
• 1x Air Supply Hose
• 1x Power Cable
• Multiple Dry Ice Blasting Nozzles
• 1x User Documentation Set
