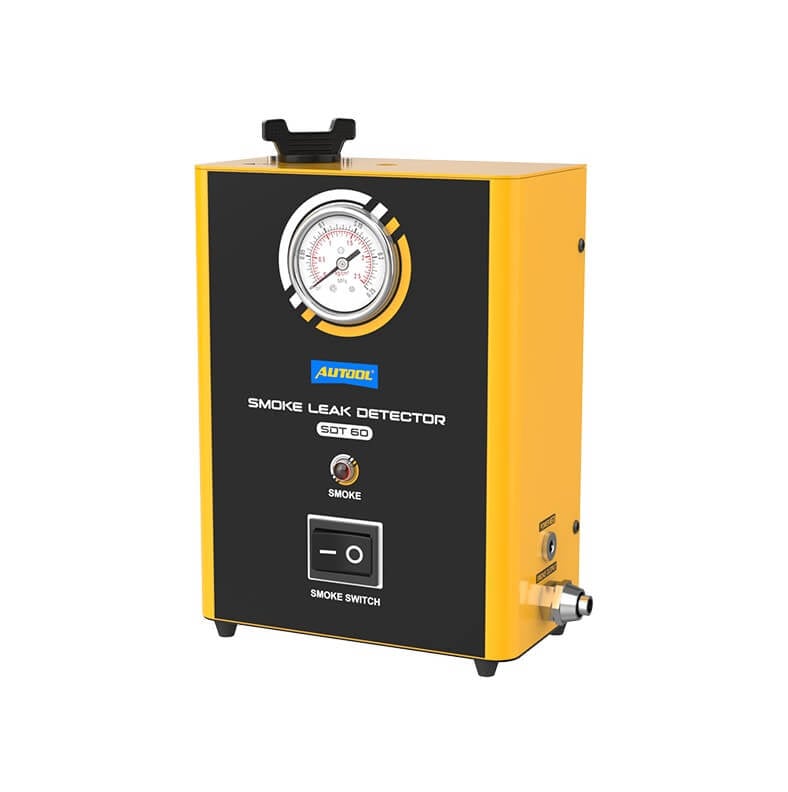

Autool SDT60 Compact Automotive Smoke Leak Detector with Pressure Gauge and Built-In Pump

The AUTOOL SDT60 Automotive Smoke Leak Detector is your go-to diagnostic tool for fast and accurate detection of vacuum, turbo, EVAP, and pipe system leaks. Compact, lightweight, and engineered for efficiency, it’s ideal for mechanics, DIYers, and field technicians.

Powered by a standard 12V battery and built with a built-in air pump and integrated pressure gauge, this self-contained unit produces thick visible smoke in under 30 seconds — no external compressor needed. Whether in your workshop or roadside, the SDT60 helps you track down leaks with confidence.

Weighing only 1.5kg, this fog machine also features intelligent thermal protection, wide compatibility, and rapid smoke output, making it one of the most capable portable leak testers on the market.

__
Key Features

• Compact and portable — weighs just 1.5kg for easy transport

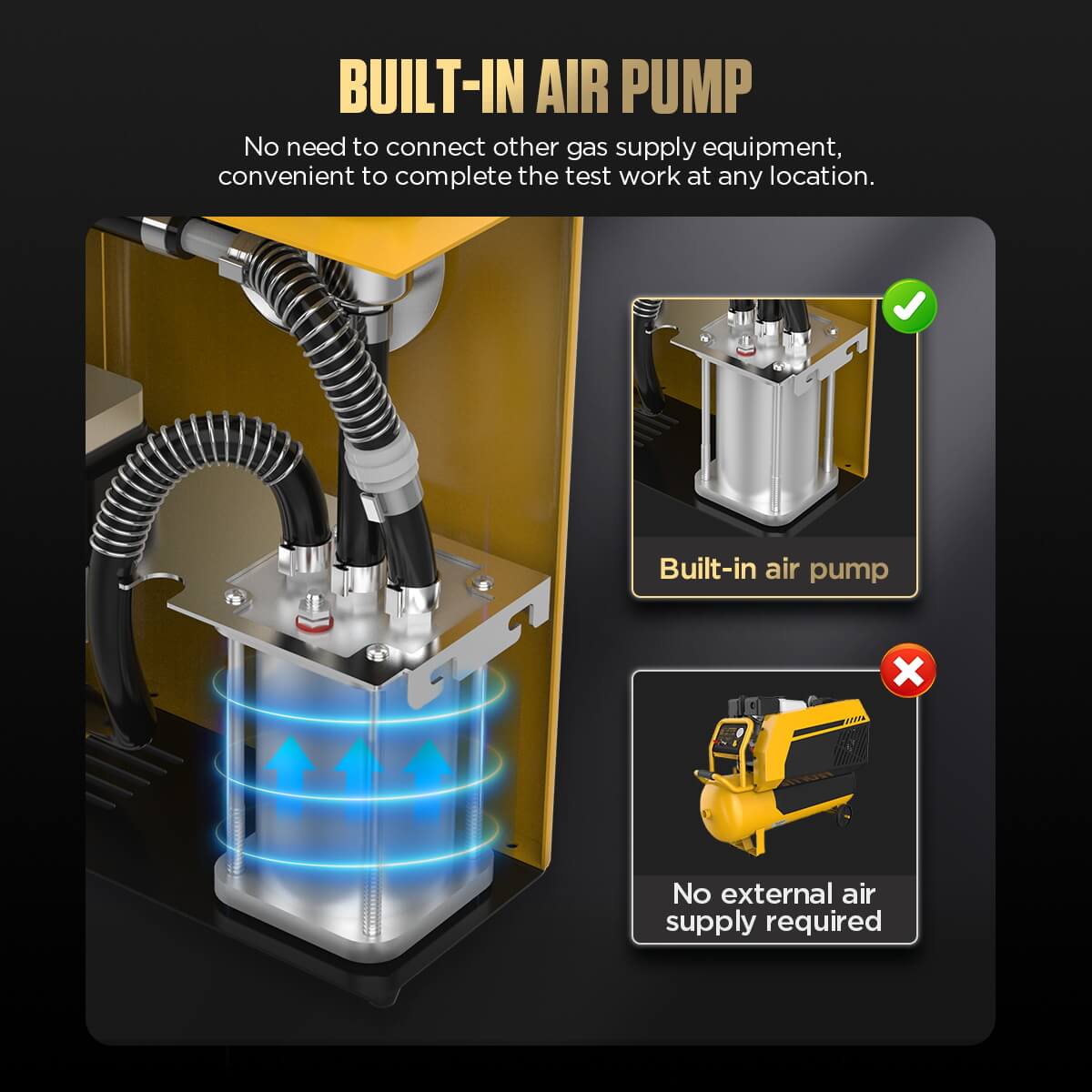

• Built-in air pump — no external compressor required

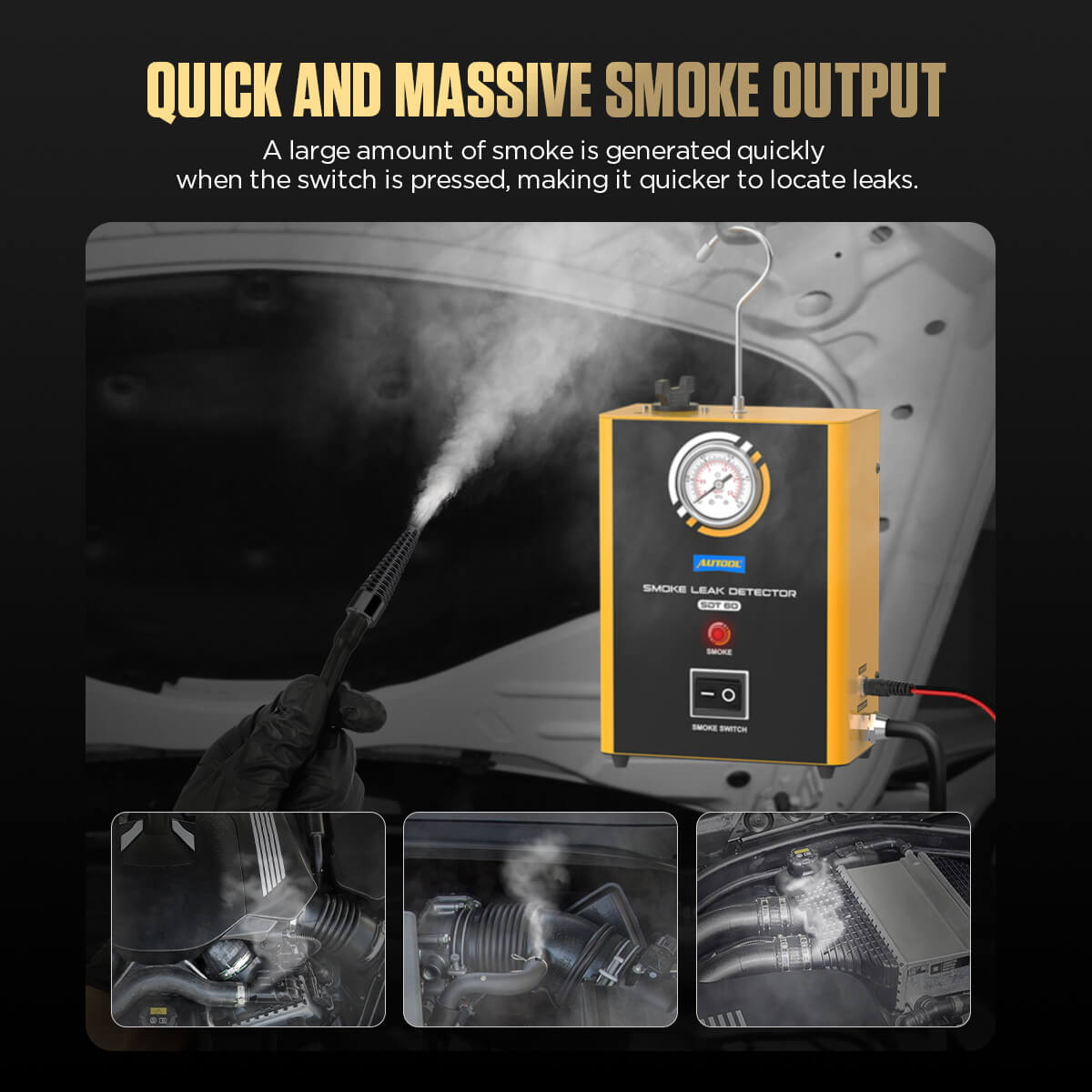

• Generates smoke in under 30 seconds

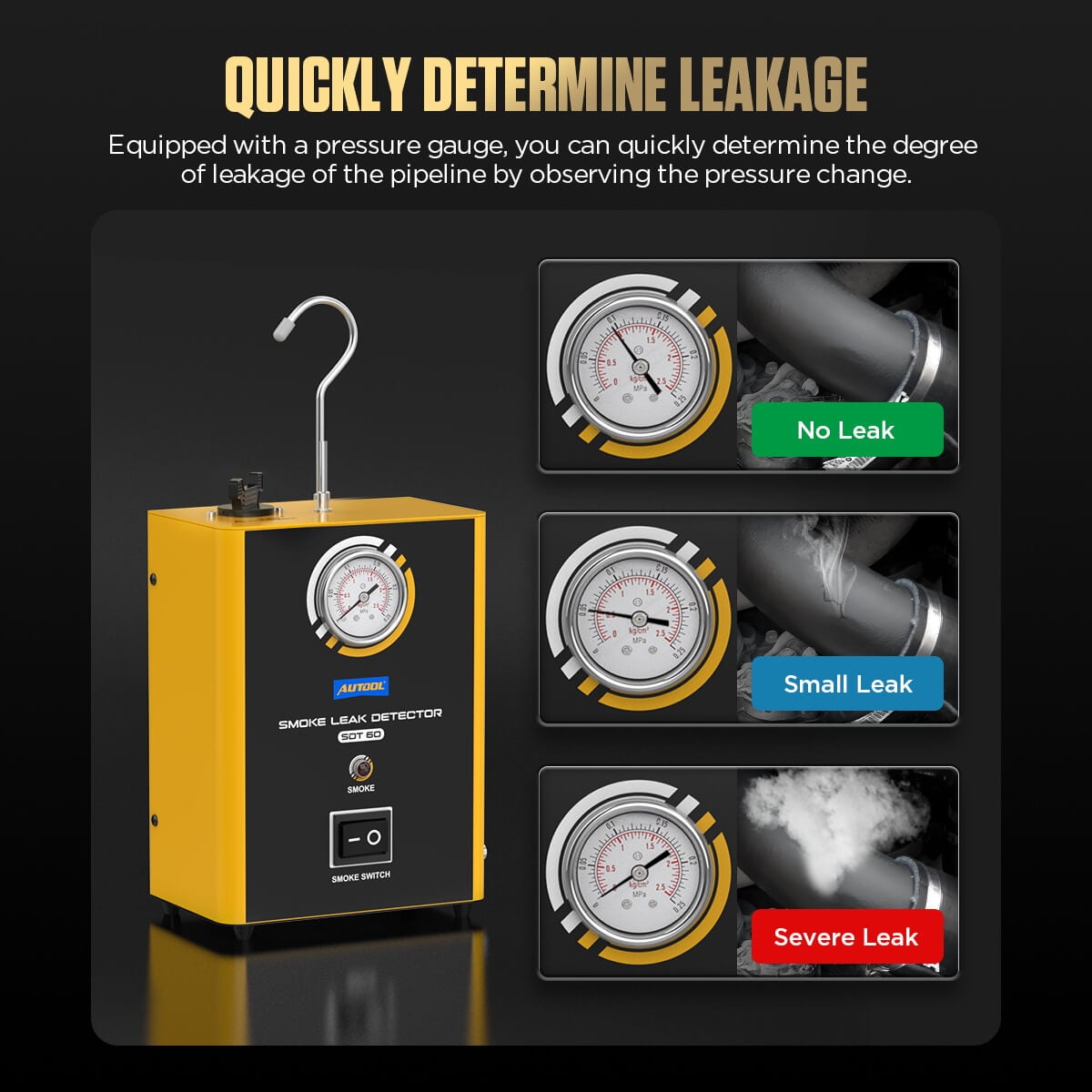

• Integrated pressure gauge shows real-time pressure drops

• Detects leaks in vacuum, EVAP, turbo, exhaust, intake, piping, and hoses

• Safe for all 12V automotive systems

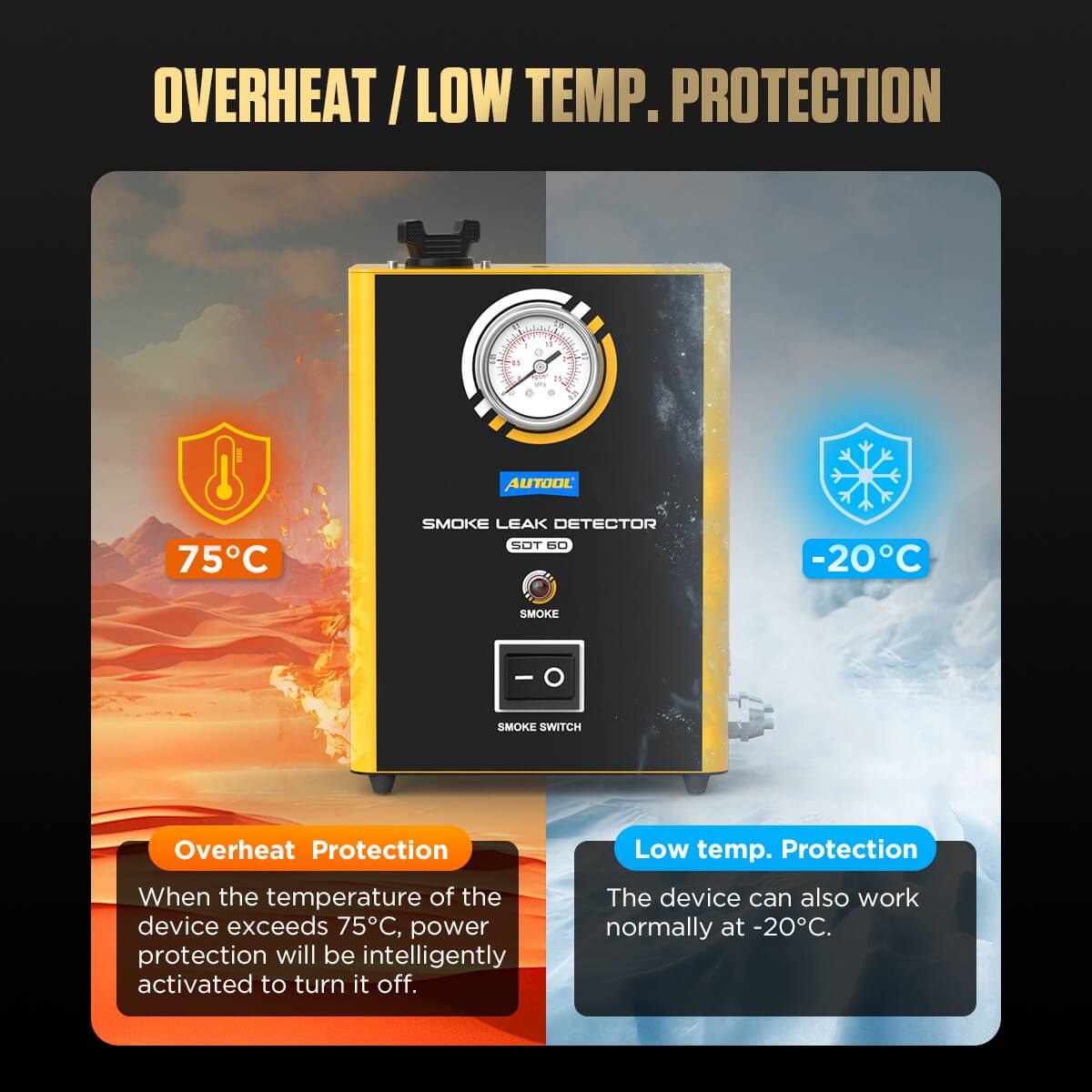

• Intelligent thermal shutoff at 75 °C for safe operation

• Still functions in sub-zero conditions (as low as -20°C)

• Wide application across cars, motorcycles, snowmobiles, ATVs, light trucks, and boats

• Includes universal cone adapter and test hoses

• Powered directly from 12V vehicle battery

• 3-year warranty for non-human damage

__
Use Cases

• Diagnose EVAP leaks triggering error codes or warning lights

• Pinpoint vacuum leaks causing rough idle or hesitation

• Test turbo hoses, intake manifolds, throttle bodies

• Locate exhaust leaks or poorly seated gaskets

• Quickly identify hard-to-see leak points under pressure

• Use in workshops, mobile diagnostics, or roadside breakdowns

__
Technical Specs

Power Supply: 12V DC
Working Pressure: ≤ 15psi
Warm-Up Time: 30 seconds
Smoke Output: Adjustable
Oil Capacity: 10–15ml
Recommended Oil: Baby oil or paraffin
Operating Temperature: -20°C to +75°C
Weight: 1.5kg
Built-in Pump: Yes
Pressure Gauge: Yes
Warranty: 3 Years

__
Download User Manual (PDF)

__

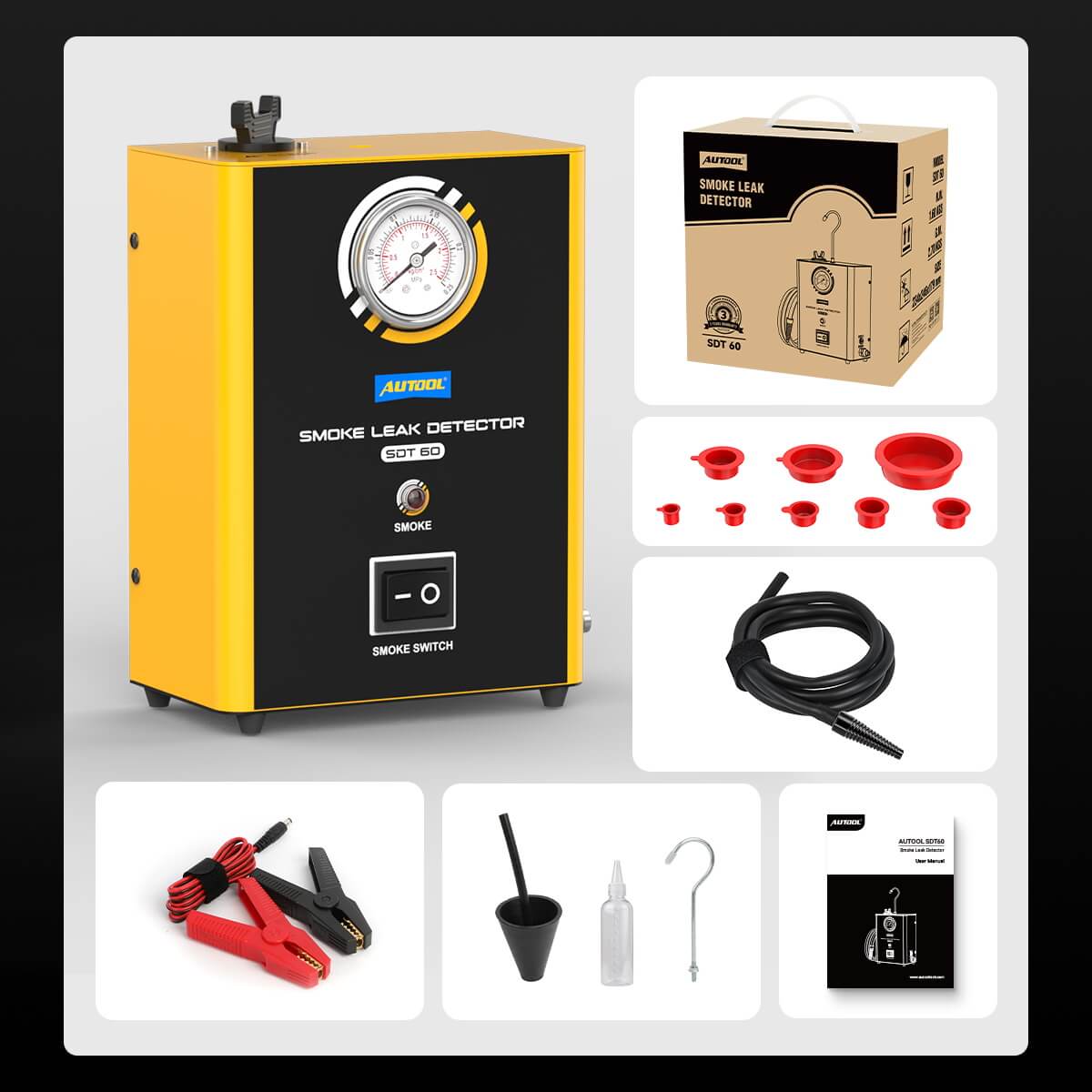

What’s in the Box

1 × SDT60 Smoke Leak Detector
1 × Smoke Output Hose
1 × Power Cable with Battery Clips
1 × Universal Cone Adapter
1 × EVAP Adapter
1 × Empty Oil Bottle
1 × Hook Chain
1 × Instruction Manual

__

How to Use & Safety Tips

1. Power: Connect the unit to a 12V car battery using the included cable clips. Only use 12V DC — higher voltages may damage the unit.

2. Filling Oil:

   • Use baby oil or liquid paraffin only.

   • Add 10–15ml via the filler cap. Never overfill.

   • If changing oils, first empty any remaining oil from the tank.

3. Startup Procedure:

   • Gently open the airflow regulator knob.

   • Switch the device on. Wait 30 seconds for smoke generation to begin.

   • The system will auto shut-off if internal temps exceed 75°C (built-in protection).

4. Testing:

   • Disconnect the pipe you want to test and connect the smoke hose.

   • Inspect for smoke escaping from any leaks in vacuum, EVAP, turbo, or intake systems.

   • Use a flashlight or headlamp if necessary.

5. Important Use Notes:

   • Do not operate the unit for more than 8 minutes continuously — allow it to rest between uses.

   • Avoid placing near smoke-sensitive parts (like MAF sensors).

   • The round casing gets hot — allow to cool before handling.

   • Always store upright in a cool, dry place.
