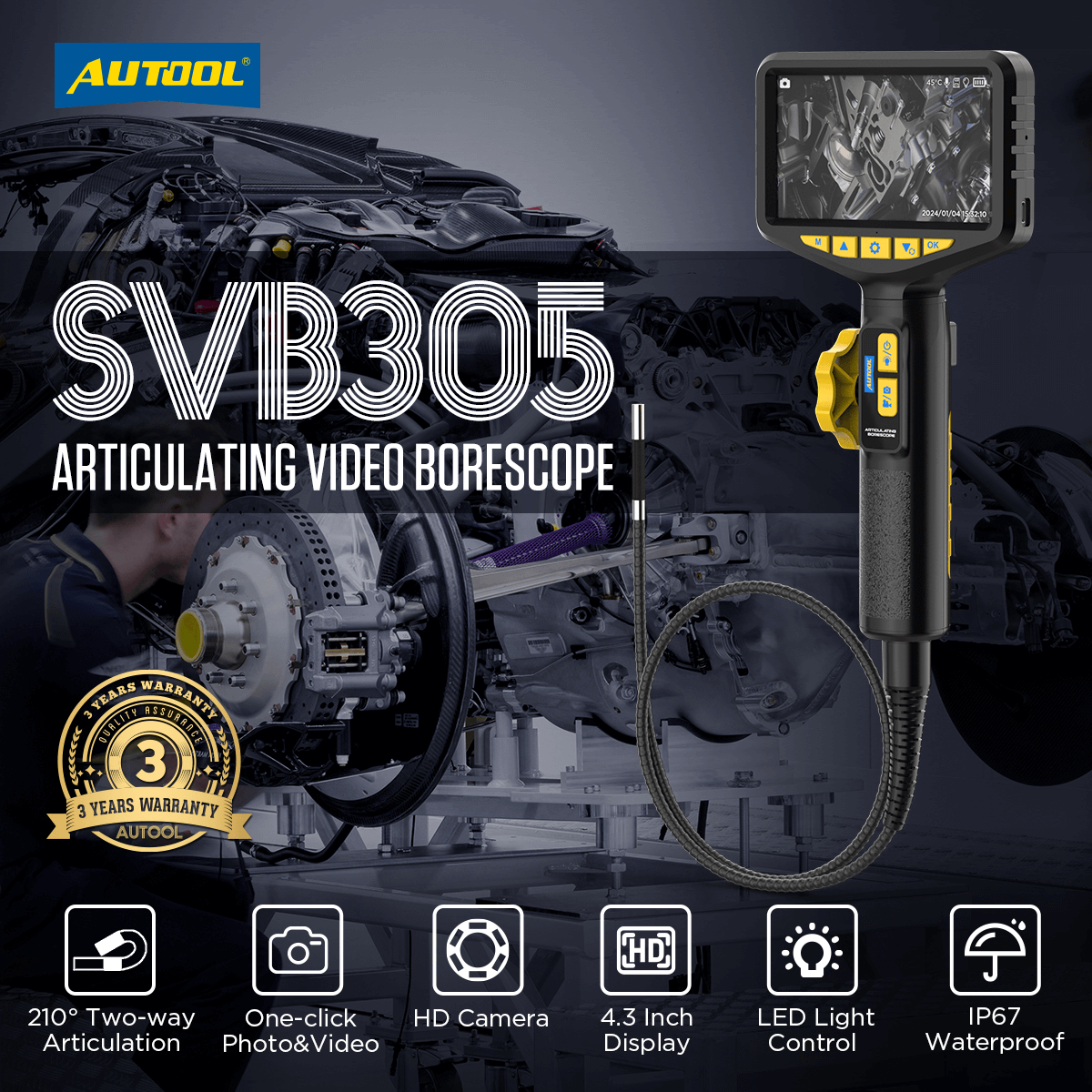

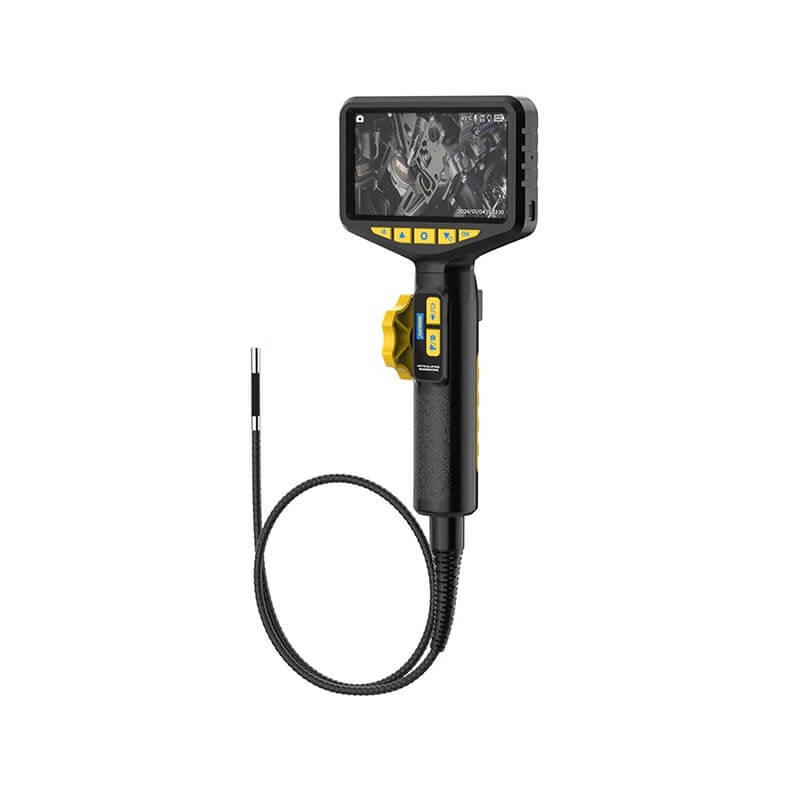

AUTOOL SVB305 210° Articulating Borescope with HD Camera, 5″ IPS Display and Waterproof Probe

The AUTOOL SVB305 is a professional articulating video borescope for accurate inspection in tight, complex spaces. A 5 inch IPS HD display, wheel-controlled two-way articulation up to 210 degrees, and a slim 5.5 mm IP67 probe provide clear visuals for automotive, HVAC, plumbing and industrial diagnostics. It records photos and videos to built-in 32GB storage and runs up to 3 hours on a 3000mAh rechargeable battery with intelligent high temperature protection.

__
Key Features

• 210 degree two-way articulation with rotation wheel for precise control
• HD camera with 6 LEDs and 3-level brightness adjustment

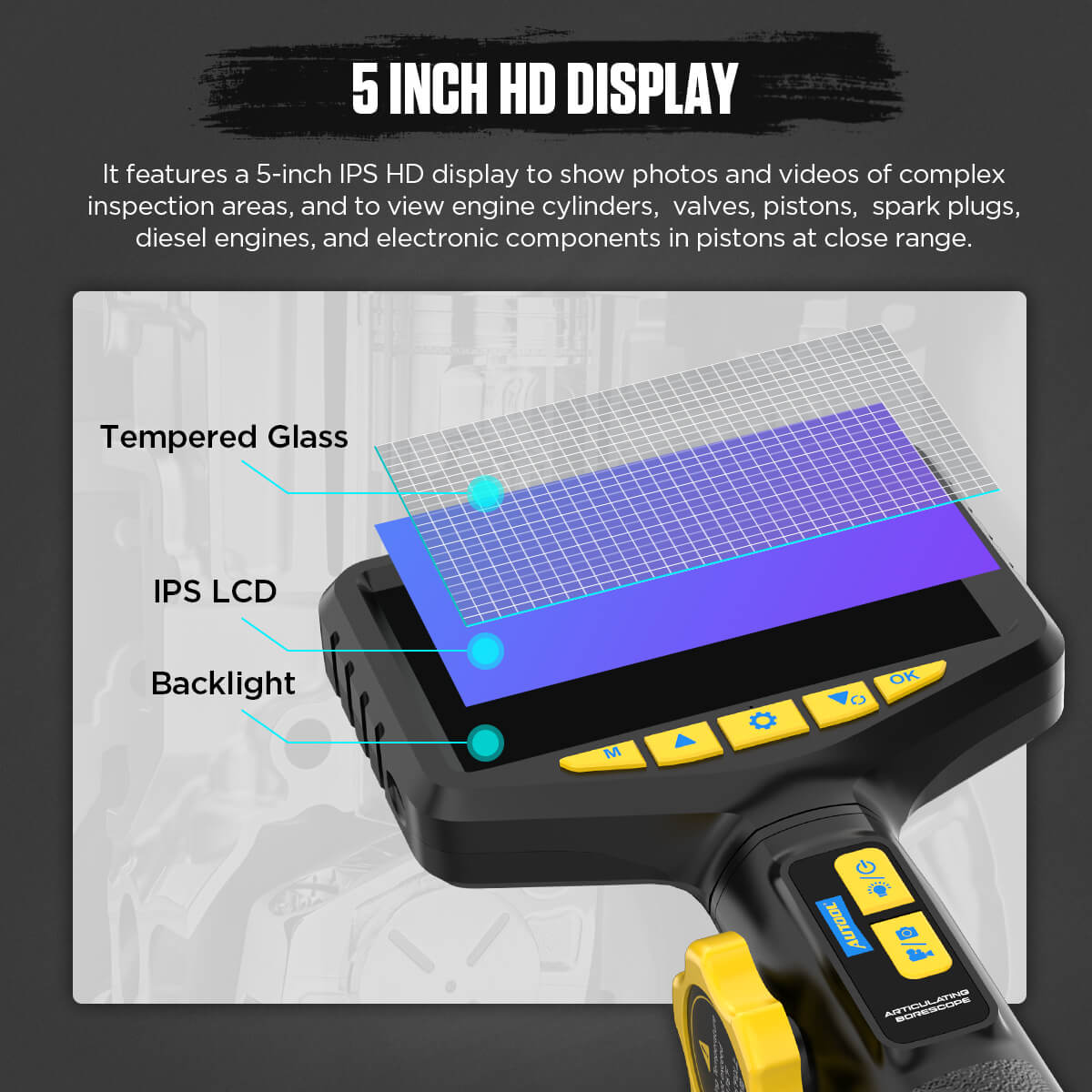

• 5 inch IPS HD display with tempered glass

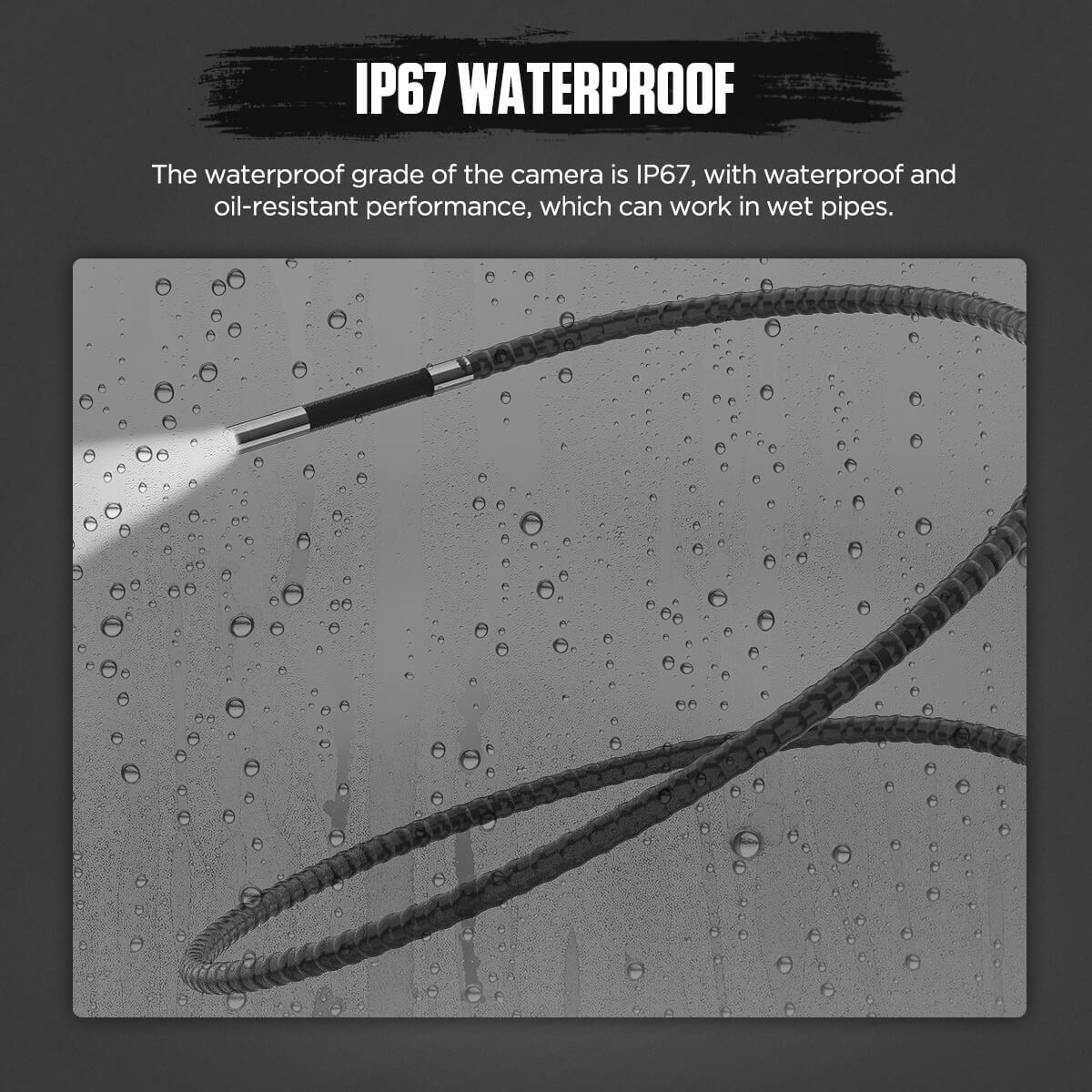

• IP67 waterproof probe for wet or dusty environments

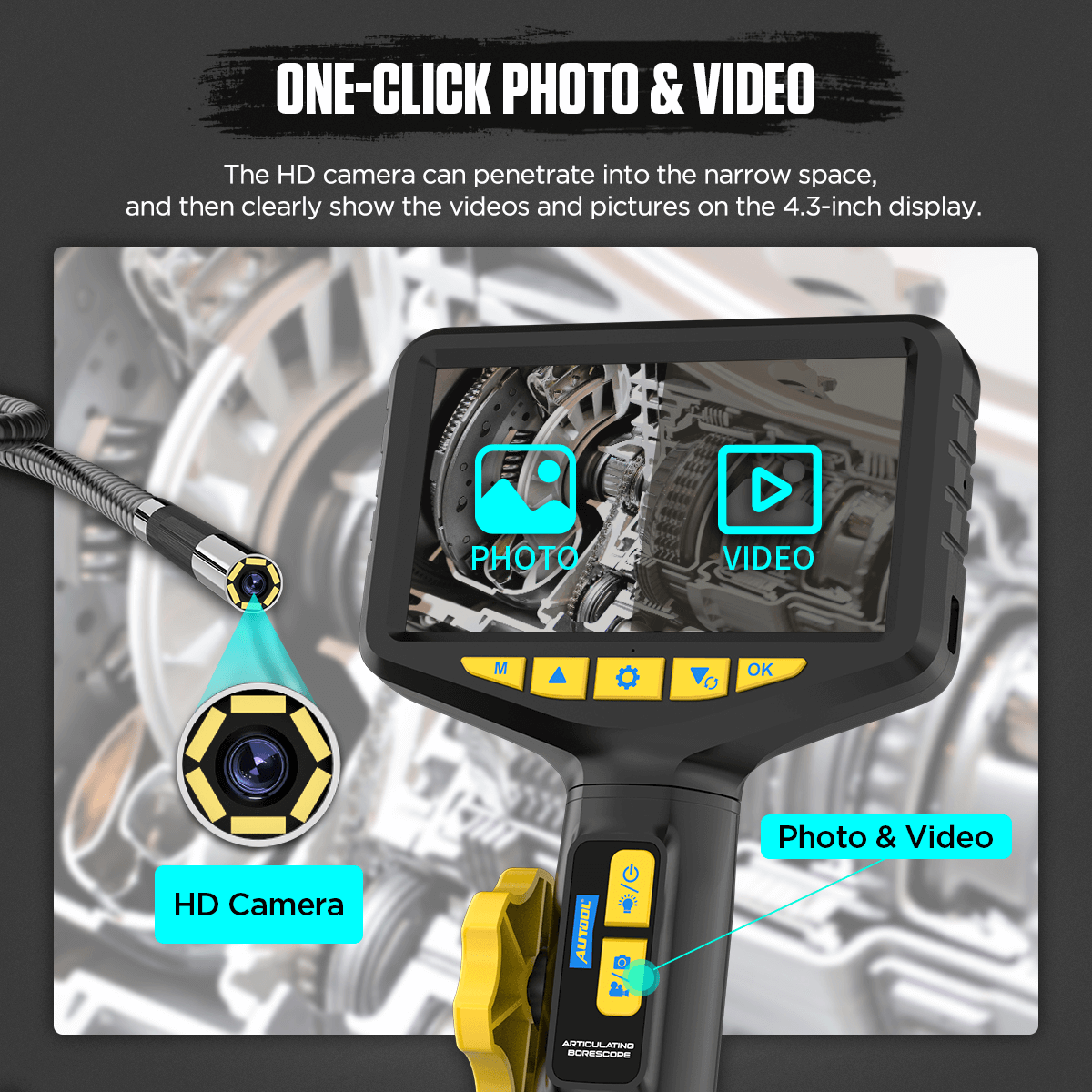

• One-click photo and video capture for fast documentation

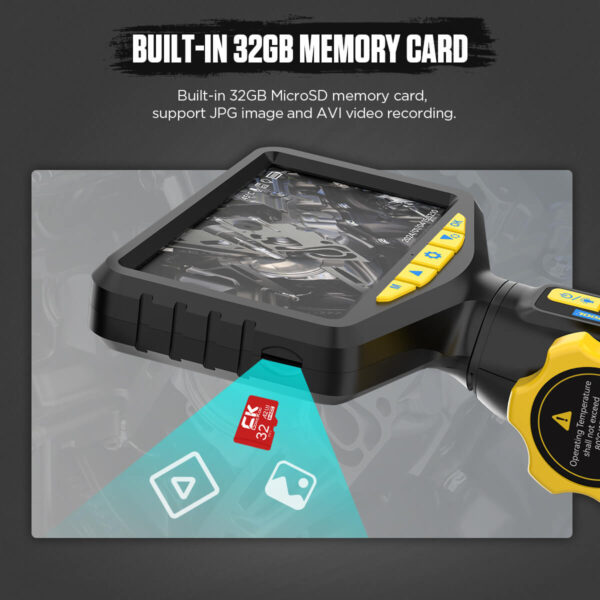

• Built-in 32GB MicroSD storage for JPG images and AVI videos

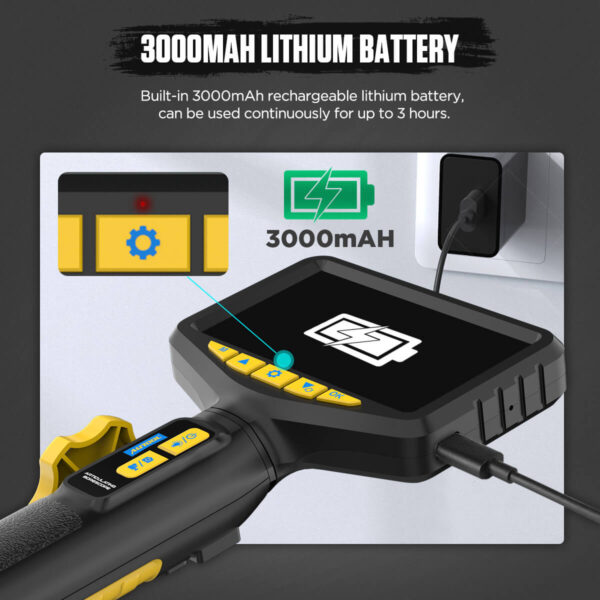

• 3000mAh lithium battery, up to 3 hours working time, DC 5V USB charging
• Intelligent high temperature protection for safer operation
• Wide application: automotive, plumbing, HVAC, construction, power facilities

__
Use Cases

• Inspect engine cylinders, pistons, valves and spark plug holes
• Check catalytic converters, evaporators and combustion chambers
• Trace wiring, pipes and ducts in confined areas
• Locate blockages or damage in HVAC or plumbing systems
• Routine maintenance in workshops and industrial environments

__
Technical Specs

• Probe Diameter: 5.5 mm (±0.2 mm)
• Resolution: HD, 1 million pixels
• Display: 5 inch IPS LCD (diagonal)

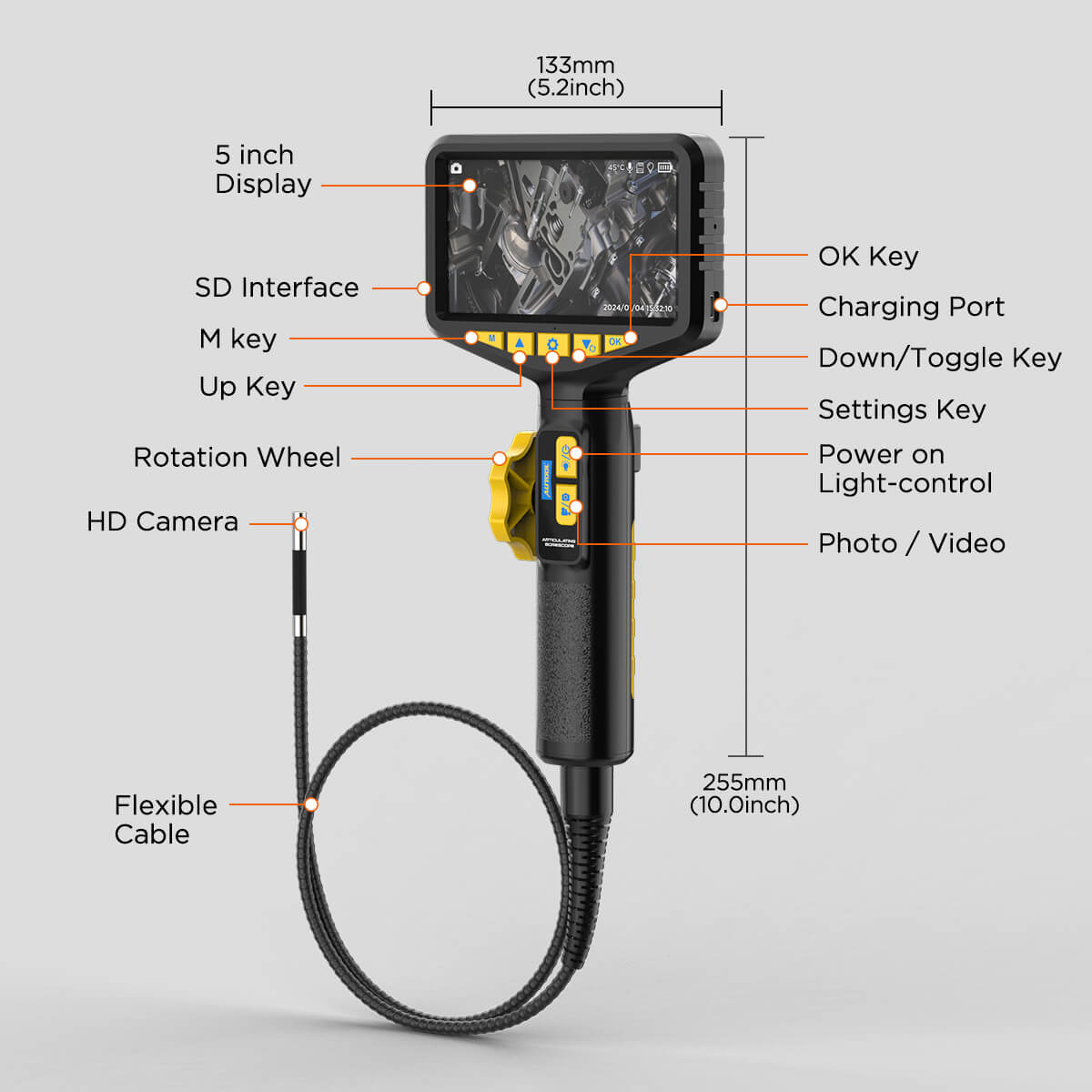

• Main Unit Height: 255 mm
• Screen Housing Width: 133 mm
• Depth of Field: 25 to 100 mm
• Viewing Angle: 70°

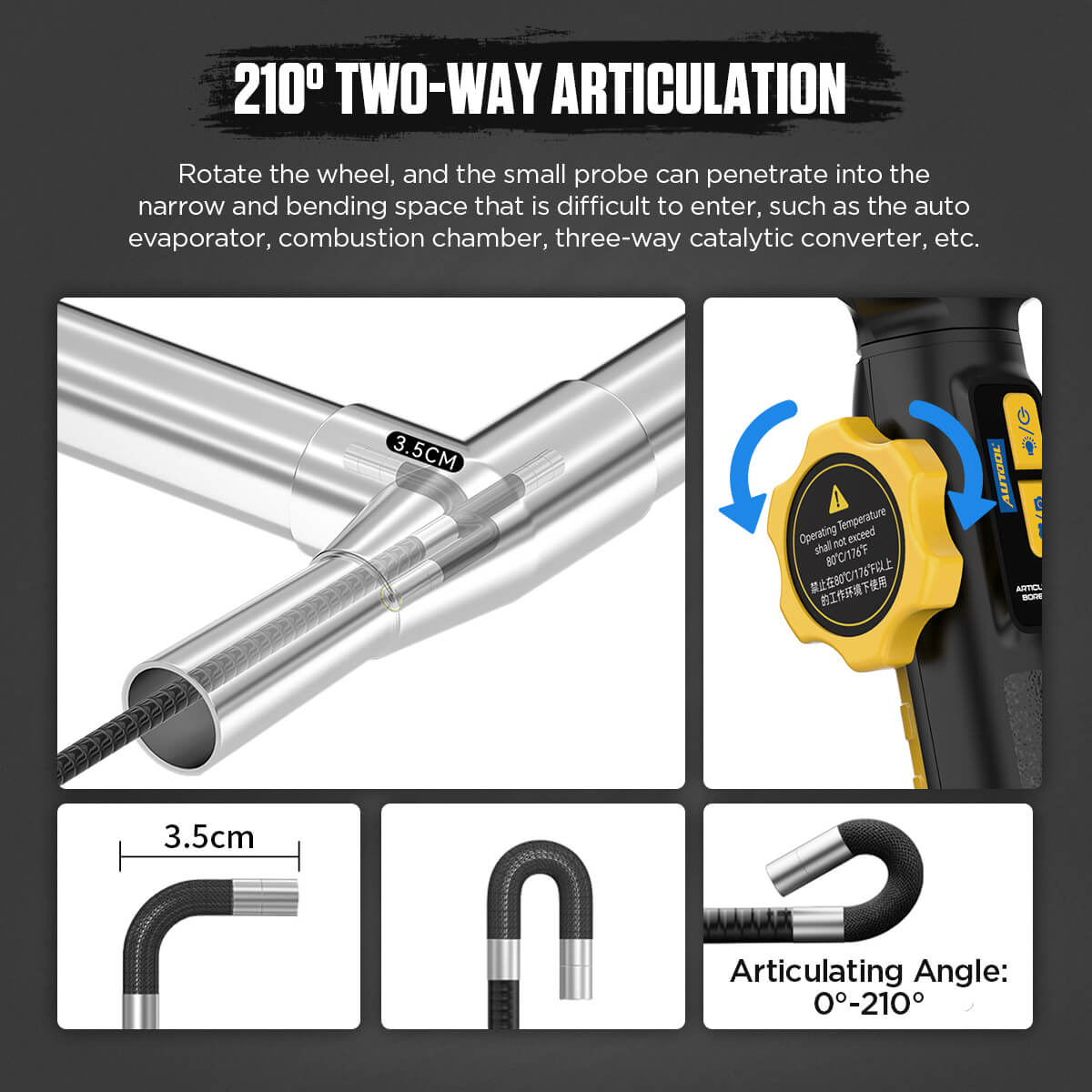

• Articulating Angle: Max 210°, two-way
• Bending Radius: 35 mm
• Cable Length: 1 m, flexible metal cable

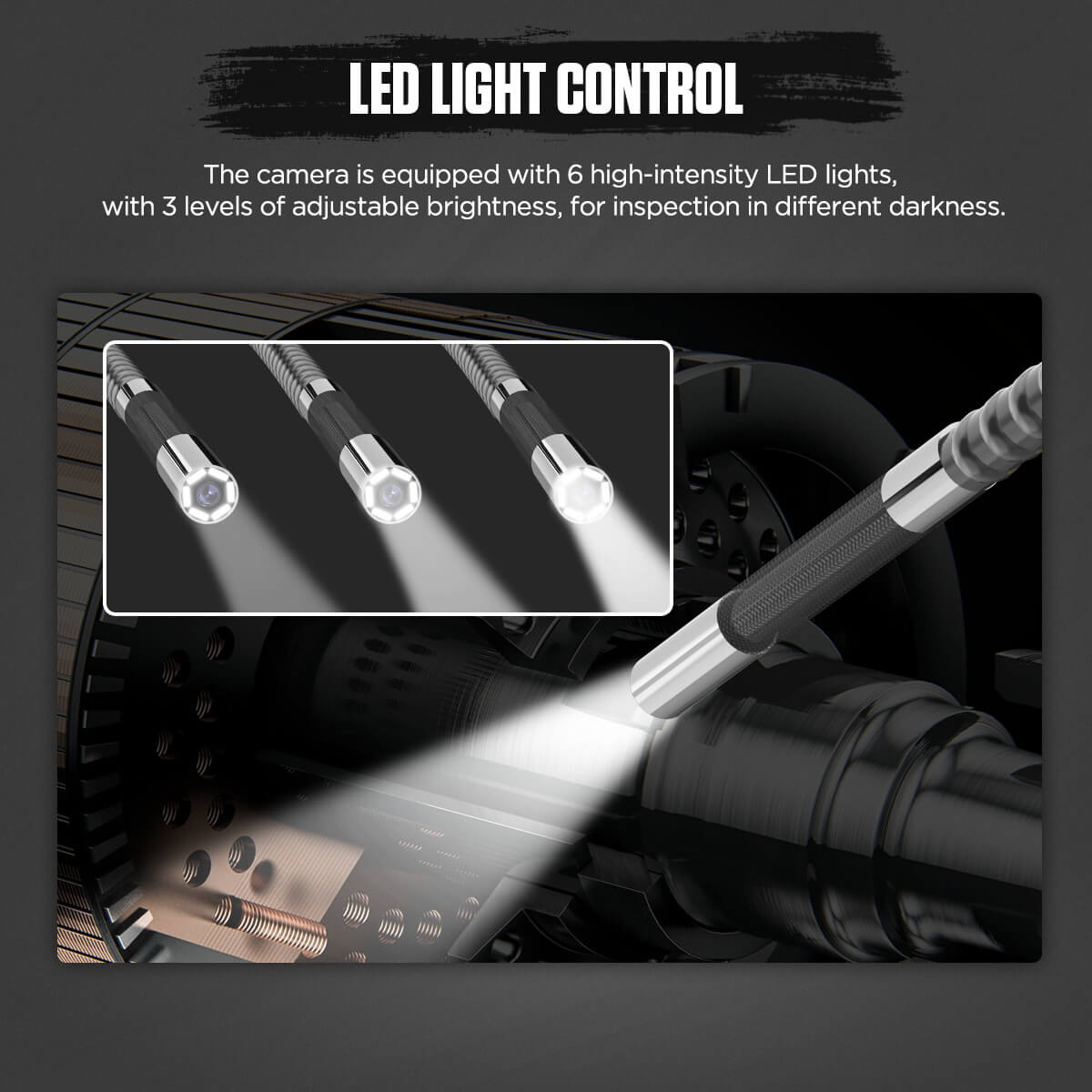

• Lighting: 6 LEDs, 3-stage adjustable brightness
• Waterproof Rating: IP67 (probe)
• Battery: 3000 mAh lithium, up to 3 hours
• Charging/Input Power: DC 5V USB
• Storage: Built-in 32GB MicroSD
• Operating Environment: -10°C to 80°C, humidity 15 to 90%
• High Temperature Protection: Intelligent auto protection

__
User Manual
Download user manual

__

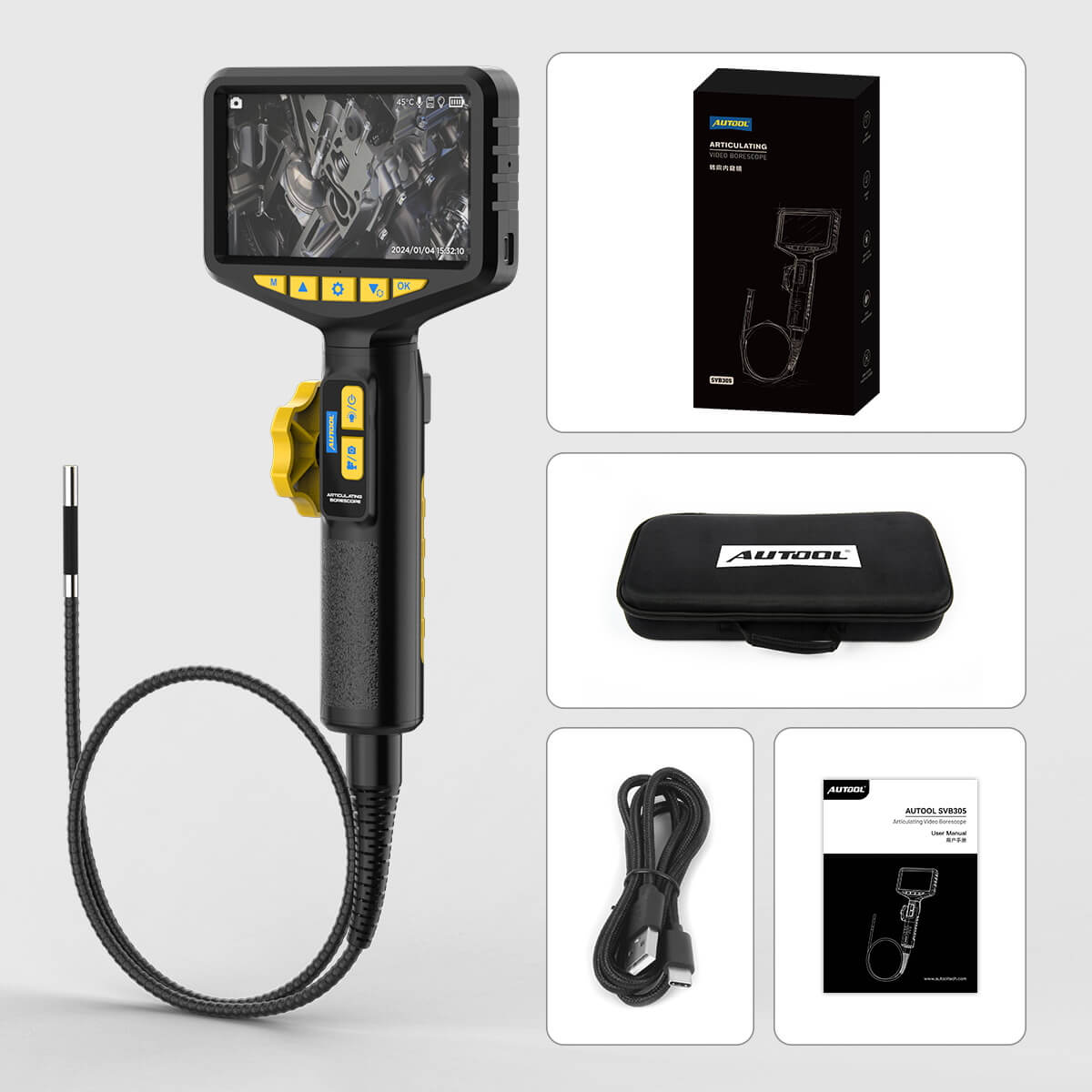

What’s in the Box

• 1x AUTOOL SVB305 borescope with built-in 5 inch IPS display and flexible probe
• 1x USB charging cable
• 1x User manual
• 1x Carry case
