Autool BT760 Car Battery System Tester | 3.2-Inch HD Color Screen | Built-in Data Printer

The Autool BT760 Battery Tester is equipped with advanced conductance testing technology that can measure the cold starting current and the health condition of batteries, quickly detecting common failures for proper battery maintenance and care.

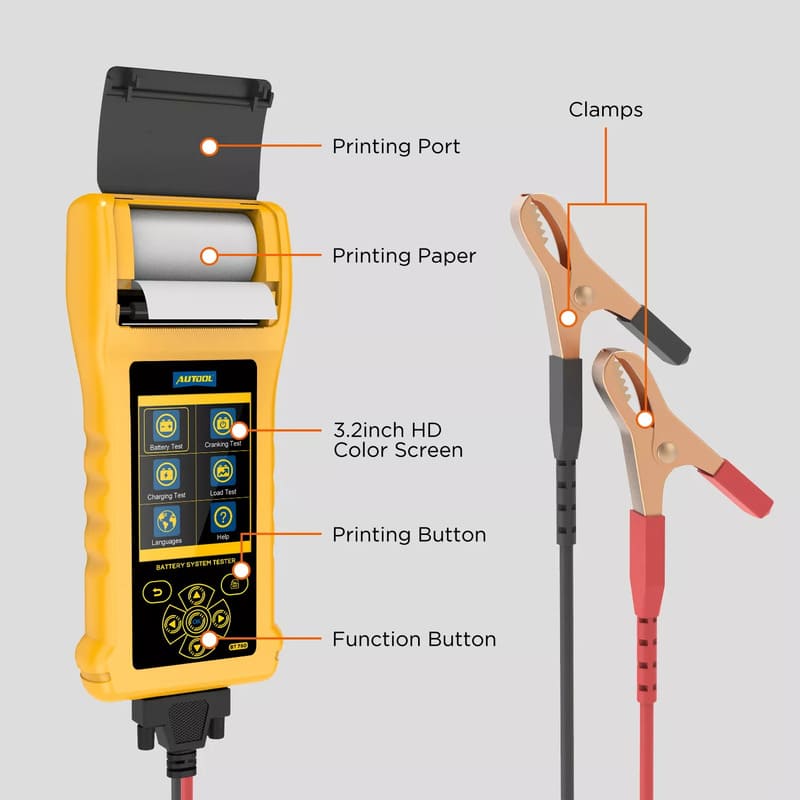

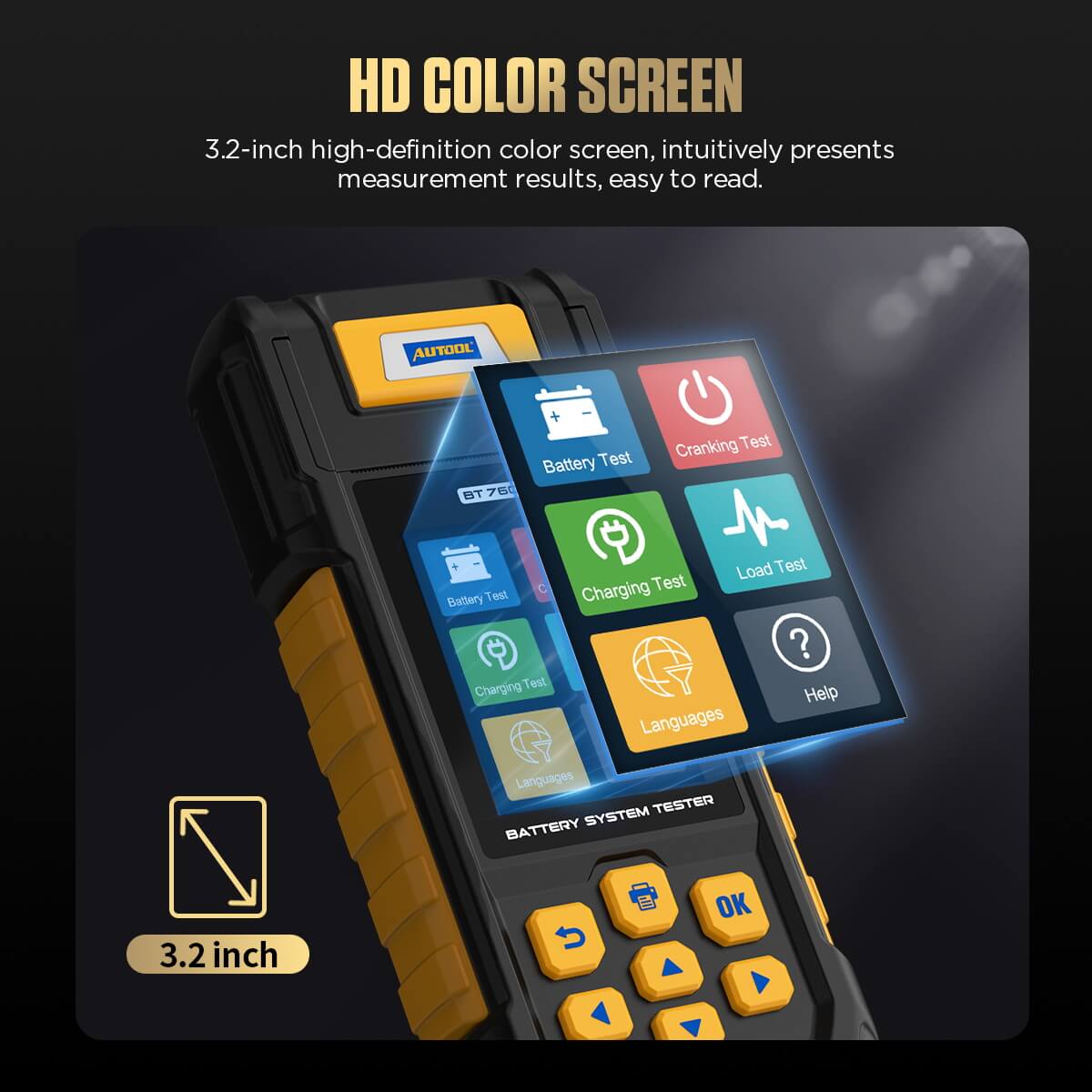

• 3.2-Inch HD Color Screen

  • Large, high-definition display with intuitive layout for easy operation and clear visibility of test results.

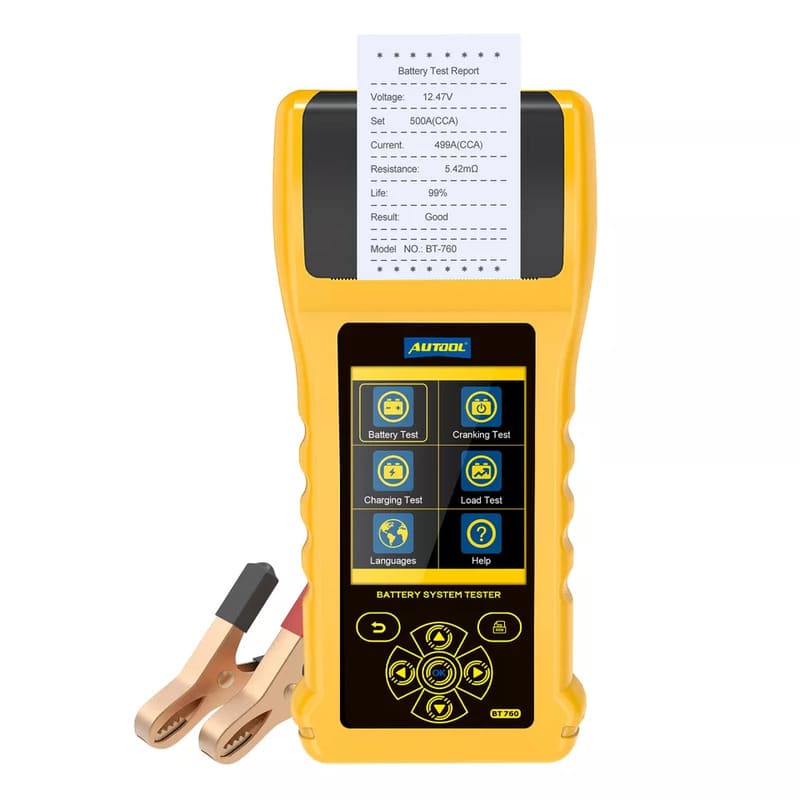

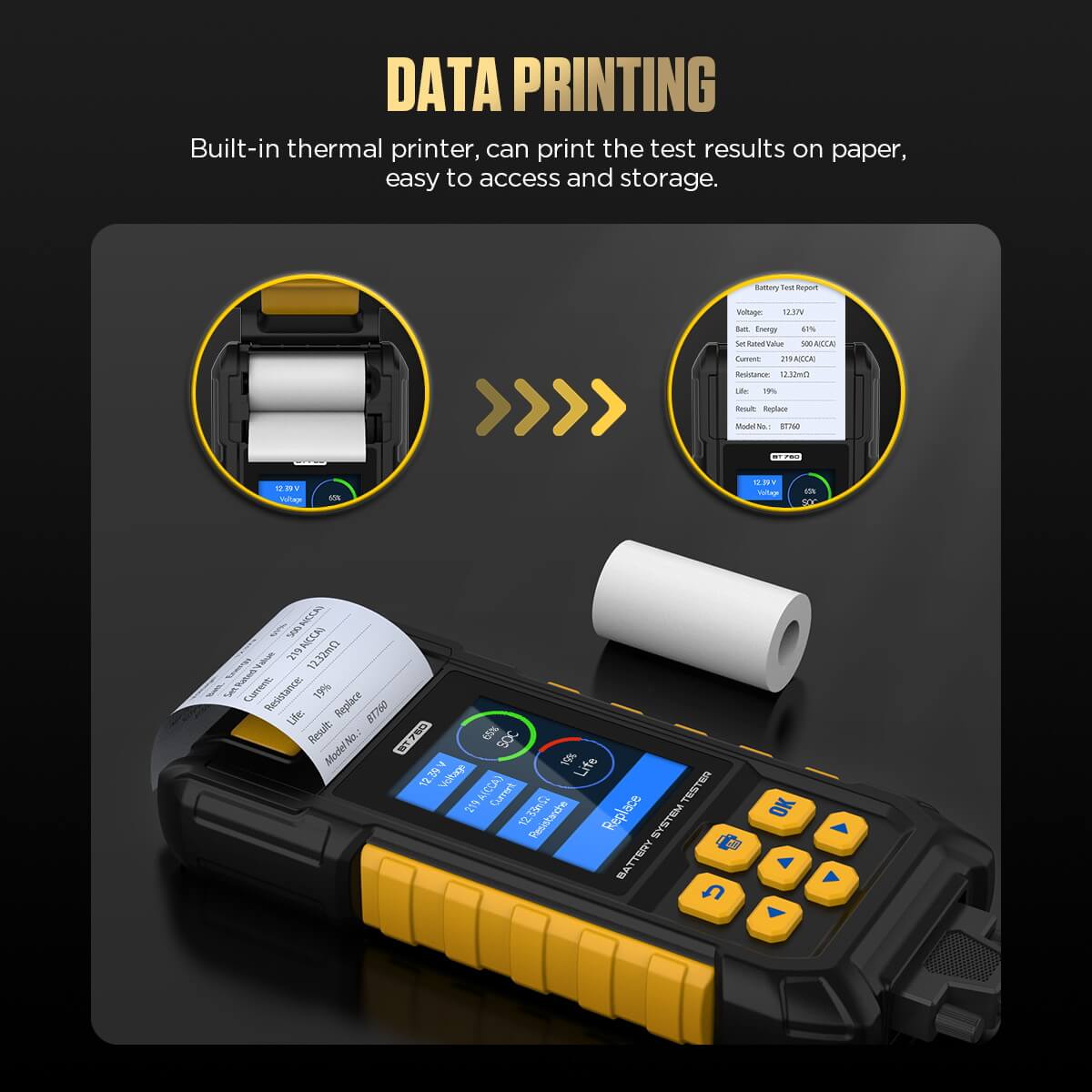

• Built-in Thermal Printer

  • One-click internal printer allows quick and easy printing of diagnostic receipts for sharing with customers.

• 5 Test Modes

  • Supports Battery Test, Cranking Test, Charging Test, Load Test, and Max Load Test, along with additional diagnostics such as voltage, current, resistance, ripple analysis, state of charge, and state of health.

• Wide Battery Compatibility

  • Compatible with 12V and 24V batteries including Flooded, AGM Flat Plate, AGM Spiral, EFB, and GEL types.

• Multi-Language Interface

  • Supports 14 languages: English, Spanish, Portuguese, French, German, Italian, Russian, Polish, Korean, Japanese, Thai, Turkish, Traditional Chinese, and Simplified Chinese.

• Polarity Reverse Protection

  • Built-in safety feature protects the device and the vehicle battery from damage due to incorrect connections.

• Rugged & Portable Design

  • Durable housing with impact resistance and includes a storage case for safe transport and organized accessory storage.

• International Testing Standards Supported

  • Compliant with global standards including CCA, IEC, EN, DIN, JIS. Test range: 100–3000 CCA, voltage 8–30V, current 15mA–5A, operating temperature -20°C to 50°C.

• 3-Year Manufacturer Warranty

  • Covers all non-human faults and includes access to online customer support for setup, troubleshooting, or part replacements.

Download BT760 Manual Here

Features/Functions

Four Main Functions

Connect the device to the 12V/24V battery by clamping the red clips on the positive pole and the black clips on the negative pole.

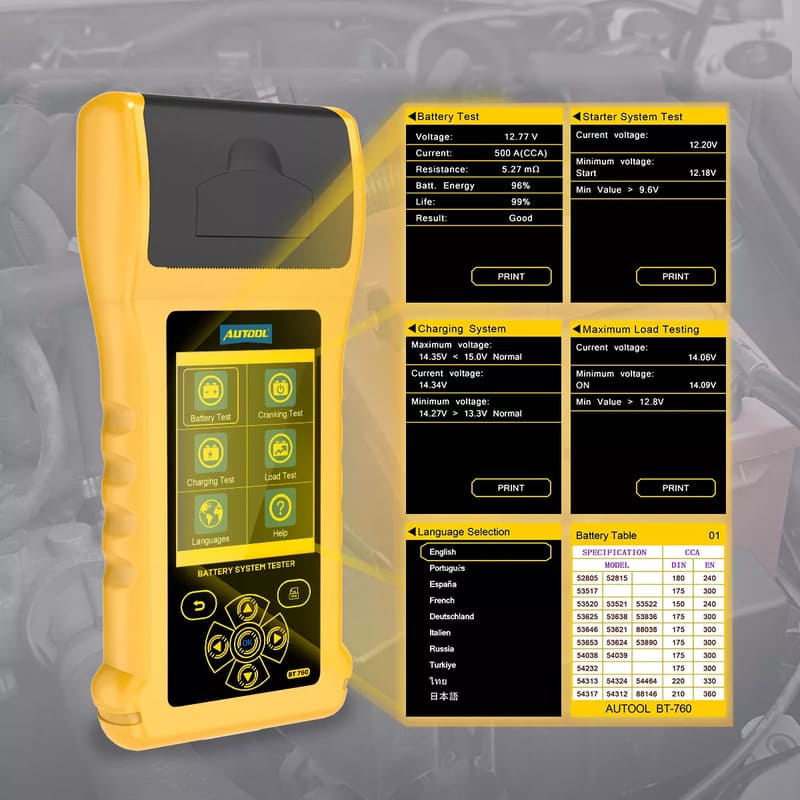

• Battery Test

  • Evaluates the overall health and performance of 12V and 24V batteries. Supports various battery types and standards such as CCA, DIN, IEC, EN, and JIS. Displays voltage, internal resistance, state of charge (SOC), and state of health (SOH).

• Cranking Test

  • Measures the starting performance of the vehicle’s engine system. Identifies issues related to slow or weak engine starts by analyzing cranking voltage and time.

• Charging Test

  • Checks the performance of the vehicle’s charging system, including the alternator and regulator. Detects overcharging, undercharging, and charging ripple to ensure stable system operation.

• Max Load Test

  • Assesses the battery’s response under high-load conditions by running a test while all major electrical appliances (e.g. A/C, headlights, rear defogger) are switched on. Helps verify the battery’s ability to maintain voltage under heavy demand.

How to Use: Step-by-Step Guide

Step 1: Connect the Device
Clamp the red clip to the battery’s positive terminal and the black clip to the negative terminal.

Step 2: Battery Test
Select the battery type and rating standard (e.g. CCA). Begin the test and view the results within seconds.

Step 3: Cranking Test
Select the Cranking Test function, follow the prompt to start the engine, and allow the tester to measure starter performance.

Step 4: Charging Test
Select the Charging Test, then start the engine and increase RPM to 2500 for 5 seconds. Press OK to confirm.

Step 5: Max Load Test
Turn on electrical appliances (headlights, A/C), start the engine, and begin the test to check battery performance under load.

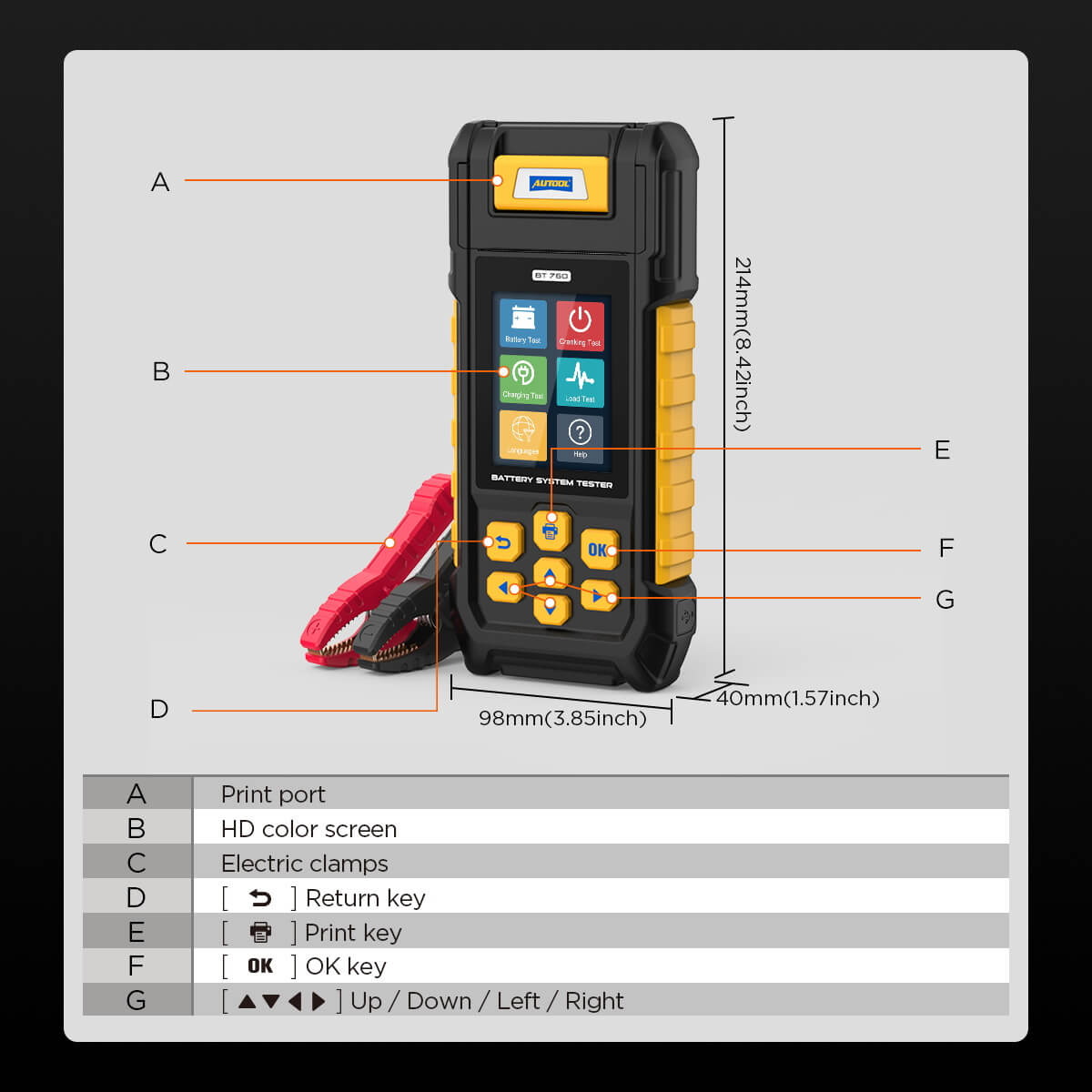

Specifications

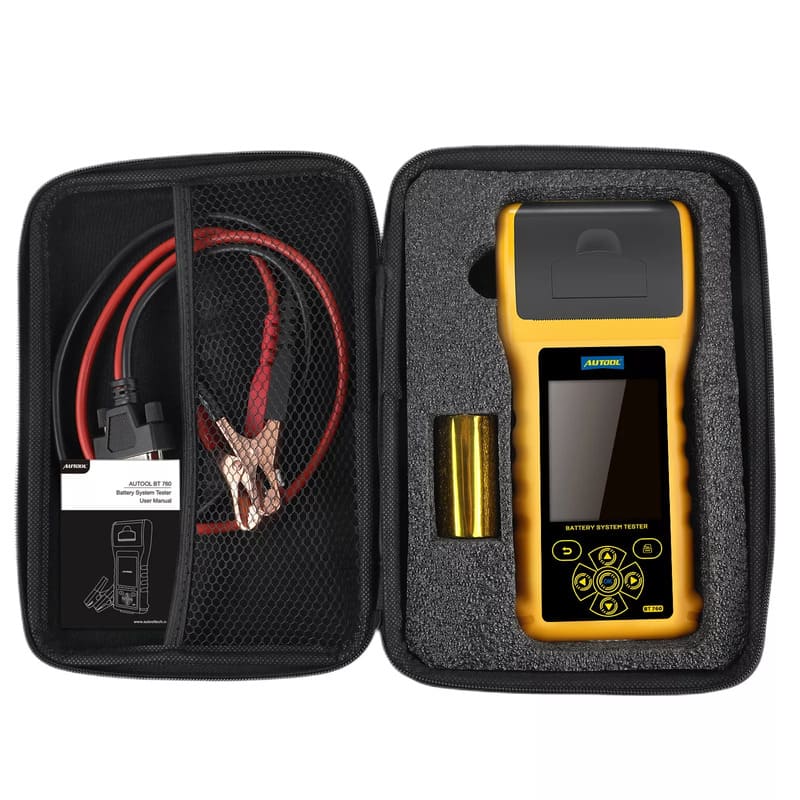

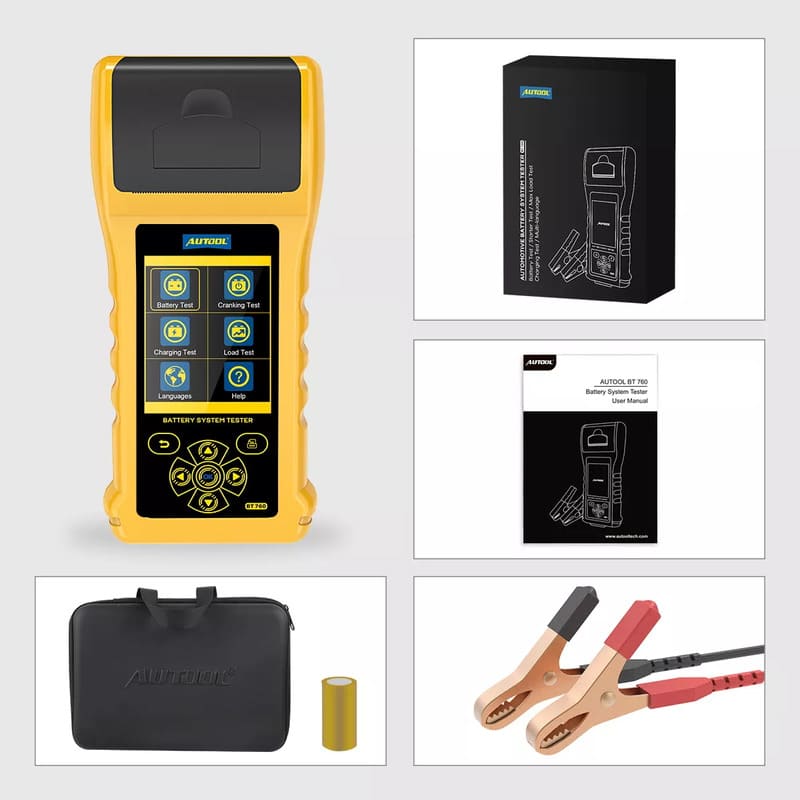

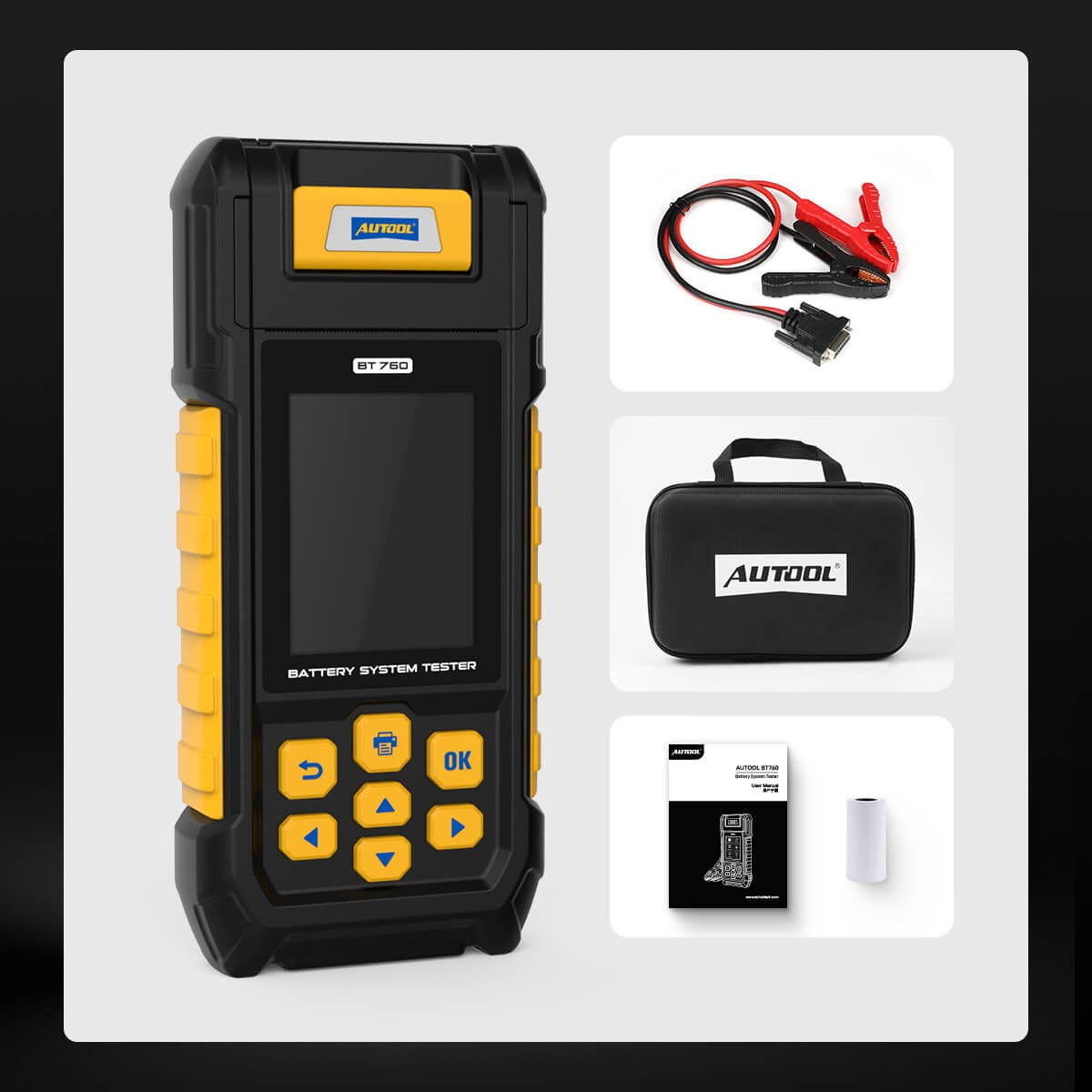

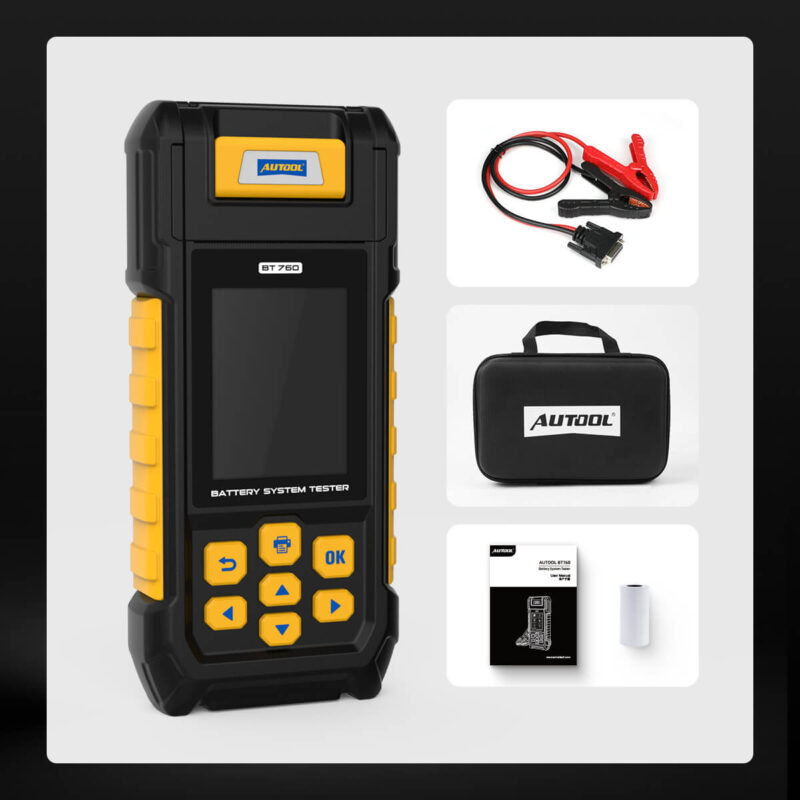

Package Includes

• 1x Color Screen Car Battery Tester main unit

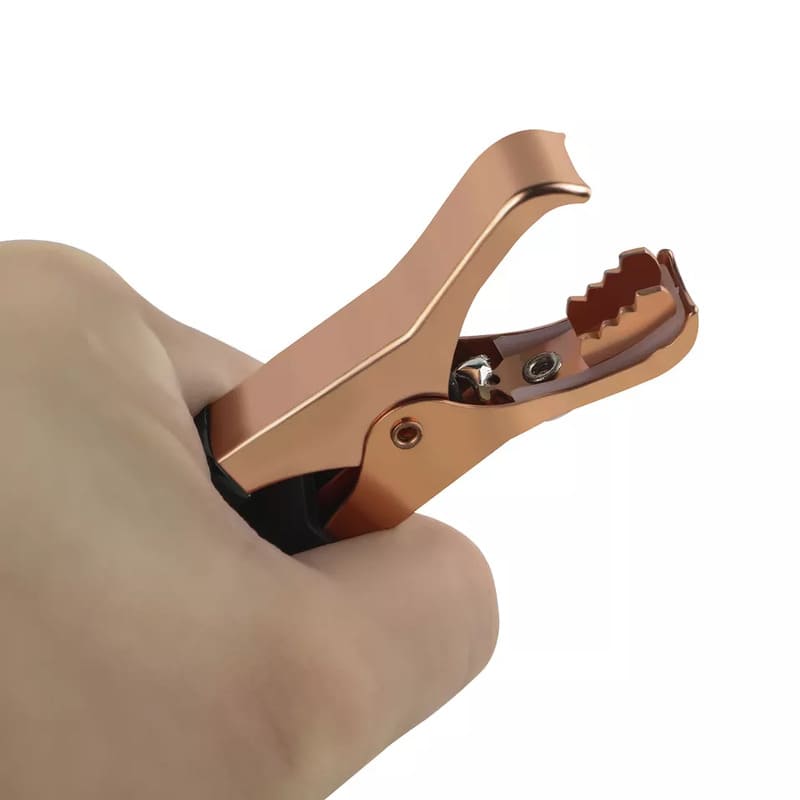

• 2x  Full copper core kelvin clip
• 1x User manual
• 1x Printing paper
• 1x Toolbag
