Launch BST580D Battery Tester and Code Reader Tool – Professional OBD & Battery Diagnostic Device | Support OBDII | 5 Battery Test Modes
R2,875.00 incl. VAT
R2,500.00 excl. VAT
Available 'Buy Now Pay Later' Options
R239.58 x 12 months
Available 'Buy Now Pay Later' Options
R239.58 x 12 months
Delivery anywhere is SA
Once we receive payment for your order, delivery updates will be sent via email to keep you updated.
Collection Points
Visit our offices in Isando, Kempton Park.
Our work hours are from 8am-5pm.

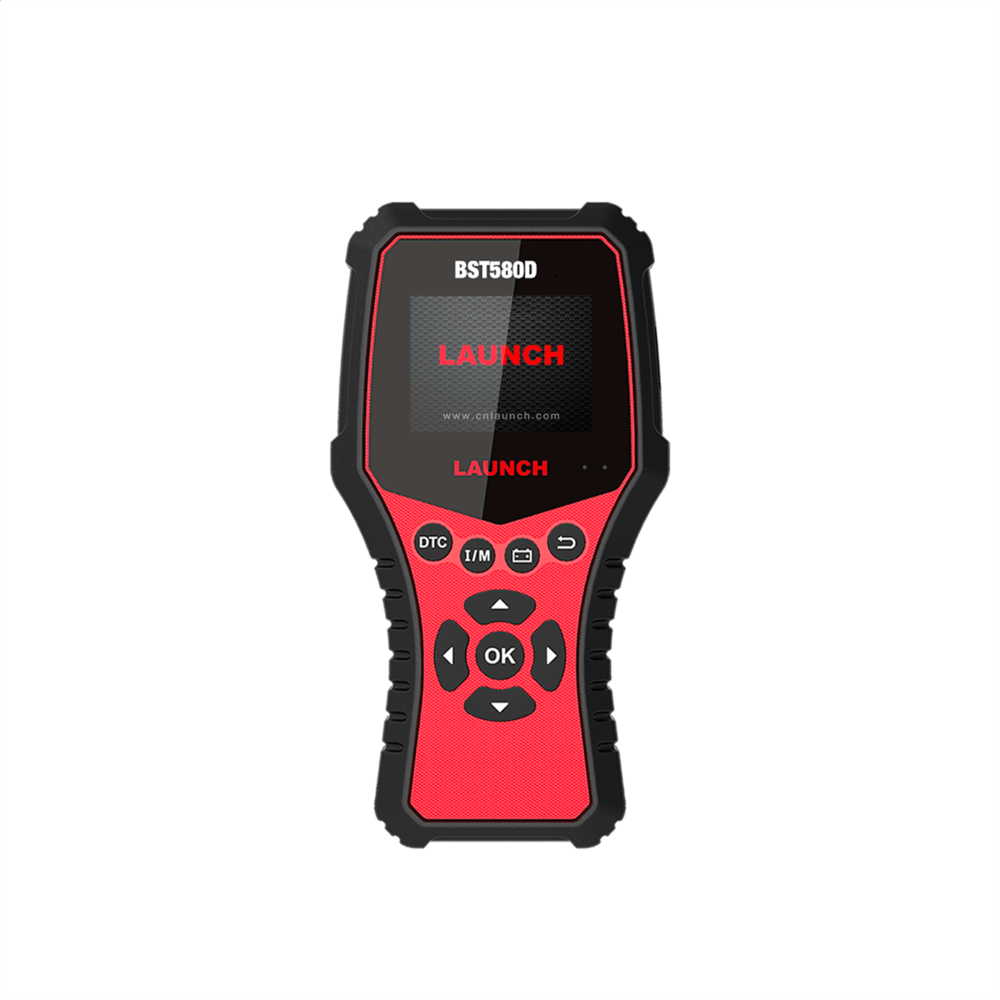

The BST580D is a powerful battery test and OBD diagnostic tool designed for precise automotive troubleshooting. It supports five battery test modes, including:
- Battery Health State Test
- Voltage Test
- Ripple Test
- Starting System Test
- Charging System Test
This device ensures comprehensive battery performance analysis with a test voltage range of 10V to 16V and compatibility with 10 battery standards. It also supports three battery types: Lead-Acid, GEL, and AGM.
In addition to battery diagnostics, the BST580D provides full OBD II functionalities, enabling accurate vehicle system analysis. The device features:
- I/M Quick Scan and DTC Lookup & Definition via a physical shortcut on its 2.8-inch display
- Battery test report review
- Data report printing via USB cable
For convenience, it includes multi-language support and offers a lifetime free software update for continuous improvements.
Key Features:
- Full OBD II Functionality for complete diagnostic capabilities
- Five Battery & Electrical Tests for accurate battery performance assessment
1. Battery Health State Test
2. Voltage Test
3. Ripple Detection
4. Starting System Test
5. Charging System Test - 10 Battery Standards for broad compatibility
1. CCA
2. BCI
3. CA
4. MCA
5. JIS
6. DIN
7. IEC
8. EN
9. SAE
10. GB - Supports Three Battery Types: Lead-Acid, GEL, and AGM
- DTC Lookup & Definition for quick retrieval and interpretation of diagnostic trouble codes
- I/M Quick Scan for instant access via a shortcut on the 2.8-inch LCD display
- Battery Test Report Review for better tracking and troubleshooting
- USB Data Report Printing for professional documentation
- Multi-Language Support in English, Spanish, French, German, Russian, Portuguese, and Japanese
- Lifetime Free Software Updates for continued accuracy and functionality

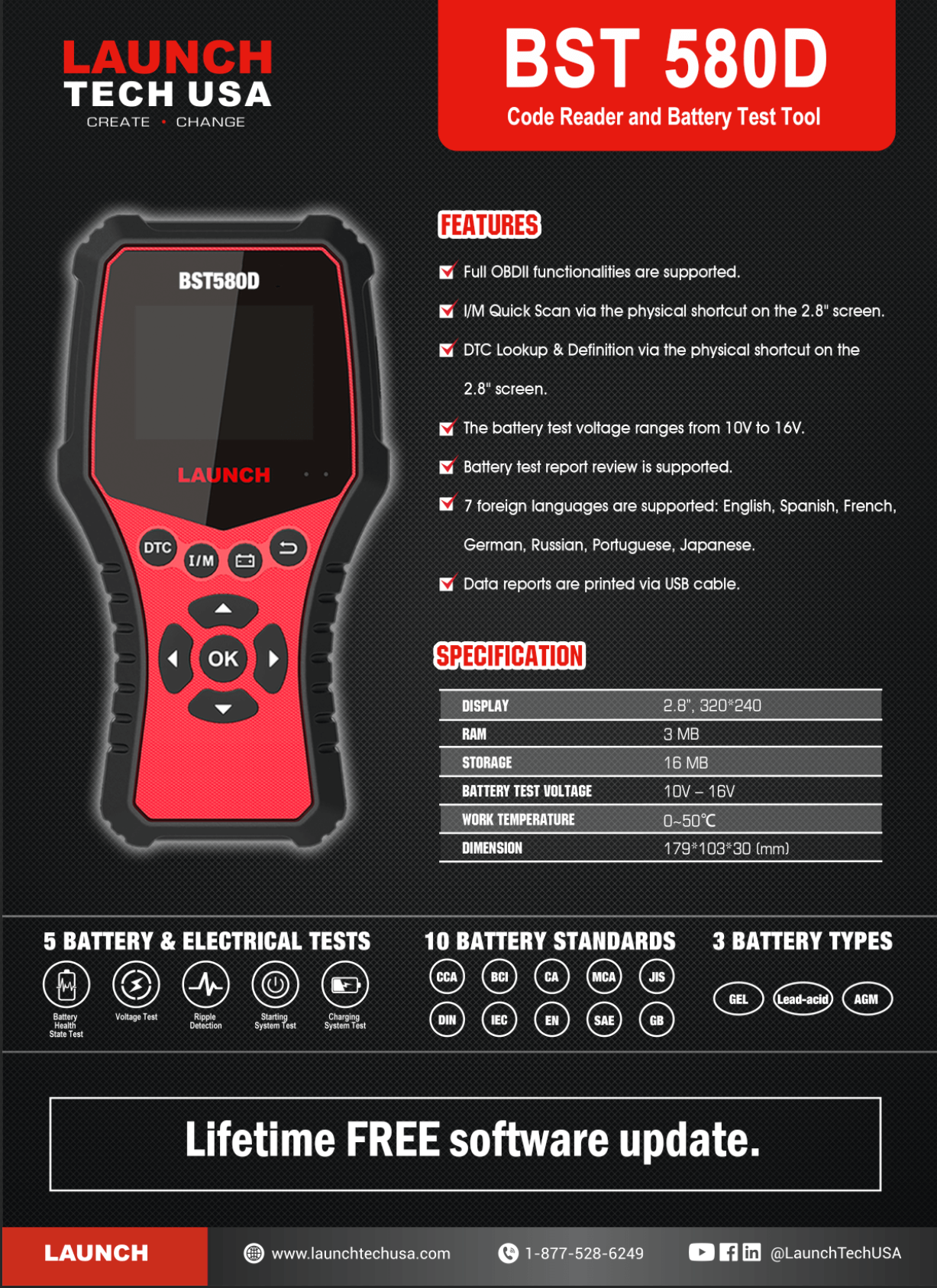

Technical Specifications
| Specification | Details |
|---|---|
| Display | 2.8-inch LCD, 320 x 240 resolution |
| RAM | 3MB |
| Storage | 16MB |
| Battery Test Voltage | 10V – 16V |
| OBD II Interface Input Voltage | 9V – 18V |
| Storage Temperature | -20°C to 70°C |
| Operating Temperature | 0°C to 50°C |
| Dimensions | 179 x 103 x 30 mm |
| Net Weight | <500g |
The BST580D Battery Test and Code Reader Tool is an essential device for automotive professionals and enthusiasts, delivering accurate battery diagnostics and full OBD II support in a compact, user-friendly design. With multi-language support, free software updates, and USB data printing, it is an ideal choice for efficient vehicle maintenance and troubleshooting.
