Launch X431 Key Programmer + 4 Remote Keys + 1 Super Chip | Advanced Car Key Programming & Remote Generator | Supported by Range of X431 IMMO Scanners
R2,852.00 incl. VAT
R2,480.00 excl. VAT
Available 'Buy Now Pay Later' Options
R237.67 x 12 months
Available 'Buy Now Pay Later' Options
R237.67 x 12 months
Delivery anywhere is SA
Once we receive payment for your order, delivery updates will be sent via email to keep you updated.
Collection Points
Visit our offices in Isando, Kempton Park.
Our work hours are from 8am-5pm.

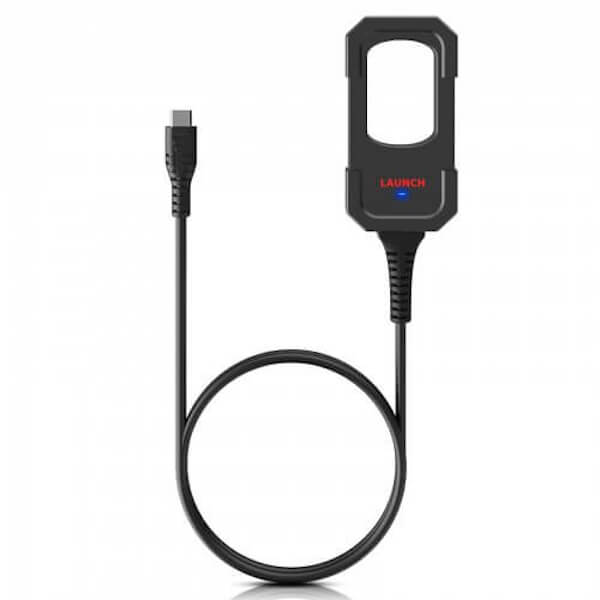

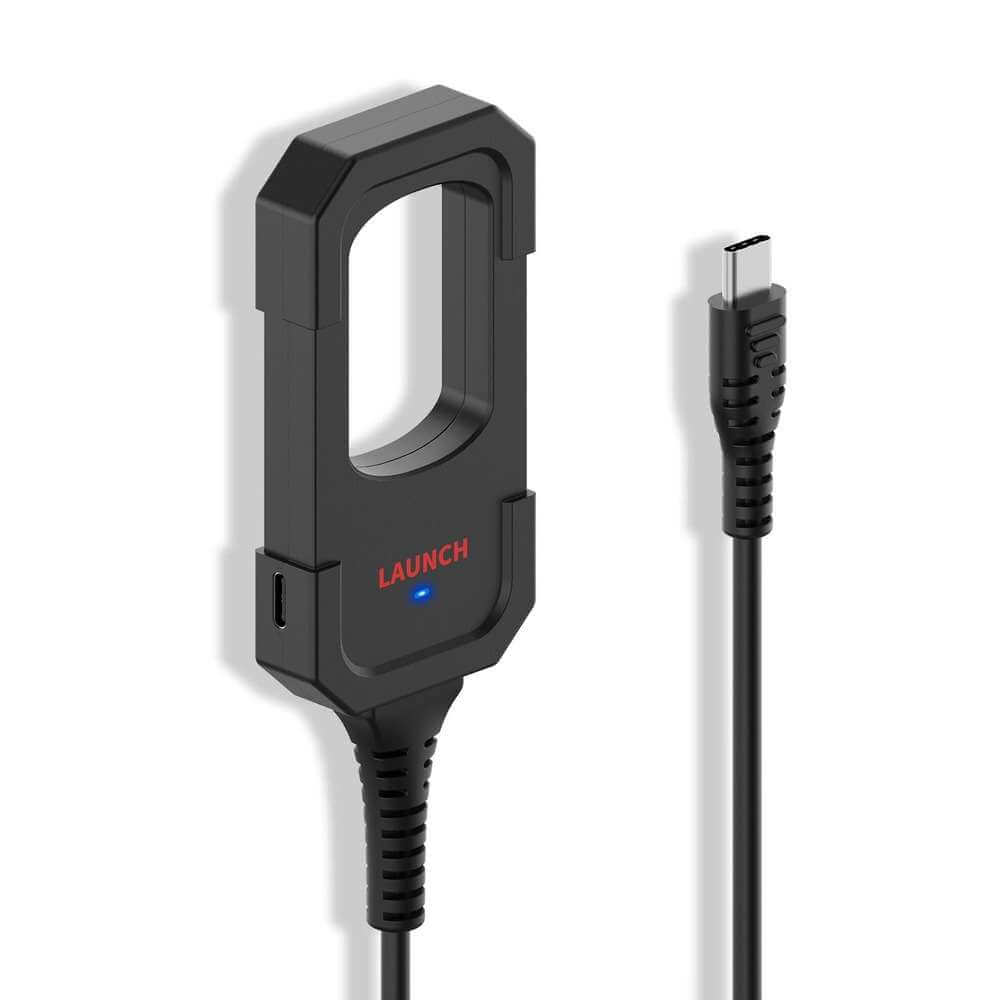

The Launch X431 Key Programmer is an advanced key programming tool designed to support a wide range of vehicle models and chip types. It enables users to generate, read, and clone transponders, detect frequency signals, and create remote keys for different car models. This device is compatible with the Launch X431 IMMO series and other X431 scanner models.

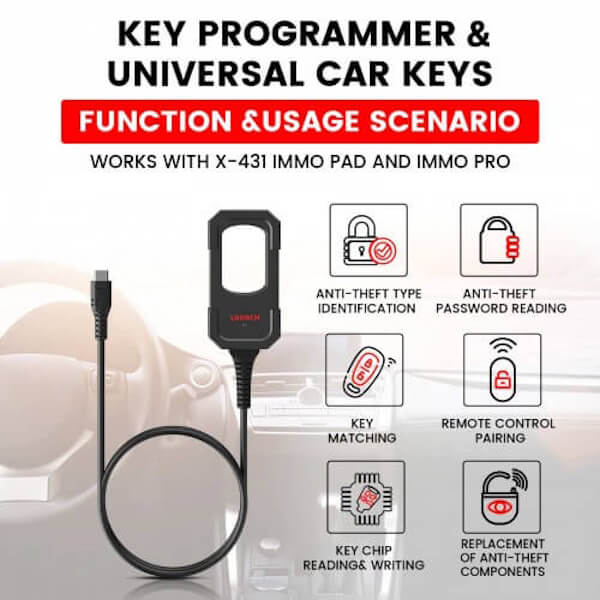

Key Features
- Supports Various Chip Types: 8A, 8C, 8E, 4C, 4D, 4E, 48, 7935, 7936, 7938, 7939, 11/12/13.
- Wide Vehicle Compatibility: Works with Toyota, Hyundai, Honda, Volkswagen, Peugeot, Nissan, Ford, and many more.
- Transponder & Remote Functions: Read and generate transponders, detect frequency, and program remote keys.
- Super Chip Support: Compatible with Launch Super Chip and VVDI Super Chip.
- ID48 96-bit Cloning: Supports VAG ID48 96-bit cloning without requiring tokens.

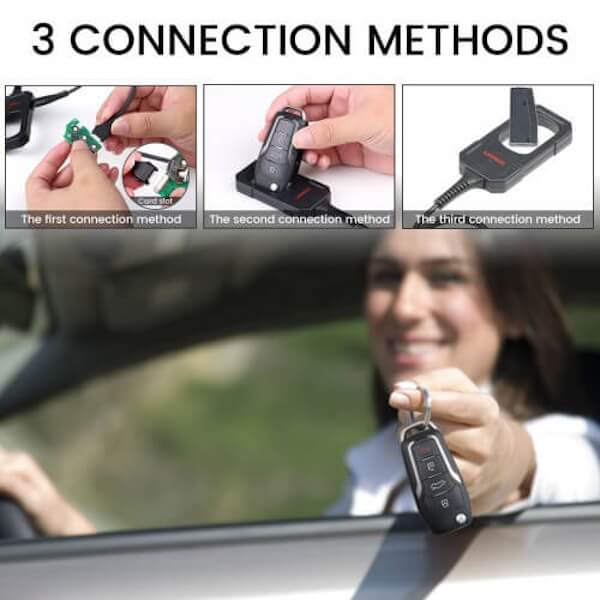

- Wireless & Wired Programming: Allows both wireless and wired remote programming for key generation.
- Anti-Theft Matching: Provides anti-theft immobilizer programming to match the generated keys with the vehicle.
- User-Friendly Interface: Easy-to-navigate system with step-by-step instructions for generating remote keys and transponders.

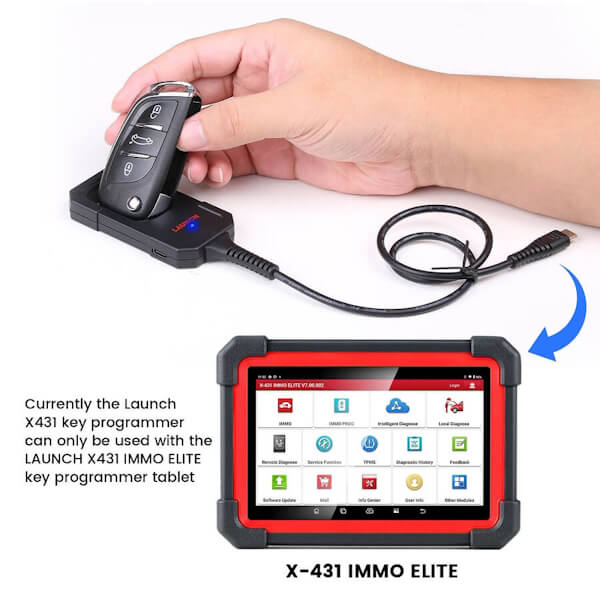

Supported X431 Devices
The Launch X431 Key Programmer is compatible with a range of X431 IMMO and diagnostic scanners, including:
- X431 IMMO Series: X431 IMMO ELITE, X431 IMMO PLUS, X431 IMMO PRO, X431 IMMO PAD.
- X431 PAD Series: X431 PAD V, X431 PAD VII, Euro Tab III.
- X431 PRO Series: X431 PROS V5.0, X431 PRO STAR, X431 PRO Elite, X431 PRO3 APEX, X431 PRO3 ACE, X431 PRO5 with Smartlink VCI.
- X431 CRP Series: X431 CRP919E BT, X431 CRP919X BT.
NOTE:ย ย It works on the X-431 Pro5 Smartlink, but you need to buy an OTG USB Micro to USB-C adapter. If new Pro5 Smartlink 2.0, does not need OTG converter.
Specifications
| Feature | Details |
|---|---|
| Product Size | 80 ร 40 ร 11.2 mm |
| Working Voltage | 5V |
| Operating Temperature | 0-50ยฐC |
| Communication Interface | USB |
| Low-Frequency Communication | 125K low-frequency transceiver |
| High-Frequency Communication | Supports 13.56M high-frequency transceiver, 3000M-500M high-frequency signal frequency measurement |

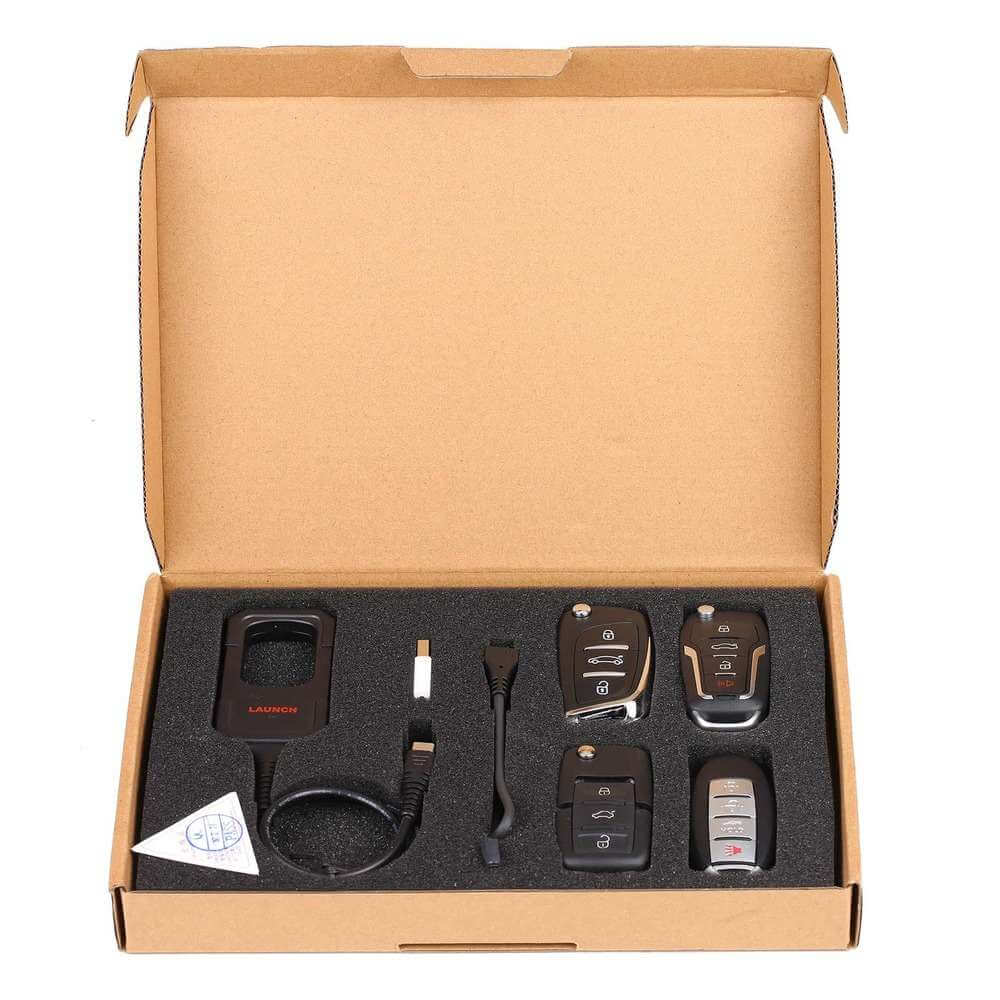

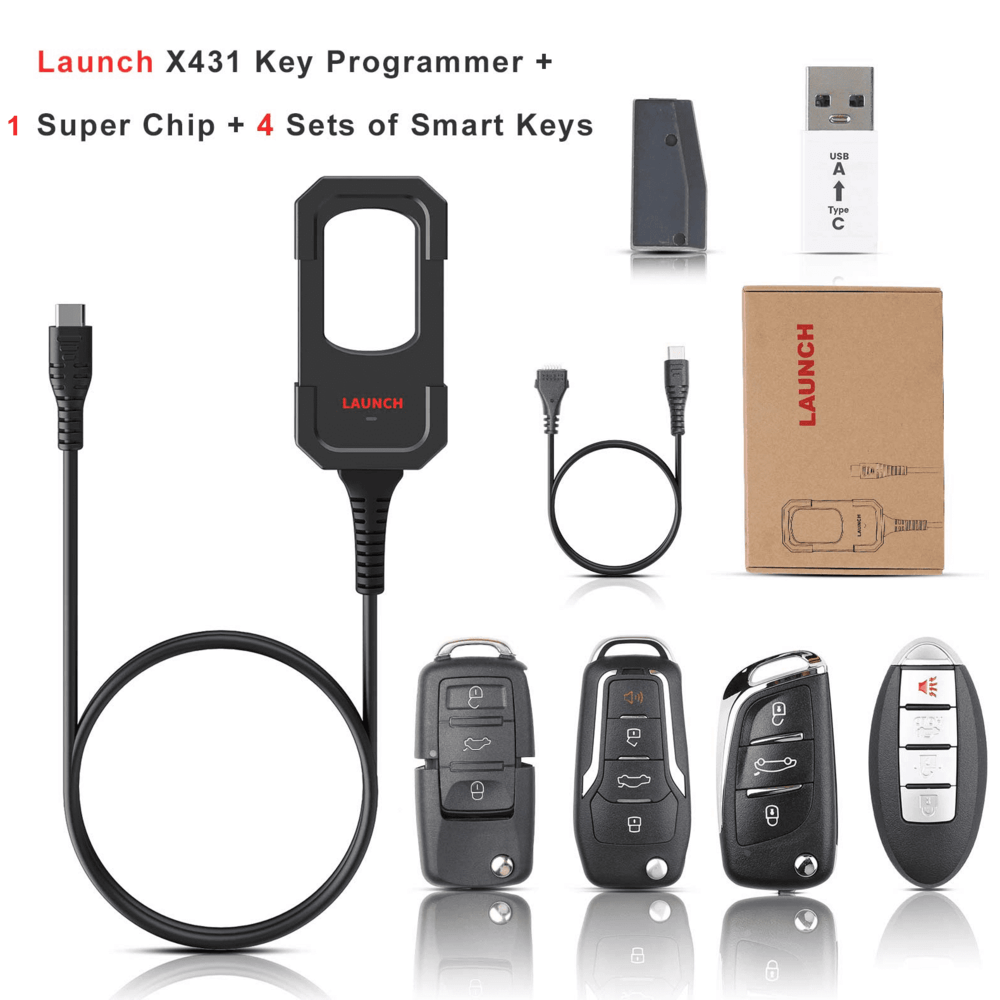

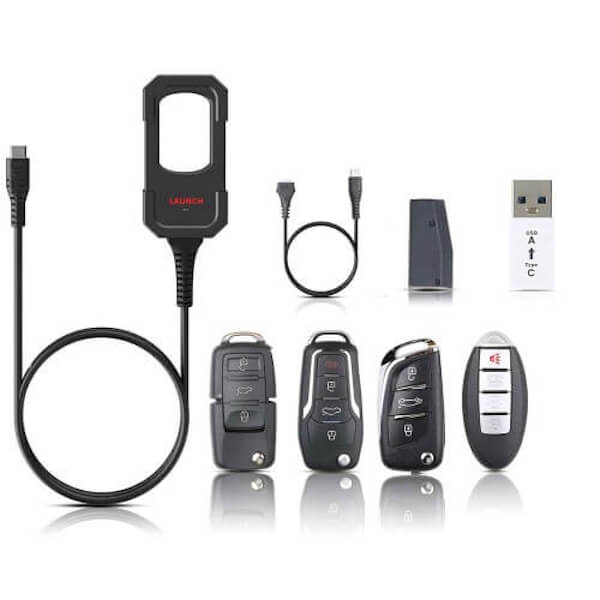

Package Includes
- 1 ร X-431 Key Programmer
- 1 ร Type-C to USB A Converter
- 1 ร LS4 Remote (Smart Card, 4 Buttons)
- 1 ร LN3 Remote (Folding 3 Buttons)
- 1 ร LK3 Remote (Folding 3 Buttons)
- 1 ร LE4 Remote (Folding 4 Buttons)
- 1 ร Super Chip

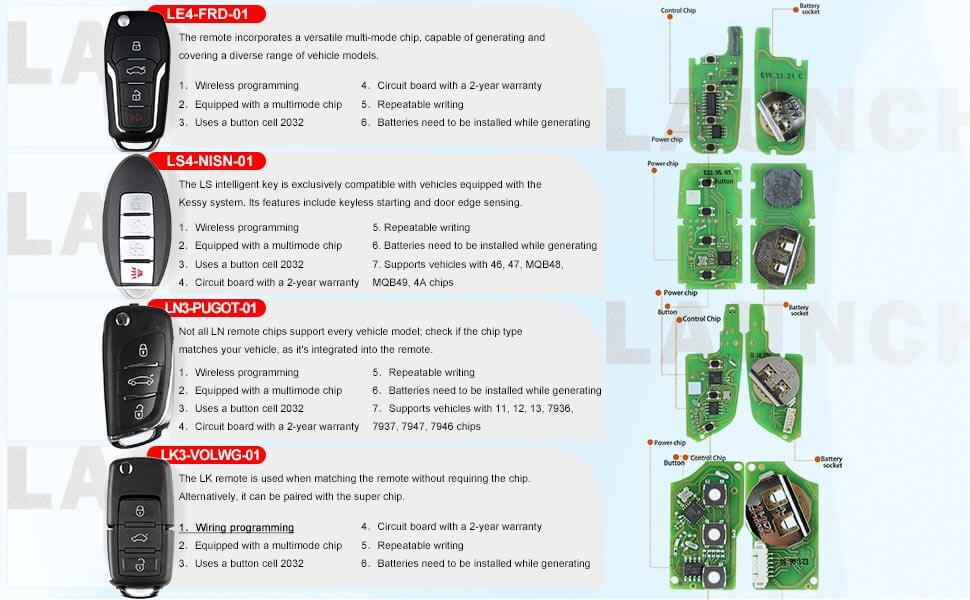

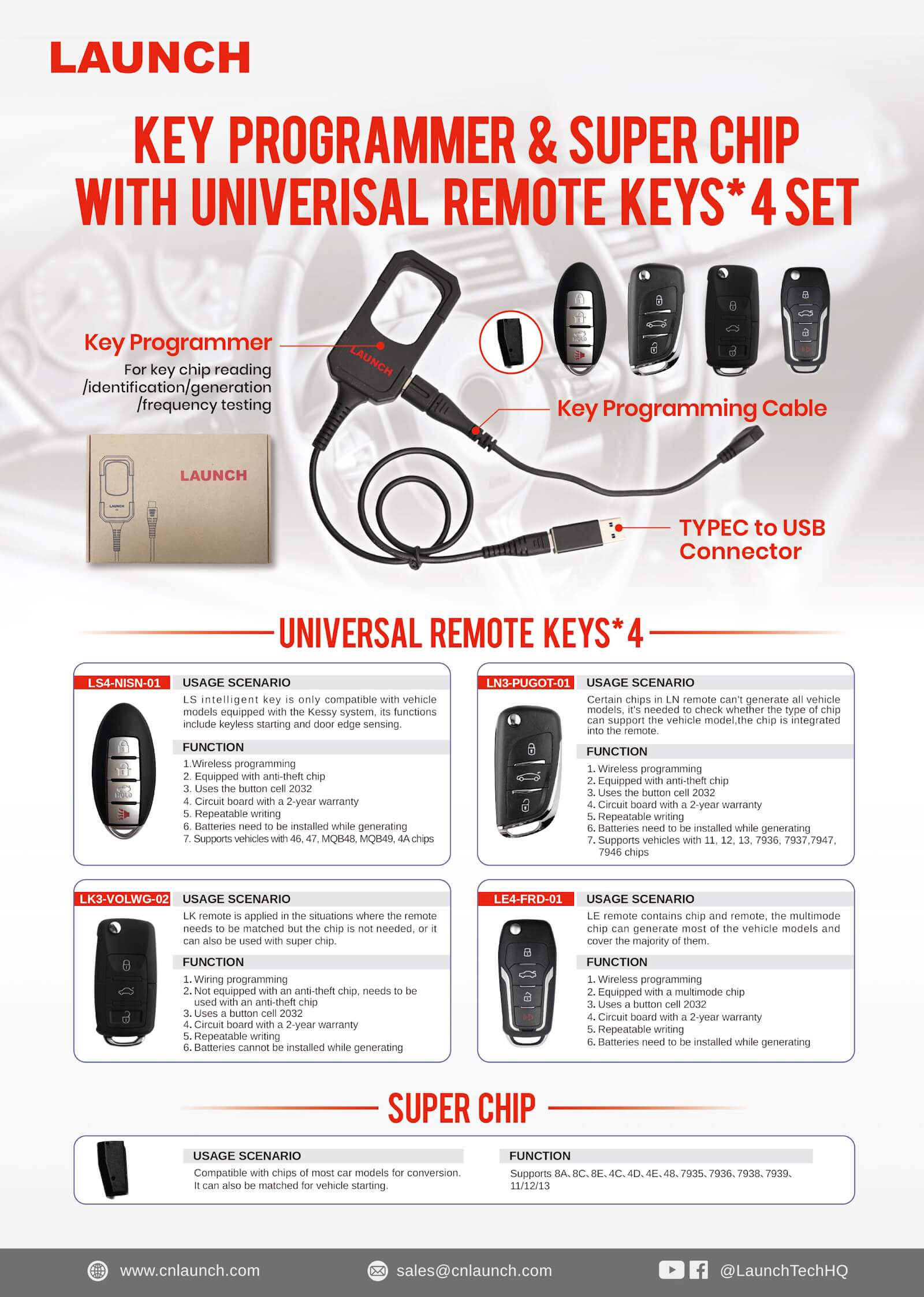

X431 Smart Key Models & Functions
The Launch key programmer comes with 4 universal remotes:
| Model | Functionality | Functions |
| LS4-NISN-01 | Compatible with Nissan Kessy system, supports keyless start, door edge sensing, anti-theft chip, repeatable writing. |
|
| LN3-PUGOT-01 | Supports Peugeot DS models, anti-theft chip, repeatable writing, supports chip types 11, 12, 13, 7936, 7937, 7947, 7946.
Please note: Certain chips in LN remote can’t generate all vehicle models, it’s needed to check whether the type of chip can support the vehicle model, the chip is integrated into the remote. |
|
| LE3-VOLWG-01 | Is applied in the situations where the remote needs to be matched but the chip is not needed, or it can also be used with super chip. |
|
| LE4-FRD-01 | Contains chip and remote, multimode chip, repeatable writing, supports most vehicle models. |
|

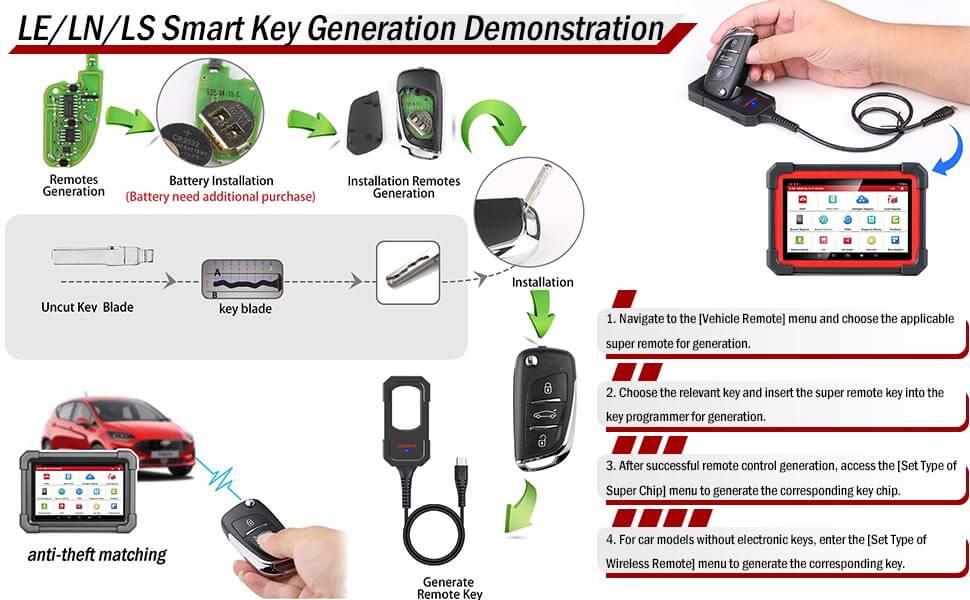

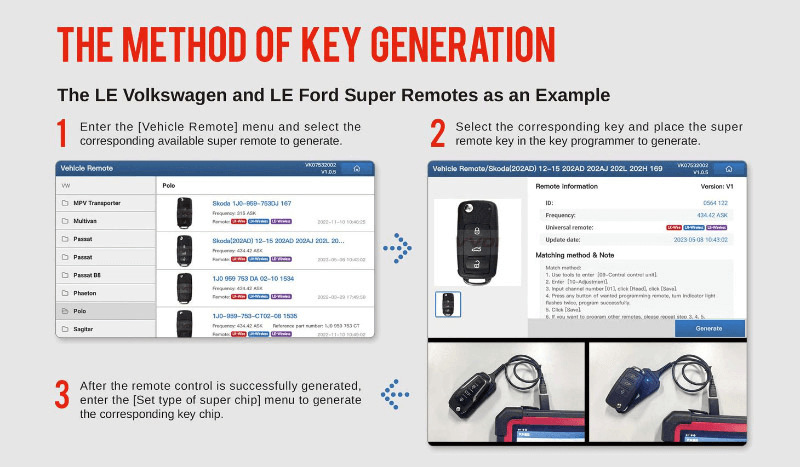

How to Use the X431 Key Programmer

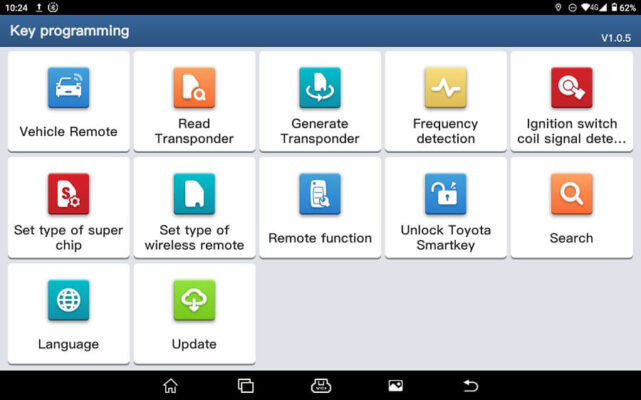

- Enter the “Vehicle Remote” Menu: Choose the applicable super remote for generation.
- Select & Insert the Key: Place the super remote key into the key programmer for generation.

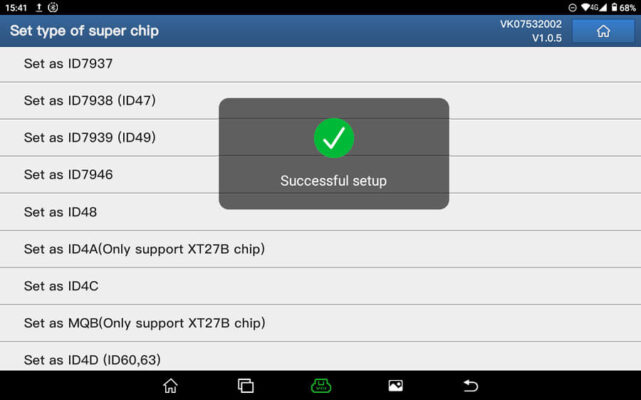

- Set Super Chip Type: After successful remote generation, set the correct chip type in the “Set Type of Super Chip” menu.
- For Non-Electronic Key Models: Enter the “Set Type of Wireless Remote” menu to generate the corresponding key.
How to Use X431 Super Chip

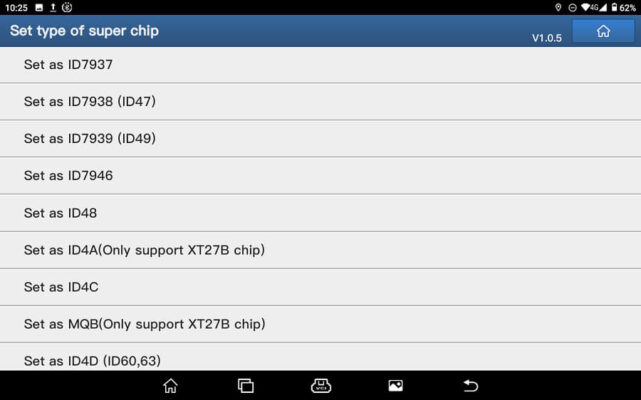

- Enter “Set Type of Super Chip” Menu: Select the correct chip type.

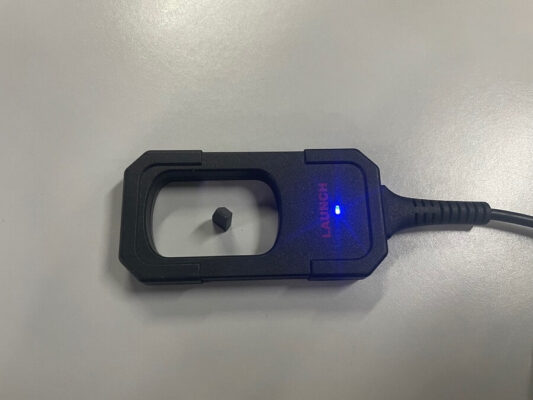

- Insert Super Chip: Place the chip into the anti-theft induction coil.
- Successful Setup: Once generated, the chip is ready to use.
Conclusion
The Launch X431 Key Programmer is a powerful and versatile tool for professional automotive locksmiths and mechanics. With broad support for chip types and vehicle models, it simplifies key programming, transponder generation, and remote key setup. Compatible with multiple X431 devices, it provides a seamless and efficient key generation experience. Whether you need anti-theft matching, VAG ID48 96-bit cloning, or wireless remote programming, this key programmer is an essential tool in any professional’s toolkit.
