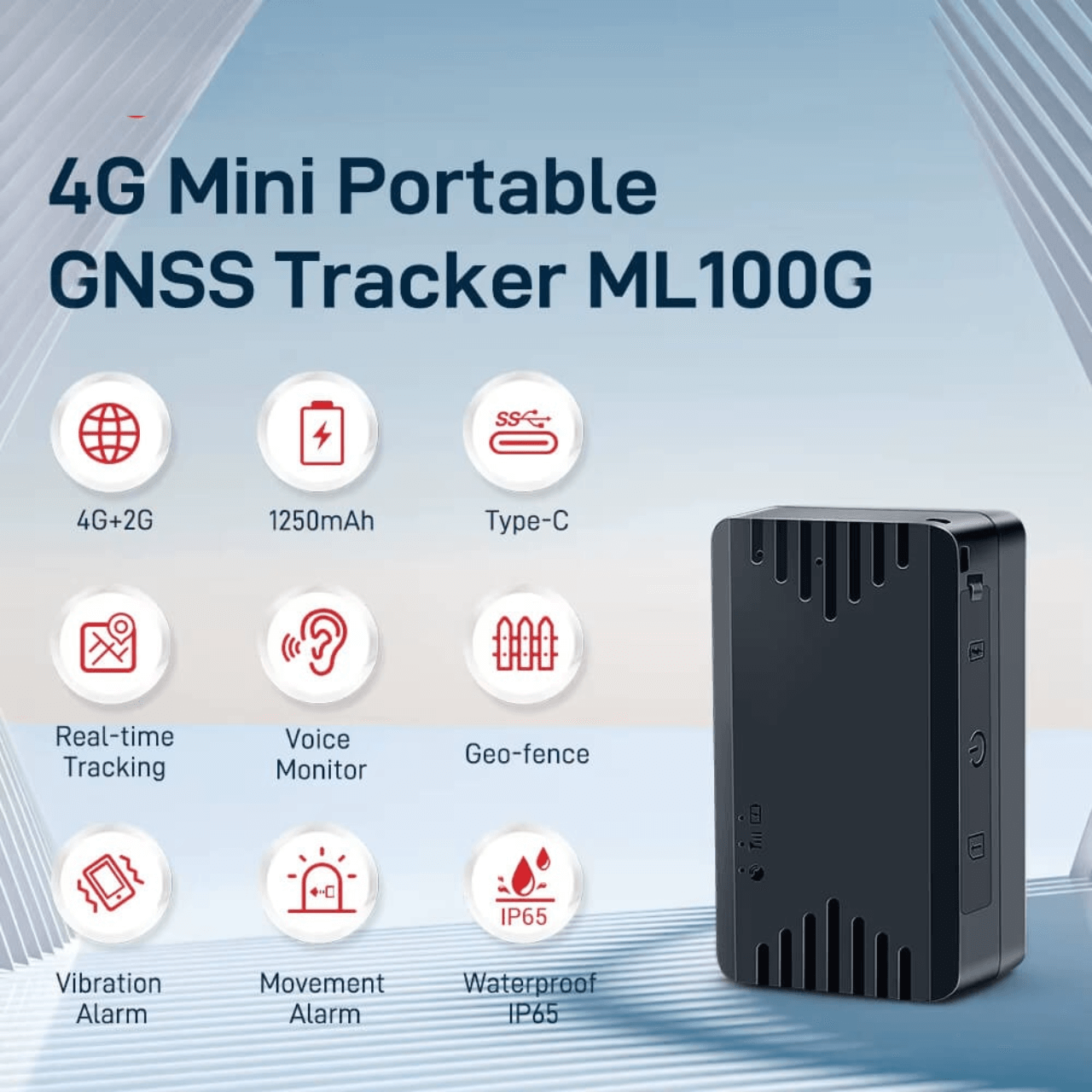

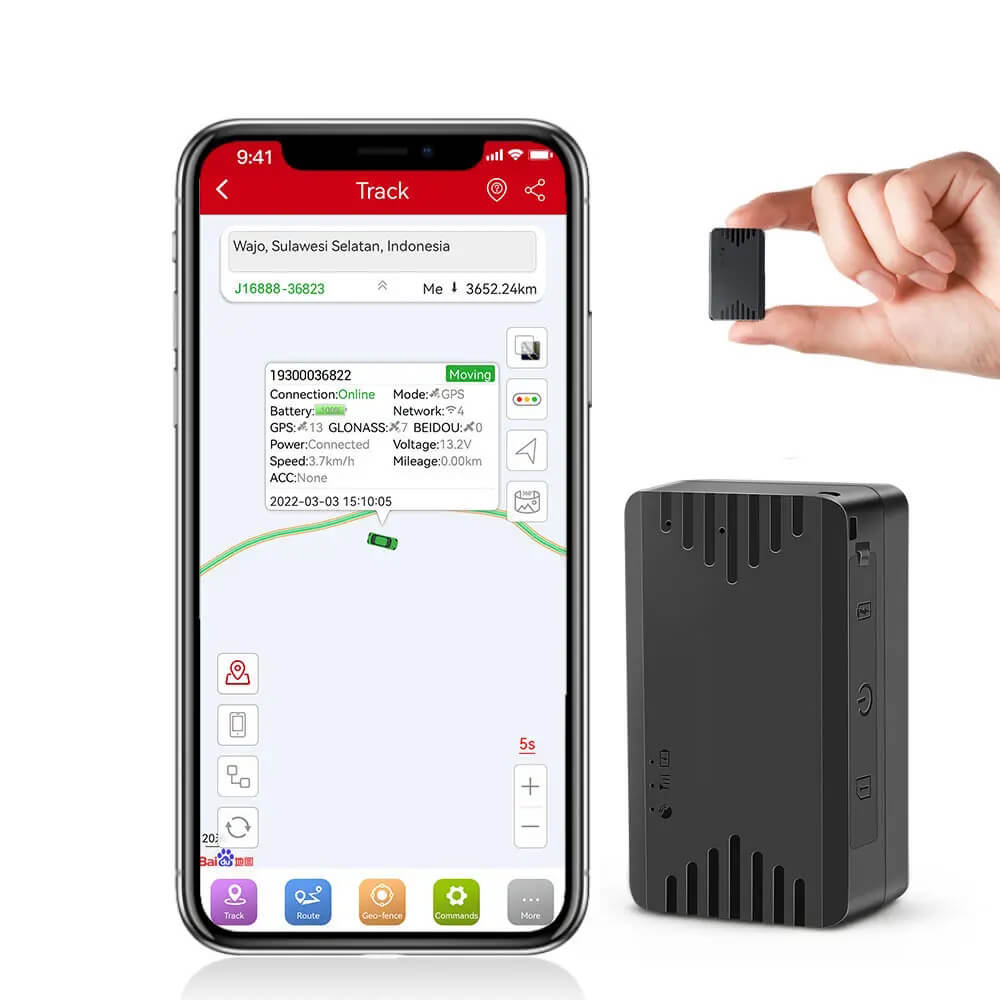

The ML100G is a compact and powerful wireless GPS tracking device designed for real-time location monitoring of people, vehicles, or assets. Featuring the latest 4G LTE CAT1 and 2G GSM/GPRS connectivity, this mini tracker supports precise positioning, voice monitoring, multiple alarms, and extended battery life in a waterproof casing. It offers flexible tracking options through multiple modes and includes lifetime free access to a multilingual web and mobile tracking platform.
Key Features:
-
Real-Time GPS Tracking: Monitor your target live on Google Maps via mobile, tablet, or PC.
-
4G LTE CAT1 + 2G GSM/GPRS: Global compatibility with fast and stable network coverage.
-
Compact, Portable Design: Installation-free and small enough to conceal or carry easily.
-
Long Battery Life: Up to 15 days in hibernate mode on a single charge.
-
Voice Monitoring: Remotely listen to the device’s surroundings via built-in microphone.
-
Multiple Working Modes: Extend battery performance by switching between real-time, power-saving, and hibernate modes.
-
IP65 Waterproof: Designed to withstand dust, splashes, and outdoor conditions.
-
Multiple Alarm Functions: Vibration, movement, displacement, geo-fence, and low battery alerts.
-

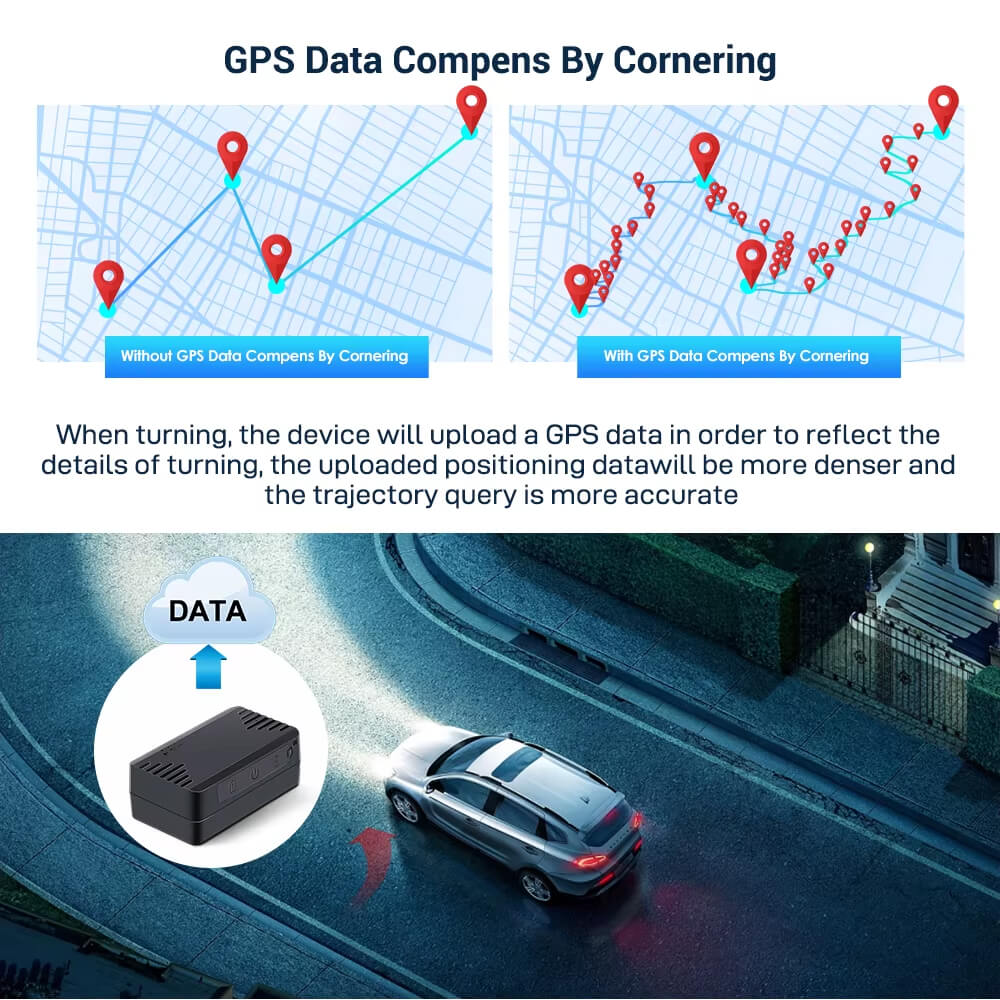

GPS Data Compensation: Enhanced turn detection and data backup in blind zones.
-

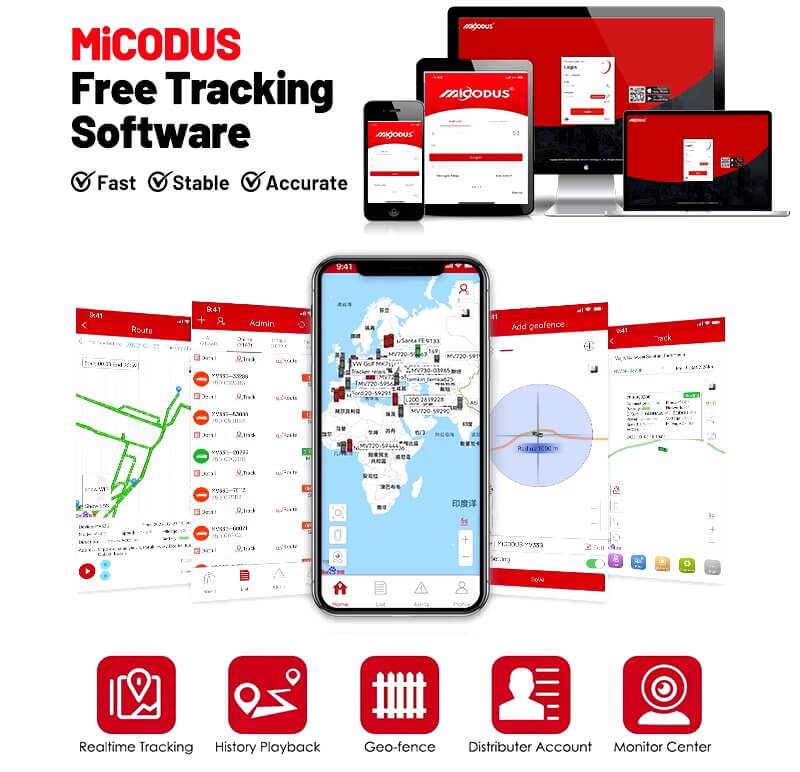

Lifetime Free Tracking Platform: iOS/Android apps and web access with six-month history and advanced reporting.
ย
ย
Technical Specifications
Specification | Details |
---|---|
Model | ML100G |
Type | Mini Wireless GPS Tracker |
Use | Automotive, Car, Truck, Motorcycle, Bicycle, Taxi, Car Rental Ebike, Forklift, Anti-Theft, Fleet Management, Handheld, Asset Tracking, Real-time Tracking, Personal, Elderly & Kids |
Placement | Portable / Pocket / Bag / Car Interior |
Network | 4G LTE CAT1 + 2G GSM/GPRS |
Working Frequency | 4G: B1/B2/B3/B4/B5/B7/B8/B28/B66; 2G: 850/900/1800/1900MHz |
Working Voltage | DC 3.4V โ 4.5V |
Working Current | 4V / Average 55mA |
Sleep Current | 4V / Average 6mA |

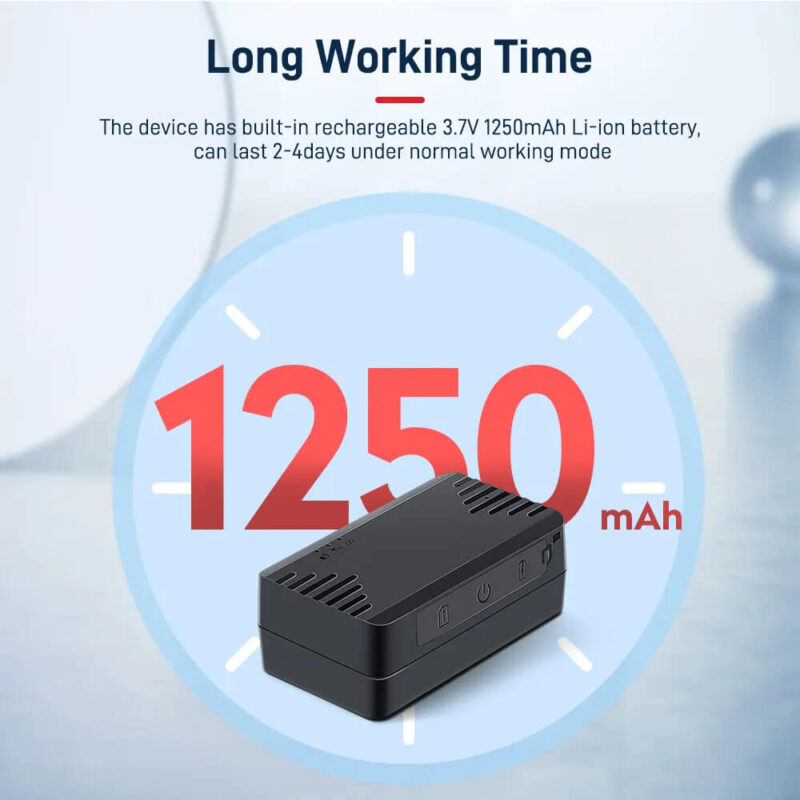

Battery | Built-in 3.7V 1250mAh Li-Polymer Battery |
Battery Life | 2โ4 days (real-time), 5โ7 days (power-saving), 10โ15 days (hibernate) |
Charging | Fast charging supported |
Waterproof Rating | IP65 |

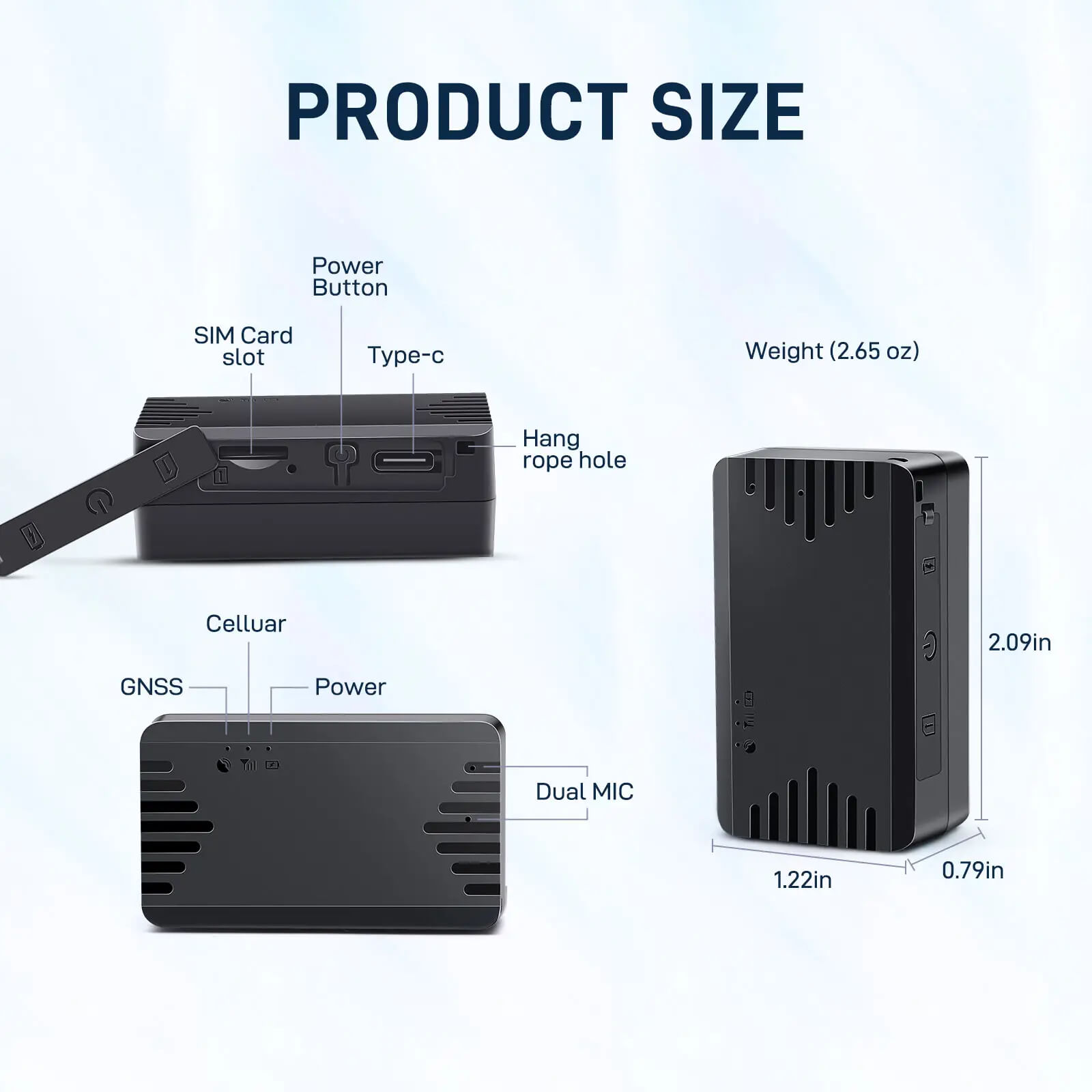

Dimensions | 53mm (L) x 31mm (W) x 20mm (H) |
Weight | 75g |
SIM Card | Micro SIM |
Cellular Antenna | Built-in FPC |
GNSS | GPS + BDS |
GNSS Antenna | Built-in Ceramic Antenna (18mm x 18mm x 2mm) |
GPS Frequency | L1: 1575.42 ยฑ 1.023MHz |
BDS Frequency | B1: 1561.098 ยฑ 2.046MHz |
Satellite Channels | 32 |
Hot Start / Cold Start | <2s / <32s (open sky) |
Tracking Sensitivity | -162 dBm |
Positioning Type | GNSS + LBS + AGPS |
GNSS Accuracy | <5m (open sky) |
LBS Accuracy | 100โ2000m (depends on base station density) |
Platform Support | www.micodus.net, iOS & Android Apps |
Platform Access | Lifetime free |
Multi-language Support | Yes |
Alerts & Monitoring Features
-
Vibration Alarm
-
Movement/Displacement Alarm
-
Geo-fence Alert
-
Low Battery Alert
-
Overspeed Alarm
-
Voice Monitoring
-
Real-time ACC Status Detection
-

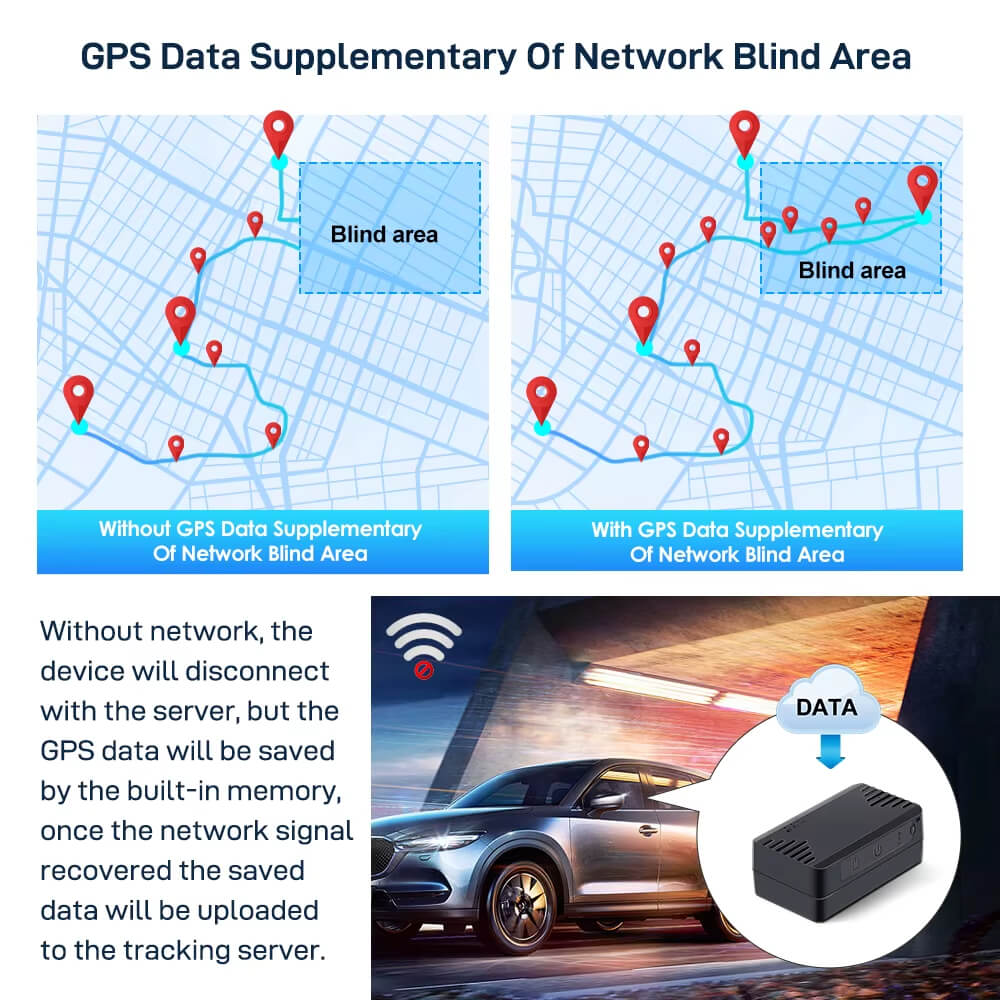

GPS Data Logging and Blind Zone Upload
-

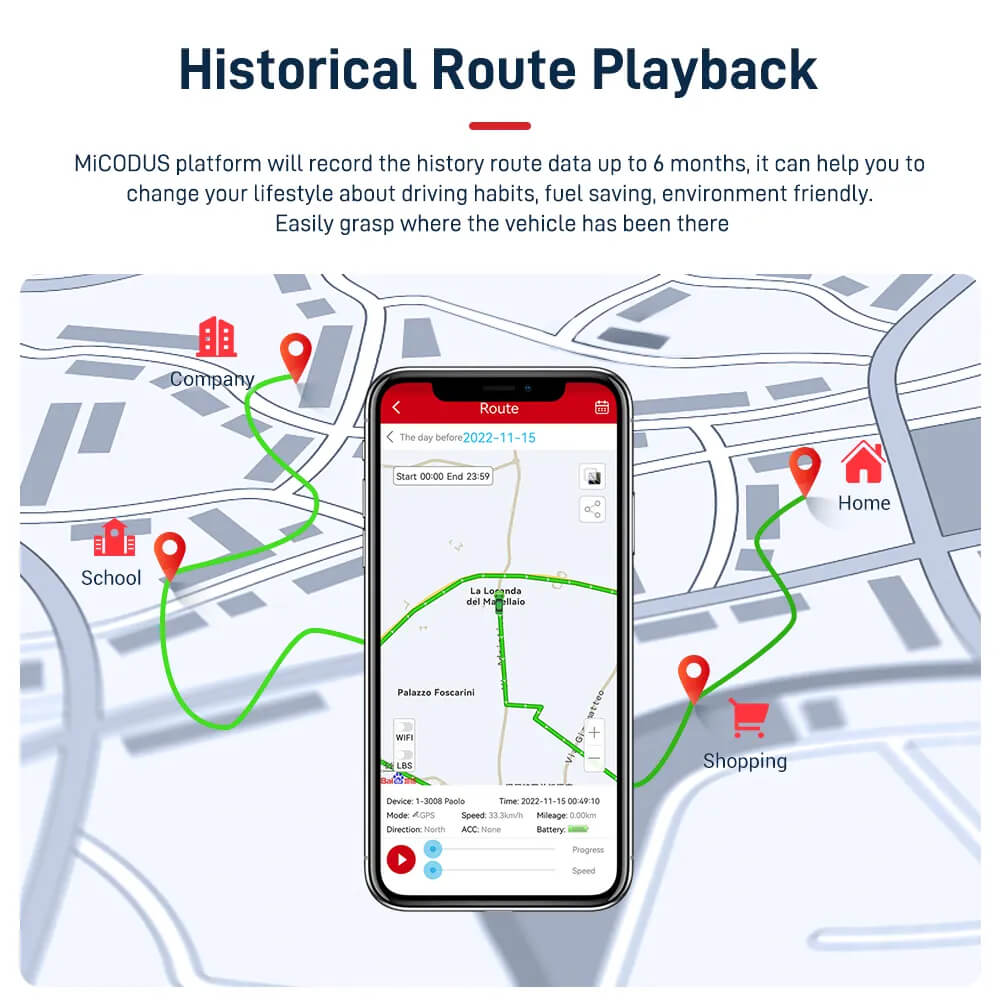

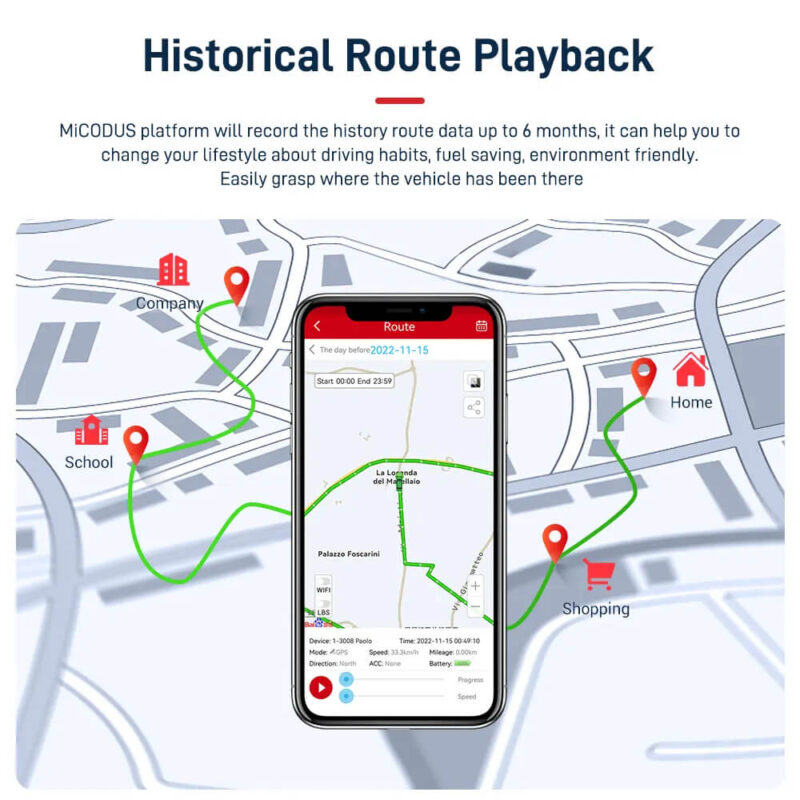

Route Playback (up to 6 months)
Package List
-
1 ร ML100G Mini GPS Tracker
-
1 ร User Manual
Whether used to safeguard loved ones, secure vehicles, or track high-value items, the ML100G delivers professional-grade performance in a compact and easy-to-use device โ backed by a lifetime free tracking platform and robust global connectivity.
