ThinkScan Max 2 delivers tablet-level diagnostics without the price shock. You’re getting full-system scanning, CAN-FD compatibility, bi-directional testing, ECU coding, and 28+ maintenance functions, packed into a compact 5.99-inch Android 10 diagnostic tablet built for workshops and serious DIY techs.

If you need something tougher and smarter than a basic handheld, but don’t want to shell out for a five-figure OE machine, Max 2 hits the sweet spot. It’s built for rapid fault-finding, accurate system testing, professional reporting, and modern vehicle support, including 2020+ GM CAN-FD platforms.

Perfect for workshops, mobile mechanics, tuners, and anyone upgrading from an entry-level scanner.

Key Features

Full-System Diagnostics
Covers engine, transmission, ABS, airbag, TPMS, BMS, A/C, SAS, EPB, immobilizer, gateway, central locking, fuel system, steering, body modules, rain sensors and more.

28+ Reset & Service Functions
Handles the jobs workshops deal with daily—oil, ETS, IMMO, DPF, brake, TPMS, suspension, injectors, BMS, airbag resets, EGR, gearbox, headlamp, NOx, coolant, A/F, tyre and more.

Bi-Directional Control (Active Tests)
Trigger components on command: windows, mirrors, wipers, fuel pumps, fans, solenoids, actuators, headlights, sunroof and more. Essential for proper fault isolation.

ECU Coding
Supports online and offline coding for customisation, module replacement, feature activation and adaptive data reset (brand-dependent).

CAN-FD Support for Modern Vehicles
Faster communication, wider coverage and required for 2020+ GM vehicles. No adapters needed.

Android 10 Diagnostic Tablet
5.99” touchscreen, 32GB storage, 3150mAh battery, Wi-Fi + Bluetooth, built-in Google browser, remote support capabilities.

OBD2 Full Mode Support
Covers all 10 standard OBDII test modes: live data, freeze frame, EVAP test, O2 tests, I/M readiness, monitor tests, VIN decoding and more.

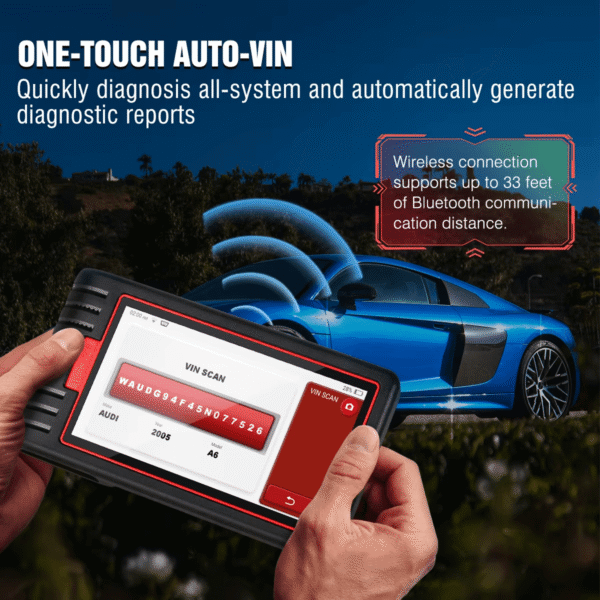

One-Touch Auto-VIN
Instantly identifies vehicle details and pulls up all relevant systems automatically.

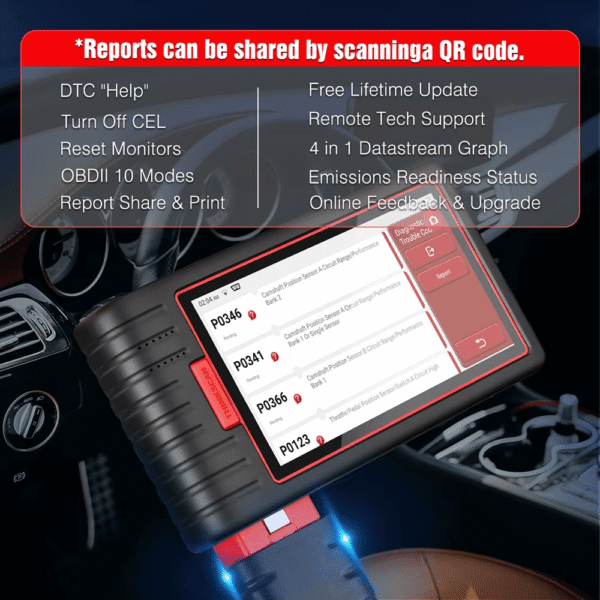

Professional Health Reports
Generate, save, print, share and export reports via Wi-Fi, email or QR code.

Lifetime Free Software Updates
Free updates for life—no subscription required for full-system diagnostics or reset functions.

Technical Specifications

Hardware (Tablet)

Operating System: Android 10
Screen Size: 5.99 inches
Resolution: 720 × 1440
Battery: 3150mAh
Storage: 32GB
Connectivity: Wi-Fi + Bluetooth
Power: 5V (charging)
Working Temperature: -10°C to 50°C
Storage Temperature: -20°C to 60°C

VCI Module

Working Voltage: 12V
Working Current: ≤60mA
Working Temperature: -10°C to 50°C
Storage Temperature: -20°C to 60°C
Communication: Bluetooth / Wi-Fi
Protocol Support: CAN-FD, CAN, ISO, KWP2000, UDS, SAE J1850

Diagnostic Capabilities

Full-System Support

Reads and manages:
ECM, TCM, ABS, SRS, TPMS, BMS, EPB, SAS, HVAC, AFS, IMMO, suspension, doors, windows, steering, rain sensors, body control, fuel system, gateway, power modules and more.

OBDII Functions

Read & clear codes
Live data (graphing + 4-in-1 combined graph)
Freeze frame
I/M readiness
EVAP test
O2 sensor test
On-board monitor test
Component test
Vehicle information (VIN, CID, CVN)
Report & print

Reset & Service Functions (28+)

Oil Reset
ETS Reset
Brake Reset
IMMO Reset
SAS Reset
ABS Bleeding
BMS Reset
Injector Coding
DPF Regeneration
TPMS Reset
Suspension Reset
Gear Learning
Gearbox Calibration
EGR Reset
Airbag Reset
Headlamp / AFS Reset
Sunroof Initialization
Transport Mode
Language Reset
Tyre Reset
Odometer Reset (supported models only)
NOx Sensor Reset
Coolant Bleed
A/F Reset
And more depending on vehicle brand

Advanced Features

Bi-Directional Tests
ECU Coding
Remote Diagnose
Quick Check & Fast Printing
Lifetime Free Updates
DTC Library
Online Feedback & Support
Auto-Auth (FCA) support
Coverage for 120+ brands

Compatibility

Vehicle Fitment: Universal (1996+ OBDII compliant)
Supports: Petrol & diesel
Supports CAN-FD: Yes
OS Support: Independent tablet (no phone required)

Special note:
Max 2 supports late-model GM (2020–2025) including:
Chevrolet Onix, Tracker, Suburban, Tahoe
Cadillac Escalade
GMC Yukon, Yukon XL
Holden
Daewoo
Hummer
Pontiac
Saturn

Explore ThinkCar’s Cover List

Use Case Examples

• Workshops needing a fast, modern all-in-one tablet tool

• Mobile mechanics who require portability + active tests

• Tuners activating features via ECU coding

• Fleet operators monitoring multiple vehicles

• DIY owners wanting a serious upgrade from basic scanners

Installation / Setup

1. Power on the tablet.

2. Plug VCI into the vehicle’s OBD2 port.

3. Pair via Bluetooth or Wi-Fi.

4. Open ThinkDiag Max software.

5. Allow Auto-VIN to detect your vehicle.

6. Start scanning.

Connectivity & App Requirements

Connection: Wi-Fi / Bluetooth
Cloud functions: Remote diagnostics + report upload
Supports: Online updates, online feedback, cloud data sync

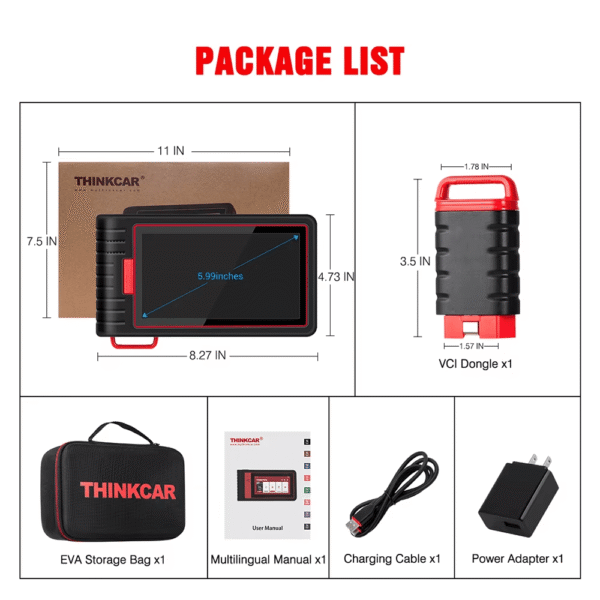

What’s in the Box

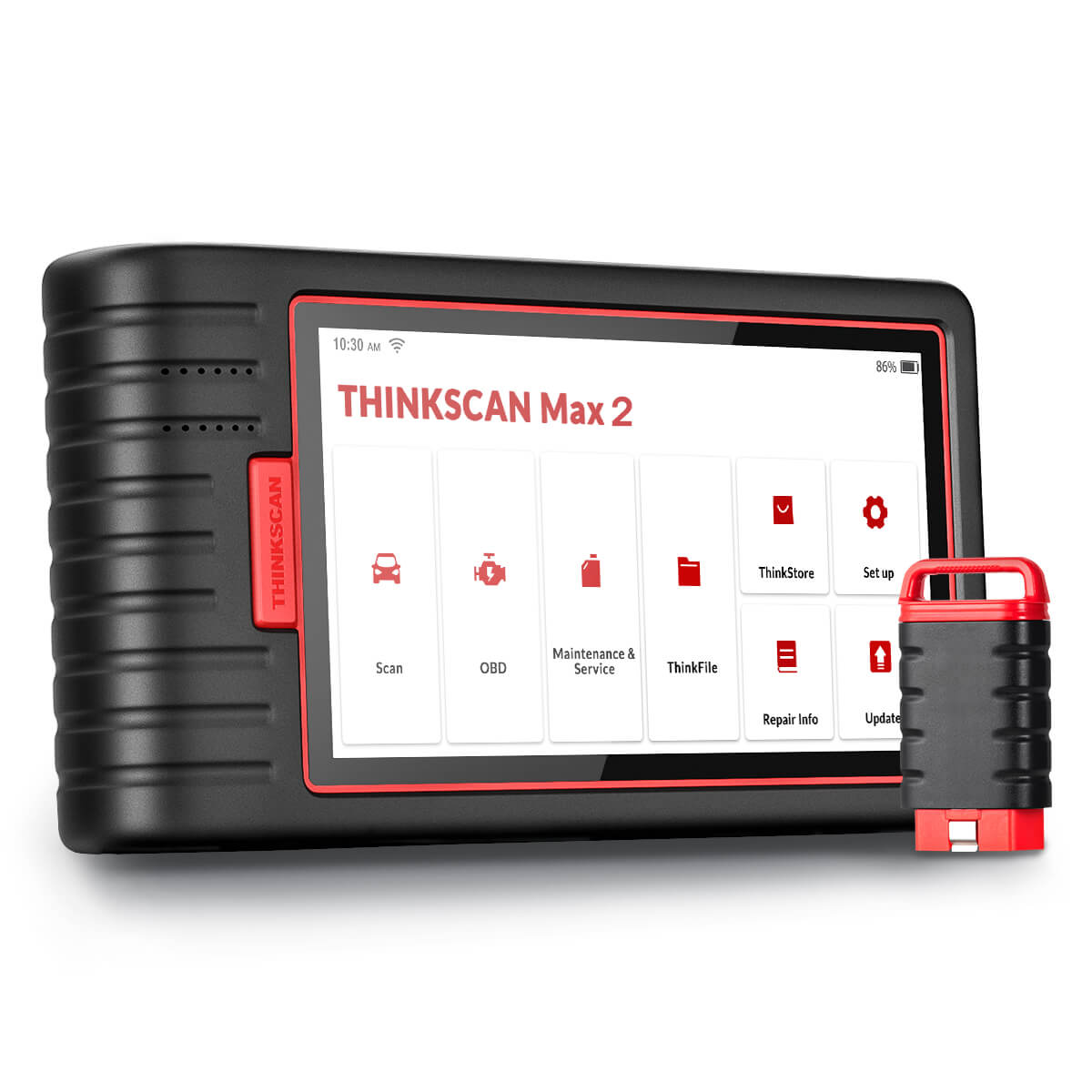

ThinkScan Max 2 Host Tablet
ThinkTool VCI
Charging Cable
Power Adapter
Carry Bag
User Manual
