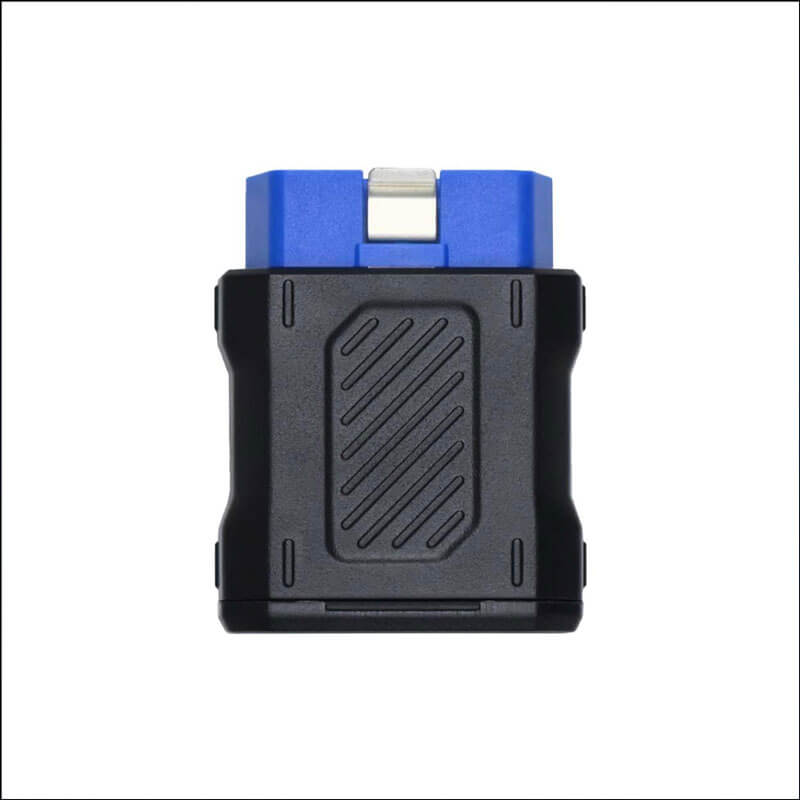

TOPDON ArtiDiag900 BT Replacement VCI Bluetooth Diagnostic Connector

Replacement diagnostic VCI for the TOPDON ArtiDiag900 BT. Replace a lost, damaged or faulty VCI and restore wireless communication between your existing ArtiDiag900 BT diagnostic tablet and the vehicle without replacing the complete diagnostic tool.

The compact VCI connects directly to the vehicle’s OBD2 diagnostic port and communicates wirelessly with the ArtiDiag900 BT tablet via Bluetooth, giving technicians the same cable-free diagnostic connection provided by the original VCI.

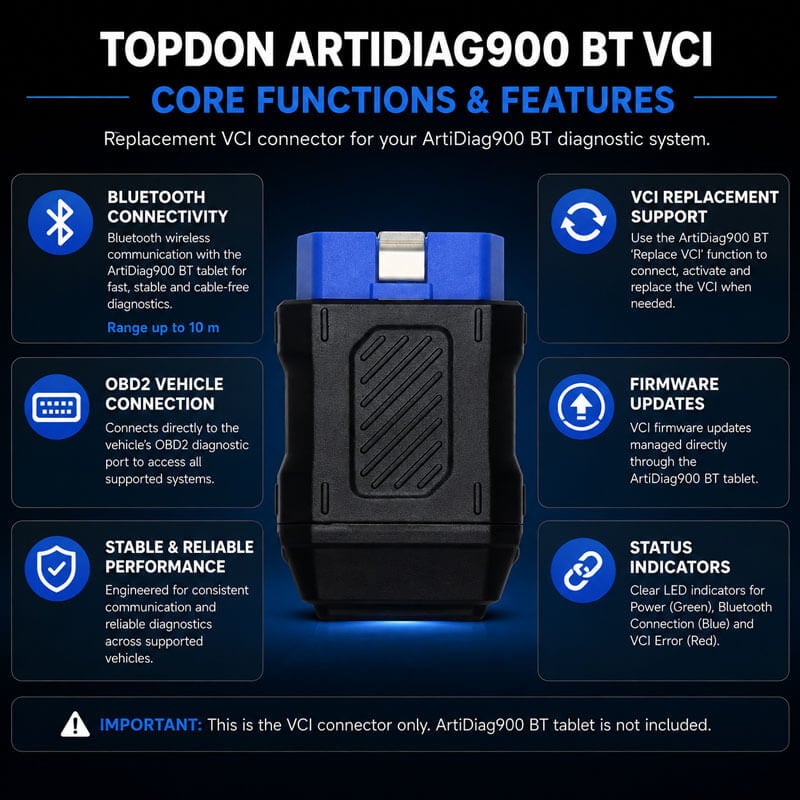

Key Features

• Replacement VCI: Designed to replace the original diagnostic VCI supplied with the TOPDON ArtiDiag900 BT.
• ArtiDiag900 BT Compatibility: Specifically designed for use with the TOPDON ArtiDiag900 BT diagnostic tablet.
• Wireless Diagnostics: Bluetooth communication provides a wireless connection between the ArtiDiag900 BT tablet and the vehicle.
• Up to 10 m Bluetooth Range: Supports wireless diagnostic communication at distances of up to approximately 10 metres under suitable conditions.
• Direct OBD2 Connection: Plugs into the vehicle’s compatible OBD2 diagnostic port for vehicle communication.
• Status Indicators: Dedicated indicators display power, Bluetooth connection and VCI error status.
• Replacement VCI Support: The ArtiDiag900 BT software includes a Replace VCI function for connecting a replacement VCI to the existing diagnostic tablet.

Purpose

This VCI is intended for technicians and ArtiDiag900 BT owners who already have the diagnostic tablet but need to replace the original vehicle communication interface.

It is suitable when the original VCI has been lost, physically damaged, developed a communication fault or otherwise needs replacement.

There is no need to purchase another complete ArtiDiag900 BT simply because the original VCI is no longer usable.

Technical Specifications

• Compatible Diagnostic Tool: TOPDON ArtiDiag900 BT
• Vehicle Connection: OBD2 diagnostic port
• Tablet Communication: Bluetooth
• Wireless Range: Up to approximately 10 m (32.8 ft)
• Operating Voltage: 9V to 18V
• Working Current: Less than 60 mA
• Working Temperature: -10°C to +50°C
• Dimensions: 61 x 49 x 23 mm
• Green Indicator: Power
• Blue Indicator: Bluetooth connection
• Red Indicator: VCI error

Compatibility

Designed specifically for the TOPDON ArtiDiag900 BT.

This is a replacement communication interface and does not operate as a standalone diagnostic scanner. An existing compatible ArtiDiag900 BT tablet is required to perform vehicle diagnostics.

If you own a different TOPDON diagnostic scanner, confirm VCI compatibility before purchasing. Similar-looking TOPDON VCI connectors should not be assumed to be interchangeable between diagnostic tools.

Replacing Your Existing VCI

TOPDON provides replacement VCI functionality within the ArtiDiag900 BT software. When installing a replacement VCI, navigate to the Dongles section and use the Replace VCI function. Once the serial number of the replacement VCI has refreshed, select the new VCI to connect it to the diagnostic tablet.

Ensure the ArtiDiag900 BT software is updated before replacing the VCI.

What’s in the Box

• 1x TOPDON ArtiDiag900 BT Replacement VCI Connector

Important: This product includes the VCI connector only. The TOPDON ArtiDiag900 BT diagnostic tablet, carrying case, charging cable, adapters and other accessories are not included.
