TOPDON Phoenix Smart Heavy Duty Truck, Bus, Machinery & Car Diagnostic Scanner + HD Software

The TOPDON Phoenix Smart Heavy Duty combines the professional Phoenix Smart diagnostic scanner with 1-year TOPDON Heavy Duty HD software activation, giving workshops one powerful diagnostic platform for supported passenger vehicles, trucks, buses, commercial vehicles and machinery.

The Phoenix Smart delivers OE-level full-system diagnostics, bi-directional active tests, ECU coding, cloud-based programming, topology mapping and 41 service functions. Adding TOPDON’s Heavy Duty software expands the same diagnostic platform into supported commercial vehicles and equipment, making it an excellent solution for workshops servicing mixed fleets and both light and heavy-duty vehicles.

Key Features

• Light and Heavy Duty Diagnostics: Diagnose supported passenger vehicles, trucks, buses, commercial vehicles and machinery from one professional diagnostic platform.
• 1-Year Heavy Duty Software Included: Includes TOPDON HD software activation with 1 year of Heavy Duty software access and updates.
• Full-System Diagnostics: Access supported electronic control systems to read and clear faults, view live data and retrieve ECU information.
• Bi-Directional Control: Send commands to supported vehicle components and systems to perform active tests and verify faults.
• ECU Coding: Perform supported coding, matching, adaptations and vehicle configuration functions.
• Cloud-Based ECU Programming: Access supported programming capabilities for compatible vehicle manufacturers and control modules.
• Topology Mapping: View supported vehicle control modules and their communication status through an easy-to-understand network topology.
• 41 Service Functions: Perform commonly required workshop resets, relearns, adaptations and maintenance procedures.
• MDCI Pro: Professional vehicle communication interface supporting modern communication protocols including J2534, CAN FD, DoIP, D-PDU and RP1210.
• Wide Vehicle Coverage: Designed for professional multi-brand workshops working across passenger and commercial vehicle applications.

Heavy Duty Vehicle Coverage

The included TOPDON Heavy Duty software expands the Phoenix Smart beyond passenger vehicle diagnostics, providing dedicated diagnostic coverage for supported trucks, buses, commercial vehicles and machinery.

Heavy Duty coverage includes supported applications from major manufacturers such as:

• Mercedes-Benz: Supported Mercedes-Benz commercial truck and Heavy Duty applications
• Volvo: Supported Volvo truck, bus and Heavy Duty applications
• MAN: Supported MAN commercial and Heavy Duty vehicles
• Scania: Supported Scania truck and commercial vehicle applications
• DAF: Supported DAF commercial truck applications
• Iveco: Supported Iveco truck and commercial vehicle applications
• Renault: Supported Renault commercial and Heavy Duty applications
• Freightliner: Supported Freightliner Heavy Duty truck applications
• Isuzu: Supported Isuzu commercial and Heavy Duty vehicles
• Caterpillar / CAT: Supported Caterpillar construction and heavy equipment applications

Additional supported manufacturers and applications are available within TOPDON’s Heavy Duty diagnostic database.

Important: Exact manufacturer, model, year, ECU and function coverage varies. Compatibility should be confirmed before purchase when a specific vehicle or diagnostic function is required.

Supported Heavy Duty Applications

• Heavy-Duty Trucks: Diagnose supported long-haul, distribution and commercial truck platforms.
• Medium-Duty Trucks: Support for applicable delivery, fleet and commercial vehicles.
• Buses and Coaches: Diagnose supported passenger transport and commercial bus systems.
• Commercial Fleets: Ideal for workshops maintaining mixed commercial vehicle fleets.
• Construction Equipment: Access supported electronic systems on construction and heavy machinery.
• Agricultural Machinery: Expand diagnostic capabilities into supported agricultural equipment applications.

Full-System Heavy Duty Diagnostics

Heavy Duty software provides access to supported electronic control systems throughout compatible commercial vehicles and equipment.

Depending on the manufacturer and vehicle, diagnostic coverage can include:

• Engine: Diagnose supported engine control systems and access faults, ECU information and live data.
• Transmission: Diagnose supported electronic transmission and gearbox control systems.
• ABS: Access supported anti-lock braking and electronic braking systems.
• SCR: Diagnose supported Selective Catalytic Reduction and emissions control systems.
• DPF: Access supported Diesel Particulate Filter systems and diagnostic information.
• Air Conditioning: Diagnose supported HVAC and climate control systems.
• Electronic Control Modules: Scan supported ECUs throughout the vehicle for system-specific faults.

OE-Level Full-System Diagnostics

For supported passenger and light commercial vehicles, the Phoenix Smart provides comprehensive OE-level diagnostic access across available electronic systems.

• Read and clear diagnostic trouble codes
• View live data streams
• Retrieve ECU information
• Perform full vehicle health scans
• Identify supported vehicles with AutoVIN
• View vehicle network topology
• Access manufacturer-specific diagnostic functions

Bi-Directional Active Tests

The Phoenix Smart supports bi-directional control, allowing technicians to send commands directly to supported vehicle systems and components.

Depending on the vehicle, active tests can include components such as fuel pumps, cooling fans, windows, door locks, lights and other electronically controlled actuators. This helps technicians determine whether a component, wiring circuit or control module is responsible for a fault without unnecessary disassembly.

ECU Coding and Programming

The Phoenix Smart provides advanced ECU functionality for supported manufacturers, including online coding, matching, adaptations, parameterisation and cloud-based programming.

Available programming and coding capabilities depend on the manufacturer, vehicle, year and ECU.

41 Service and Maintenance Functions

Perform a wide range of commonly required workshop procedures on supported vehicles, including:

• Oil Service Reset
• Electronic Parking Brake Reset
• Battery Management System Reset
• Steering Angle Sensor Reset
• ABS Bleeding
• DPF Regeneration
• Throttle Adaptation
• TPMS Reset
• Injector Coding
• Gearbox Reset
• Suspension Reset
• AdBlue Reset
• EGR Adaptation
• NOx Sensor Reset
• Airbag Reset
• Coolant Bleeding
• Window Calibration
• Sunroof Reset
• Seat Calibration
• Stop/Start Reset
• Transport Mode
• Power Balance

Service function availability varies according to manufacturer, model, year and installed vehicle systems.

MDCI Pro Vehicle Communication Interface

The Phoenix Smart uses TOPDON’s professional MDCI Pro communication interface, supporting modern vehicle communication protocols for both advanced passenger vehicle and Heavy Duty diagnostic applications.

• J2534: Pass-Thru communication support for compatible programming applications
• CAN FD: Communication with supported modern high-speed CAN systems
• DoIP: Diagnostics over Internet Protocol for compatible modern vehicles
• D-PDU: Advanced diagnostic communication support
• RP1210: Communication protocol support relevant to Heavy Duty vehicle diagnostics

Technical Specifications

• Display: 10.1-inch LCD touchscreen
• Display Resolution: 1280 x 800
• Processor: MT6761 4-Core, 2.0GHz
• RAM: 4GB
• Storage: 128GB
• Operating System: Android 10
• Battery: 12,600mAh, 3.8V
• Wi-Fi: 2.4GHz and 5GHz dual-band
• Camera: 8MP rear camera
• Tablet Operating Voltage: 9V to 18V
• Tablet Dimensions: 278 x 191 x 48mm
• Tablet Weight: Approximately 1.55kg
• VCI: TOPDON MDCI Pro
• Communication Support: J2534, CAN FD, DoIP, D-PDU and RP1210
• Heavy Duty Software: Included
• Heavy Duty Software Term: 1 Year

Heavy Duty Software Activation

This package includes 1 year of TOPDON Heavy Duty HD software access and updates.

The Heavy Duty software is activated for the compatible Phoenix Smart supplied with this package. An internet connection is required for activation, software downloads and updates.

After the included software period expires, continued access to new Heavy Duty software updates may require renewal.

Compatibility

The Phoenix Smart provides extensive multi-brand passenger vehicle coverage, while the included HD software expands the platform into supported Heavy Duty trucks, buses, commercial vehicles and machinery.

Vehicle coverage and available diagnostic, active test, coding, programming, service and Heavy Duty functions vary according to manufacturer, model, year, ECU and regional vehicle configuration.

Heavy Duty vehicles may require manufacturer-specific diagnostic cables or adapters. These are not included unless specifically stated as part of this package.

Ideal For

• Multi-Brand Workshops: Diagnose both passenger and Heavy Duty vehicles using one professional platform.
• Truck Workshops: Add Heavy Duty diagnostic coverage alongside advanced passenger vehicle diagnostics.
• Fleet Maintenance: Work across supported mixed passenger, commercial and Heavy Duty fleets.
• Mobile Technicians: Carry one professional diagnostic platform for a broader range of vehicle applications.
• Construction and Agricultural Workshops: Access supported machinery diagnostics alongside conventional automotive diagnostics.

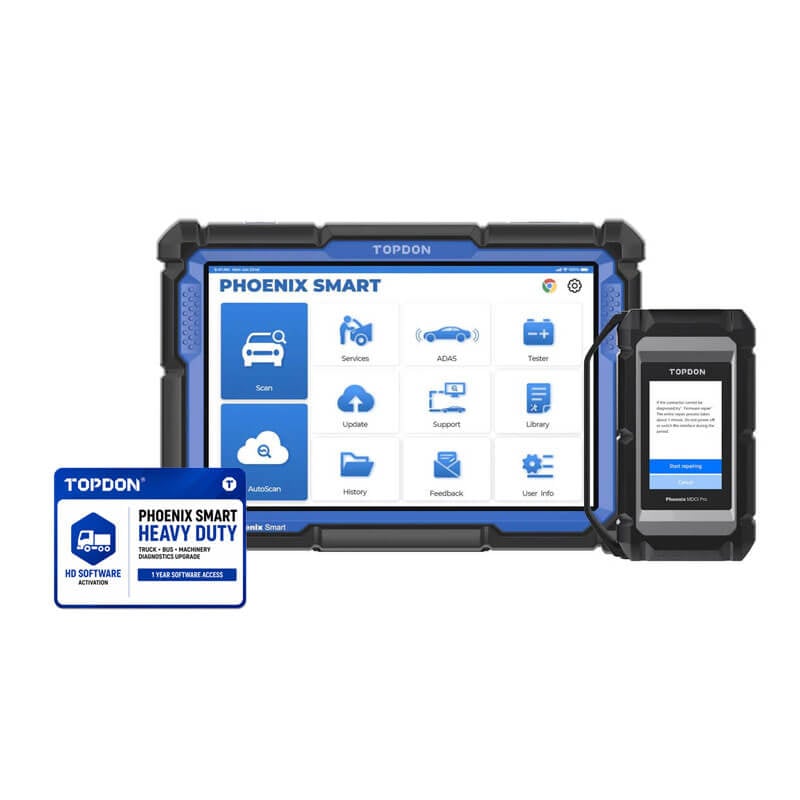

What’s in the Box

• 1x TOPDON Phoenix Smart Diagnostic Tablet
• 1x TOPDON MDCI Pro VCI
• 1x OBDI Adapter Box Transfer Cable
• 1x OBDII Extension Cable
• 1x Cigarette Lighter Cable
• 1x Type-C to USB Cable
• 1x Battery Clamp/Cable Set
• 1x Type A to B Cable
• 1x Non-16 Pin Adapter Cable Kit
• 4x 5 x 20mm Fuses
• 2x 6 x 30mm Fuses
• 1x User Manual
• 1x TOPDON Heavy Duty HD Software Activation
• 1x 1-Year Heavy Duty Software Access and Updates

Important: Heavy Duty manufacturer-specific cables and adapters are not included unless specifically stated. Additional connectors may be required depending on the truck, bus or machinery being diagnosed.
