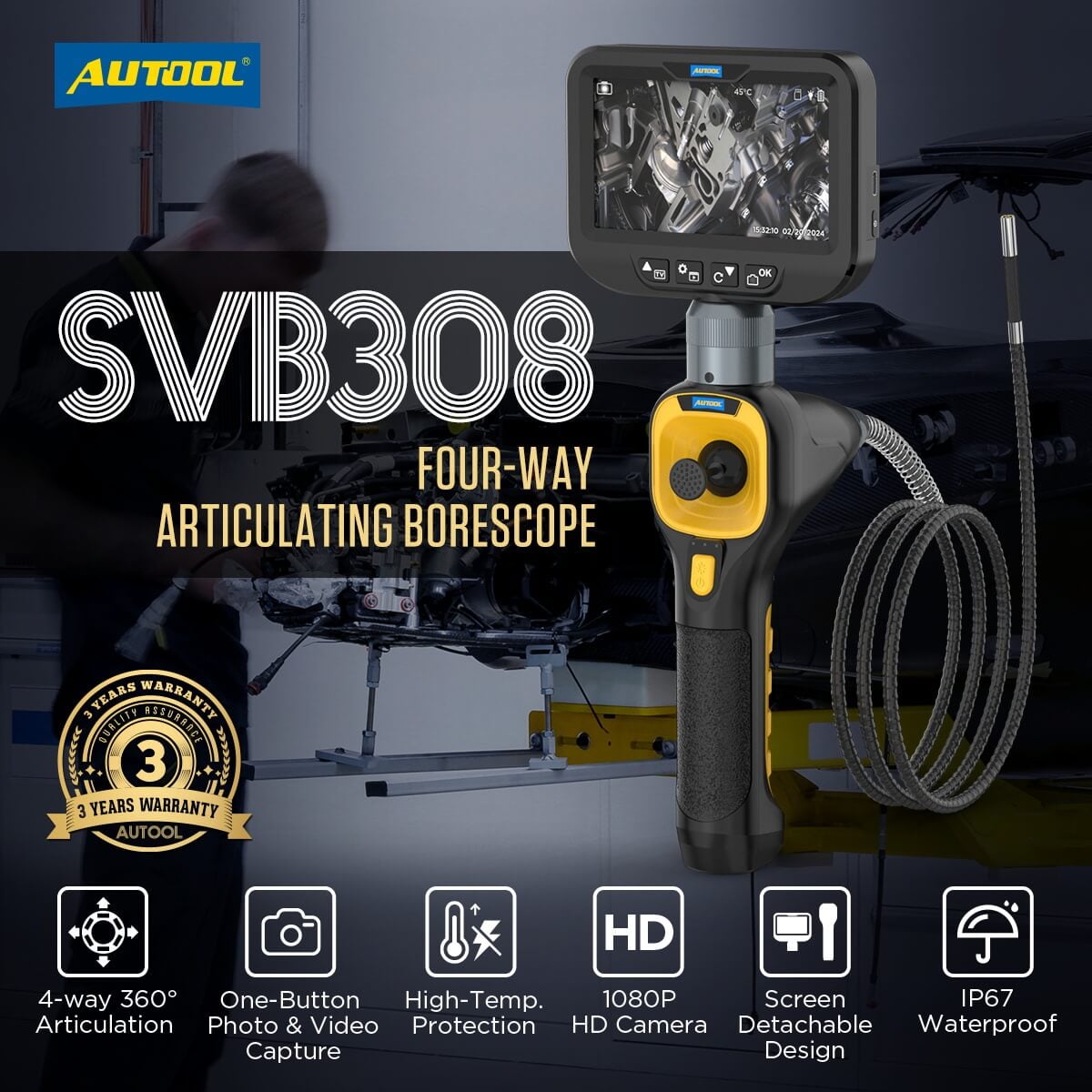

AUTOOL SVB308 360° Articulating Borescope with 1080p HD Camera, 4.3″ Screen & Waterproof Probe

Overview

The AUTOOL SVB308 is a professional four-way articulating borescope for inspections in tight, complex spaces.
It pairs a 1920×1080 HD camera with a 4.3-inch detachable display and joystick-controlled 360° articulation
for clear, controlled visuals in automotive, HVAC, plumbing, and industrial applications.
The probe is IP67 waterproof, storage is built-in at 32GB, and the 2600mAh battery with USB-C charging keeps you working longer.
High-temp protection helps safeguard the camera above 90°C.

__
Key Features

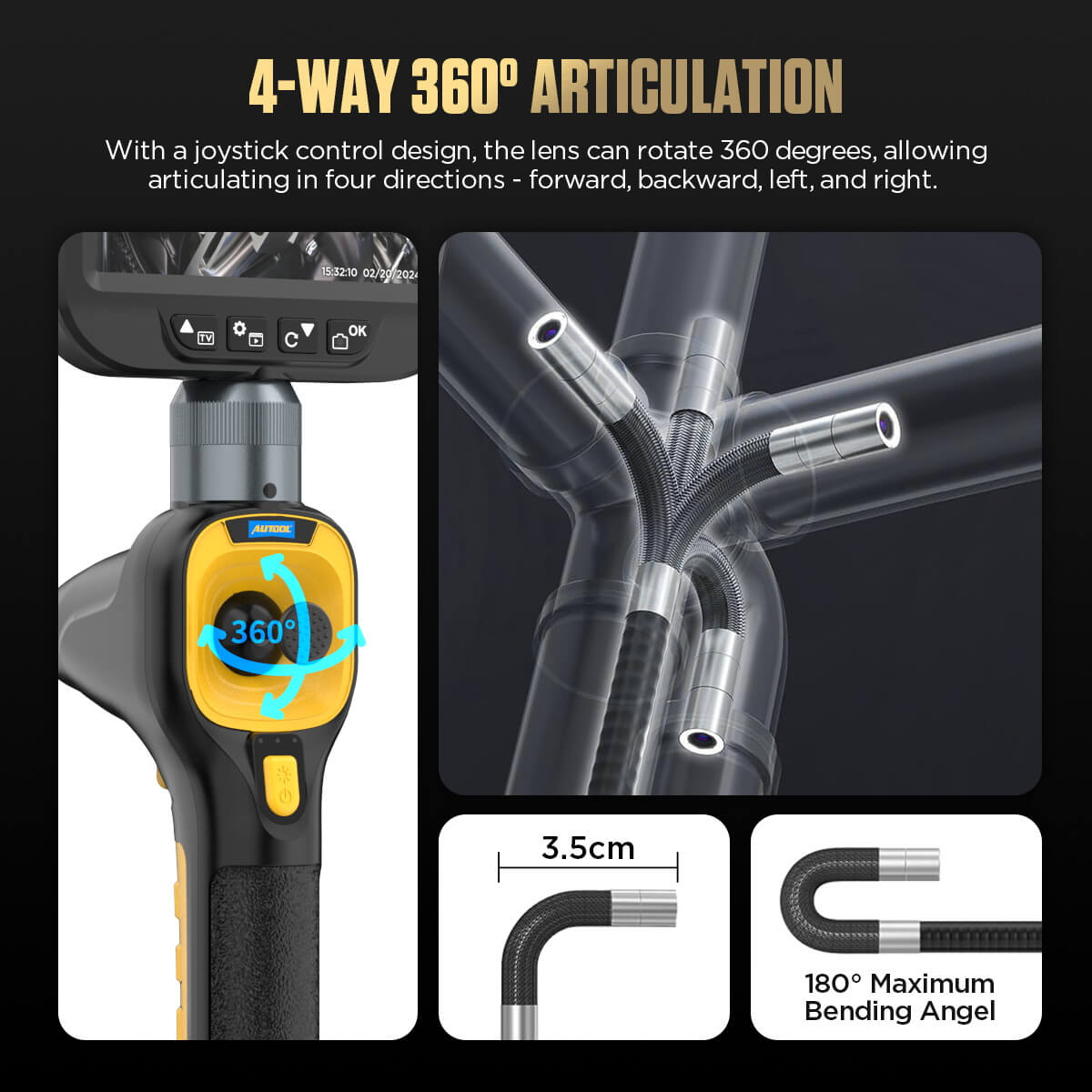

• 360° four-way articulation via joystick

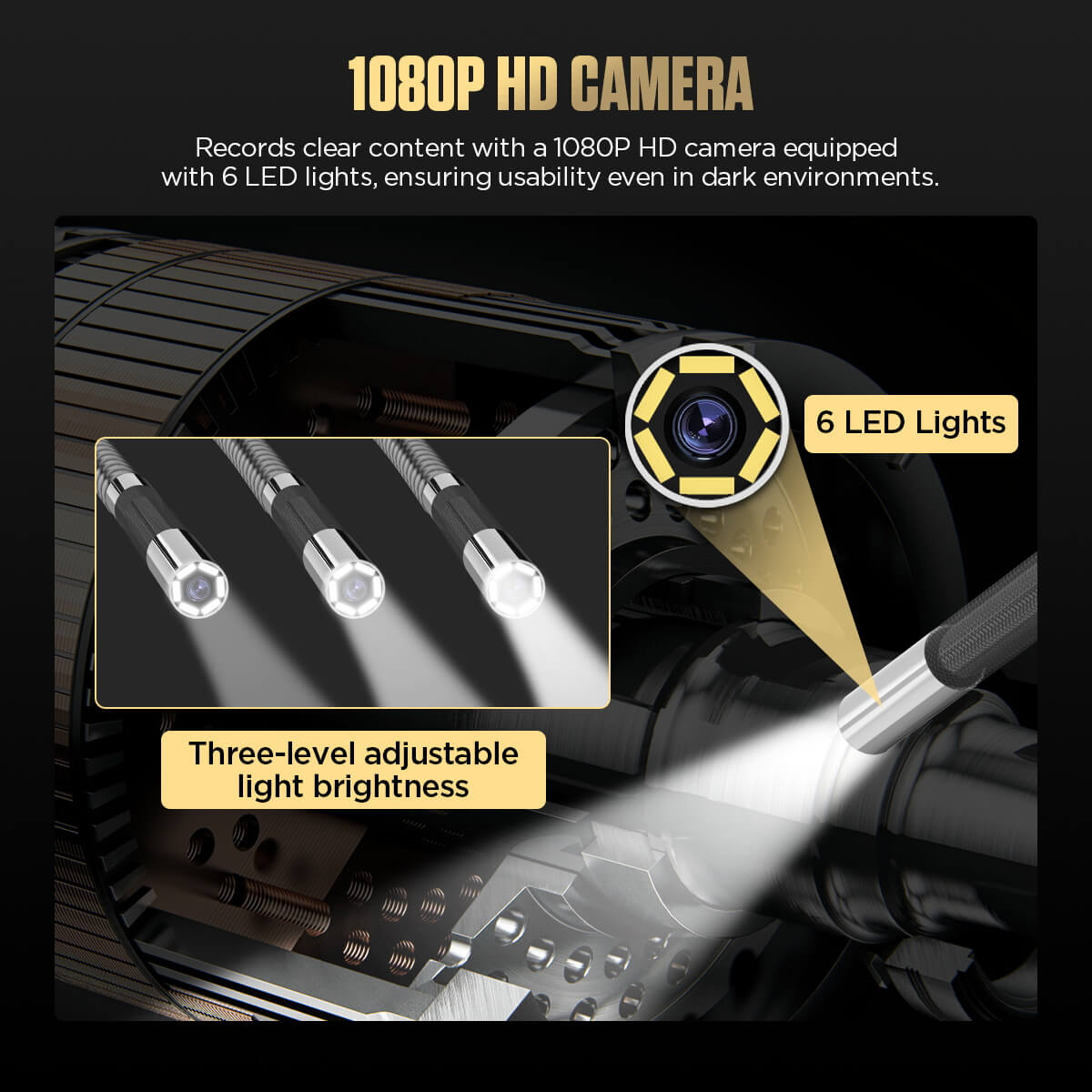

• 1080p HD camera with 6 adjustable LEDs

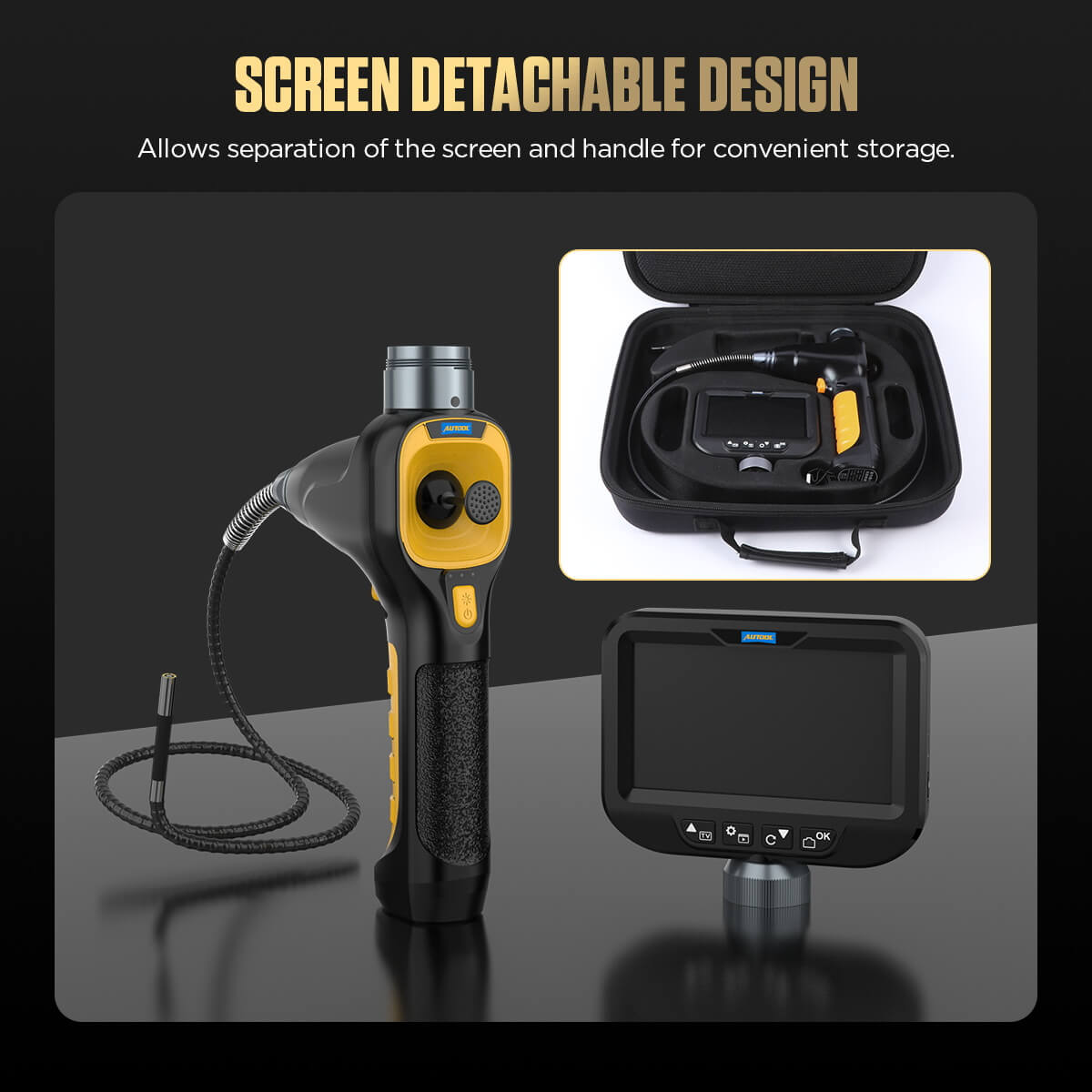

• 4.3-inch detachable display screen

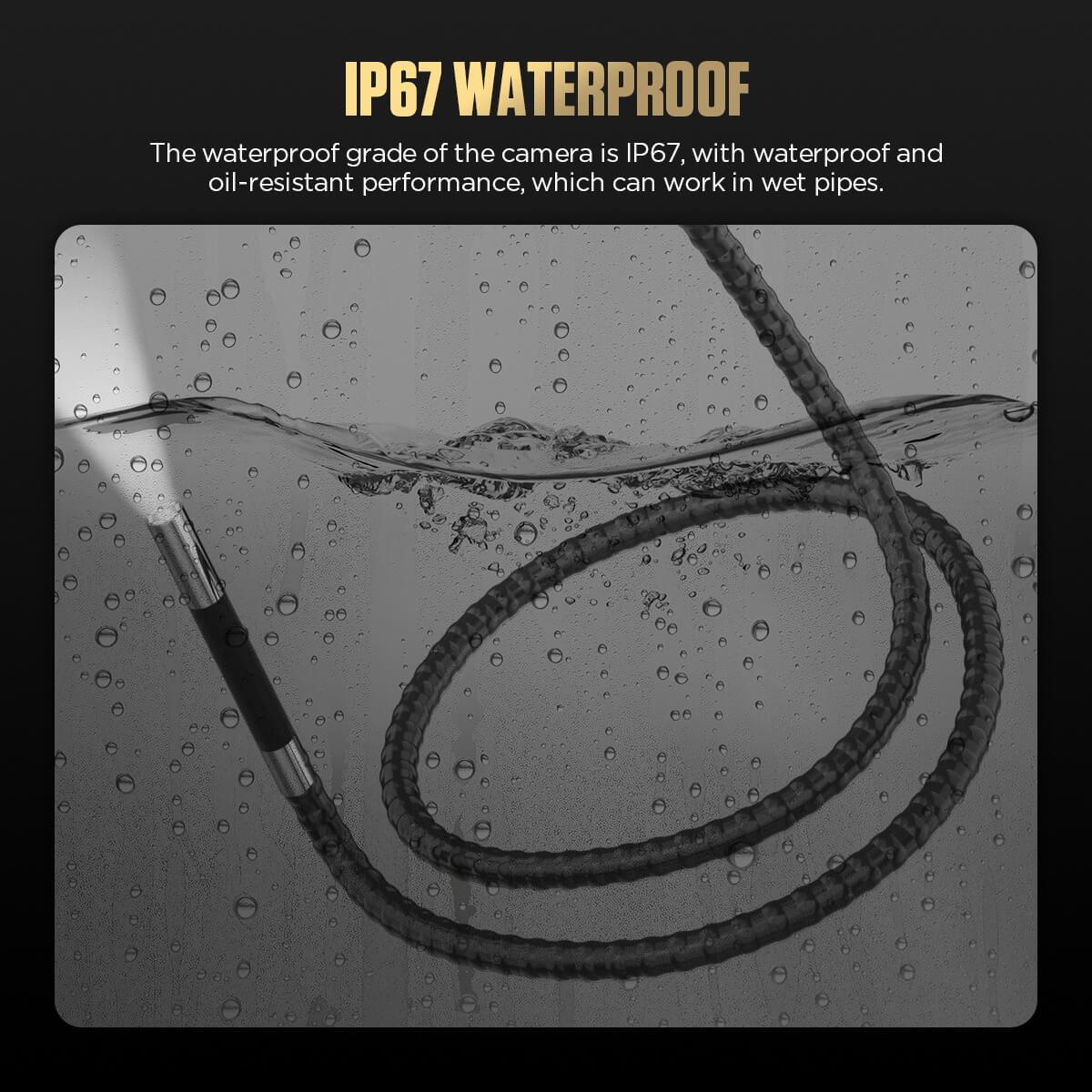

• IP67 waterproof camera probe

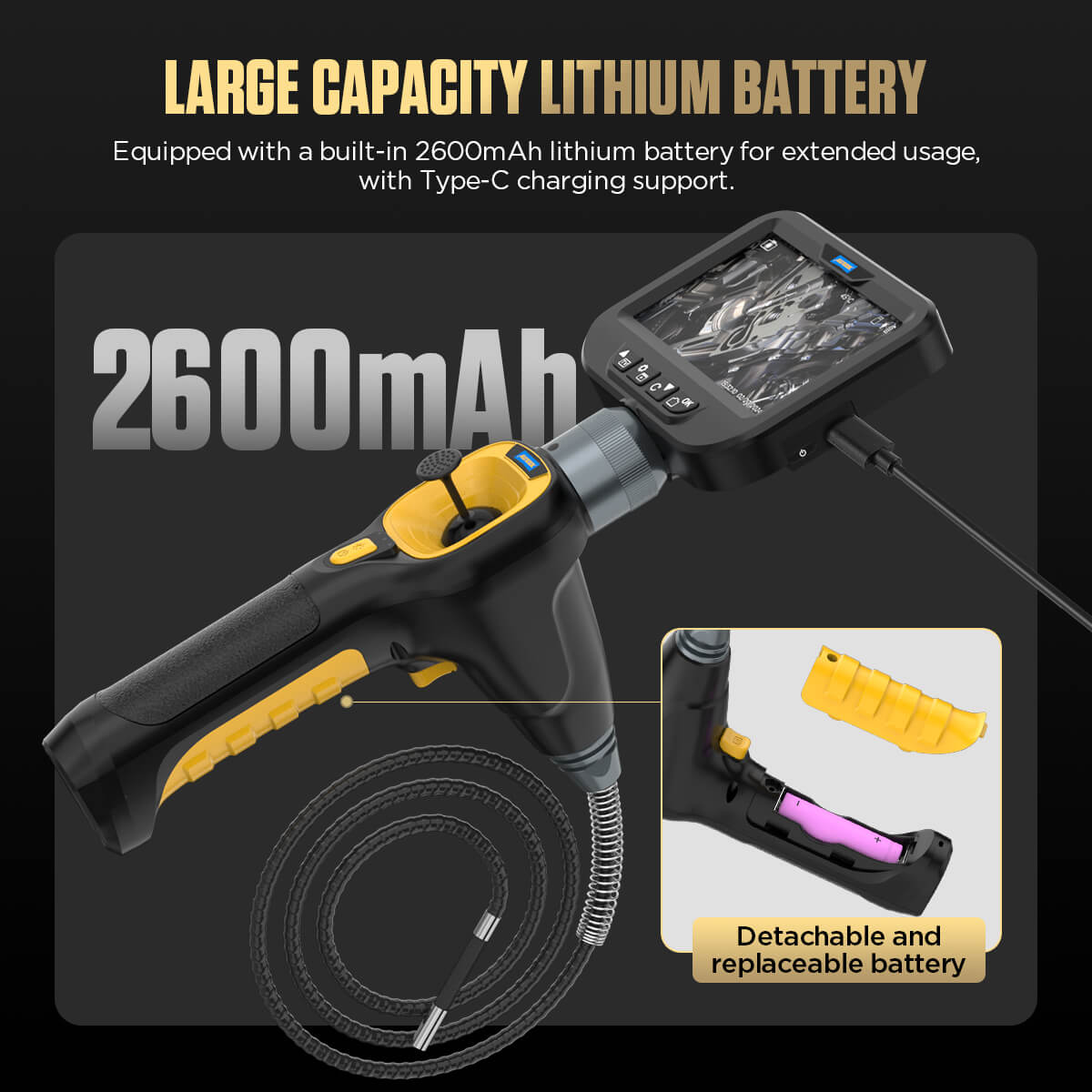

• 2600mAh rechargeable lithium battery
• Built-in 32GB memory for photos and videos

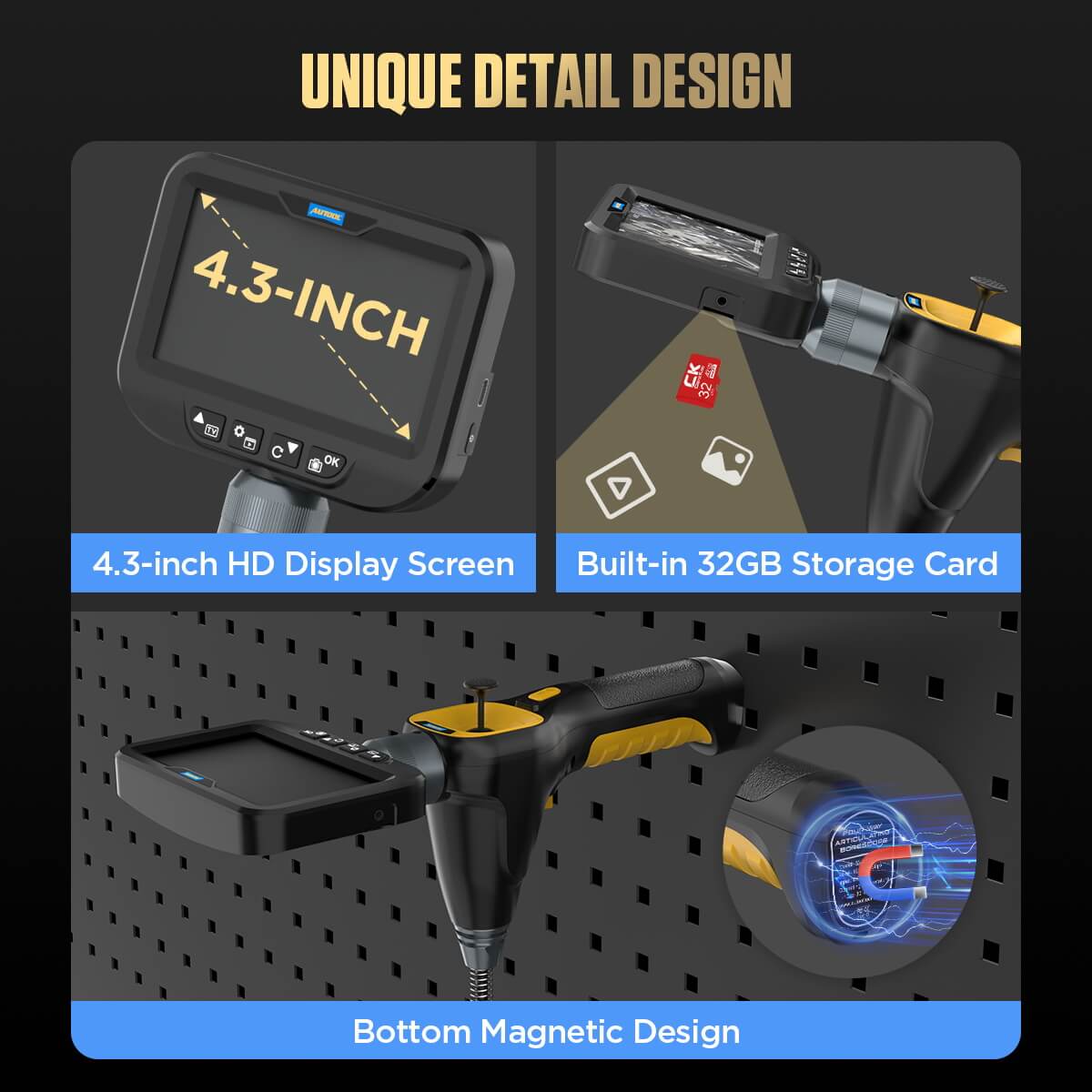

• Magnetic base for hands-free work

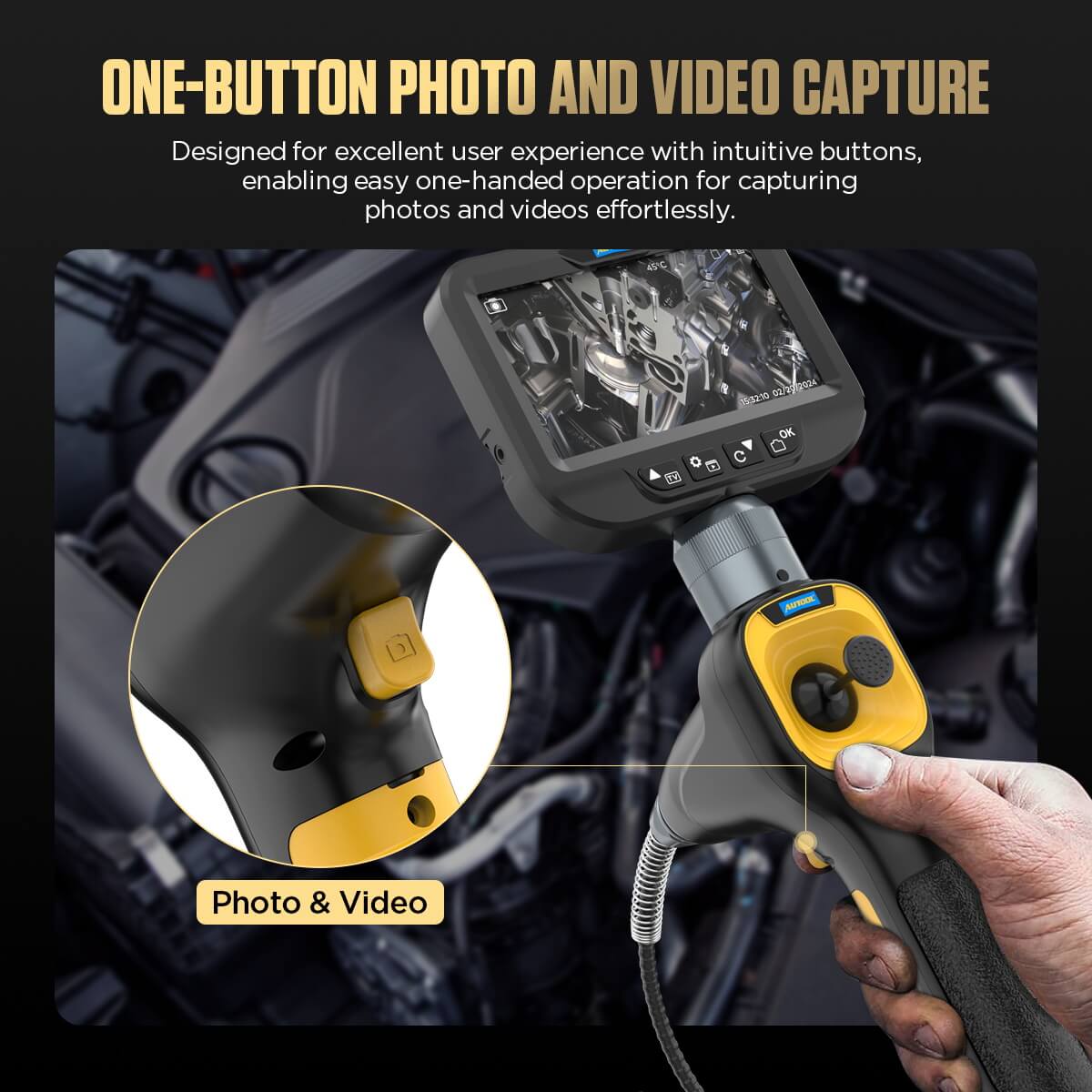

• One-button photo and video capture

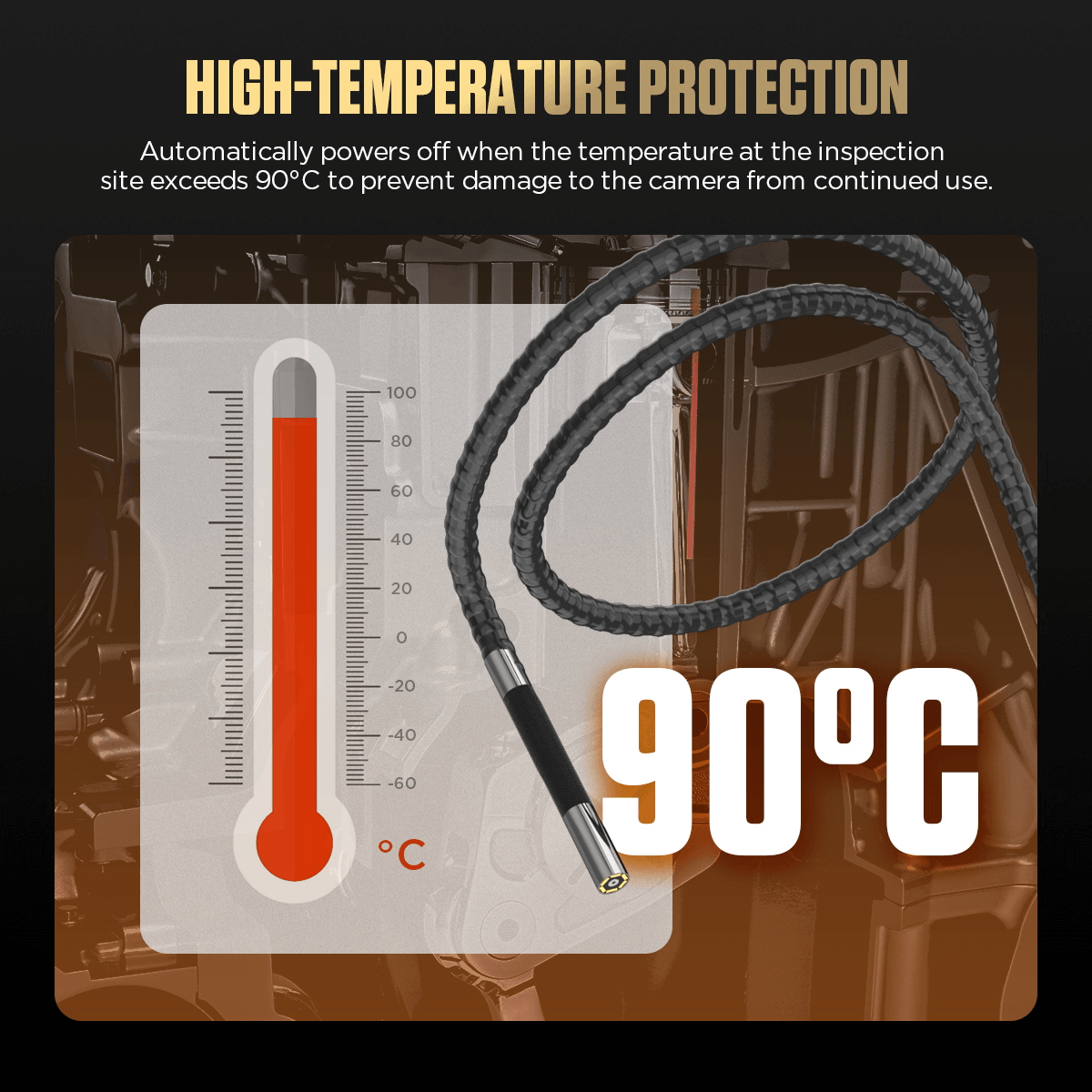

• High-temp protection up to 90°C

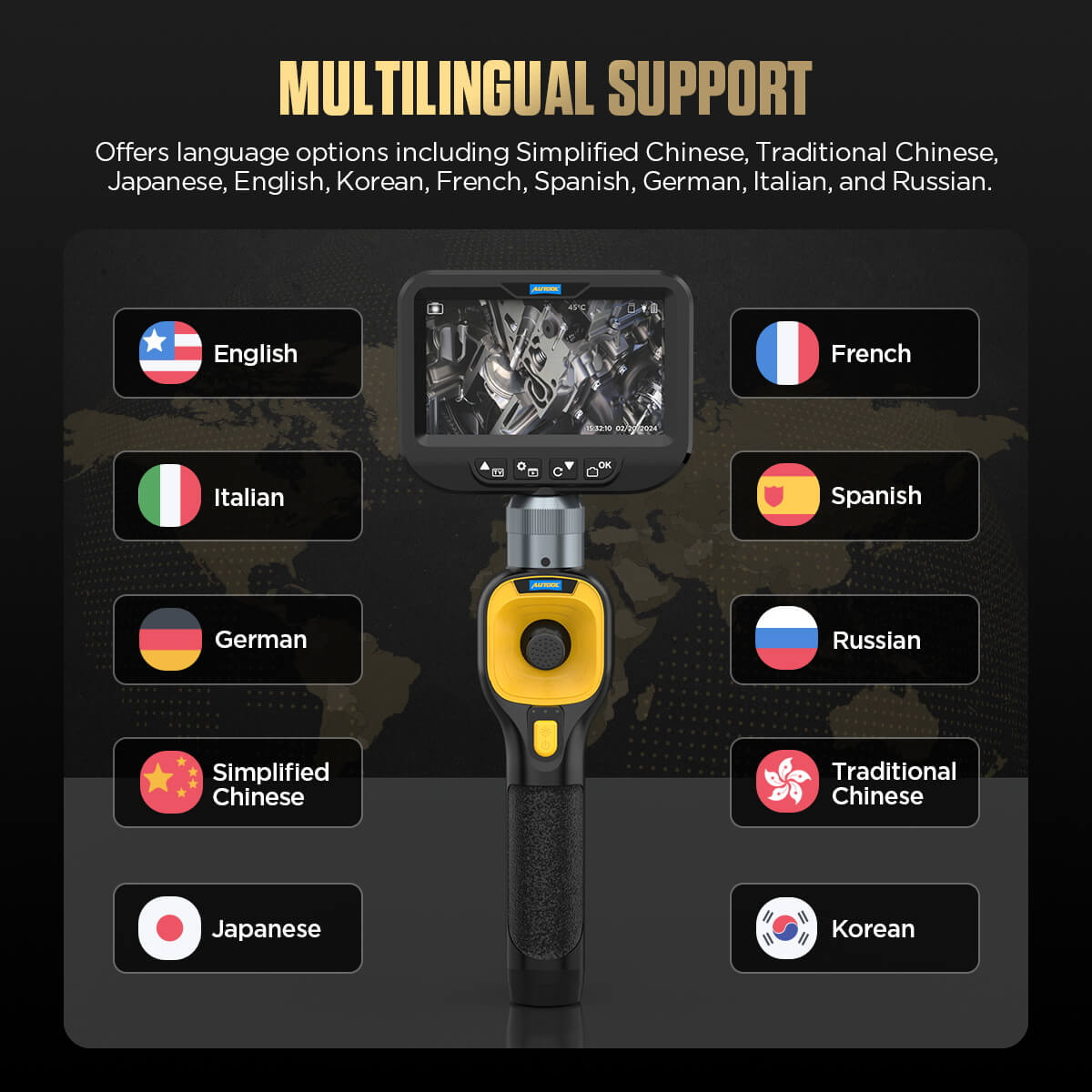

• Menu languages: 8 (EN, FR, DE, IT, ES, RU, CN, JP)

__
Use Cases

• Inspect engines, cylinders, and internal components
• Trace wiring and pipes in confined areas
• Locate clogs or damage in HVAC or plumbing systems
• Capture video and images for diagnostics and reporting
• Routine maintenance in automotive and industrial environments

__

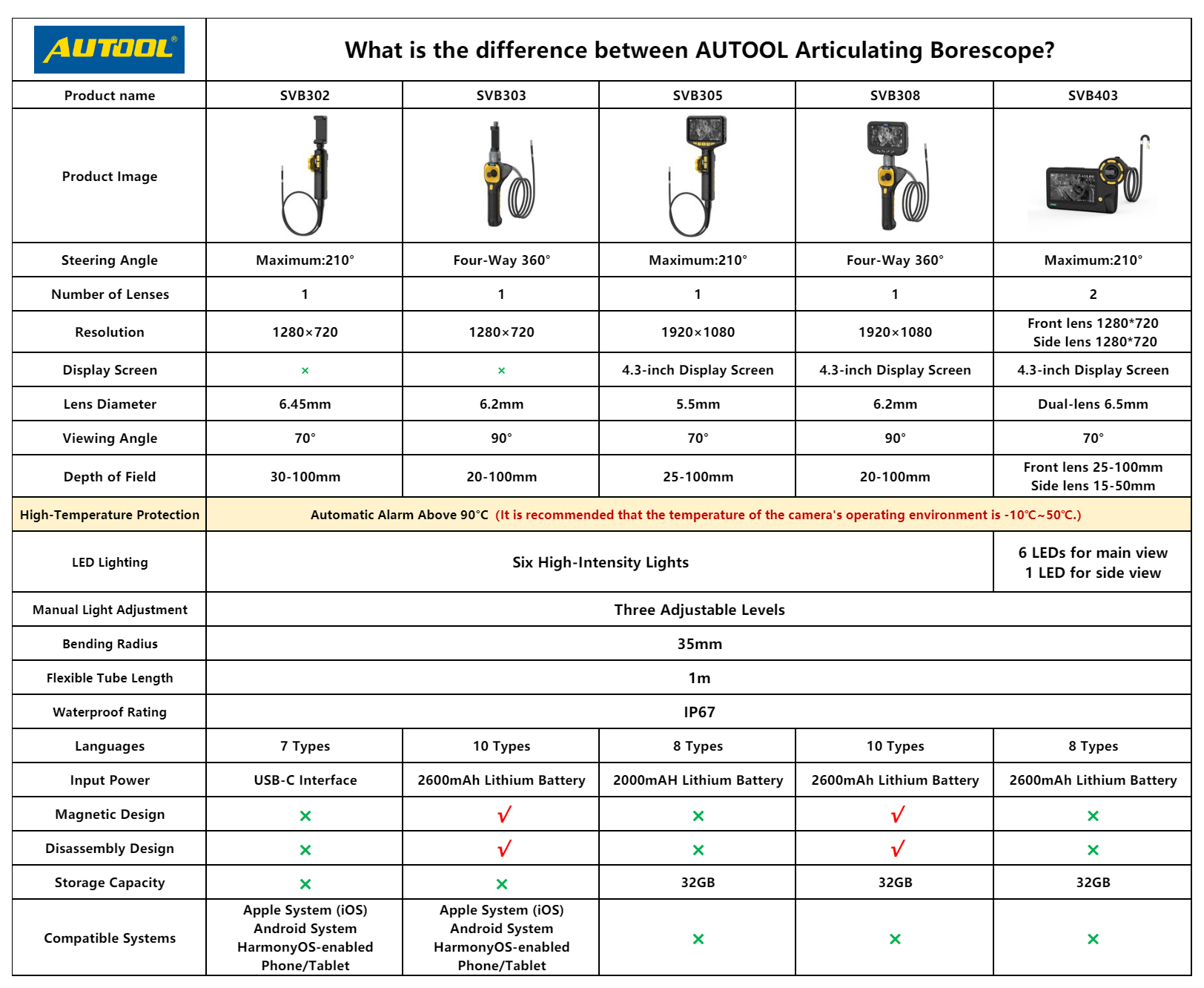

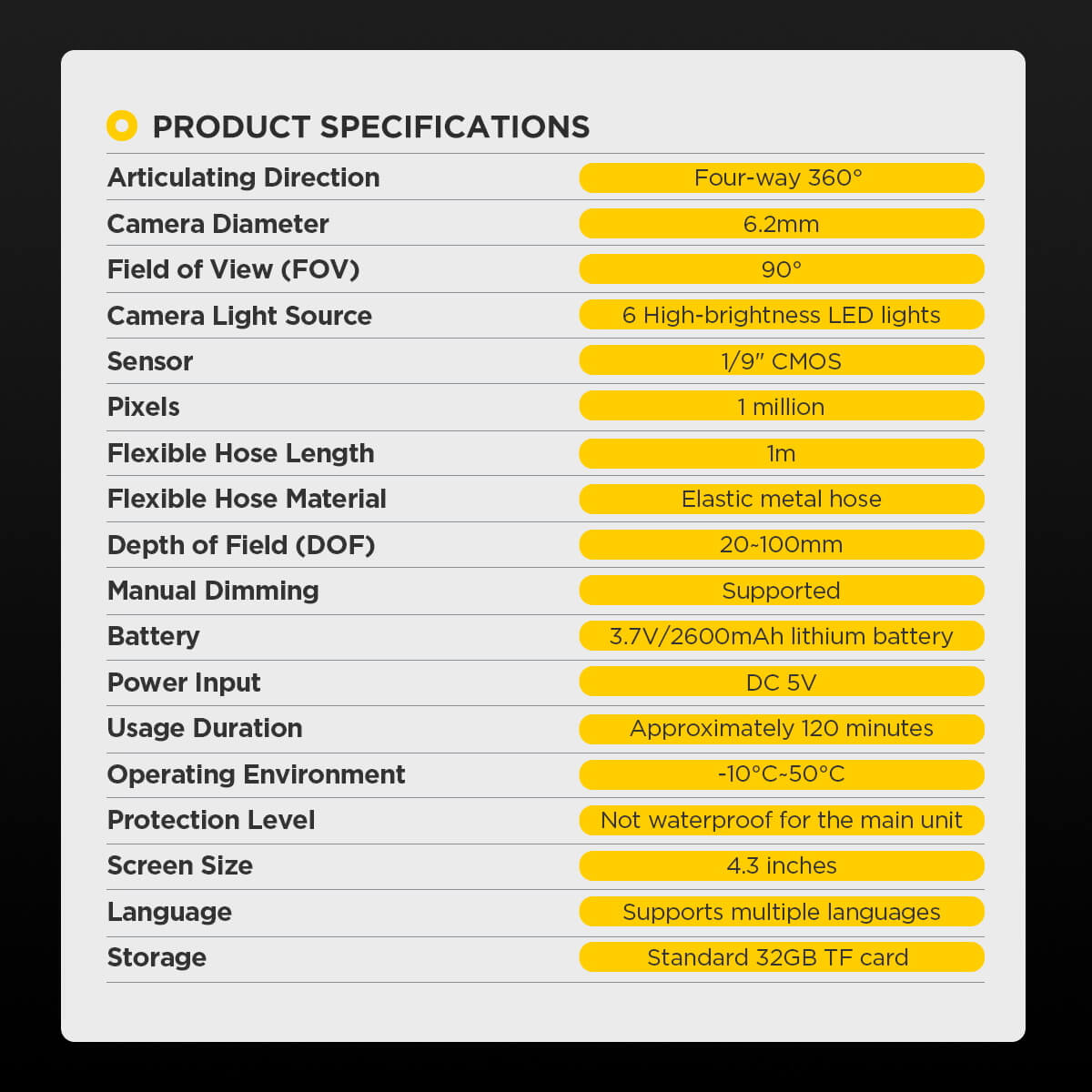

Technical Specs

• Steering Angle: Four-way, 360°
• Resolution: 1920×1080
• Display: 4.3-inch detachable screen
• Lens Diameter: 6.2mm
• Viewing Angle: 90°
• Depth of Field: 20–100mm
• Lighting: 6 LEDs, 3 brightness levels
• Bending Radius: 35mm
• Tube Length: 1m
• Waterproof Rating: IP67
• Battery: 2600mAh lithium, USB-C charging
• Storage: Built-in 32GB
• High Temp Protection: Auto shutdown at 90°C

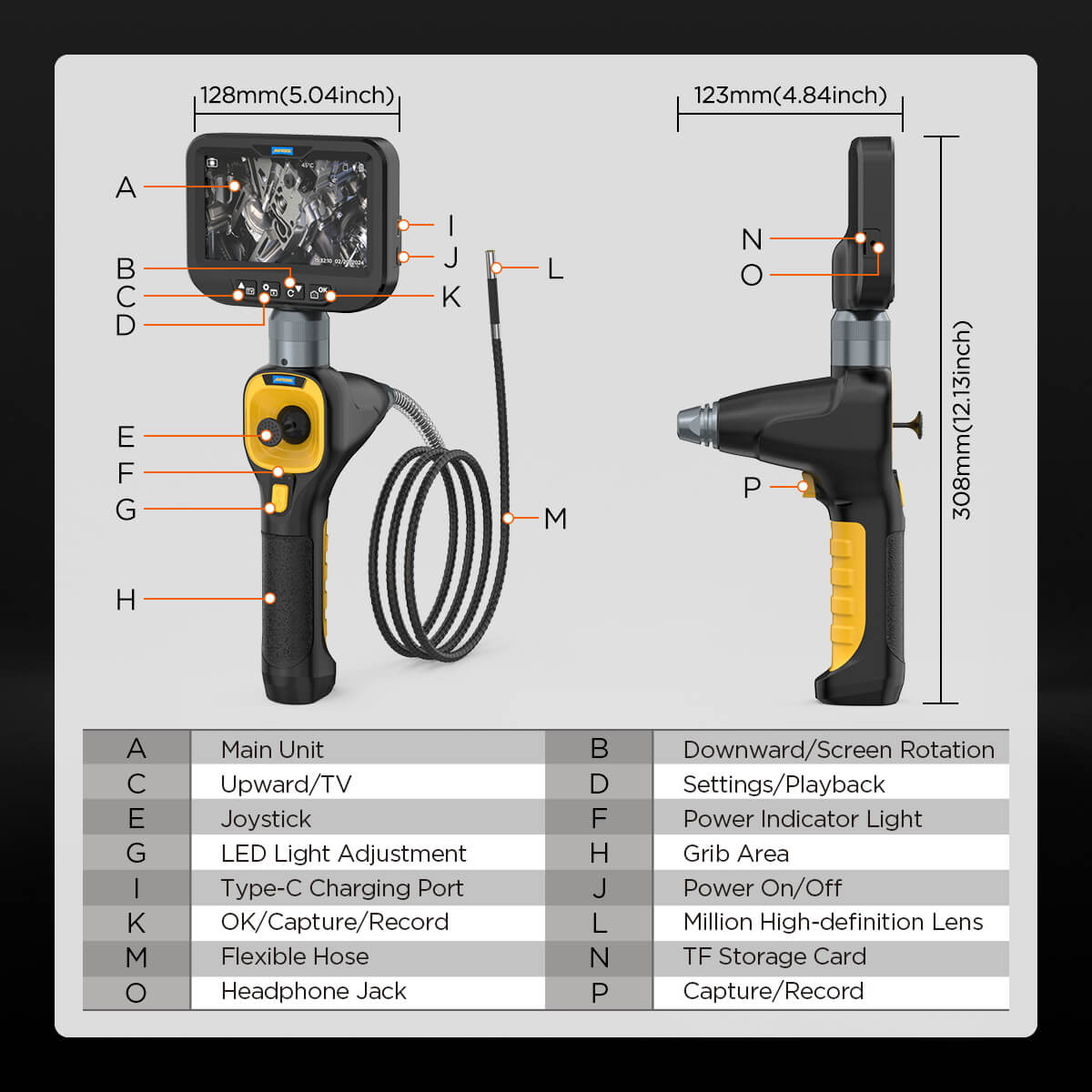

• Product Dimensions: 128mm x 123mm x 308mm (main unit)
• Box Size: 45cm x 25cm x 10cm
• Weight: approx 1.5kg (device), approx 2.4kg gross weight

__
User Manual (PDF)
Download User Manual

__

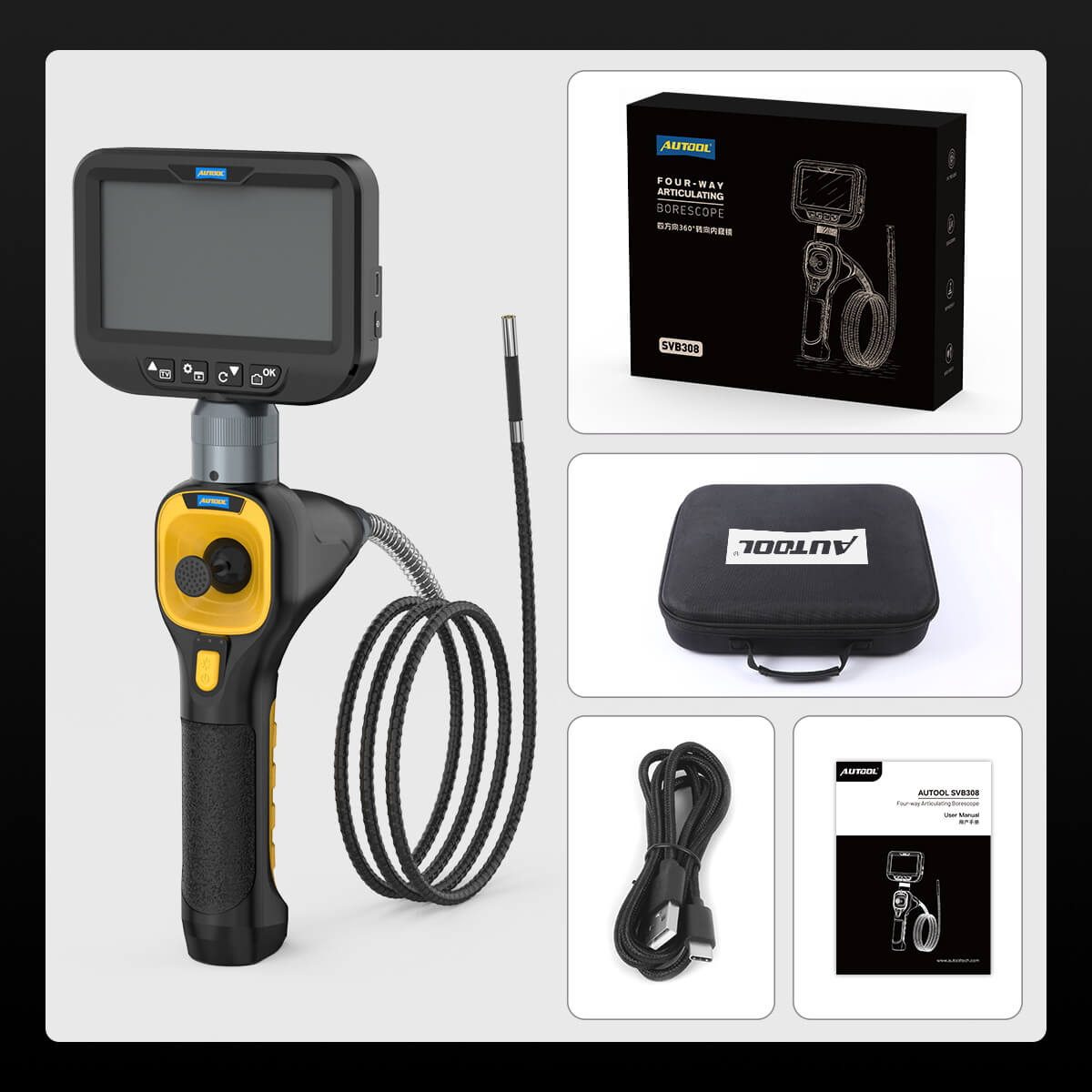

What’s in the Box

• 1x AUTOOL SVB308 borescope
• 1x 4.3-inch display screen
• 1x Type-C charging cable
• 1x User manual
• 1x Carry case
