Xhorse VVDI PROG ECU Programmer

• The Built-in Lifetime Free Update Software: Make VVDIProg firmware update timely.
• High-speed USB communication interface: Make software automatically connect.
• Smart operation mode: Possible causes of error will be listed
• Reserve ports: For future updates.
• The self-test function: Check if the machine works well or not.
• Power Supply: Through USB cable, the software will automatically prompt if the external USB power supply is needed
• Software version: V5.1.0

VVDI PROG Main Functions:

• Support R&W lots of chips include MC9S08 series, MC68HC(9)12 series, MC9S12 series, V850 series, H8X series, R8C series, PCF79XX series
• And most EEPROM chips etc.
• Support chip data verify, check blank function
• Support data file compare function
• Support R&W BMW N20, N55 ECU (show ISN directly)
• Stable R&W MC9S12XE series chips (5M48H/ 1N35H/ 2M53J/ 3M25J etc.)
• Support renew PCF79XX remote, currently support BMW E/F series (Please Note PCF79XX adapter is optional)
• Lots of connection diagram

VVDI Prog Programmer Supported Type List:

Memory:
ATMEL, CATALYST, EXEL, FAIRCHILD, INTEL, MICROCHIP, MITSUBISHI, ST, TOSHIBA, XICOR

MCU:
RENESAS V850, RENESAS H8X, RENESAS R8C, MOTOROLA MC68HC(9)08, MOTOROLA MC68HC(9)12
MOTOROLA MC9S08, MOTOROLA MC9S12, NXP PCF79XX, ST ST10F, INFINEON XC2XXX, ATMEL, ATMEGA XXXX, INFINEON XC164CS, MICROCHIP PIC18F

VVDI Prog Programmer Support Model List:

ECU List:
BMW E Series, BMW F Series, BOMBARDIER, CHANGAN, DELPHI, MAGNETI, MARELLI, RENAULT, OTHER

IMMOBILIZER List:
AUDI, BENZ, BMW, BUICK, CHEVROLET, STEC, CHRYSLER, FIAT, FORD, GREATWALL, INFINITI, LAND ROVER, JAGUAR, NISSAN, OPEL, PORSCHE, RENAULT, SAICMOTOR, VOLKSWAGEN, ZHONGHUA.

DASHBOARD List:
BUICK, CHANGAN, CHERY, CHEVROLET, DONGFENG, FAW, FORD, GEELY, GREATWALL, HAFEI, TOYOTA, HANTENG, HAIMA, HONDA, JAC, JAGUAR, JINBEI, JMC, LUXGEN, NISSAN, SGMW, VOLVO, ZHONGHUA, ZOTYE

REMOTE List:
BMW E Series, BMW F Series

Supported Chip List:

EEPROM

Note: R means the type is supported, ￡ means the type will be supported in the future.

MCU

Note: R means the type is supported ￡ means the type will be supported in the future.

ECU

Note: R means the type is supported ￡ means the type will be supported in the future.

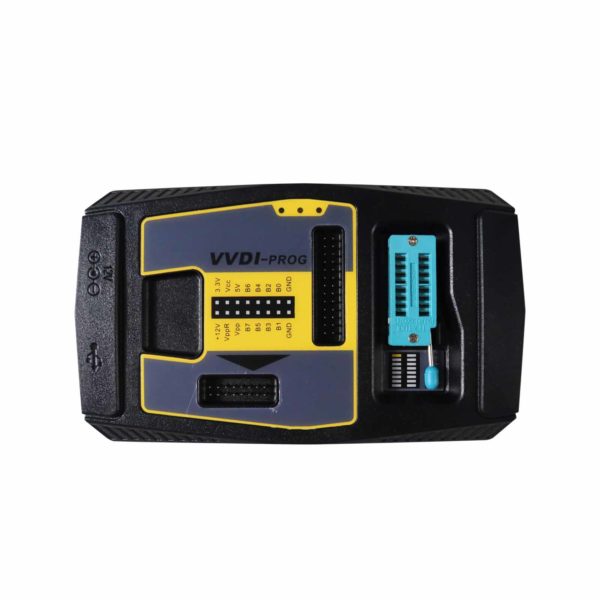

VVDI Prog Programmer Unit Description:

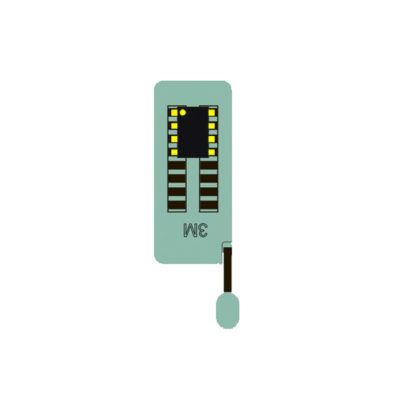

1.16 Pin DIP socket Function:
Read EEPROM chips Use method: Follow the image direction when inserting the DIP chip (PIN1 as yellow point show as the picture); SOP chip need soldering on 16Pin adaptor first, then insert the chip follow the image direction.

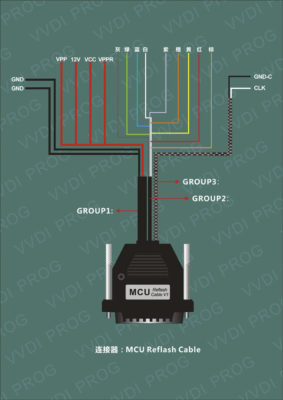

2. MCU Reflash Cable

Function: Read & Write MC68HC(9)12, V850, H8X, R5C series chips,current version is V2

Use method: Soldering the line on pin of the chip before read & write
Notes:
(1) Please check all connection lines, ensure correct and reliable connection
(2) Please don’t lengthen CLK and GND-C line, maybe cause read data failed.

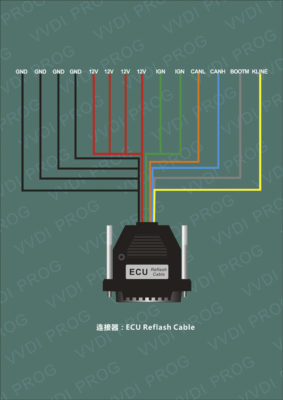

3. ECU Reflash Cable
Function: Read & Write engine ECU
Use method: Connect the ECU and R&W
Notes: Please check all connection lines, ensure correct and reliable connection

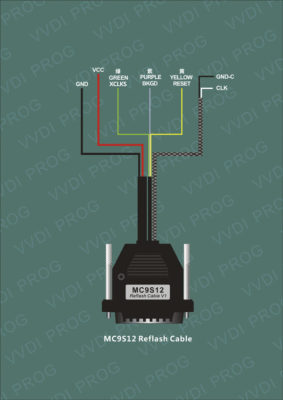

4. MC9S12 Reflash Cable
Function: Read & Write MC9S08, MC9S12 series chips, current version is V1
Use method: Soldering the line on pin of the chip before read & write
Notes:
(1) Please check all connection lines, ensure correct and reliable connection.
(2) Please Don’t lengthen CLK and GND-C line, maybe cause read data failed.

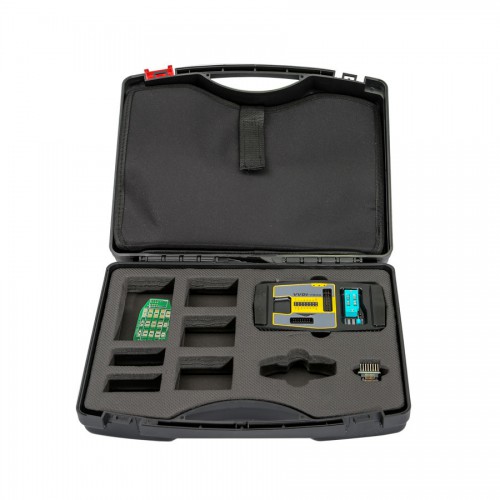

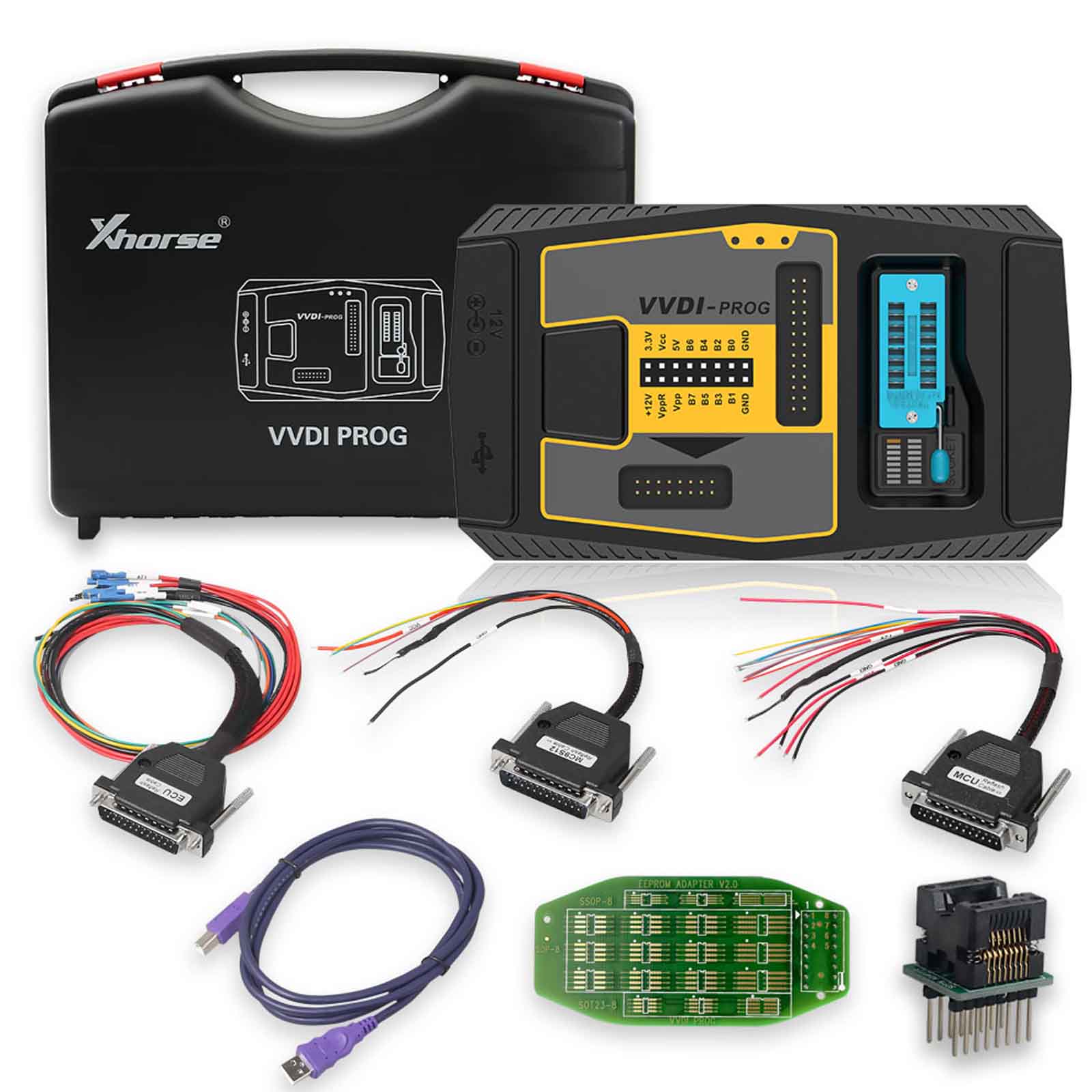

Packing List:

https://youtu.be/Xz1Cd6WsG3I
